Product Description

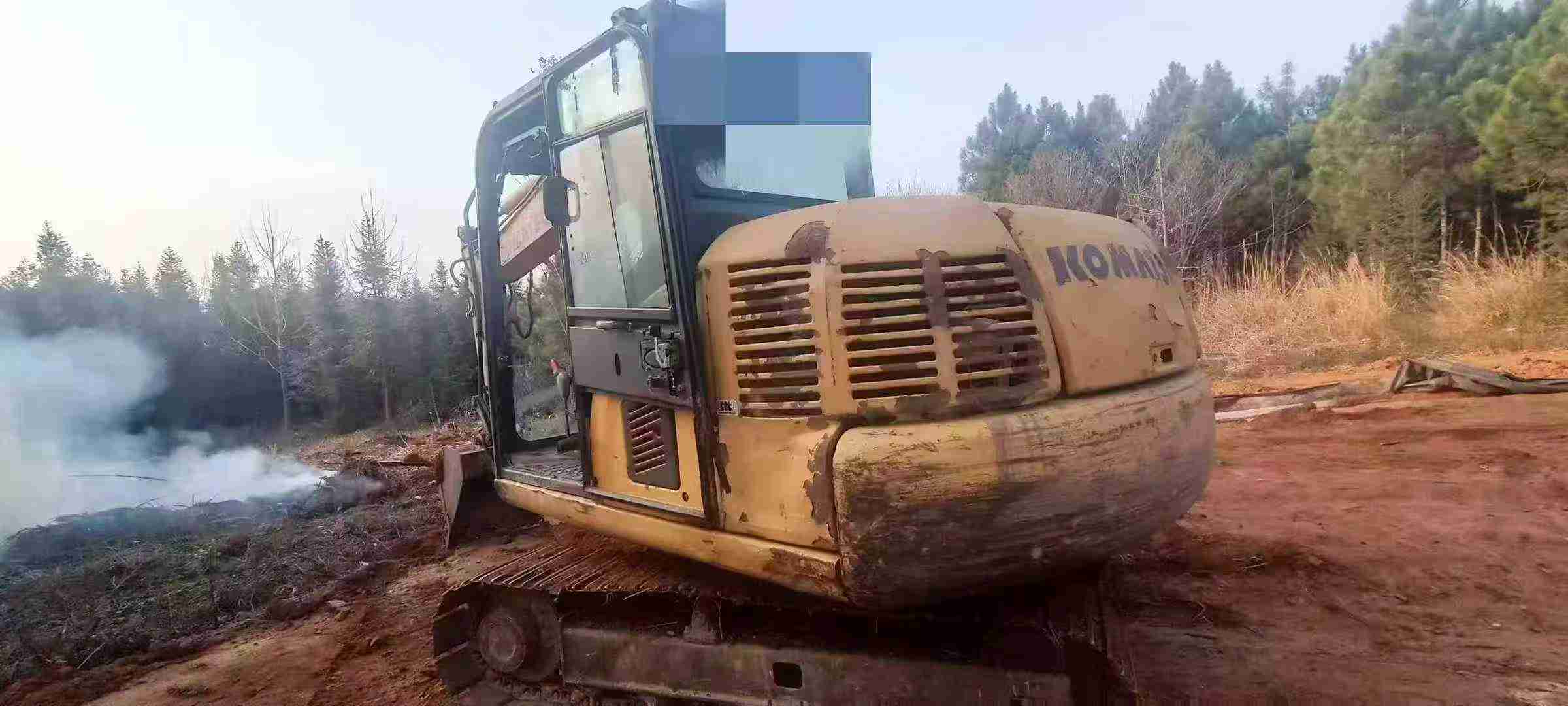

Built for endurance, this 2016 Komatsu PC70-8 excavator demonstrates exceptional longevity with nearly a decade of proven performance. Weighing 6,500kg with a 7-ton operating capacity, this compact powerhouse delivers reliable productivity across diverse job sites.

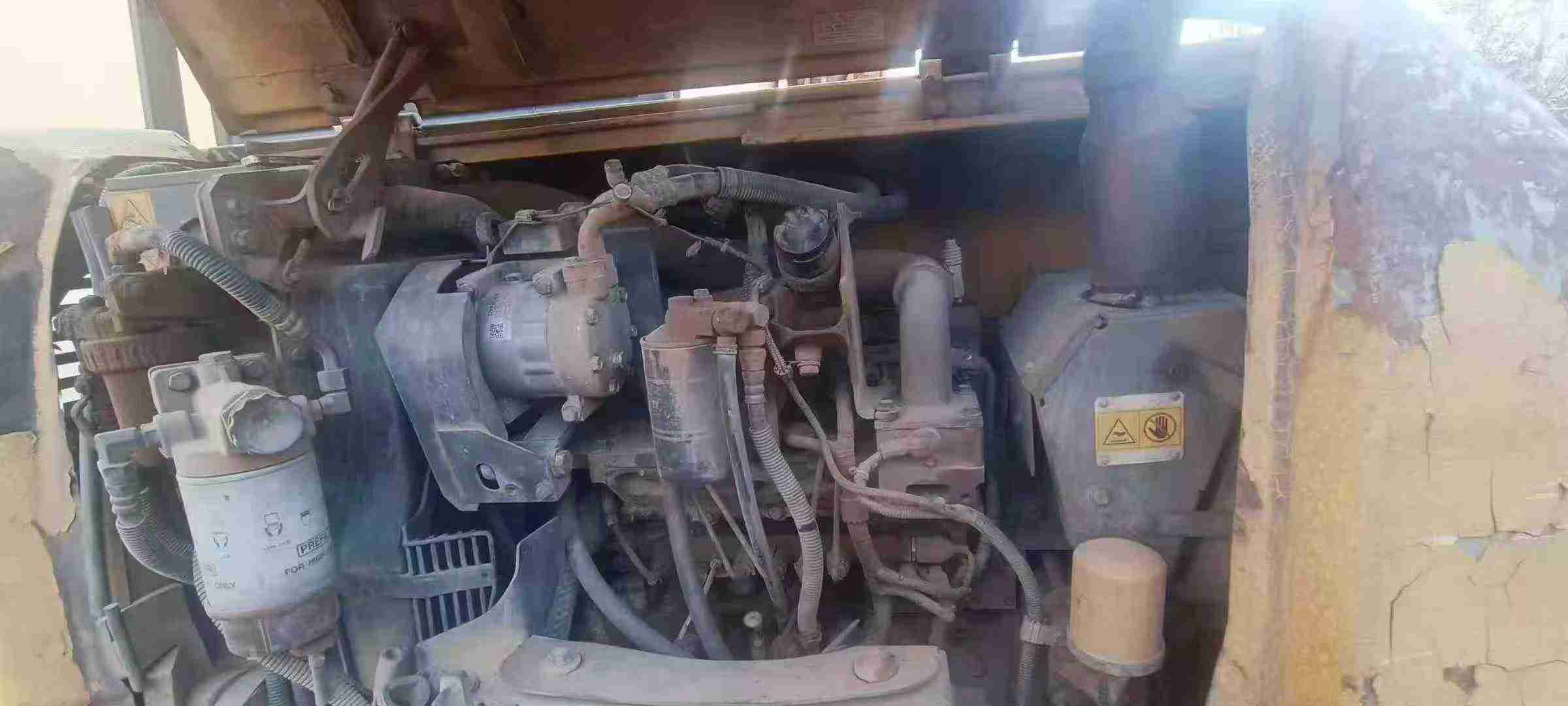

Powered by the robust Komatsu SAA4D95LE-5 engine producing 48.5kW at 1950rpm, this machine combines efficiency with dependable operation. Key performance specifications include:
- Maximum digging depth: 4,100mm with 54.8kN bucket digging force
- Working radius extends to 6,360mm for versatile reach
- Variable piston pump hydraulic system delivering 172 l/min flow
- Compact transport dimensions: 6,080mm length × 2,225mm width
Currently located in Luzhou, Sichuan, this proven workhorse represents solid value for contractors seeking dependable excavation capability. After years of service, Komatsu's engineering excellence continues to deliver consistent performance, making this PC70-8 an intelligent choice for operations requiring trusted reliability over flashy features.
| Specifications | Value |
|---|---|
| No. | 990121 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6500 |
| Bucket capacity (m³) | 0.32-0.39 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 48.5/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95*115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 30.2 |
| Rotation speed (rpm) | 11 |
| Bucket digging force (kN) | 54.8 |
| Rod digging force (kN) | 38.2 |
| Maximum tractive force (kN) | 56.4 |
| Travel speed (km/h) | 4.5/2.8 |
| Maximum flow of main pump (l/min) | 172 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 21.1 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 2.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90*710 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100*865 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115*840 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 95 |
| Engine Oil changes (L) | 12.5 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2225 |
| Total transport height (mm) | 2620 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2150 |
| Track ground length (mm) | 2130 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6360 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5015 |
| Maximum vertical digging depth (mm) | 3505 |
| Maximum excavation radius of stop surface (mm) | 6220 |
