Product Description
Built for demanding construction environments, this 2016 Sany SY215W wheeled excavator delivers exceptional operator control and jobsite mobility. With 21.5 tons of working weight and a robust Isuzu 4HK1 engine producing 128.4kW, operators benefit from reliable power delivery across varied terrain conditions.
Key operational advantages include:
- Superior cabin visibility for precise material handling and safety awareness
- Stable 21,500kg platform ensuring consistent performance on uneven surfaces
- Responsive hydraulic system with 117.5kN bucket digging force for efficient excavation
- 38km/h road speed capability enabling rapid site-to-site transitions
- 35° climbing ability handling challenging grade conditions

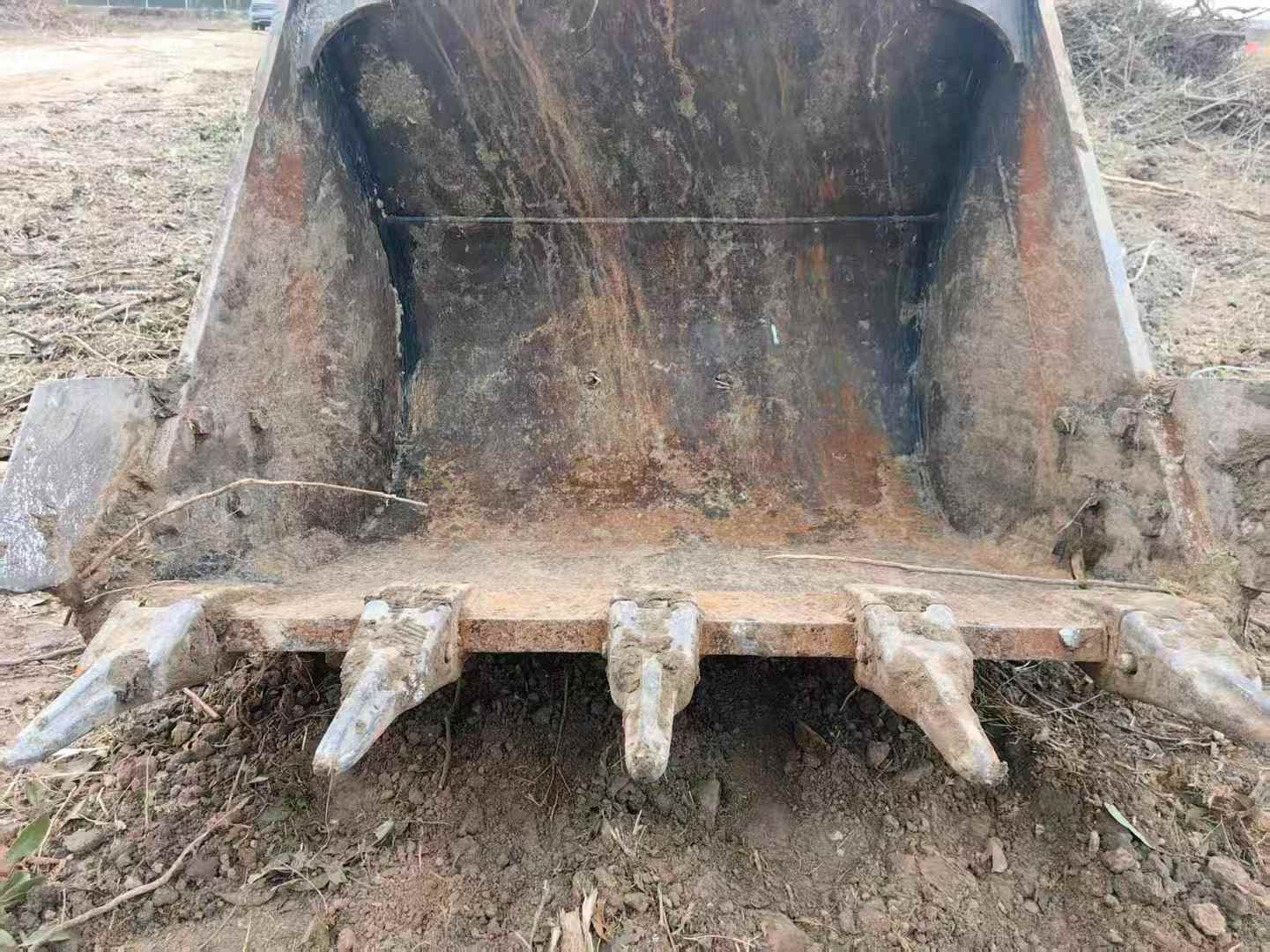

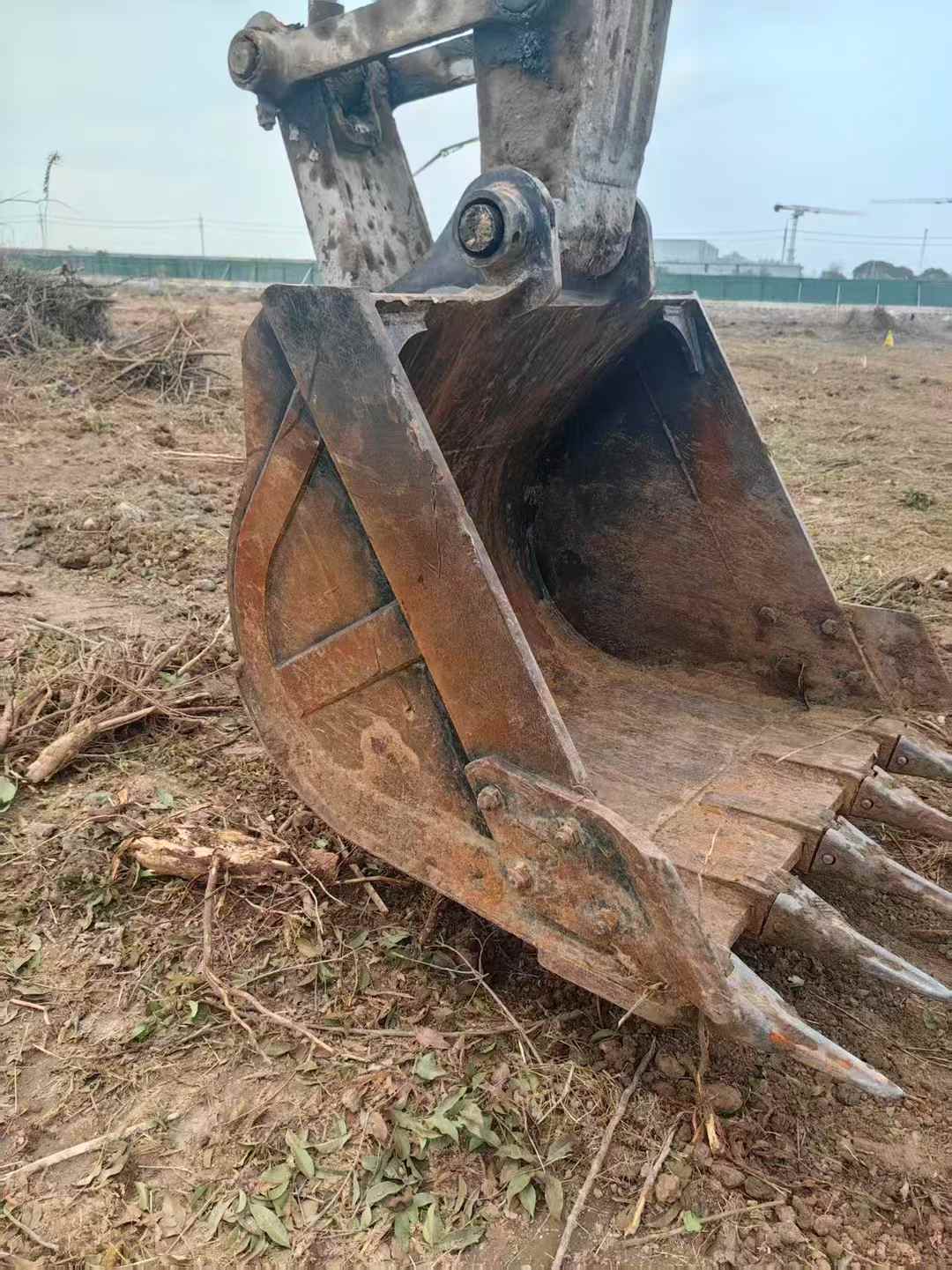

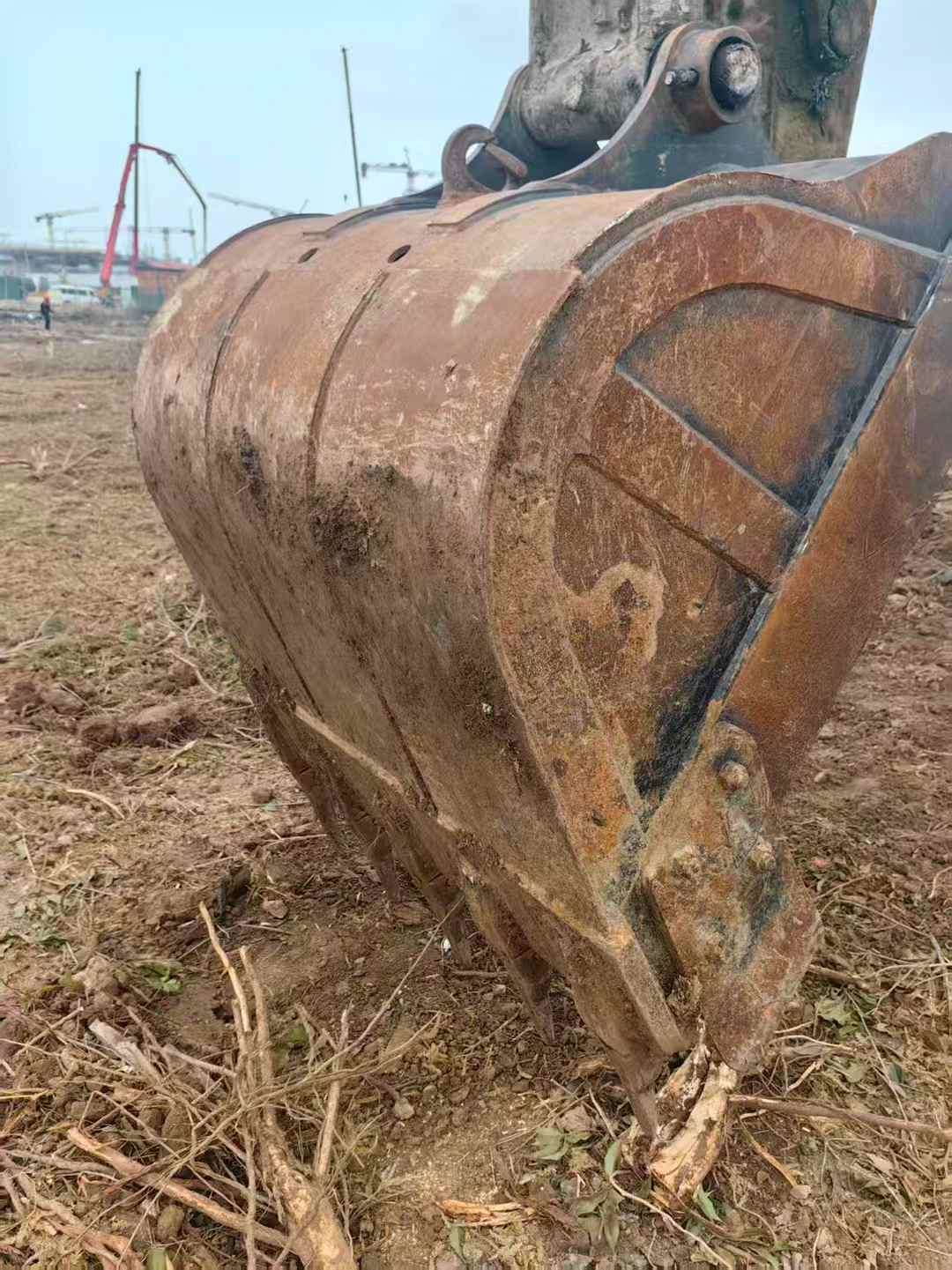

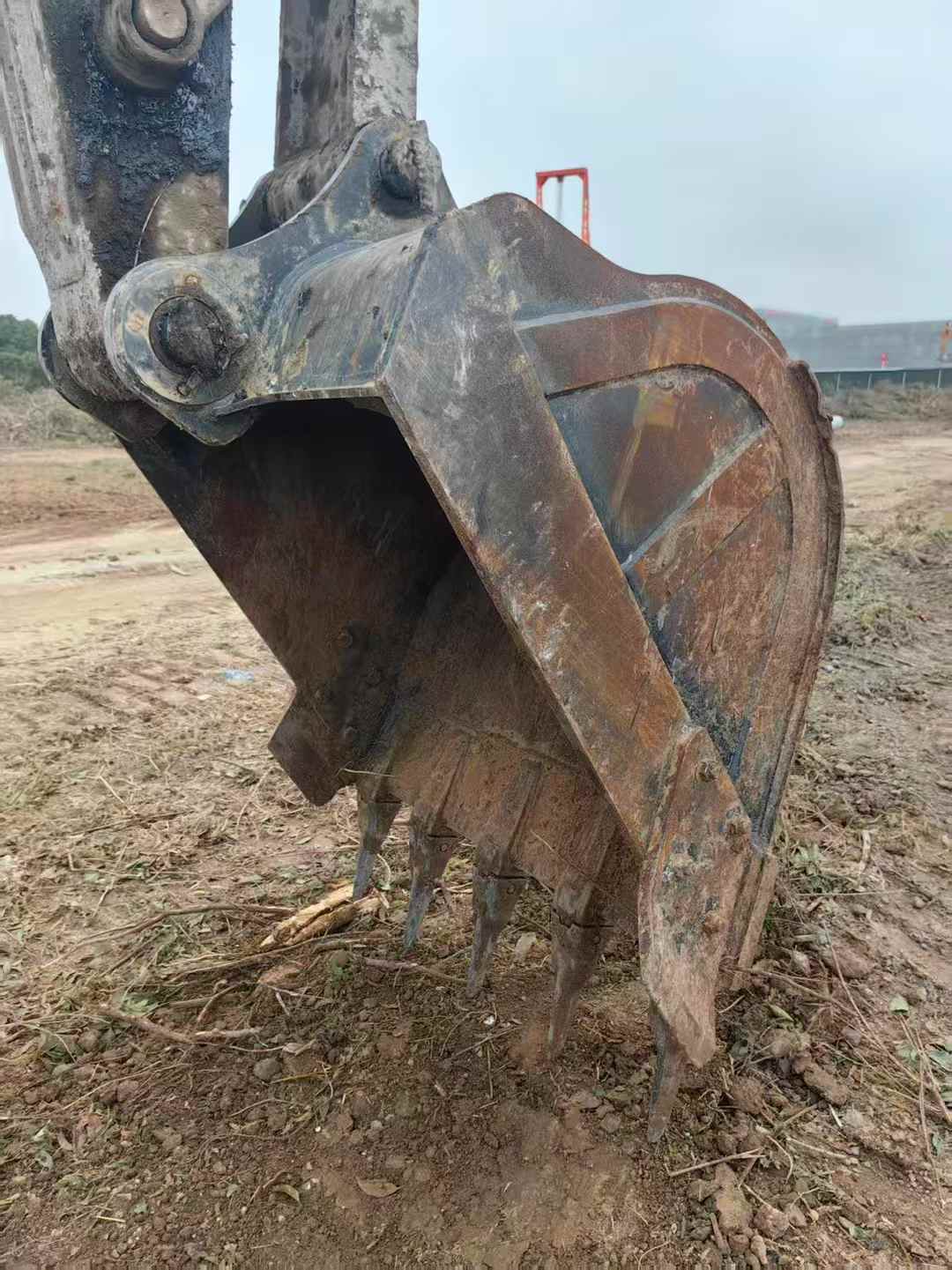

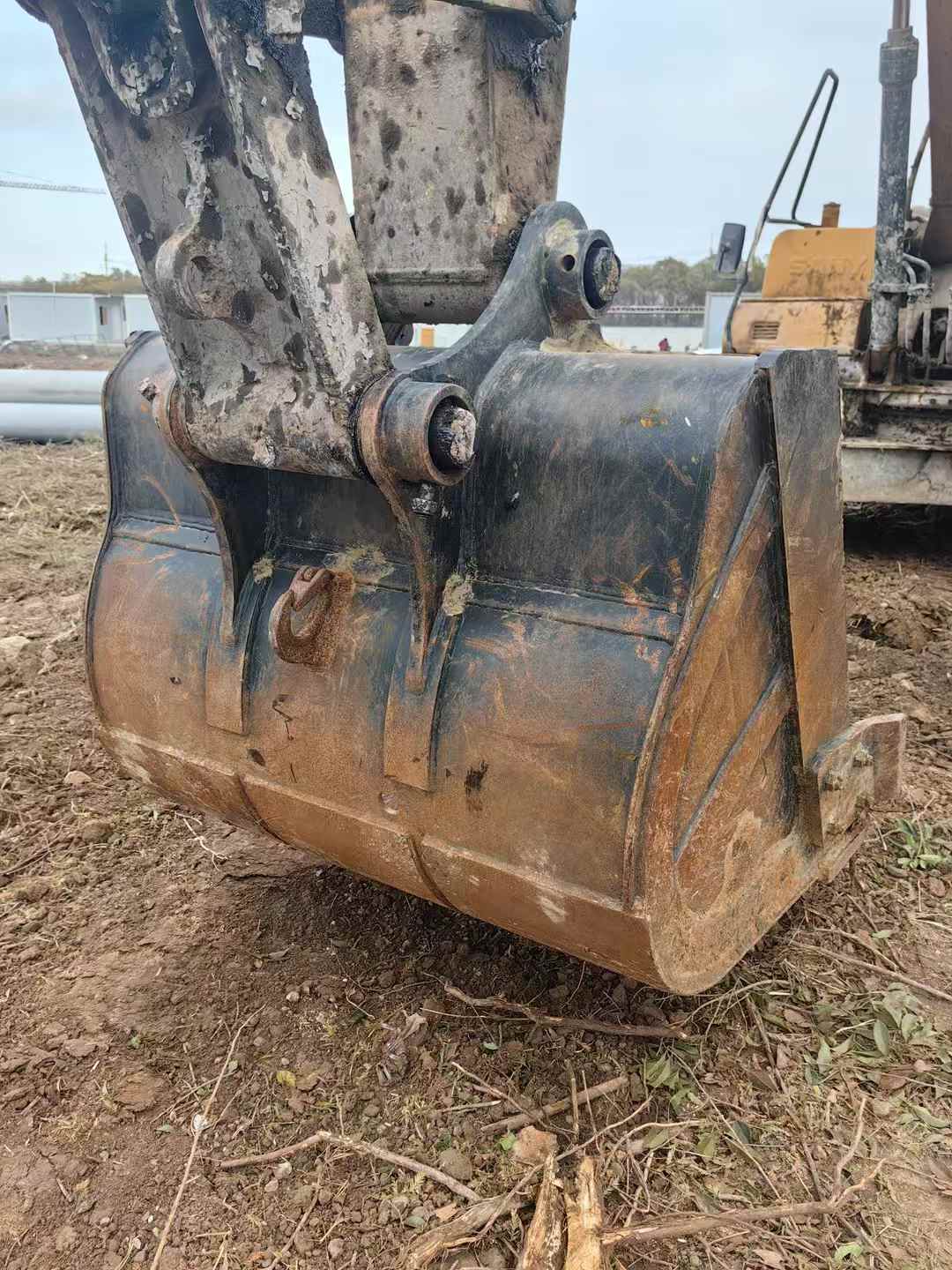

Located in Shanghai, this machine features a 0.93m³ backhoe bucket configuration ideal for utility work and general excavation. The 400L fuel capacity supports extended operational periods, while the proven Isuzu powerplant ensures dependable performance. Operators will appreciate the enhanced stability and control characteristics that define this model's reputation in the Chinese construction market.
| Specifications | Value |
|---|---|
| No. | 991068 |
| Tonnage (tons) | 21.5 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu 4HK1 |
| Rated power (kw/rpm) | 128.4/2000 |
| Total displacement (L) | 5.193 |
| Maximum torque (N.m) | 670/1600 |
| Forward speed (Km/h) | 38/10 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 117.5 |
| Rod digging force (kN) | 102.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 230 |
| Engine Oil changes (L) | 20 |
