Product Description
Engineered with precision, this 2019 Sany SY245H delivers exceptional performance through its robust D06FRC engine generating 147kW at 2100 RPM. Advanced hydraulic systems provide 175kN bucket digging force and 120kN rod digging force, ensuring superior excavation capabilities across demanding job sites.
Built on Sany's proven engineering platform, this 24-ton excavator features a 1.5m³ bucket capacity and water-cooled 6-cylinder engine with 750 N·m maximum torque. Technical specifications include 10225mm maximum digging radius, 6705mm maximum digging depth, and efficient 5.4km/h travel speed for optimal productivity.
- 25,500kg working weight with 53.2kPa ground pressure distribution
- 475L fuel tank and 277L hydraulic tank for extended operation
- 70% climbing ability and 3800mm minimum turning radius
- Comprehensive track system: 600mm plate width, 3640mm ground contact length
Currently located in Hangzhou, Zhejiang, this machine represents Sany's commitment to manufacturing excellence and operational reliability in heavy construction equipment.
| Specifications | Value |
|---|---|
| No. | 987388 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

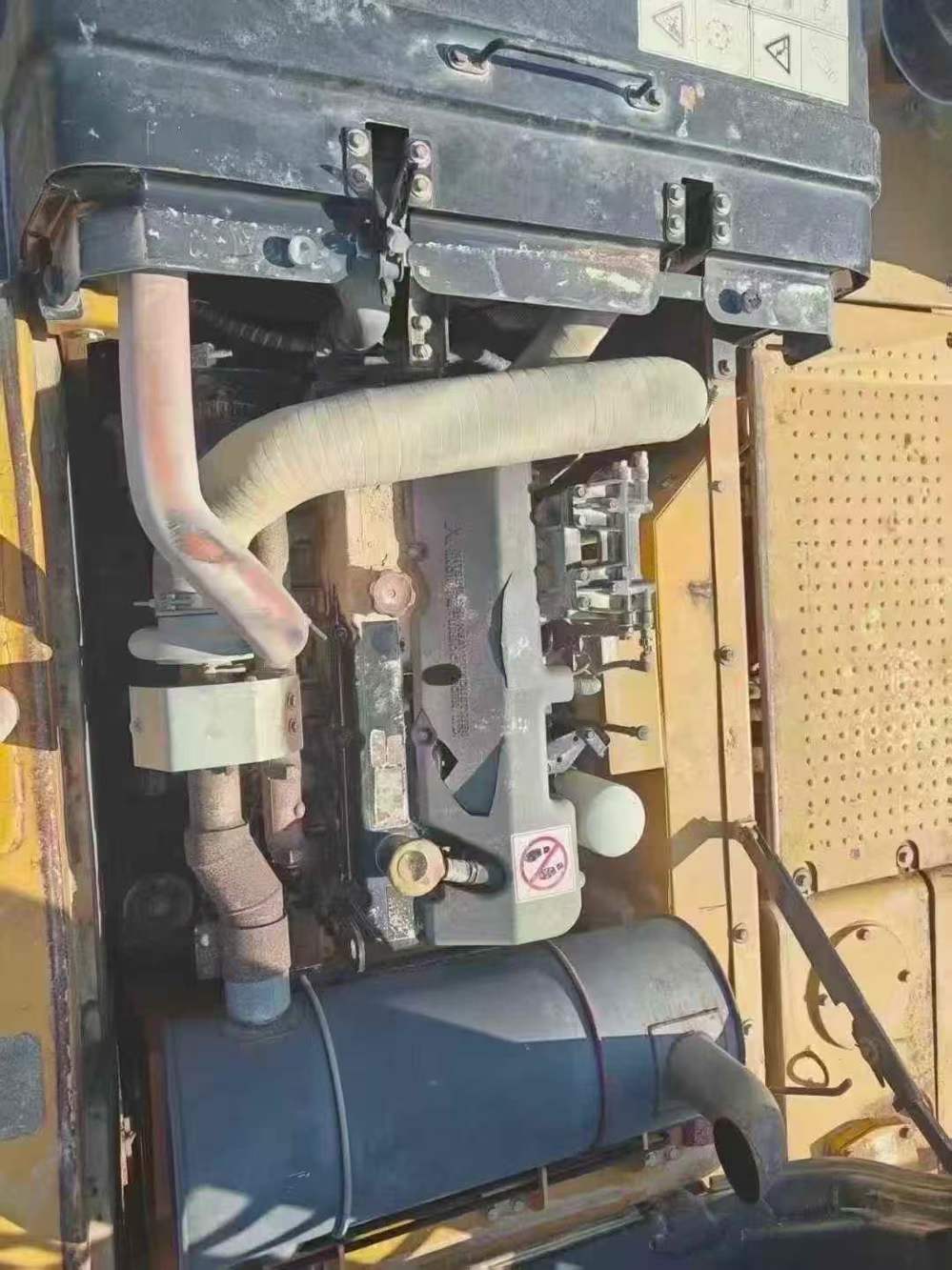

| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
