Product Description

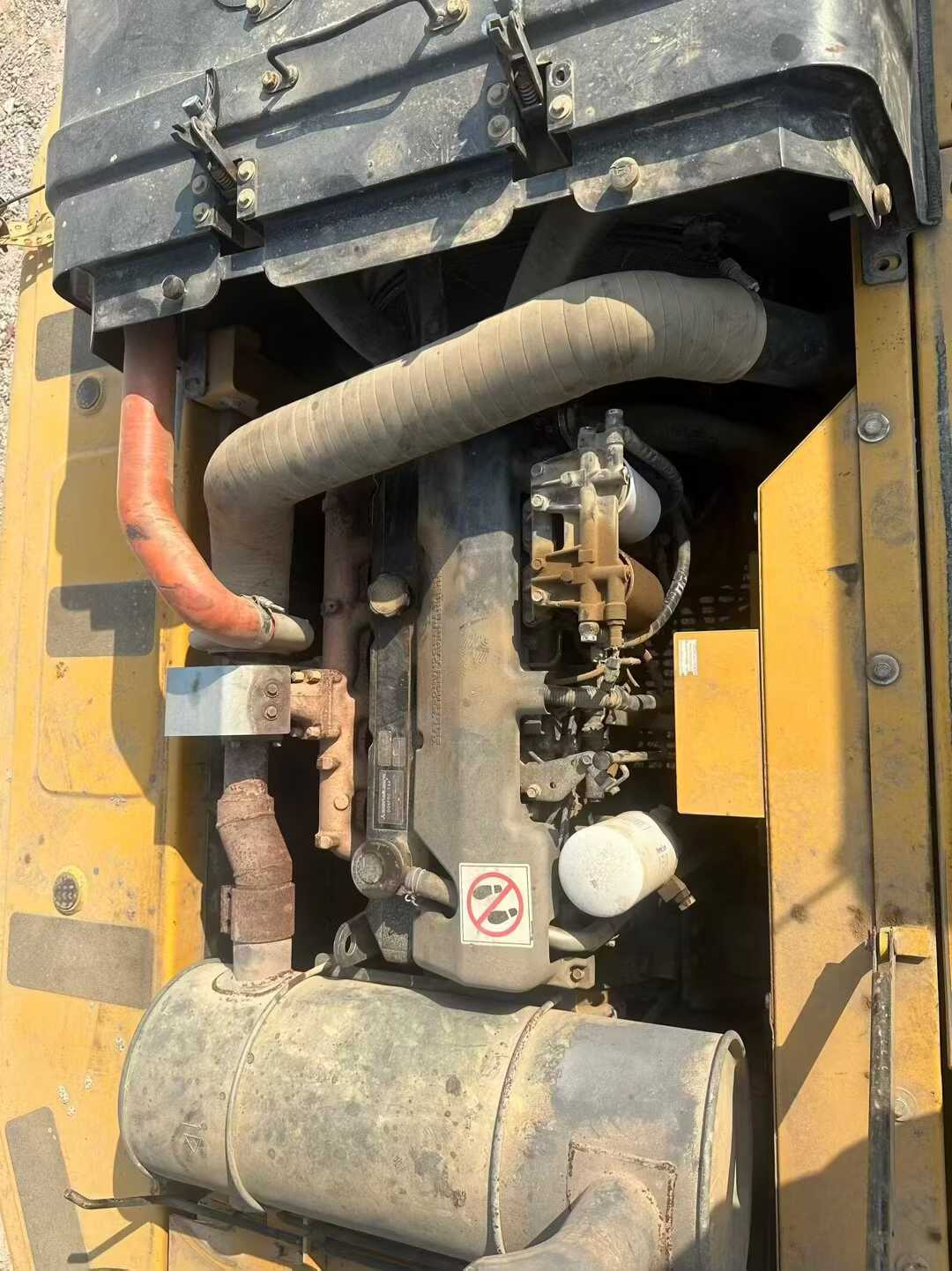

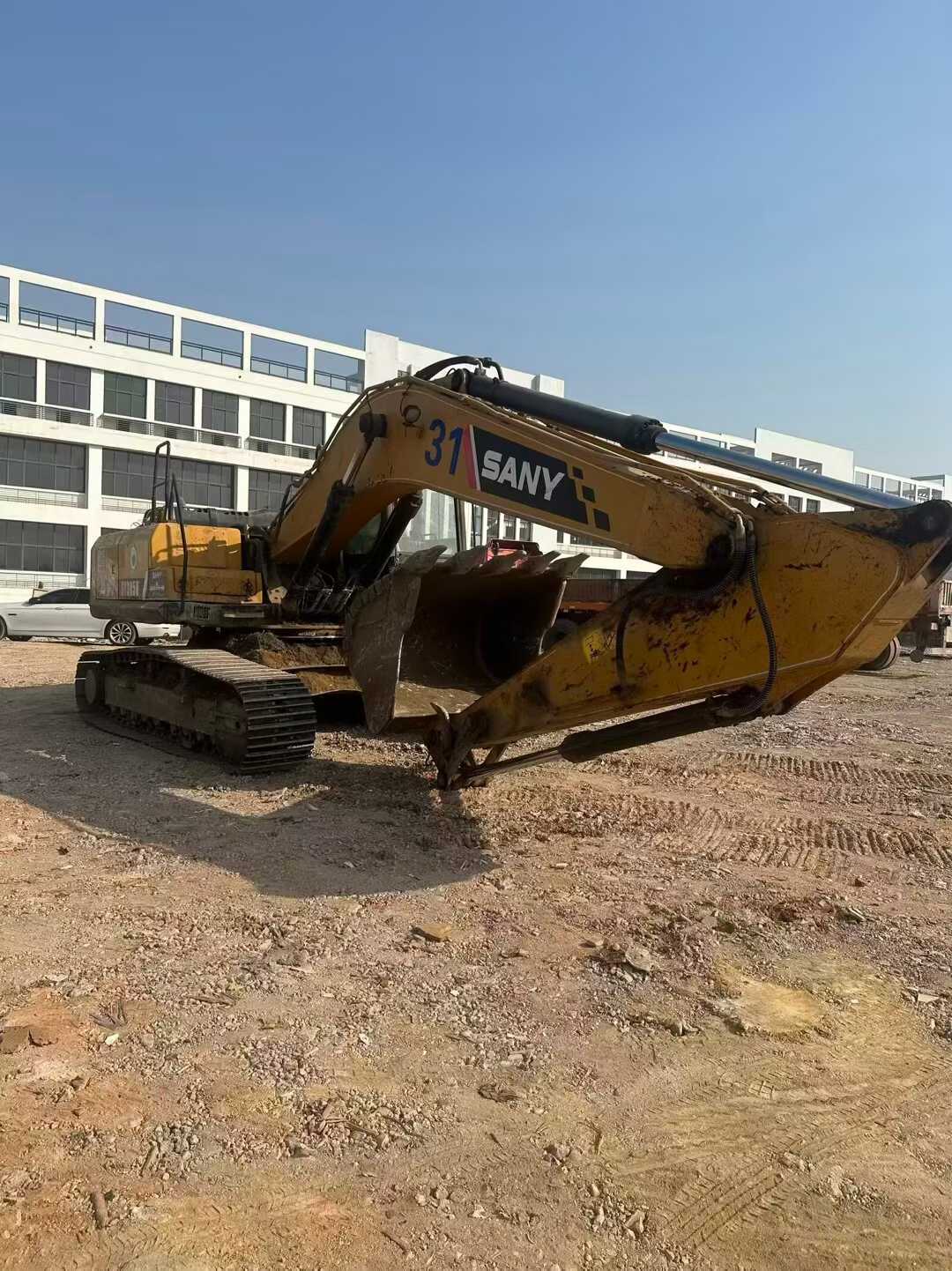

Powered by a robust D06FRC engine delivering 147kW at 2100 rpm, this 2019 Sany SY245H excavator combines proven hydraulic technology with industrial-grade performance. The 6-cylinder, water-cooled powerplant generates 750 N.m maximum torque, driving advanced hydraulic systems that produce 175kN bucket digging force and 120kN rod digging force.
Engineering excellence defines the SY245H series through its 25,500kg operating weight and optimized 1.5m³ bucket capacity configuration. With 10,225mm maximum digging radius and 6,705mm maximum digging depth, this machine handles demanding excavation tasks across construction and infrastructure projects.
- 24-ton class excavator with proven Sany engineering
- 475L fuel capacity for extended operation cycles
- 53.2 kPa ground pressure minimizes surface damage
- 70% climbing ability for challenging terrain
- Located in Fujian Putian for immediate inspection
Built for contractors requiring reliable performance and operational efficiency, this SY245H represents solid value in the mid-size excavator segment.
| Specifications | Value |
|---|---|
| No. | 989478 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
