Product Description

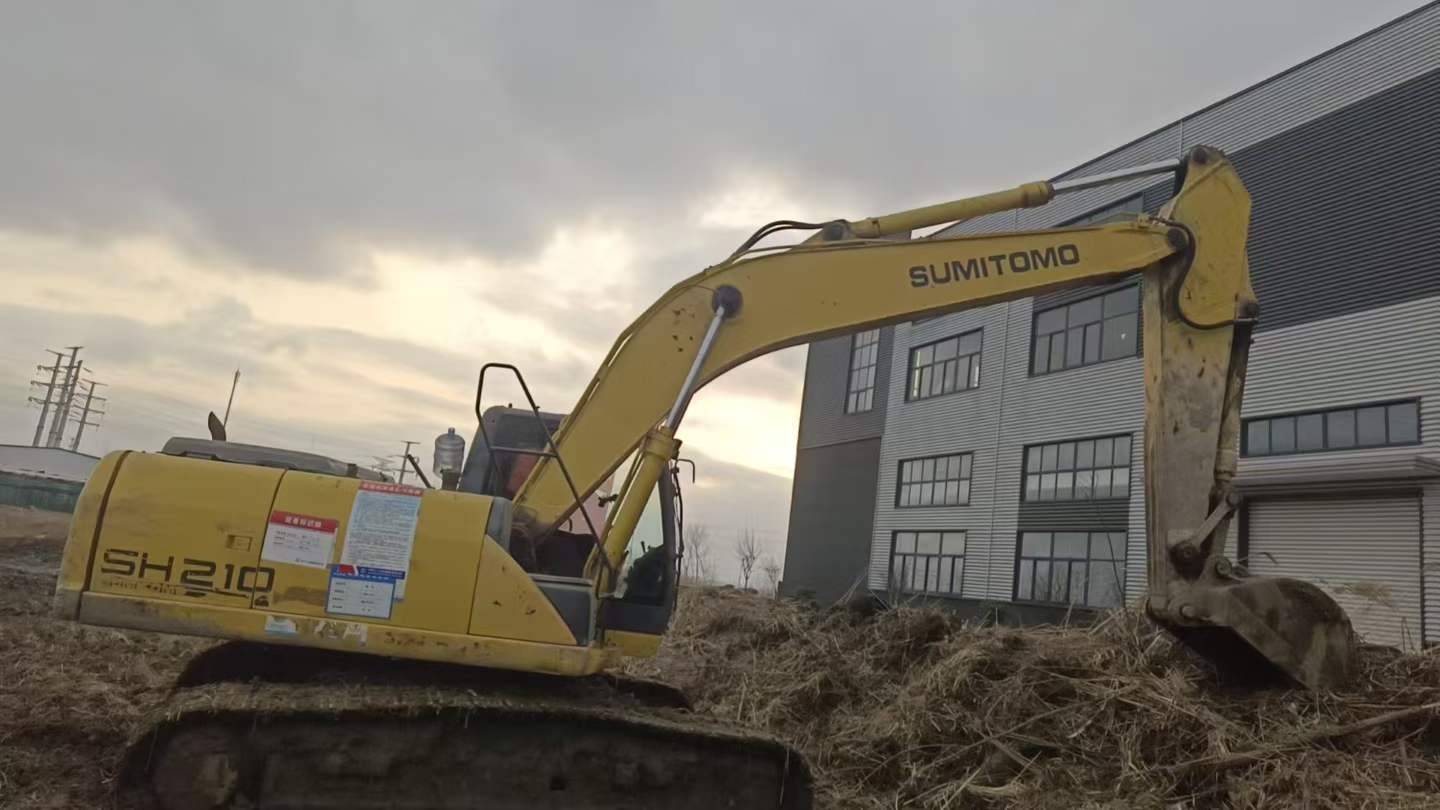

Engineered with precision hydraulics and a robust 117.3kW engine, this 2012 Sumitomo SH210-5 excavator delivers exceptional performance in demanding construction environments. Built on Sumitomo's proven SH210 platform, this 21-ton machine combines advanced Japanese engineering with reliable operational capabilities.
Key technical specifications include:
- Powerful 117.3kW/1800rpm engine with 5.193L displacement for consistent power delivery

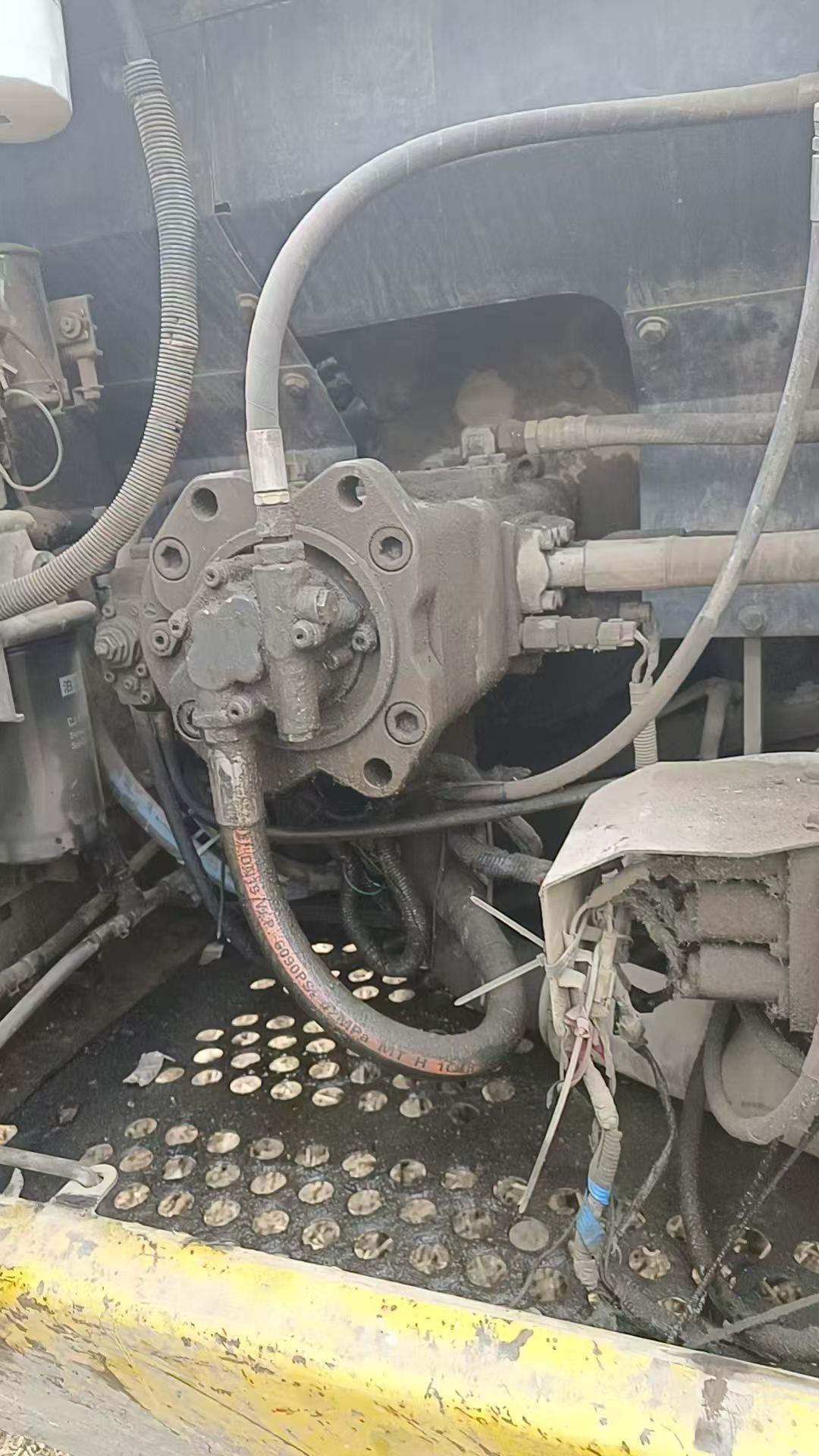

- Advanced hydraulic system featuring 422 l/min main pump flow and variable axial piston motor
- Impressive digging capabilities: 9900mm maximum reach, 6650mm digging depth
- Superior digging forces: 142kN bucket force, 103kN rod force
- Efficient fuel management with 410L tank capacity
Currently located in Jiangsu Suqian, this SH210-5 represents Sumitomo's commitment to durability and precision engineering. With its proven track record in heavy-duty applications and comprehensive hydraulic integration, this excavator provides reliable performance for contractors requiring dependable earthmoving equipment. The machine's balanced design ensures optimal stability while maintaining excellent maneuverability across various job sites.
| Specifications | Value |
|---|---|
| No. | 989572 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
