Product Description

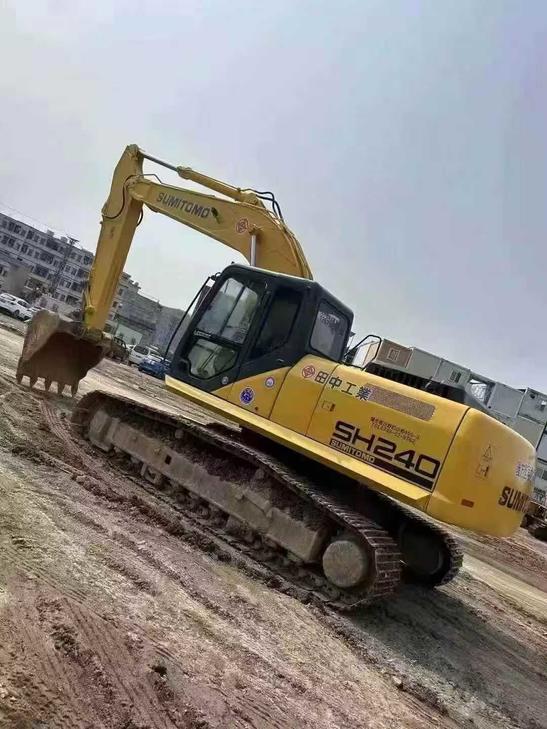

Built for demanding construction environments, this 2016 Sumitomo SH240-3 excavator delivers reliable 24-ton performance with exceptional operator control. Powered by a robust ISUZU BB-6BG1T engine producing 121kW at 2150 rpm, the machine combines proven hydraulic efficiency with superior handling characteristics.
Operators benefit from enhanced visibility and precise control systems that define this model series. The spacious cabin design provides clear sightlines to the work area, while responsive hydraulic controls ensure accurate bucket and boom positioning. With a maximum digging reach of 10.42 meters and digging depth of 6.97 meters, this excavator handles complex excavation tasks with confidence.
- 24-ton working weight with 1.1m³ bucket capacity
- Advanced ISUZU turbocharged diesel engine with intercooling
- Excellent stability with 46 Kpa ground pressure distribution
- Professional-grade hydraulic system with 468 L/min main pump flow
- Currently located in Meizhou, Guangdong Province
This well-maintained unit represents solid value for contractors requiring dependable mid-size excavation capability.
| Specifications | Value |
|---|---|
| No. | 987622 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
