Product Description

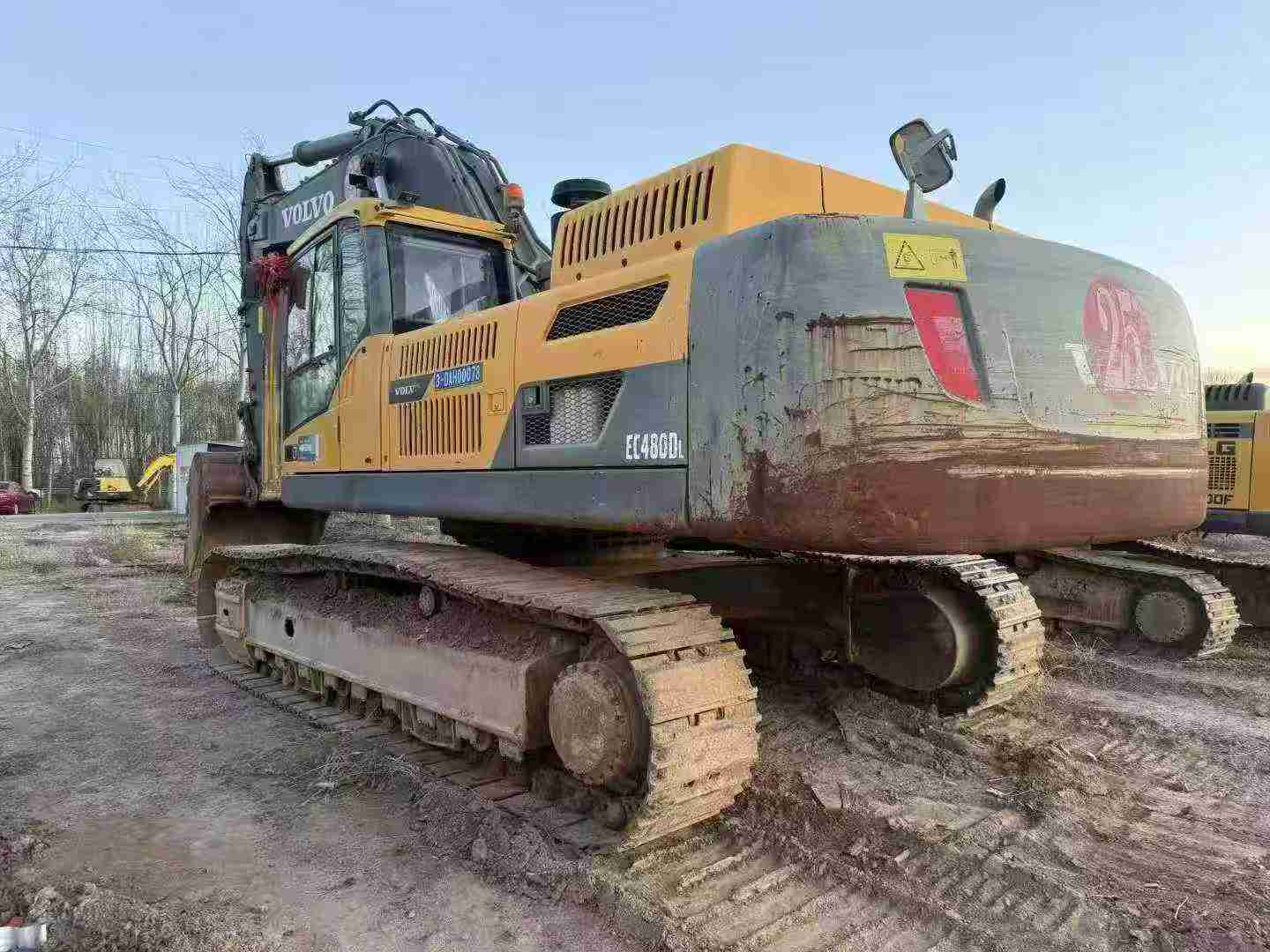

Built for demanding construction sites, this 2019 Volvo EC480荣耀版 delivers proven performance across excavation, grading, and demolition operations. Located in Shaoxing, Zhejiang, this machine combines Volvo's renowned hydraulic efficiency with robust build quality designed for heavy-duty applications.
Key operational advantages include:
- Advanced hydraulic system optimized for precise digging and material handling

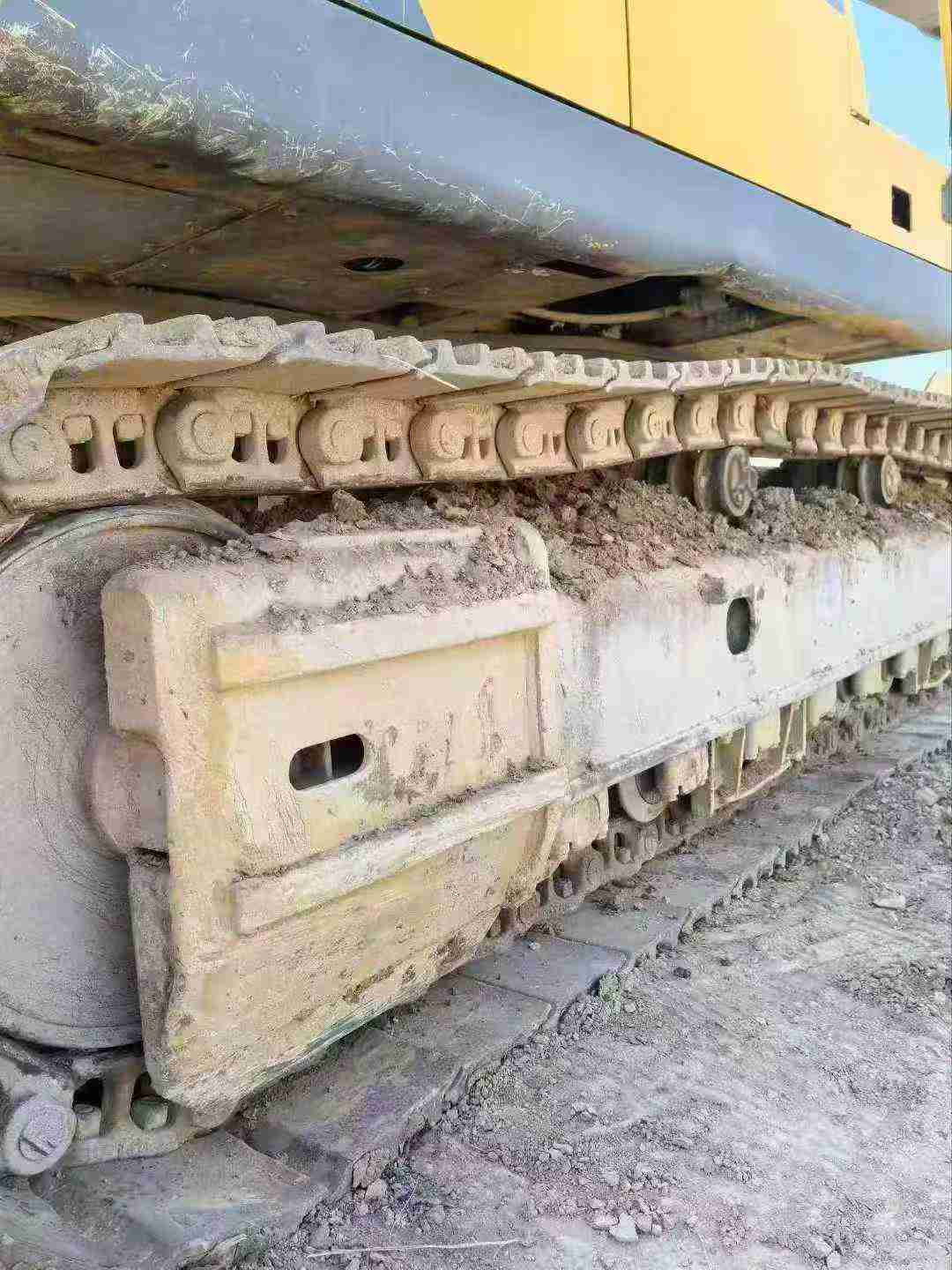

- Reinforced undercarriage engineered for extended service life
- Operator cabin designed for all-day productivity and comfort
- Fuel-efficient engine meeting current emission standards
Ready for immediate deployment on your next project. Whether breaking ground on new foundations, clearing debris, or precision grading, this EC480荣耀版 provides the reliability and power your operation demands. Comprehensive maintenance records available upon request.
| Specifications | Value |
|---|---|
| No. | 989332 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48162 |
| Bucket capacity (m³) | 2.6 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

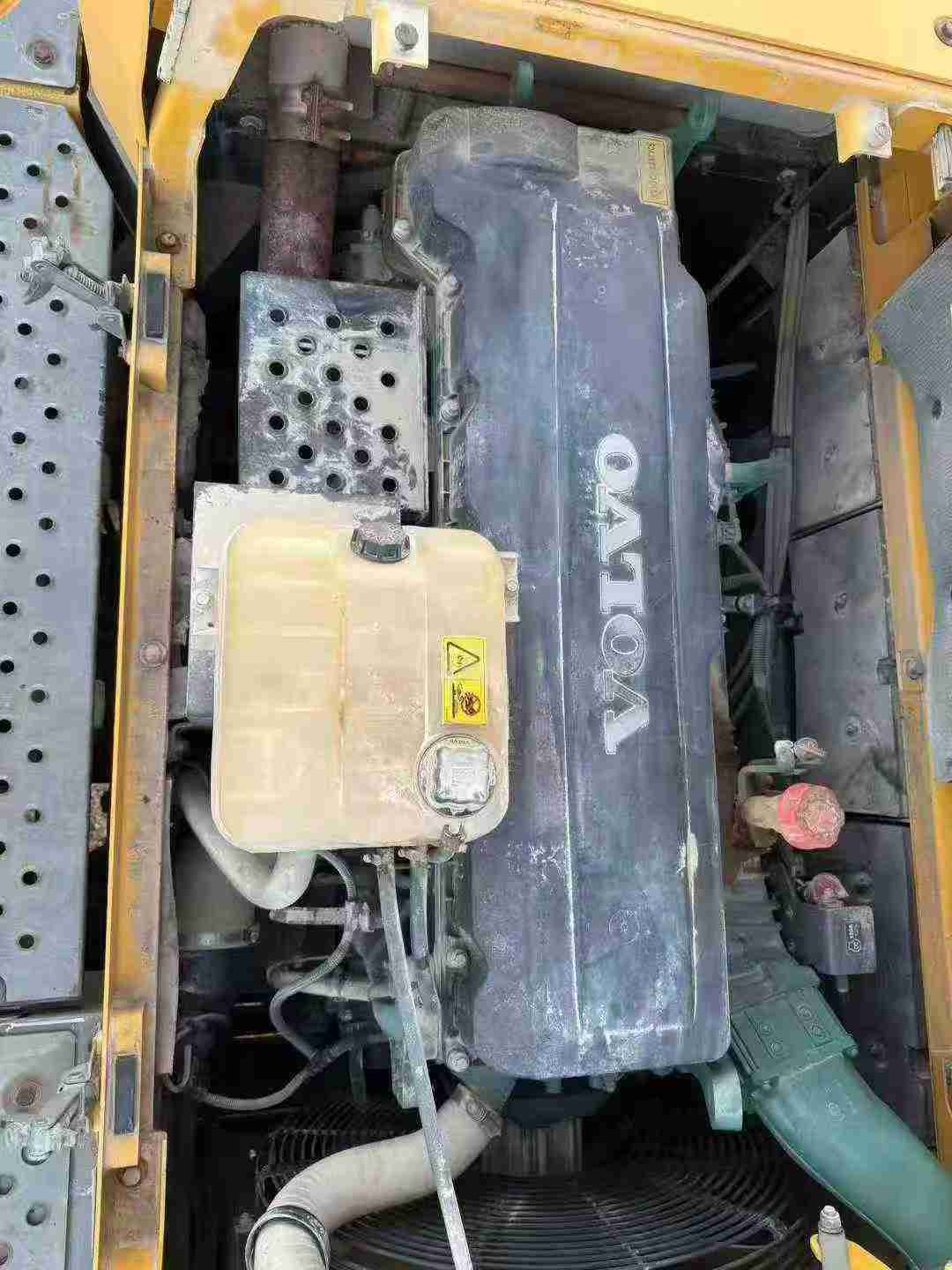

| Engine type | VOLOV D13F |
| Rated power (kw/rpm) | 270/1800 |
| Maximum torque (N.m) | 1836/1400 |
| Rotation speed (rpm) | 8.9 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 235 |
| Maximum tractive force (kN) | 333.4 |
| Travel speed (km/h) | 5.1/3.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 680 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 60 |
| Total transport width (mm) | 3440 |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 11817 |
| Maximum digging depth (mm) | 7478 |
