Product Description
Built for endurance and engineered to perform, this 2018 Volvo EC80D PRO stands as proof that quality construction delivers lasting value. With 8 tons of proven capability and a robust D2.6D engine generating 43kW of reliable power, this compact excavator has demonstrated its durability through years of dependable service.
Key performance specifications showcase its workhorse credentials:
- Maximum digging depth of 4,100mm with 55kN bucket digging force
- Impressive 6,420mm maximum digging radius for versatile reach
- Efficient 0.34m³ bucket capacity optimized for productivity
- Advanced hydraulic system with 176 L/min main pump flow
- Compact 2,300mm transport width for job site mobility
Currently located in Zhejiang Lishui, this proven machine combines Volvo's renowned build quality with practical specifications that deliver consistent results. The EC80D PRO's track record speaks to its reliability—a testament to Swedish engineering excellence that continues performing when others falter.
| Specifications | Value |
|---|---|
| No. | 990084 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7,400 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

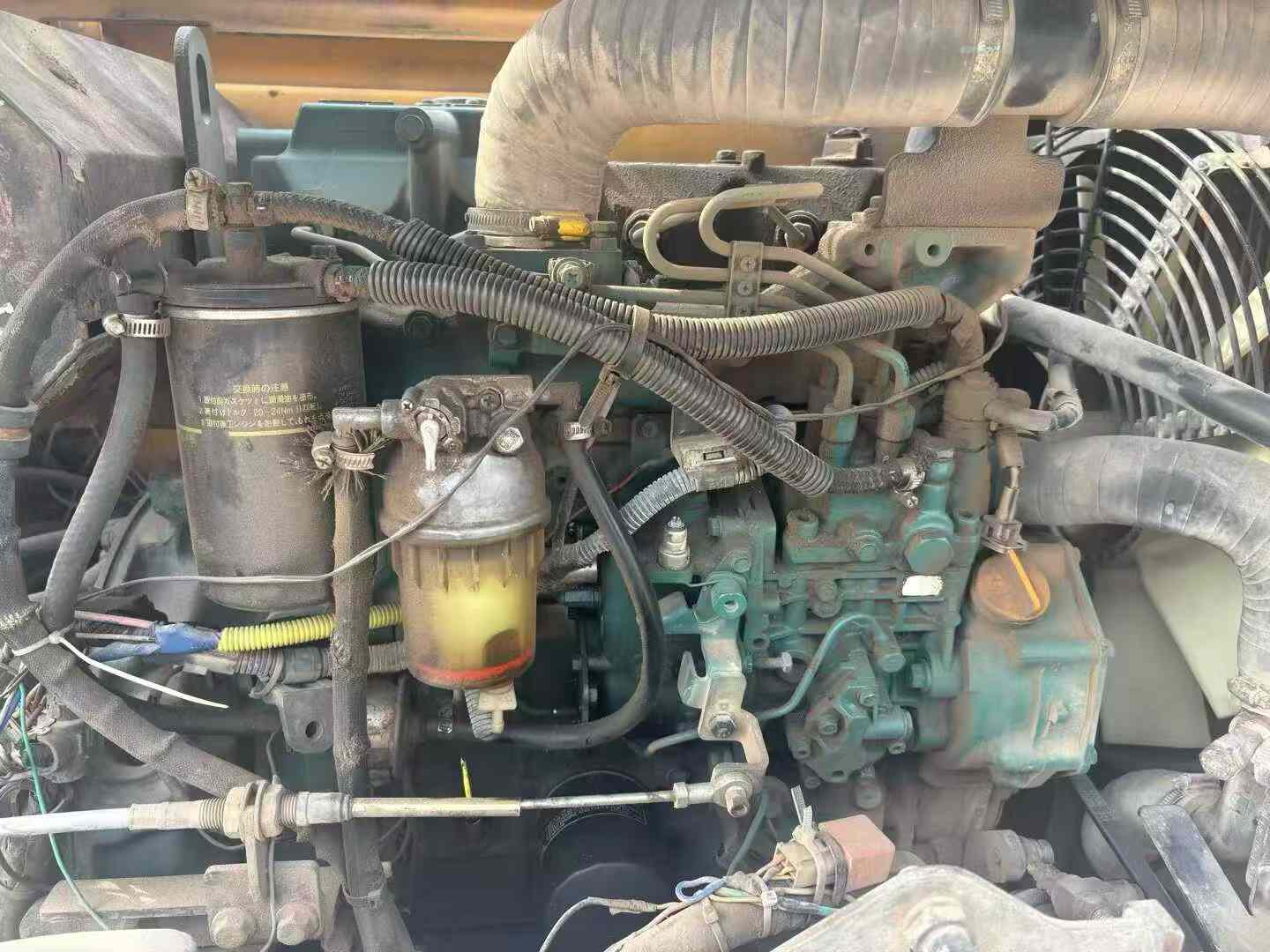

| Engine type | D2.6D |
| Rated power (kw/rpm) | 43 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Turning torque (Nm) | 21.5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 1 x 176 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Pilot pump flow (L/min) | 16 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 11.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2200 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Dodging plate width × height (mm) | 2300*470 |
| Maximum excavation radius of stop surface (mm) | 6270 |
