Strengthen your fleet operations with this reliable 2020 XCMG XE135B excavator, currently positioned in Sichuan Province. Built for consistent performance across demanding jobsites, this 13-ton machine delivers the dependable backup power your growing operation requires.

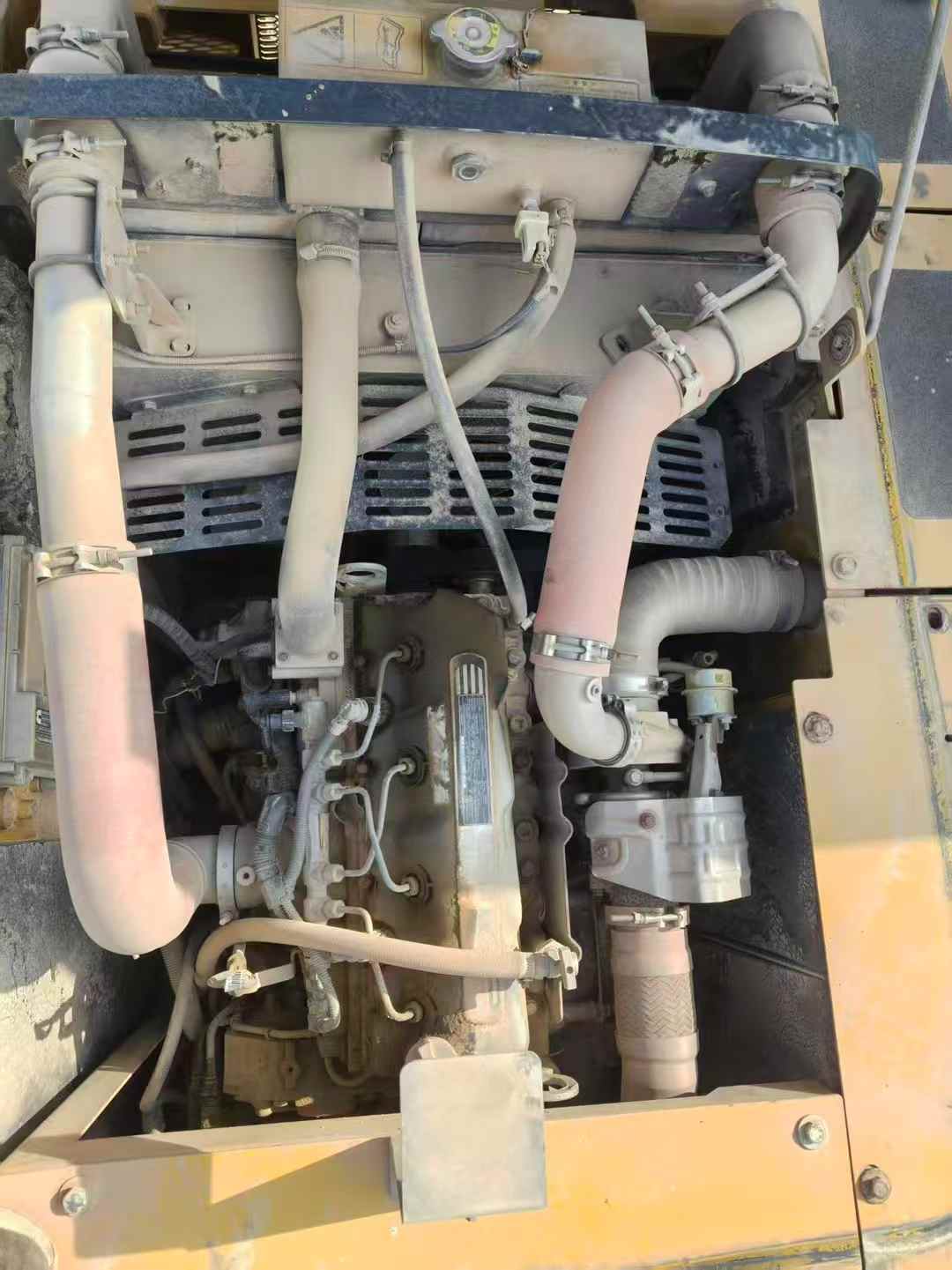

Powered by a robust ISUZU BB-4BG1TRP engine producing 69.6kW at 2200 RPM, this unit maintains steady productivity through extended work cycles. Key operational specifications include:
- Maximum digging reach of 8,296mm with 5,538mm depth capability
- Bucket digging force of 85kN for challenging excavation tasks
- 0.4-0.52m³ bucket capacity optimized for versatile material handling

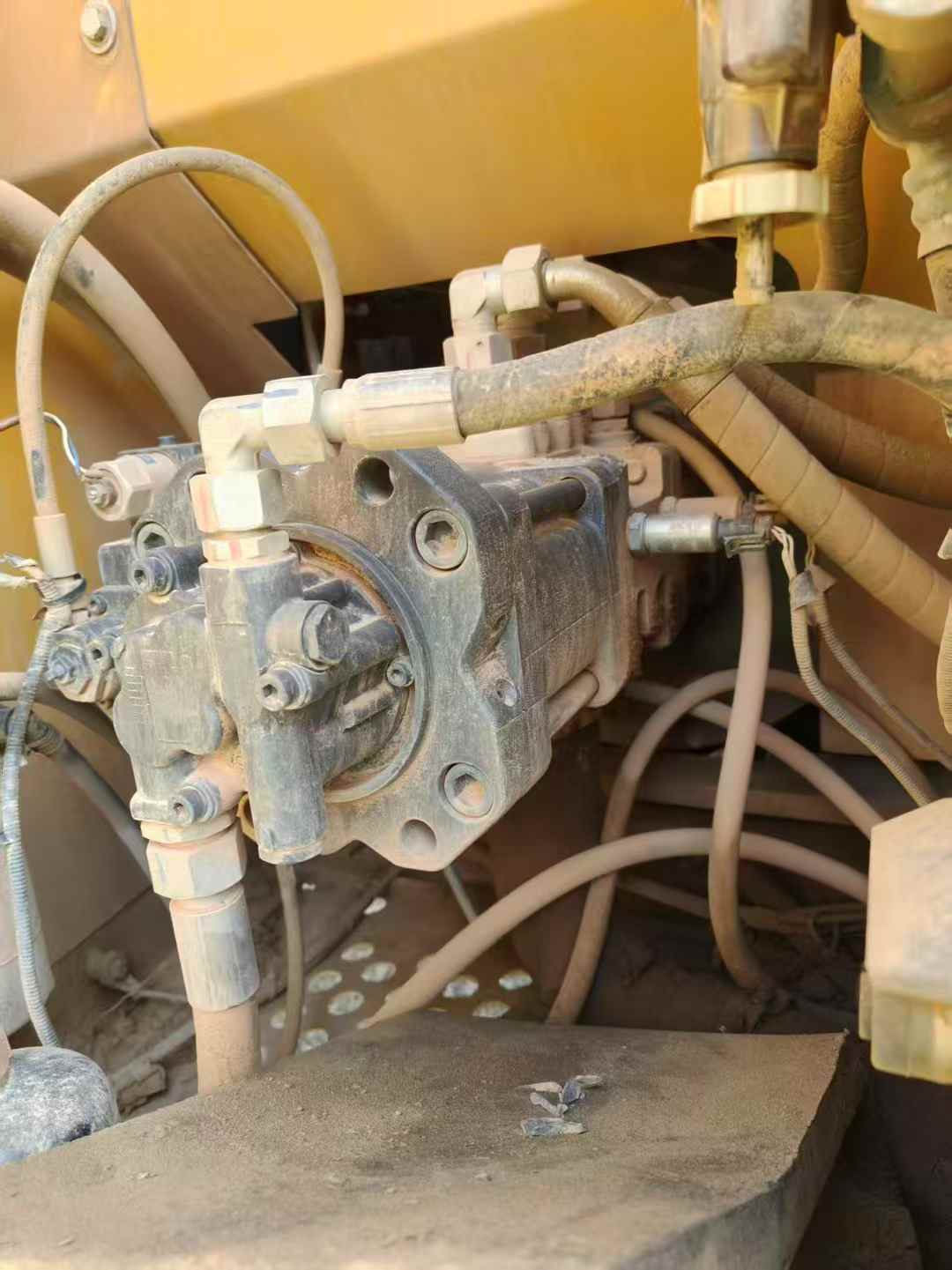

- Dual plunger pump hydraulic system delivering 2×123 L/min flow rates
- 35-degree climbing ability for varied terrain navigation
With proven Xuzhou manufacturing quality and comprehensive hydraulic systems, this XE135B integrates seamlessly into existing fleet protocols. Strategic acquisition of this unit ensures operational continuity during peak demand periods while maintaining your project delivery commitments.
| Specifications | Value |
|---|---|
| No. | 990692 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
