Product Description
Built for endurance and proven in demanding conditions, this 2021 XCMG XE135B excavator demonstrates exceptional reliability with its robust 13-ton frame and powerful ISUZU BB-4BG1TRP engine. Operating at 69.6kW, this workhorse delivers consistent performance across challenging terrains with its impressive 35° climbing capability and 85kN bucket digging force.
Engineered for precision work, the machine features a versatile 0.4-0.52m³ bucket capacity and extends to an 8.3-meter maximum digging radius. Its dual plunger pump hydraulic system ensures smooth operation while maintaining fuel efficiency through the 250L tank capacity. Located in Fujian Putian, this excavator represents XCMG's commitment to manufacturing durable equipment that withstands rigorous daily use.
- 13.8-ton working weight with proven stability
- Water-cooled 4-cylinder turbo engine for reliable power
- Advanced hydraulic system with 31.4/34.3 MPa pressure capability
- Compact transport dimensions: 7.77m × 2.51m × 2.88m
- Maximum digging depth of 5.54 meters
Three years of proven field performance make this XCMG excavator a dependable choice for contractors seeking established reliability without compr
| Specifications | Value |
|---|---|
| No. | 989773 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

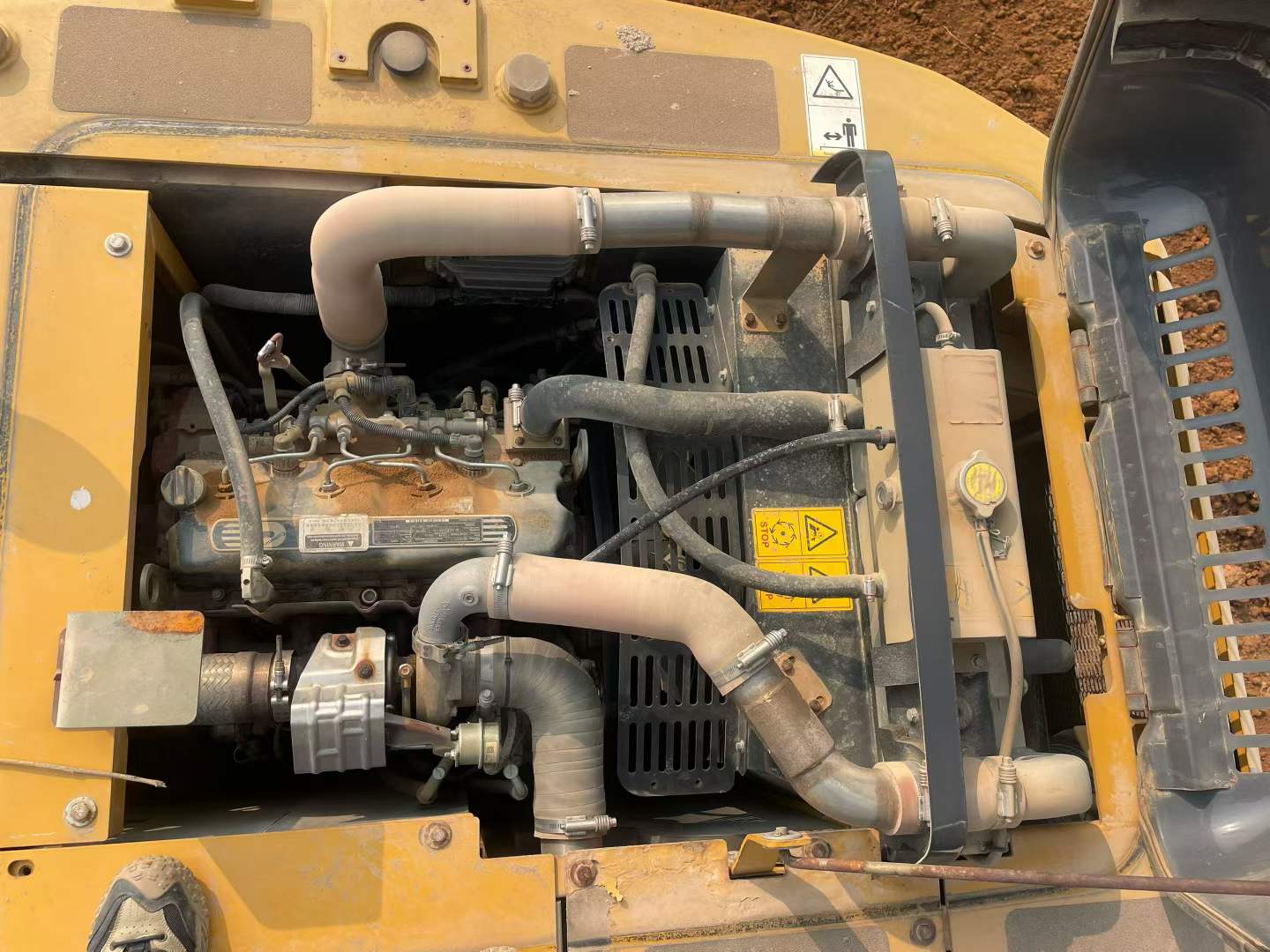

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

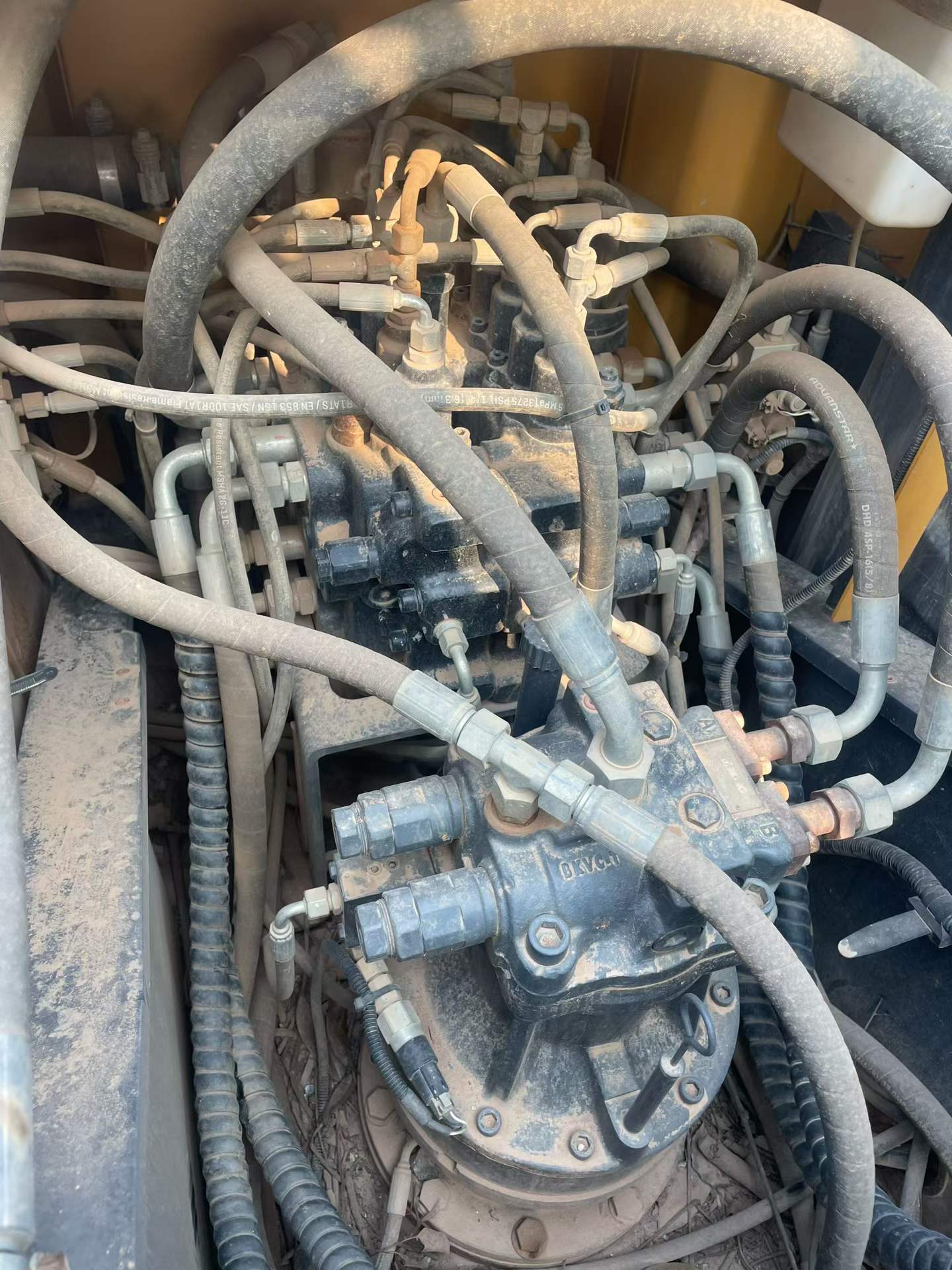

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
