Product Description
Built for precision work in tight spaces, this 2019 XCMG XE15 mini excavator delivers reliable performance with its proven Yanmar 3TNV82A engine producing 16.5kW at 2200 RPM. Weighing just 1,640kg with a compact 1080mm width, it navigates confined job sites while maintaining impressive digging capabilities—3.9m maximum reach and 2.3m digging depth with 13.9kN bucket force.
Equipped with Japan Fujikoshi hydraulic pumps and water-cooled 3-cylinder engine, this machine handles continuous operation across diverse applications. Key specifications include:
- 0.044m³ bucket capacity for precise material handling
- 4.4km/h travel speed for efficient site mobility
- 30° climbing ability on challenging terrain
- 24MPa hydraulic system pressure for consistent power delivery
- 20L fuel tank and 29L hydraulic reservoir for extended operation
Currently located in Jiangsu Suqian, this excavator shows operational readiness for demolition, trenching, and grading projects. Factory specifications from Xuzhou manufacturing ensure parts availability and service support throughout its working life.
| Specifications | Value |
|---|---|
| No. | 987757 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

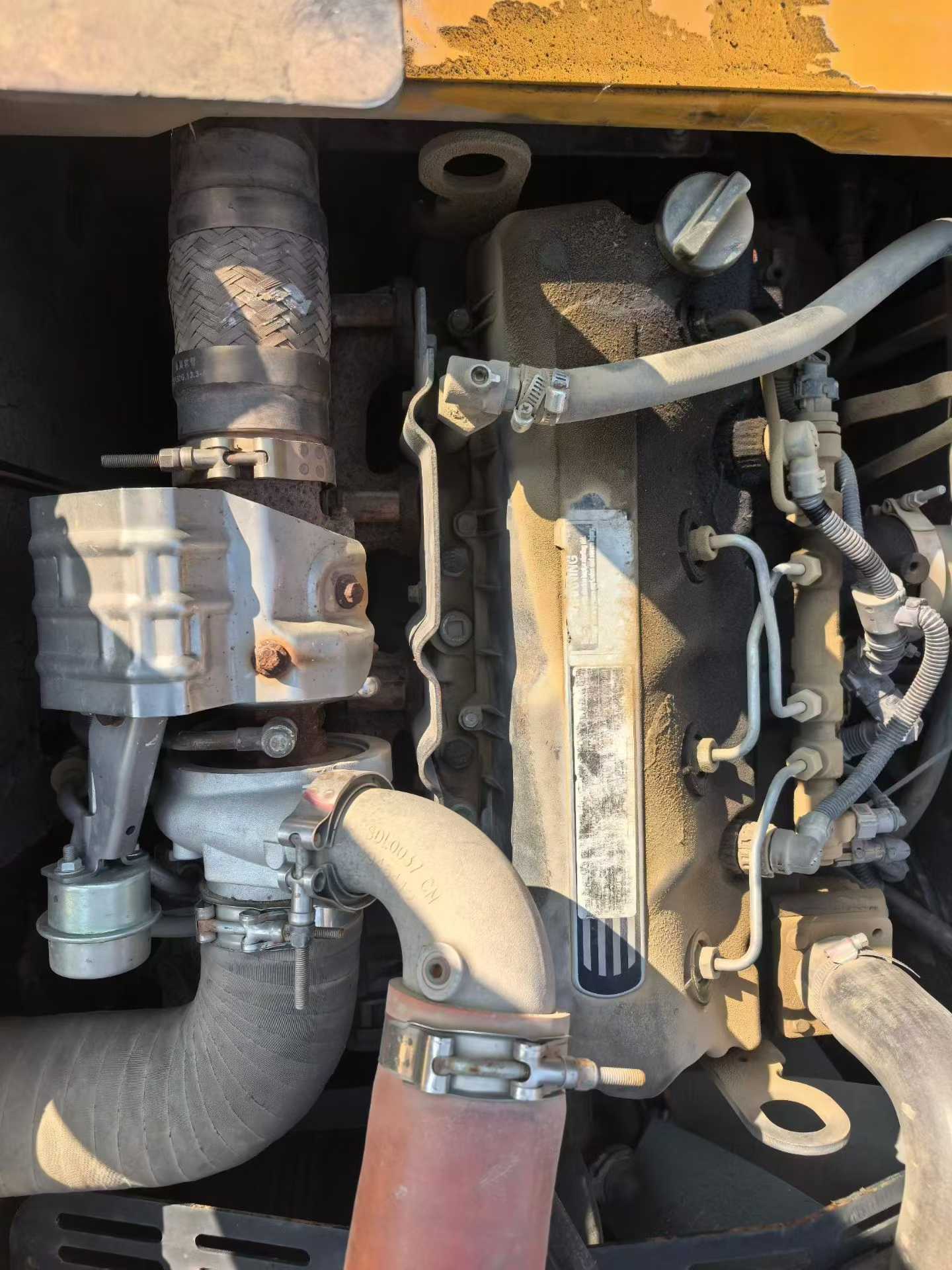

| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |

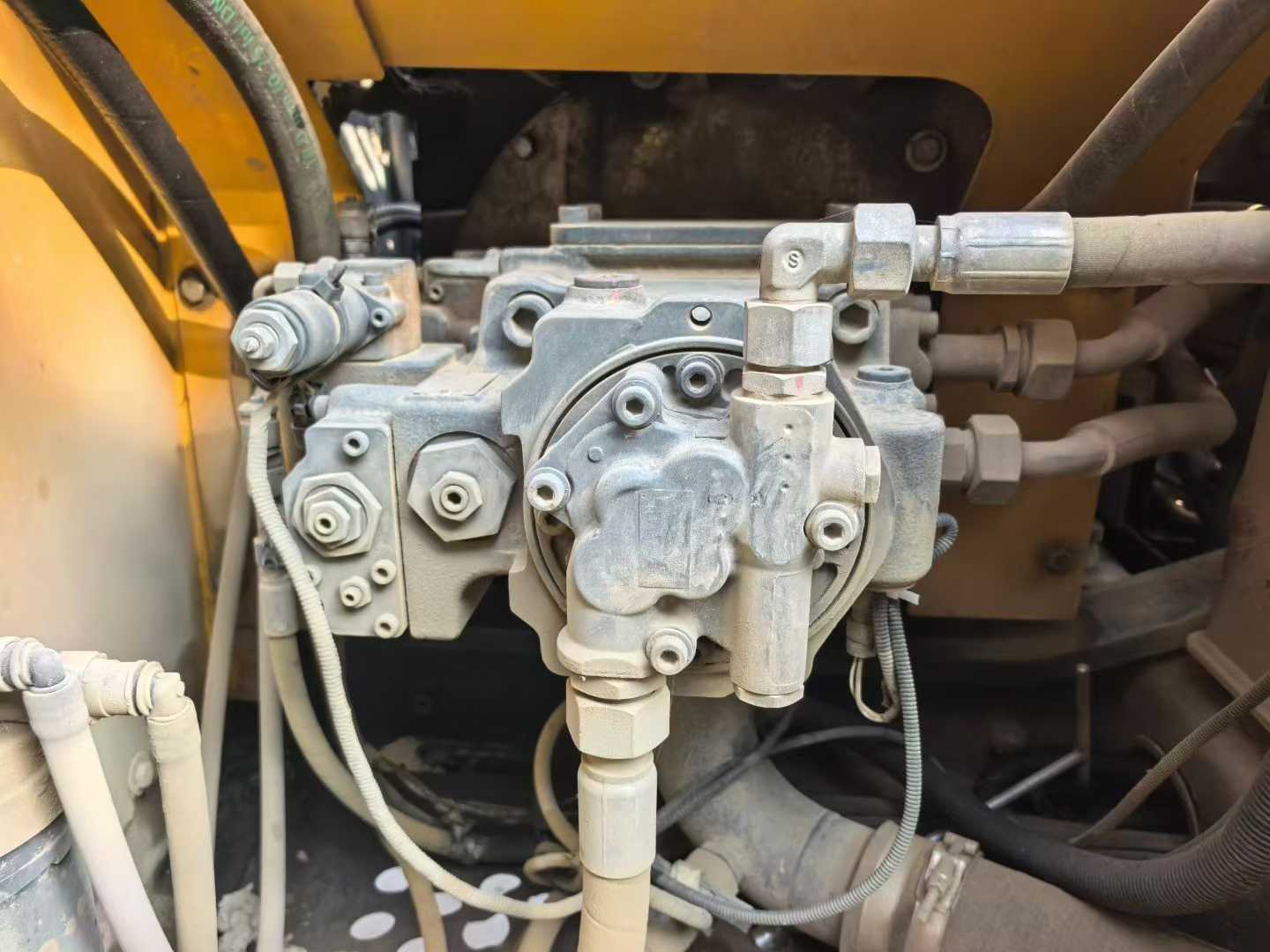

| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
