Product Description

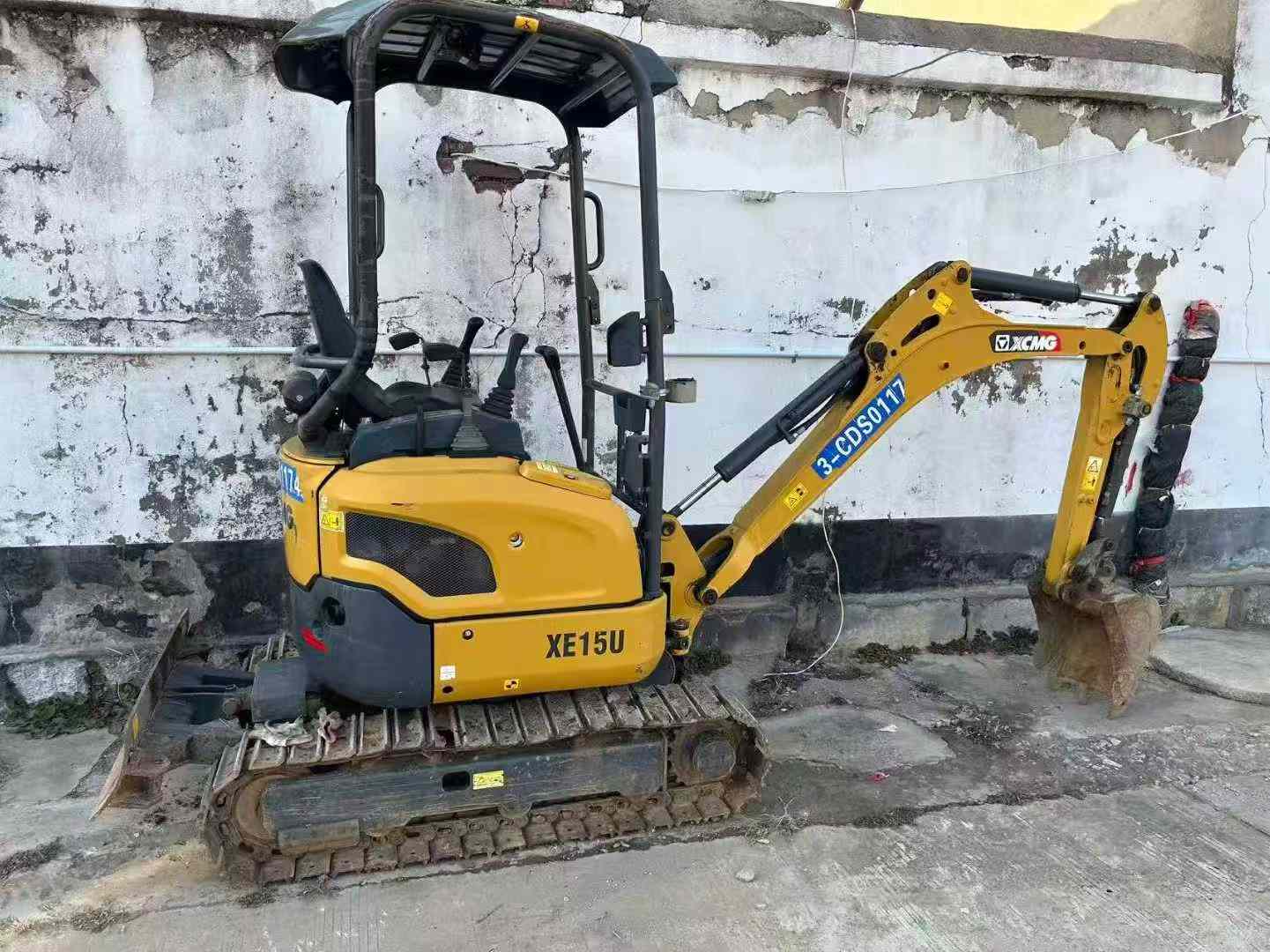

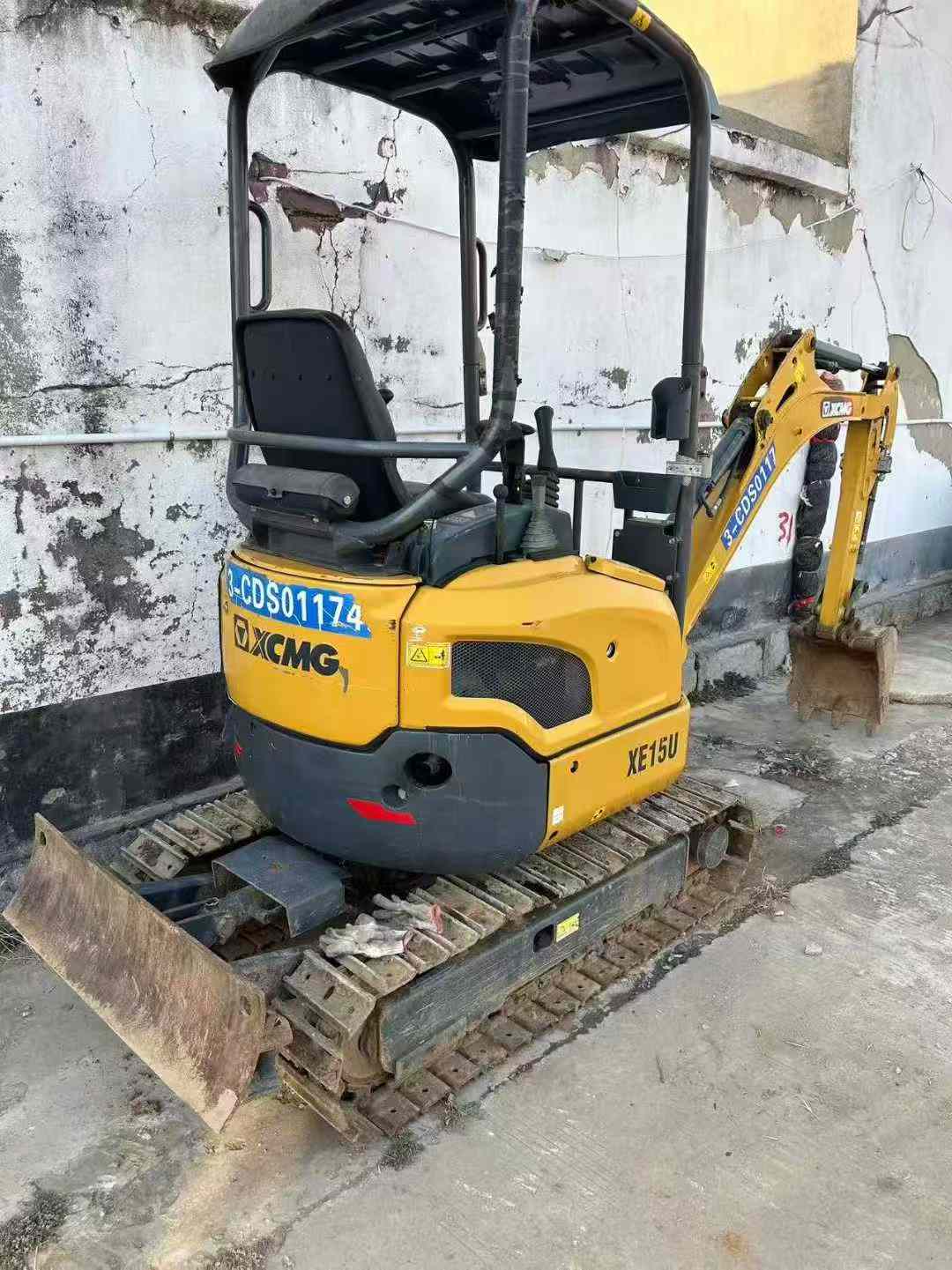

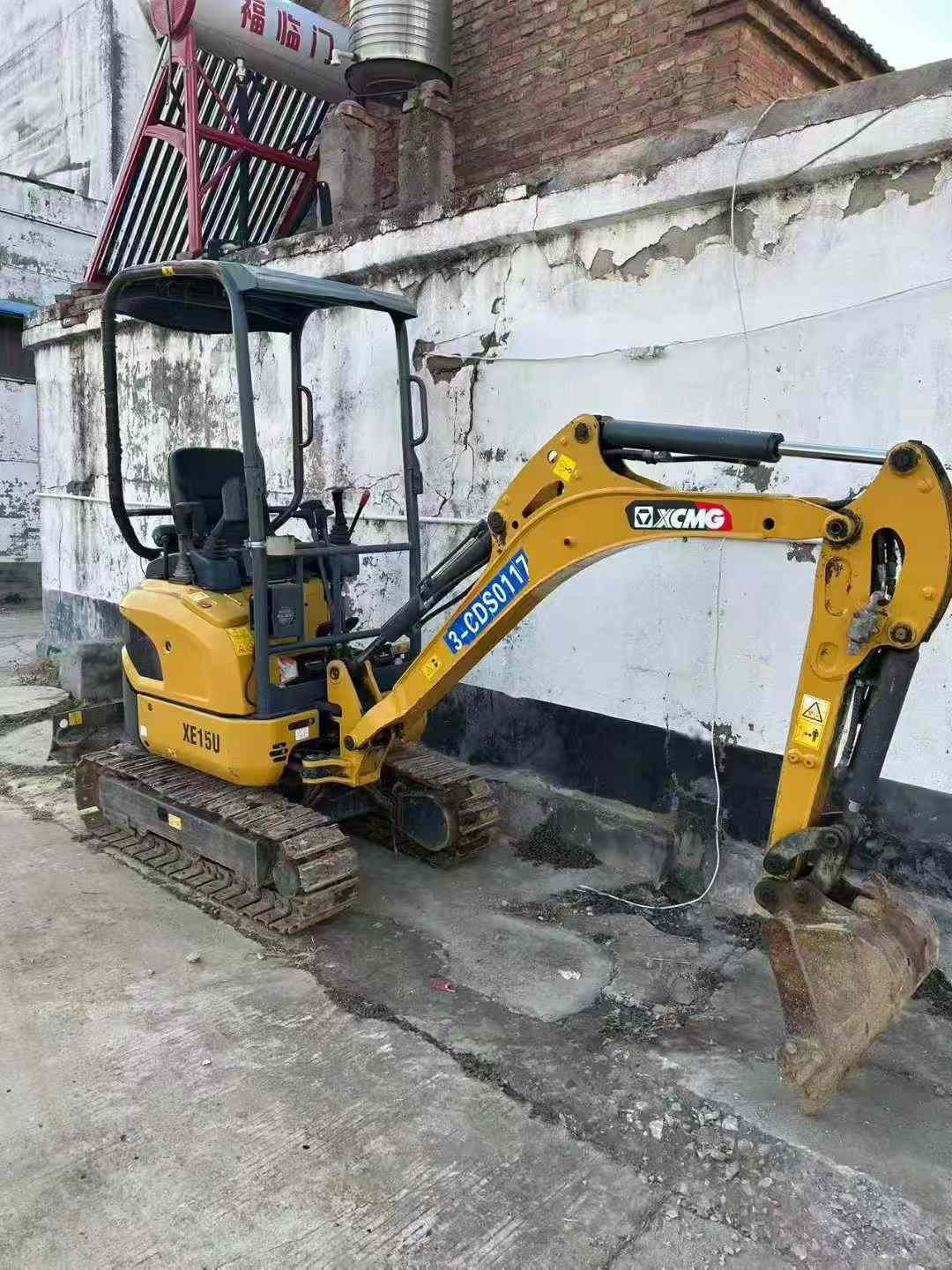

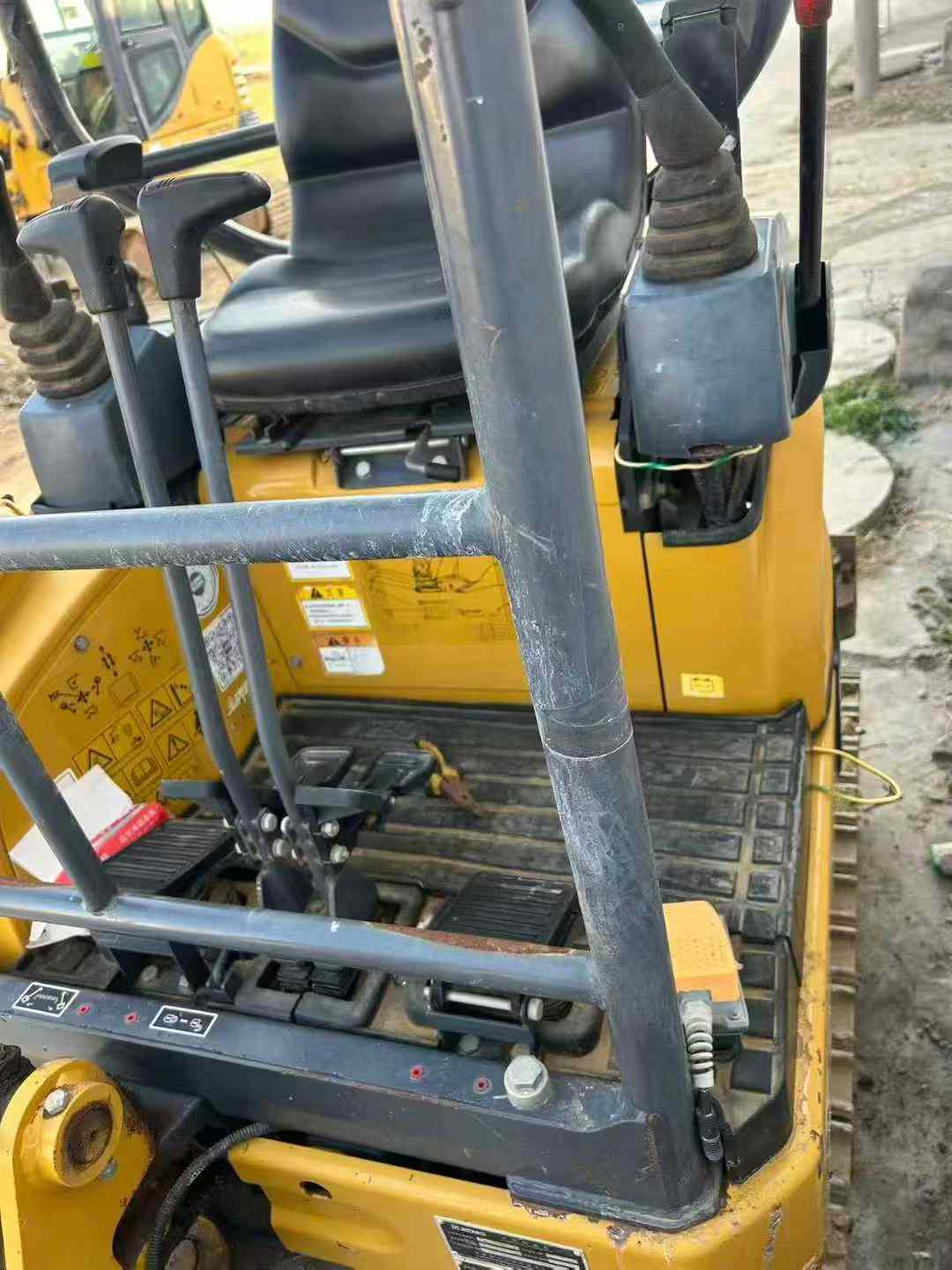

Built for precision work in tight spaces, this 2022 XCMG XE15 mini excavator delivers reliable performance with its 1.6-ton operating weight and compact 1080mm transport width. Powered by a proven Yanmar 3TNV82A engine producing 16.5kW at 2200 rpm, operators benefit from smooth hydraulic response through the Japanese Fujikoshi main pump system delivering consistent flow rates.
Enhanced operator control comes standard with:
- 11 rpm rotation speed for precise positioning
- Maximum 3915mm digging radius with 2320mm depth capability
- 30° climbing ability on challenging terrain
- Dual travel speeds (4.4/2.4 km/h) for versatility
- Low 23.8 Kpa ground pressure minimizing surface damage
Currently located in Jiangsu Province, this machine features water-cooled operation, 20L fuel capacity, and 850mm track gauge providing stable platform dynamics. With 13.9kN bucket digging force and 472mm counterweight clearance, operators can tackle demanding excavation tasks while maintaining excellent visibility and machine stability throughout the work cycle.
| Specifications | Value |
|---|---|
| No. | 987760 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
