Product Description

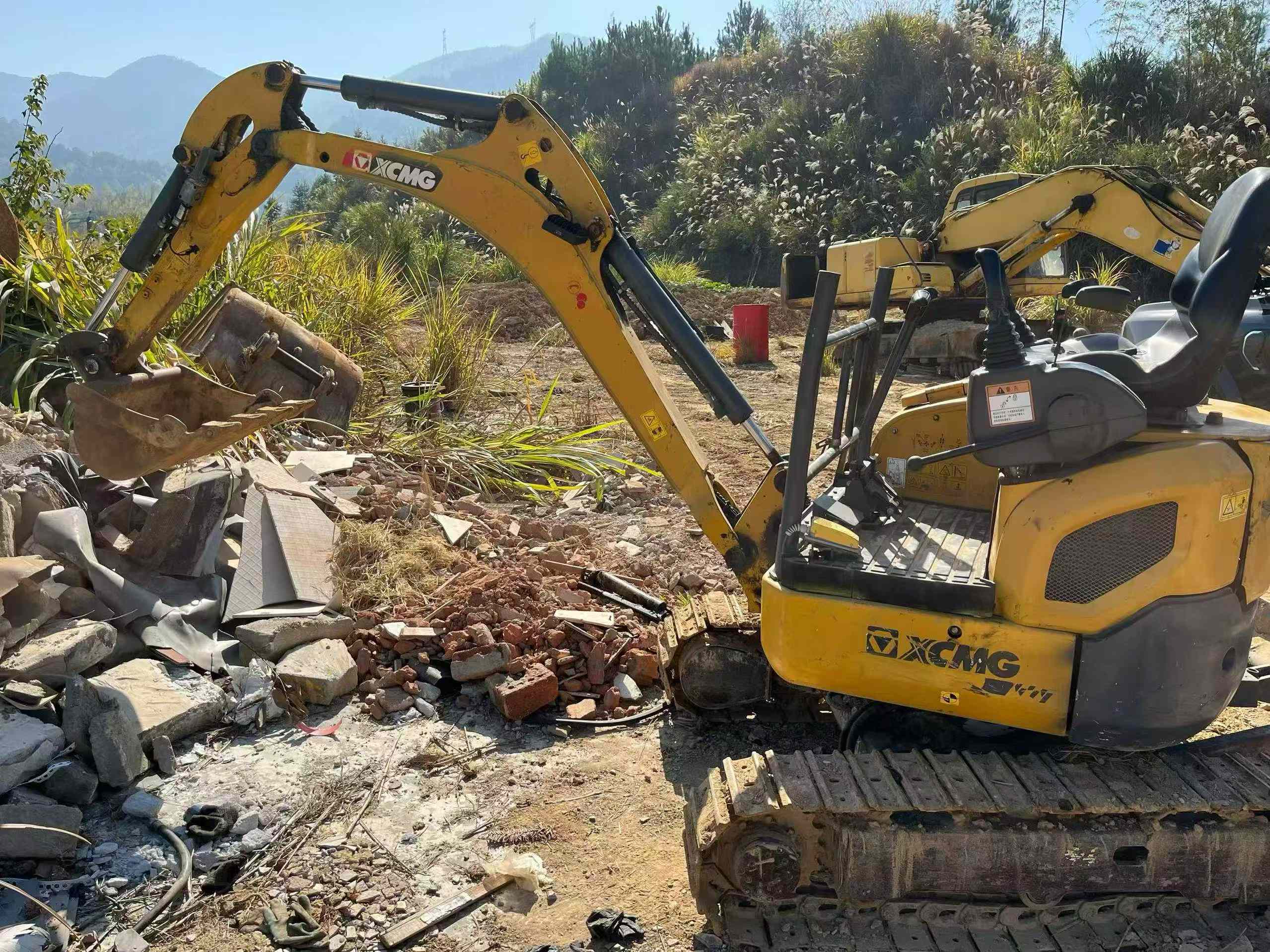

Built for endurance, this 2016 XCMG XE15U mini excavator delivers proven performance after years of reliable operation. With 1,795kg working weight and compact 990mm width, this machine combines maneuverability with substantial capability in tight spaces.
Powered by a robust D782-E3B-CBH-1 engine generating 9.8kW at 2300rpm, this workhorse maintains consistent output through demanding applications. The 0.044m³ bucket capacity and 16kN digging force handle excavation tasks efficiently, while the 3900mm maximum digging radius extends operational reach.
- Maximum digging depth: 2290mm
- Travel speed: 3.9/1.9 km/h
- Fuel tank capacity: 17L
- Ground clearance: 145mm minimum
- Climbing ability: 30%
Currently located in Zhejiang Lishui, this machine represents XCMG's commitment to durability. After a decade of service, the XE15U continues demonstrating the build quality that makes it a dependable choice for contractors requiring proven equipment performance.
| Specifications | Value |
|---|---|
| No. | 987713 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1795 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1828 |
| Rod length (mm) | 950 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D782-E3B-CBH-1 |
| Rated power (kw/rpm) | 9.8/2300 |
| Maximum torque (N.m) | 44.5/1800 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.778 |
| Ground specific pressure (Kpa) | 28.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 10 |
| Maximum tractive force (kN) | 15.6 |
| Travel speed (km/h) | 3.9/1.9 |
| Maximum flow of main pump (l/min) | 56.8 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Rotary Hydraulic Circuit (Mpa) | 11 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 17 |
| Hydraulic Tank (L) | 18 |
| Engine Oil changes (L) | 3.8 |
| Total transport length (mm) | 3560 |
| Total transport width (mm) | 990/1240 |
| Total transport height (mm) | 2350 |
| Counterweight ground clearance (mm) | 450 |
| Minimum ground clearance (mm) | 145 |
| Onboard width (mm) | 990 |
| Track gauge (mm) | 760/1010 |
| Track ground length (mm) | 1270 |
| Maximum digging radius (mm) | 3900 |
| Maximum digging depth (mm) | 2290 |
| Maximum excavation height (mm) | 3475 |
| Maximum unloading height (mm) | 2415 |
| Maximum vertical digging depth (mm) | 1750 |
| Bulldozer lift or depth (mm) | 260/180 |
| Dodging plate width × height (mm) | 1240 x 258 |
