Product Description
Compact power meets immediate availability with this 2018 XCMG XE18 mini excavator, currently located in Guangxi Yulin for fast deployment to your construction site. Skip the factory lead times – this 1.78-ton machine is ready for immediate delivery and operation.

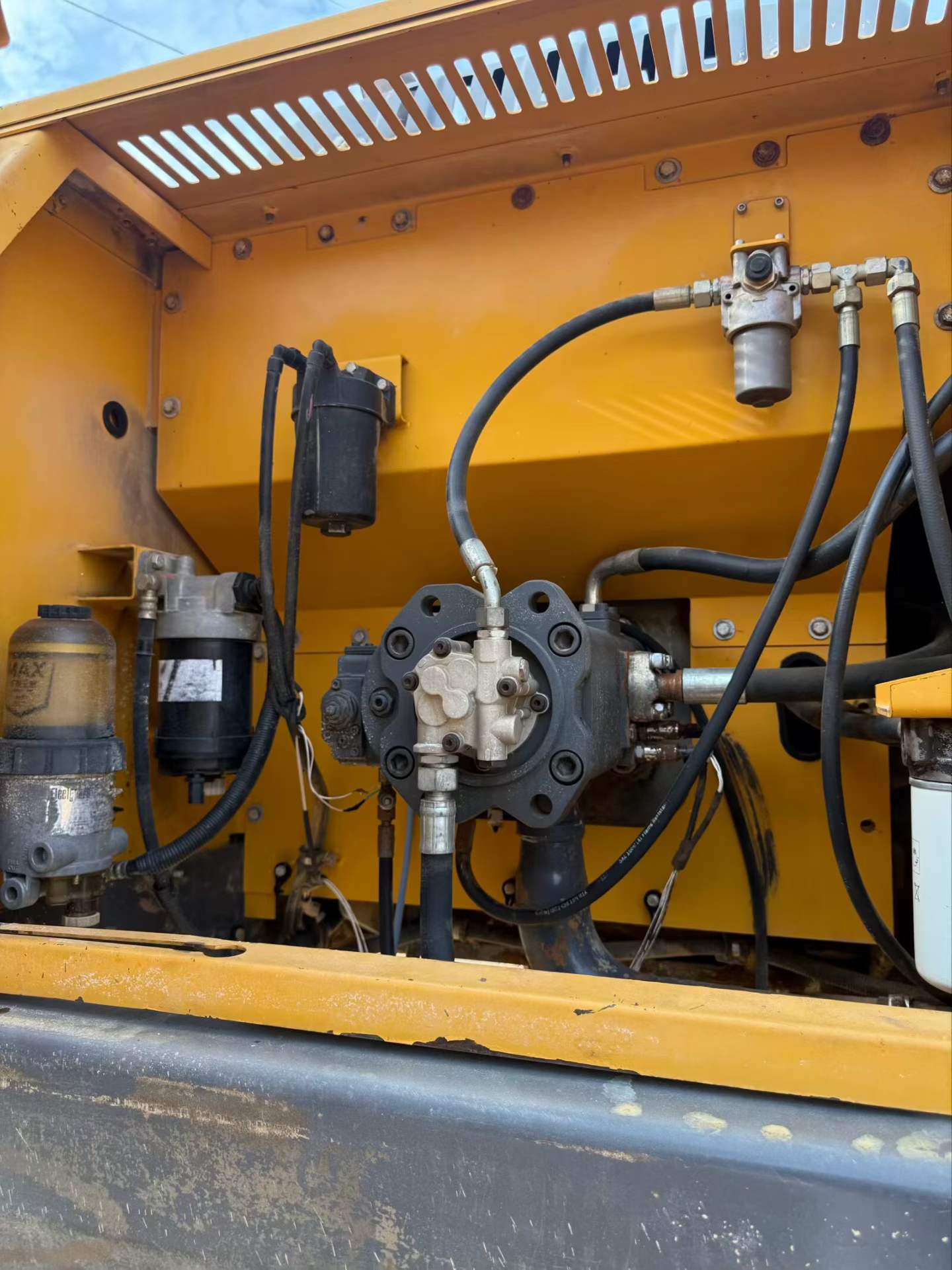

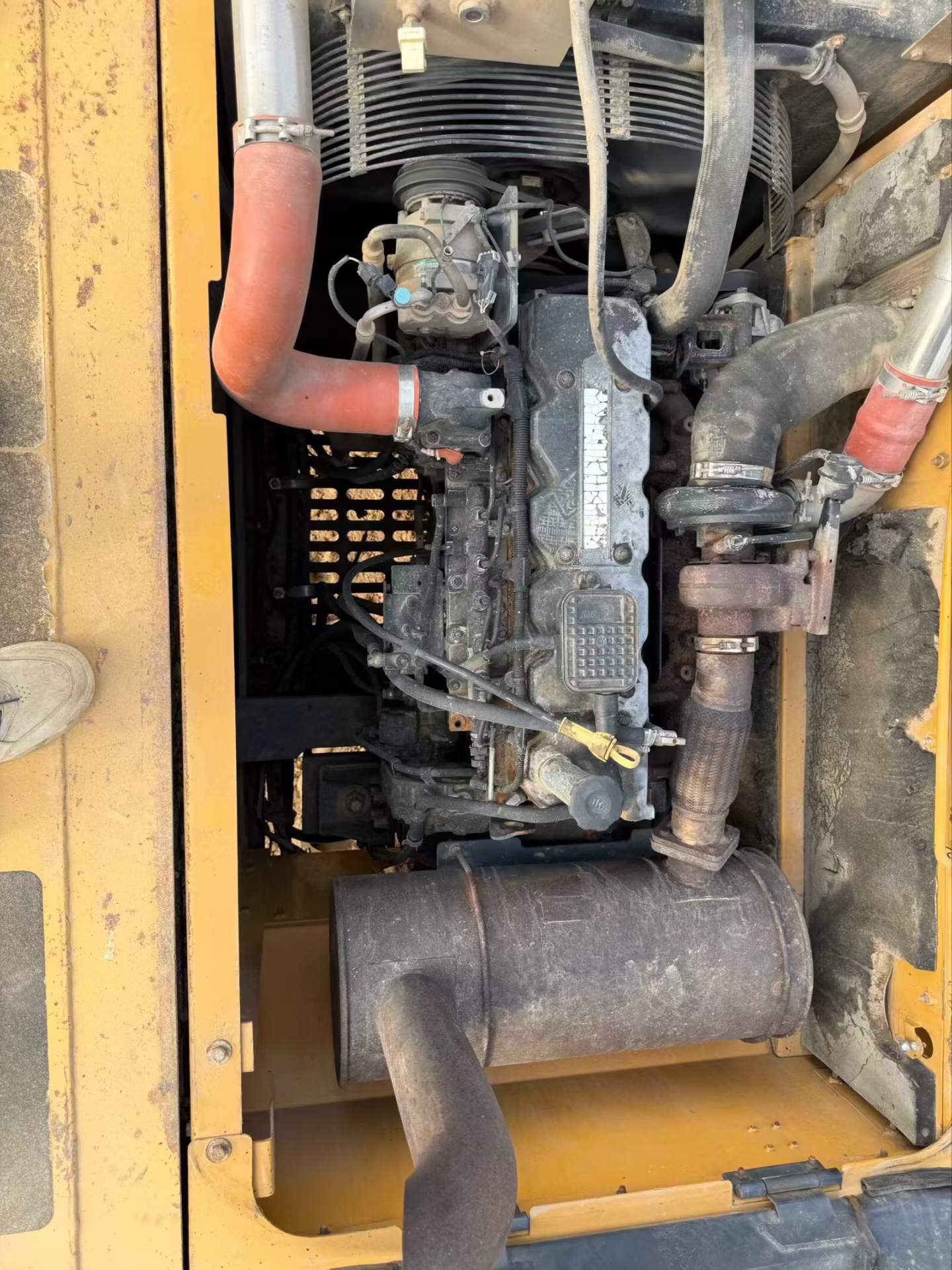

Built in Xuzhou with proven reliability, this excavator delivers impressive performance in tight spaces. The Yanmar 3TNV82A engine generates 16.5kW of power while maintaining fuel efficiency from its 20L tank. Advanced hydraulic systems featuring dual variable pumps and plunger motors provide precise control for demanding applications.
- Maximum digging depth: 2,285mm with 3,915mm reach
- Compact transport dimensions: 3,760 × 1,300 × 2,405mm
- Robust digging forces: 13.9kN bucket, 8.8kN arm
- Versatile travel speeds: 4.4/2.4 km/h for site mobility
- 30° climbing capability for challenging terrain
Available now from Guangxi Yulin, eliminating lengthy procurement delays. This machine combines Japanese hydraulic technology with Chinese manufacturing efficiency, delivering reliable performance for urban construction, landscaping, and utility projects requiring immediate equipment deployment.
| Specifications | Value |
|---|---|
| No. | 990581 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 25.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |

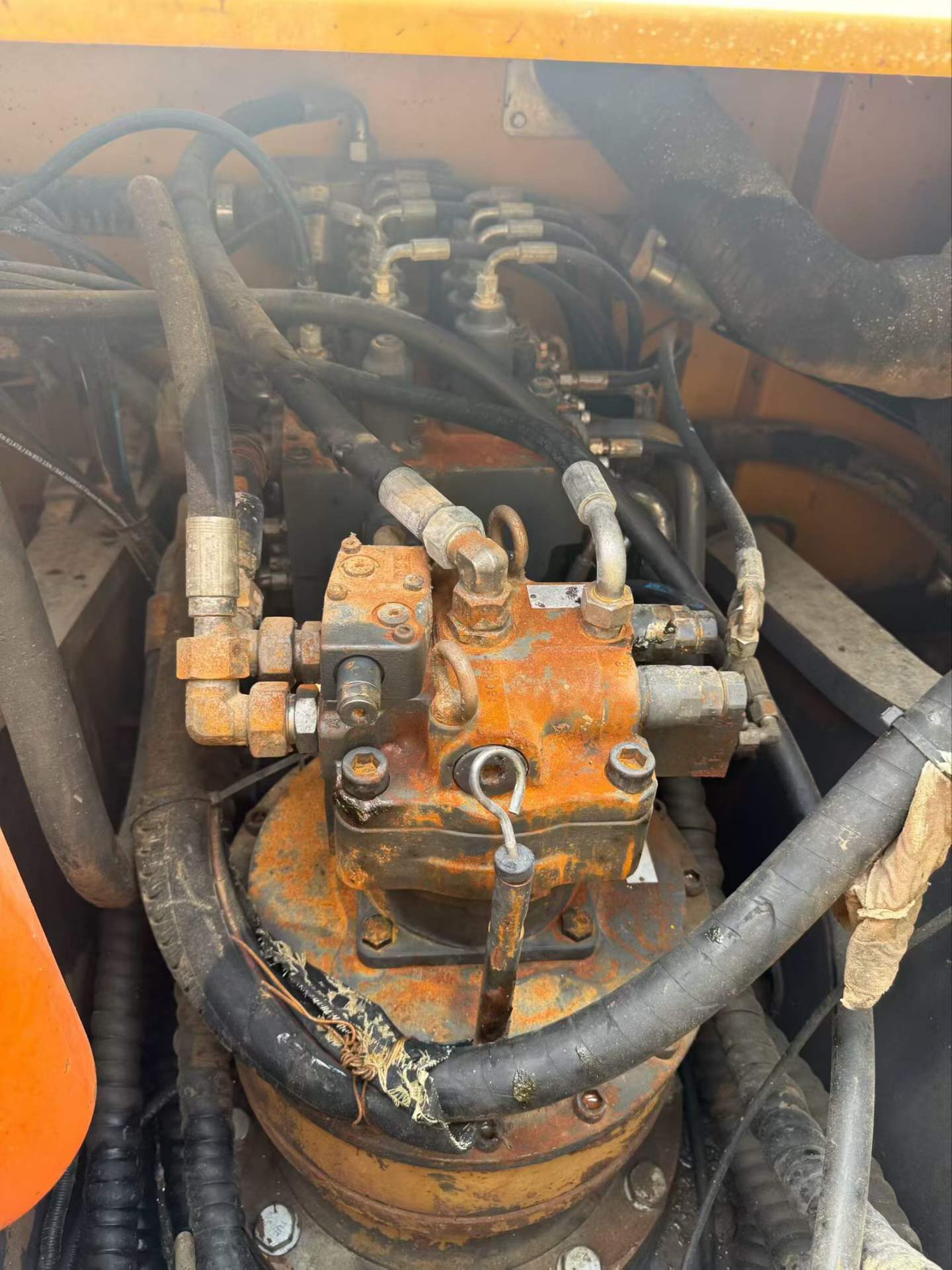

| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Japan non Fukoshi variable pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1300 |
| Total transport height (mm) | 2405 |
| Counterweight ground clearance (mm) | 509 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 1070 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2285 |
| Maximum excavation height (mm) | 2655 |
| Maximum unloading height (mm) | 2515 |
| Maximum vertical digging depth (mm) | 1485 |
| Dodging plate width × height (mm) | 1300 x 235 |
