Product Description

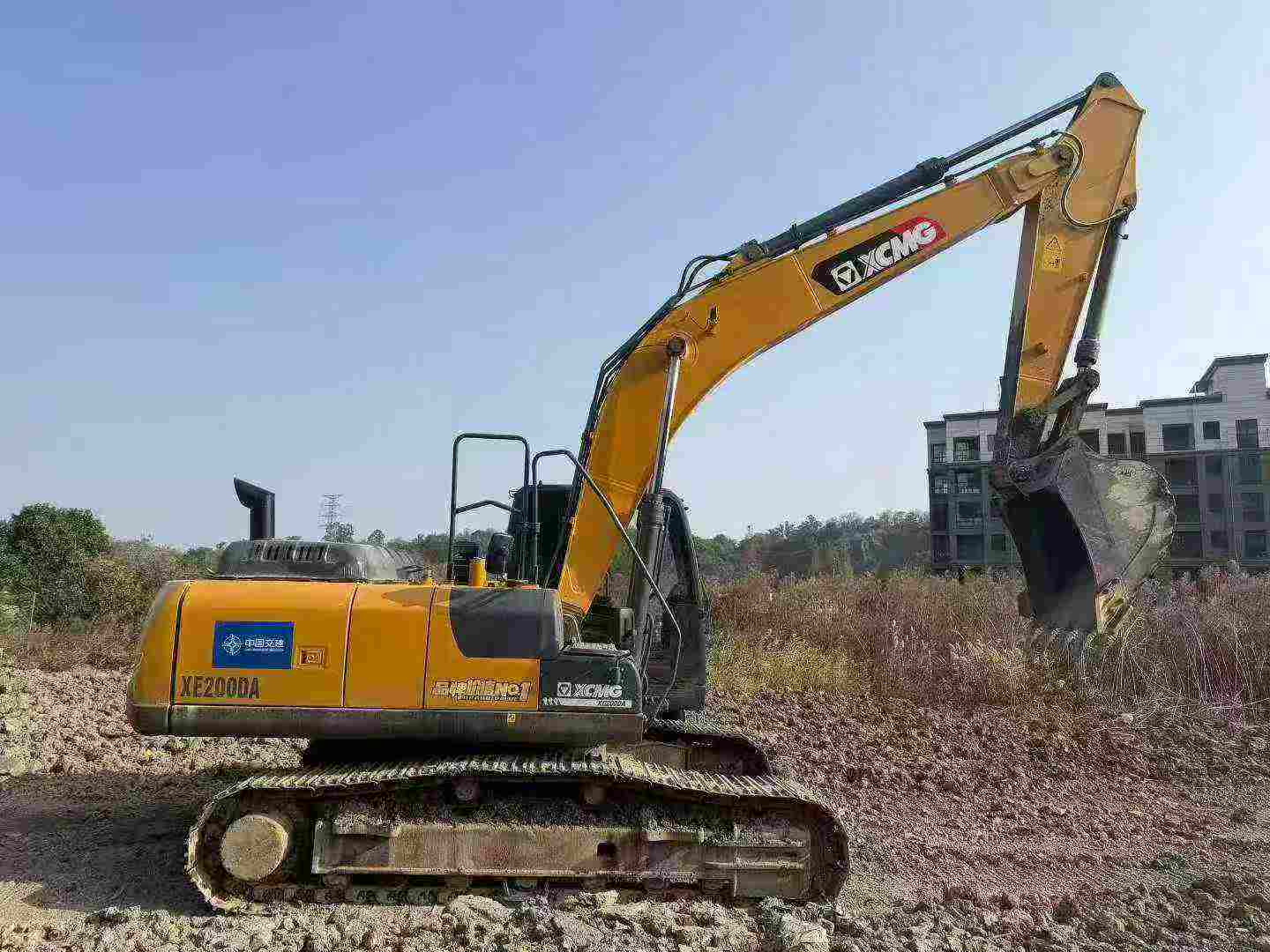

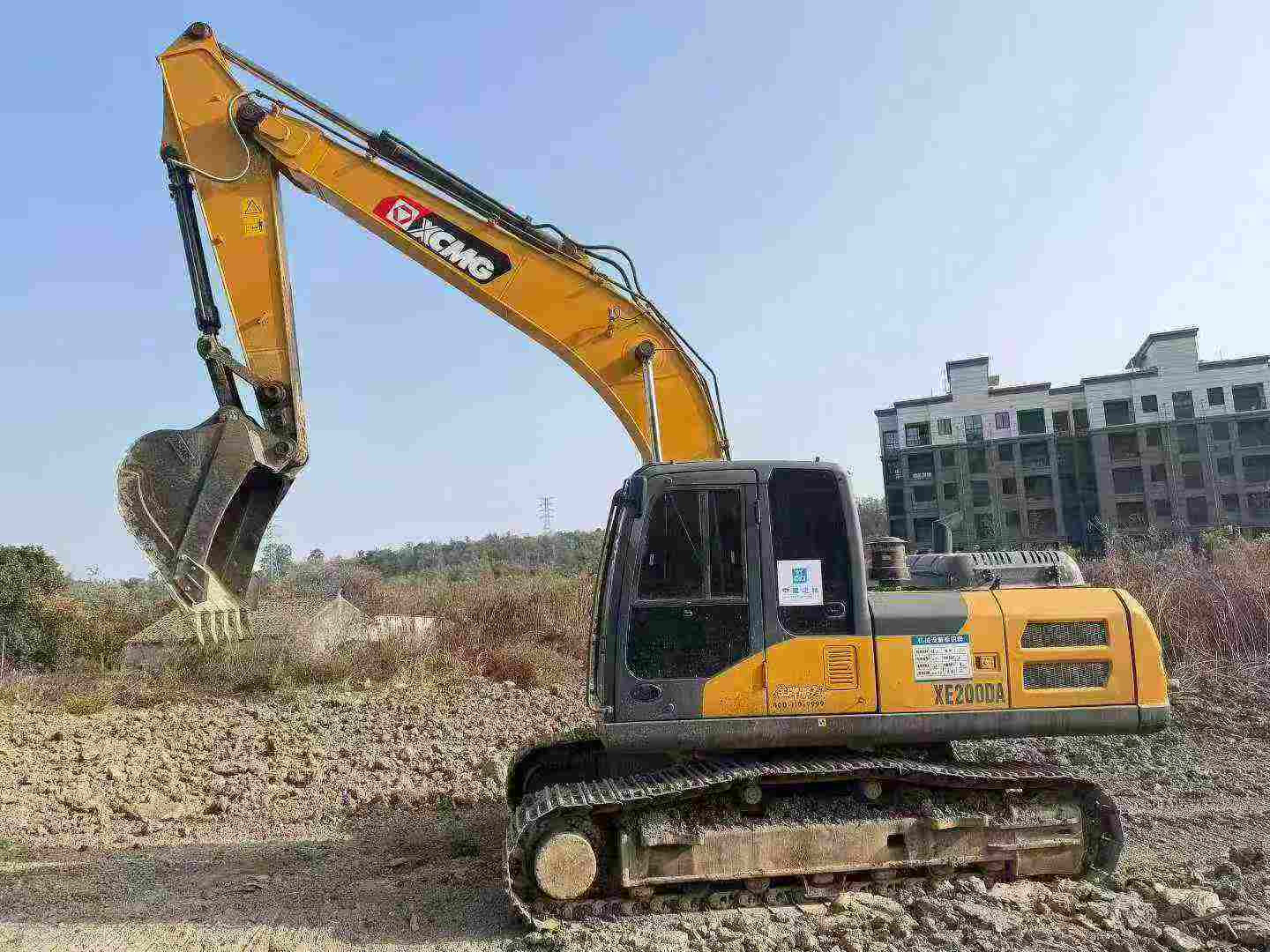

Skip the factory lead times with this 2021 XCMG XE200DA excavator, available now from 浙江温州. Built for immediate deployment, this 20-ton machine delivers reliable performance with its QSB7 engine producing 135kW at 2050 RPM and 740 N.m maximum torque.
Operating specifications include:
- Maximum digging radius: 9,790mm with 6,460mm depth capability
- Bucket capacity: 0.93m³ with 149kN digging force
- Travel speed: 5.3km/h for efficient site mobility
- Fuel capacity: 400L for extended operation cycles
Positioned in China's manufacturing hub, this excavator offers fast deployment to your construction site without manufacturing delays. With proven XCMG engineering and immediate availability, secure your equipment needs today while maintaining project timelines. Contact us for logistics coordination and delivery scheduling.
| Specifications | Value |
|---|---|
| No. | 988071 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
