Product Description

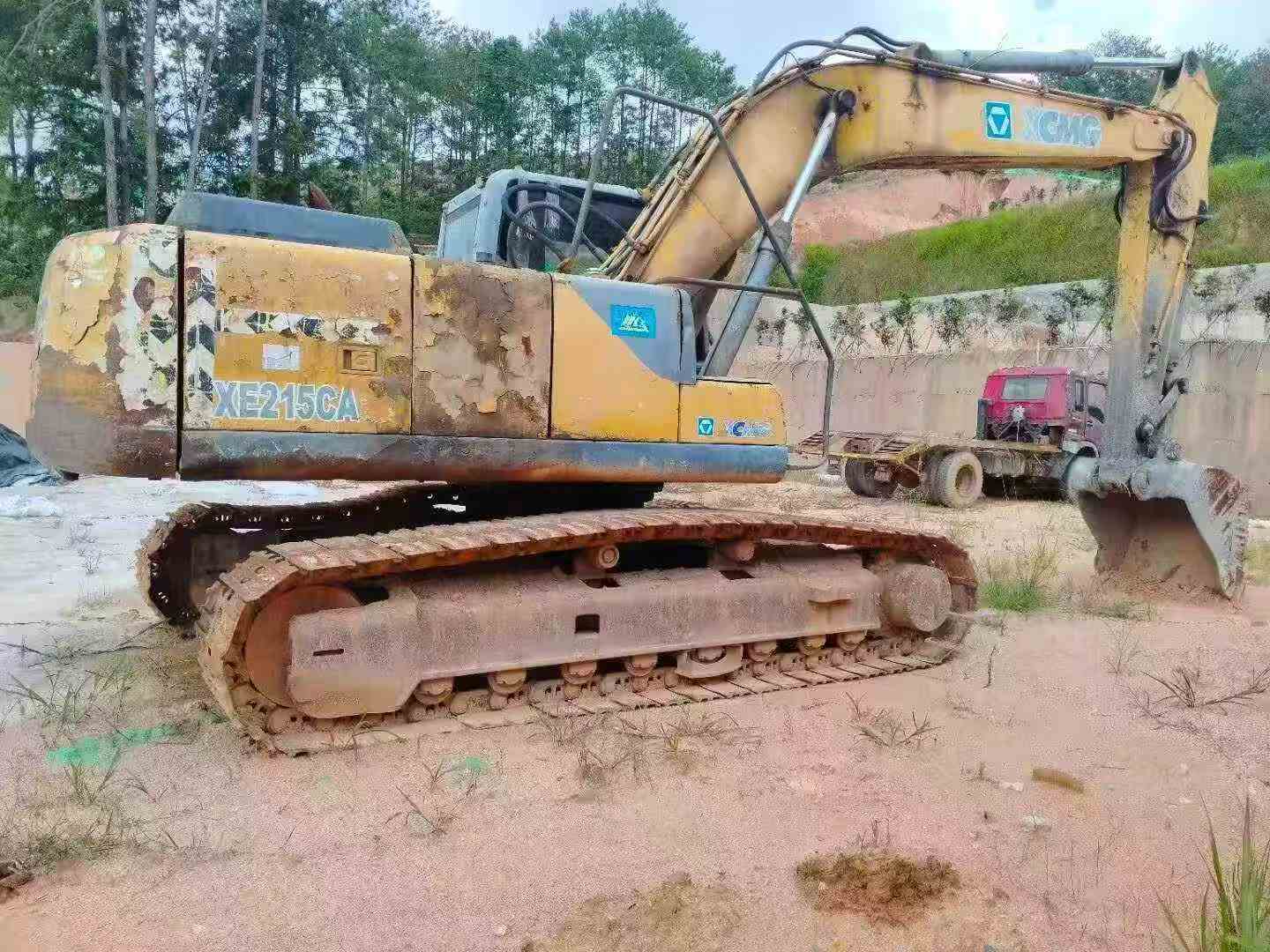

Maximize your construction budget with this proven 2013 XCMG XE215CA excavator from Jiangsu. Built for heavy-duty performance, this 21-ton machine delivers exceptional value at a fraction of new equipment costs. Powered by a reliable Isuzu 6-cylinder engine producing 128.5kW, it combines robust digging force (149kN bucket, 111kN rod) with efficient hydraulics and proven durability.
Key specifications include:
- 0.93m³ bucket capacity for optimal productivity
- 9.9m maximum digging radius and 6.7m depth capability
- Dual plunger pump hydraulic system (2 x 209 L/min flow)
- 360L fuel tank for extended operation cycles
- 35% climbing ability for challenging terrain
With over a decade of field-proven reliability, this XCMG model offers the performance characteristics of premium equipment without the premium price tag. Smart buyers recognize the substantial cost savings while maintaining operational efficiency and project deadlines.
| Specifications | Value |
|---|---|
| No. | 987765 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
