Product Description

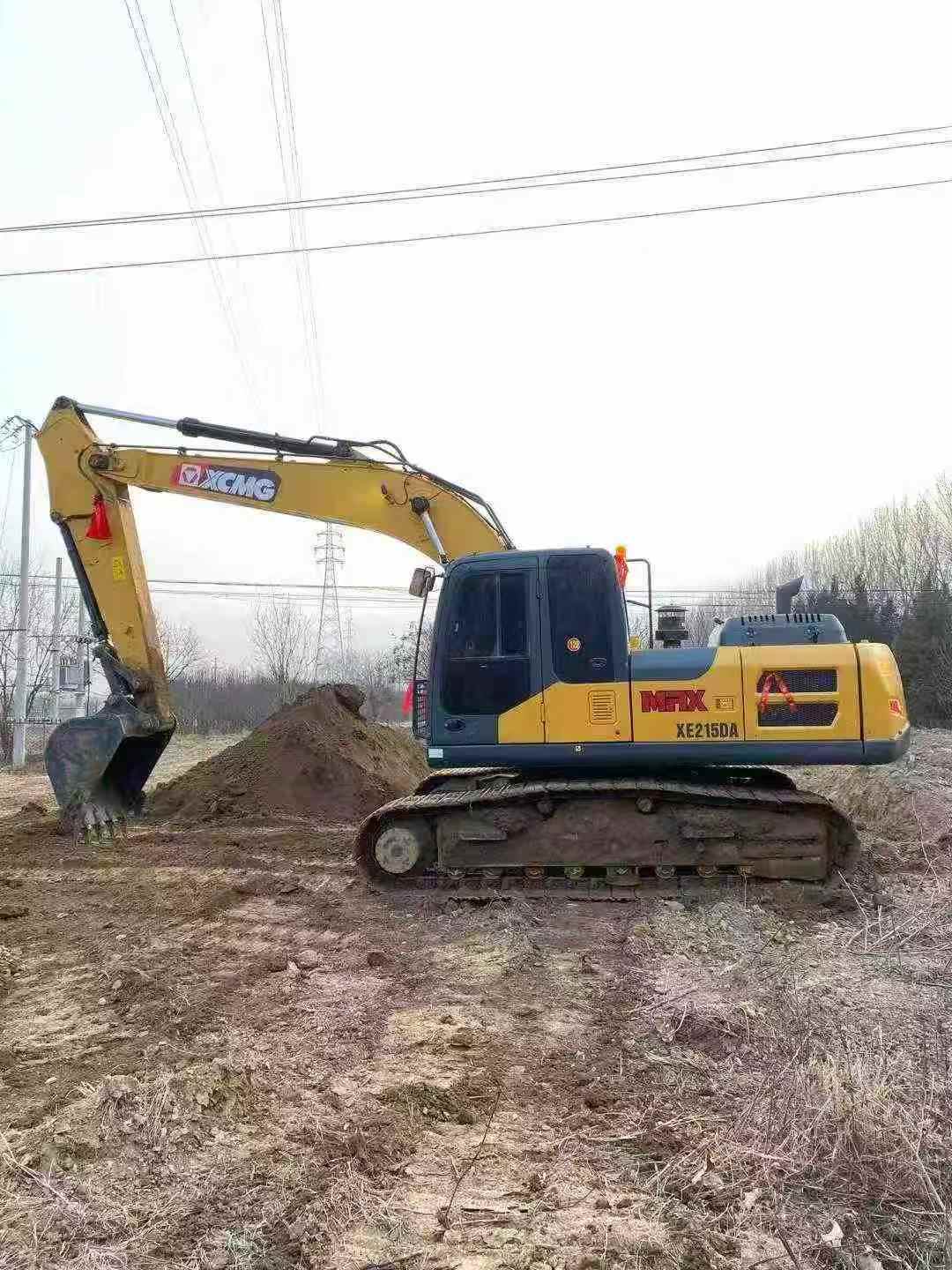

Built for demanding construction environments, this 2020 XCMG XE215DA represents four years of proven field performance in河北's challenging conditions. With 21 tons of working weight and a robust 135kW QSB7 engine, this machine delivers consistent power through its water-cooled, 6-cylinder turbocharged system.
Engineering excellence shows in every specification: 1.05m³ bucket capacity handles substantial material loads, while 149kN bucket digging force and 111kN rod digging force tackle the toughest excavation tasks. The hydraulic system's dual 216 l/min pumps ensure smooth, responsive operation across all functions.
- Maximum digging reach: 9,940mm with 6,680mm depth capability
- Superior mobility: 5.4km/h travel speed with 35% climbing ability
- Extended operation: 400L fuel tank minimizes downtime
- Compact transport: 9,625mm length fits standard trailers
Four years of continuous service demonstrate this excavator's durability and reliability. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 989207 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.2 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.4/3.1 |
| Maximum flow of main pump (l/min) | 2*216 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2844 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9940 |
| Maximum digging depth (mm) | 6680 |
| Maximum excavation height (mm) | 9620 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 5715 |
