Product Description

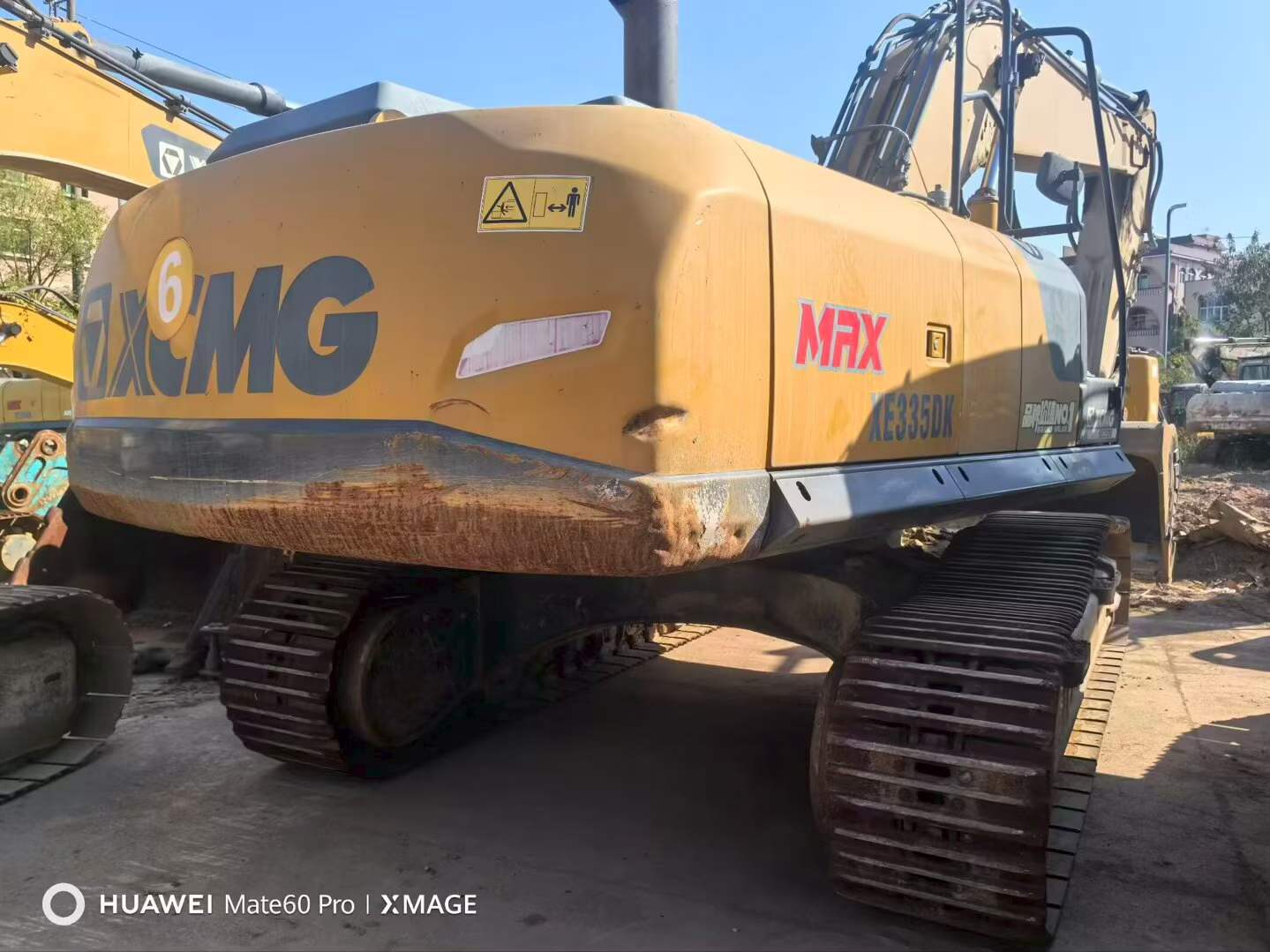

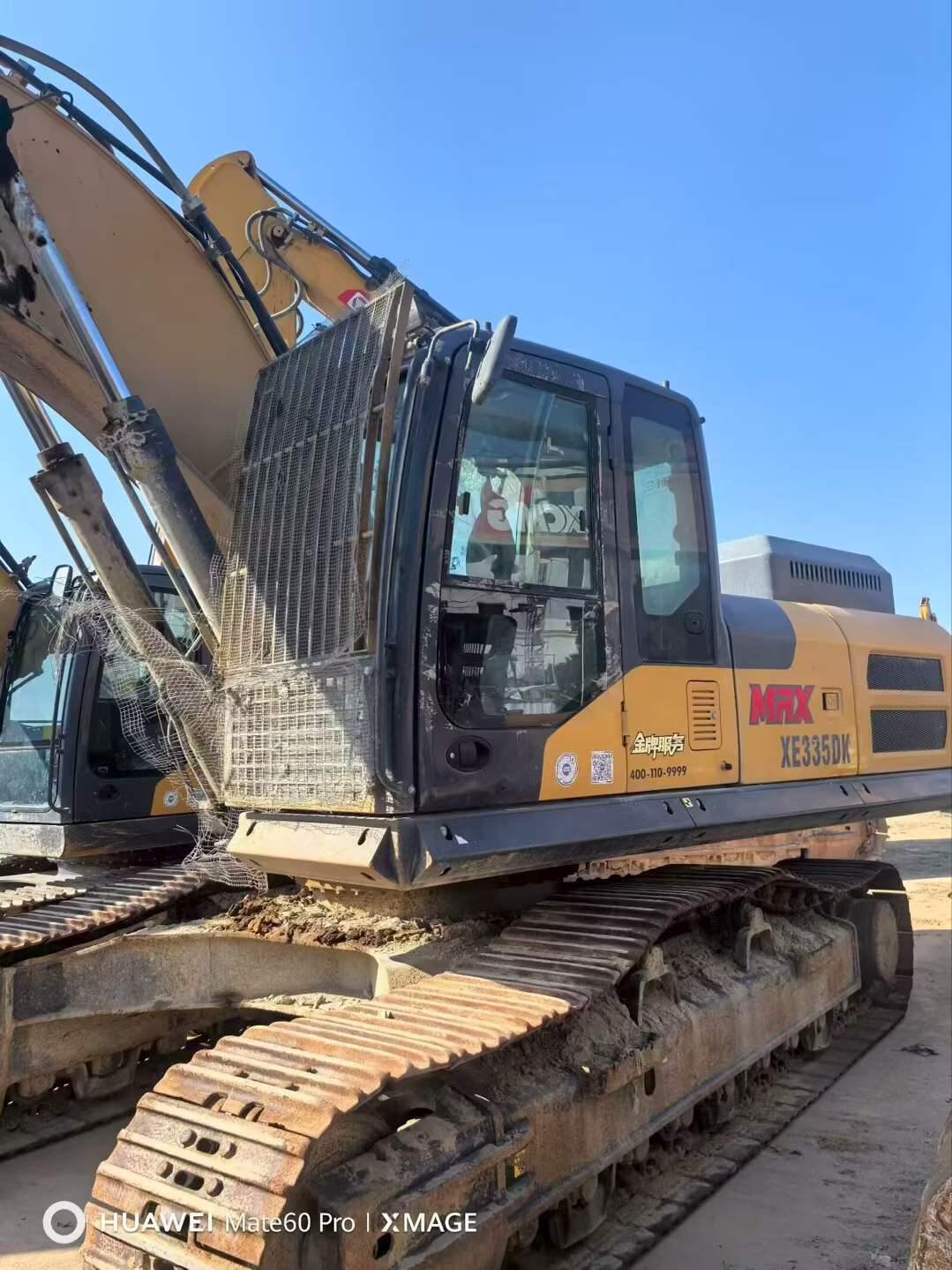

Engineered with precision, this 2022 XCMG XE335DK delivers exceptional hydraulic performance through its dual-pump system generating 2×272 L/min flow capacity. The robust QSL9 engine produces 202kW at 2100 rpm, providing reliable power for demanding excavation operations.
Built on XCMG's proven engineering platform, this 33-ton excavator combines superior digging forces of 206kN (bucket) and 160kN (arm) with impressive reach specifications. Maximum digging radius extends to 10,680mm while maintaining precise control through advanced hydraulic circuits operating at 34.3 MPa.
- Bucket capacity: 1.6-2.0 m³ for versatile material handling
- Ground pressure: 61.4 kPa minimizes surface damage
- Fuel efficiency: 520L tank capacity for extended operation
- Transport dimensions: 10,790×3,200×3,640mm
Located in Guangzhou, Guangdong, this machine represents XCMG's commitment to industrial-grade construction equipment. The XE335DK series demonstrates proven reliability in heavy-duty applications, backed by comprehensive technical specifications that meet rigorous operational demands.
| Specifications | Value |
|---|---|
| No. | 991163 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33500 |
| Bucket capacity (m³) | 1.6-2.0 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSL9 |
| Rated power (kw/rpm) | 202/2100 |
| Displacement (L) | 8.9 |
| Ground specific pressure (Kpa) | 61.4 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 206 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 260 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 2*272 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 10790 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1198 |
| Minimum ground clearance (mm) | 538 |
| Minimum turning radius of front working device (mm) | 4125 |
| Back end turning radius (mm) | 3360 |
| Total track length (mm) | 4944 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10680 |
| Maximum digging depth (mm) | 6735 |
| Maximum excavation height (mm) | 10265 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5010 |
