Product Description

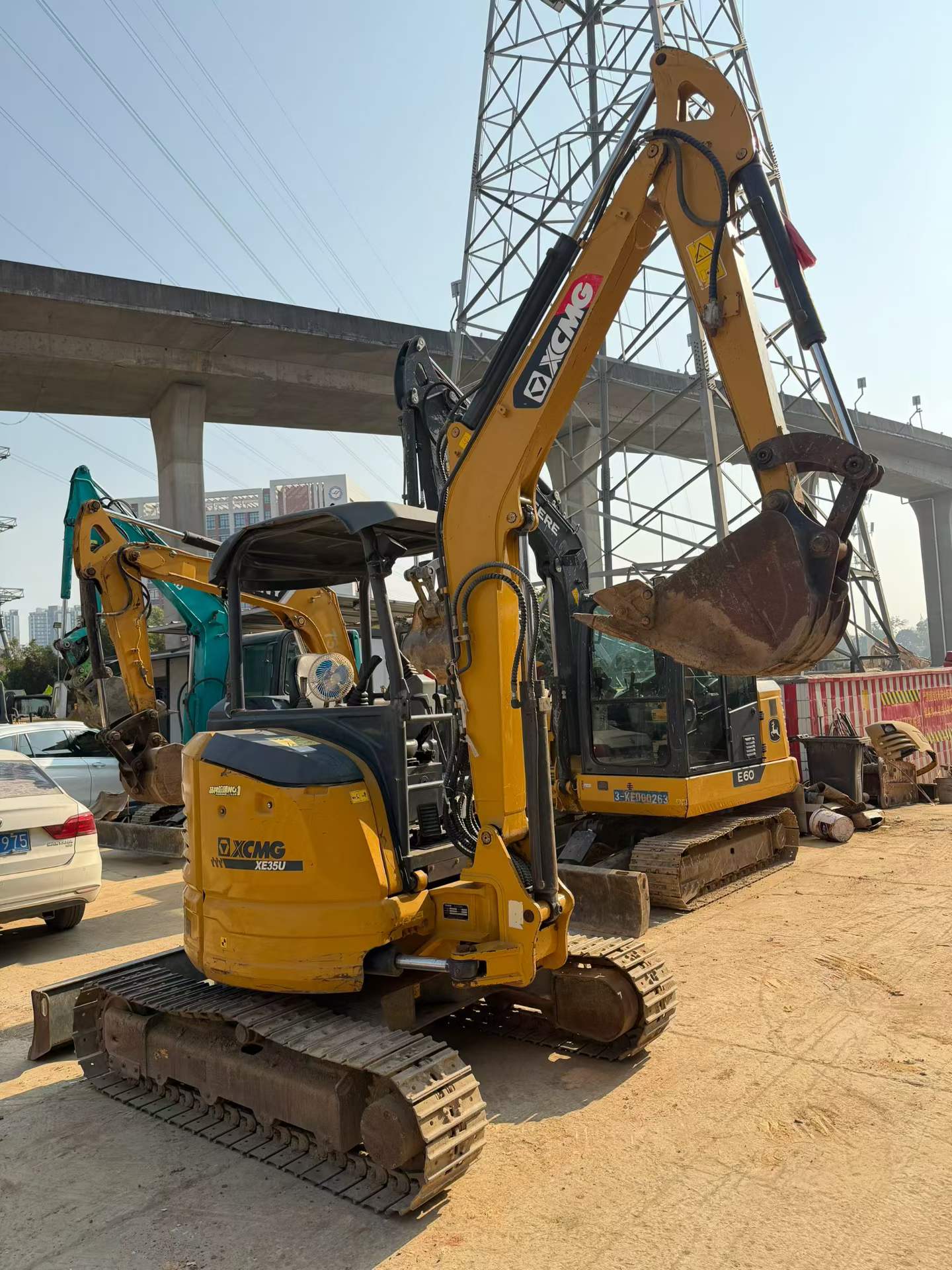

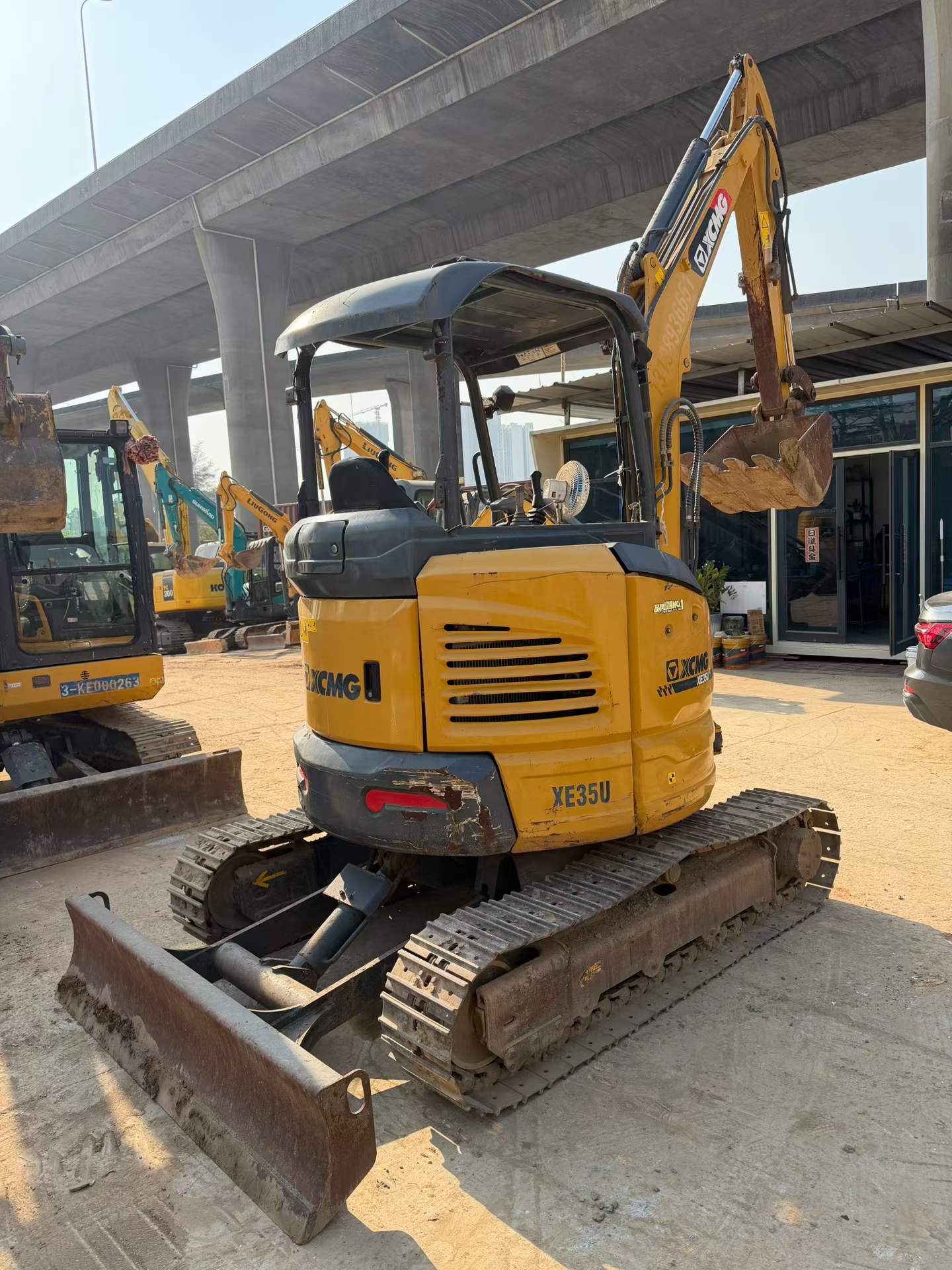

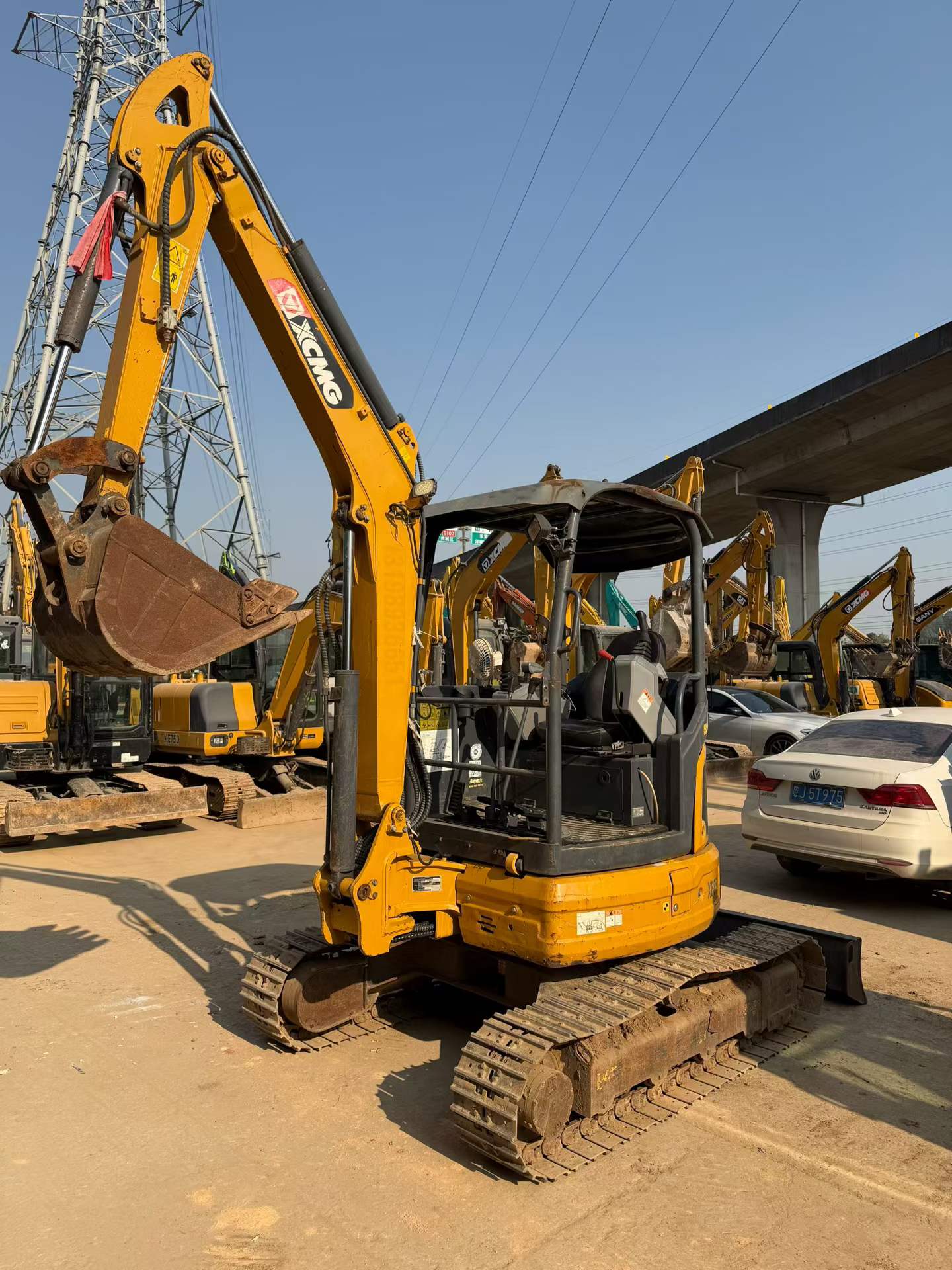

Built for precision and reliability, this 2022 XCMG XE35U compact excavator delivers 4-ton performance with immediate site deployment capability. Powered by a robust 3TNV88-B engine generating 22.2kW at 2400 RPM, this machine tackles digging, grading, and demolition tasks with professional-grade efficiency.
Key operational specifications include:
- Maximum digging depth of 3,060mm with 28.6kN bucket digging force
- 5,300mm maximum digging radius for versatile reach
- Compact transport dimensions (4,970 × 1,740 × 2,535mm) for easy site mobility
- 108 L/min hydraulic flow rate ensuring responsive operation
- 0.12m³ bucket capacity optimized for precision work
Currently located in Guangzhou, Guangdong, this water-cooled excavator features direct injection technology and maintains low ground pressure at 36.6 KPa. With 40L fuel capacity and proven Chinese manufacturing quality, it's ready for immediate deployment on construction, landscaping, or utility projects requiring reliable compact excavation performance.
| Specifications | Value |
|---|---|
| No. | 987439 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
