Product Description

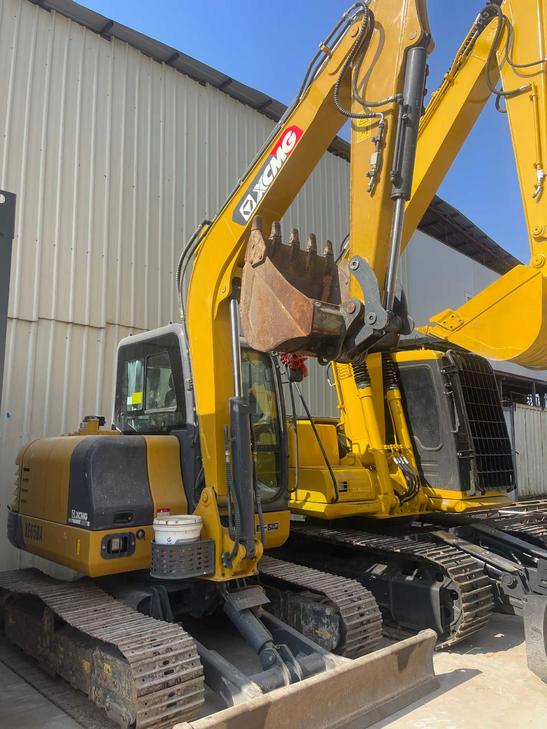

Ready for immediate deployment from 广东深圳, this 2016 XCMG XE60 compact excavator delivers reliable 6-ton performance without factory wait times. Powered by a proven Yanmar 4TNV94L engine producing 39.8kW, this machine combines efficient fuel consumption with robust hydraulic capabilities through its Rexroth main pump system.
Built for versatility in tight spaces, the XE60 offers impressive reach specifications:
- Maximum digging radius: 6,130mm
- Maximum digging depth: 3,830mm
- Bucket capacity range: 0.09-0.23m³
- Transport dimensions: 5,850 × 1,880 × 2,585mm
With 42.5kN bucket digging force and dual-speed travel capability (4.2/2.2 km/h), this excavator handles demanding jobsite conditions while maintaining excellent maneuverability. Standard hydraulic crushing pipeline and water-cooled engine ensure consistent operation. Available now for fast deployment to your construction site, bypassing lengthy manufacturing lead times typical of new equipment orders.
| Specifications | Value |
|---|---|
| No. | 988044 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
