Product Description
Skip the factory lead times with this ready-to-deploy 2021 XCMG XE60 excavator, strategically located in Jiangsu China for rapid logistics coordination. Operating at 6 tons with a robust Yanmar 4TNV94L engine delivering 39.8kW of reliable power, this compact workhorse tackles demanding excavation projects with precision and efficiency.
Built for versatility, the XE60 features variable bucket capacity from 0.09-0.23m³, maximum digging depth of 3,830mm, and impressive digging forces of 42.5kN bucket and 28.5kN rod. Advanced Rexroth hydraulic systems ensure smooth operation while maintaining fuel efficiency through its 110L tank capacity.
- Available now from Jiangsu logistics hub
- Fast deployment to your construction site
- Proven 6-ton performance class
- Water-cooled 4-cylinder engine reliability
- Compact 5,850mm transport length
- Professional-grade hydraulic crushing pipeline standard
Maximize your project timeline with immediate availability and strategic Chinese positioning for efficient international shipping. Contact us today for fast-track delivery arrangements.
| Specifications | Value |
|---|---|
| No. | 942477 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

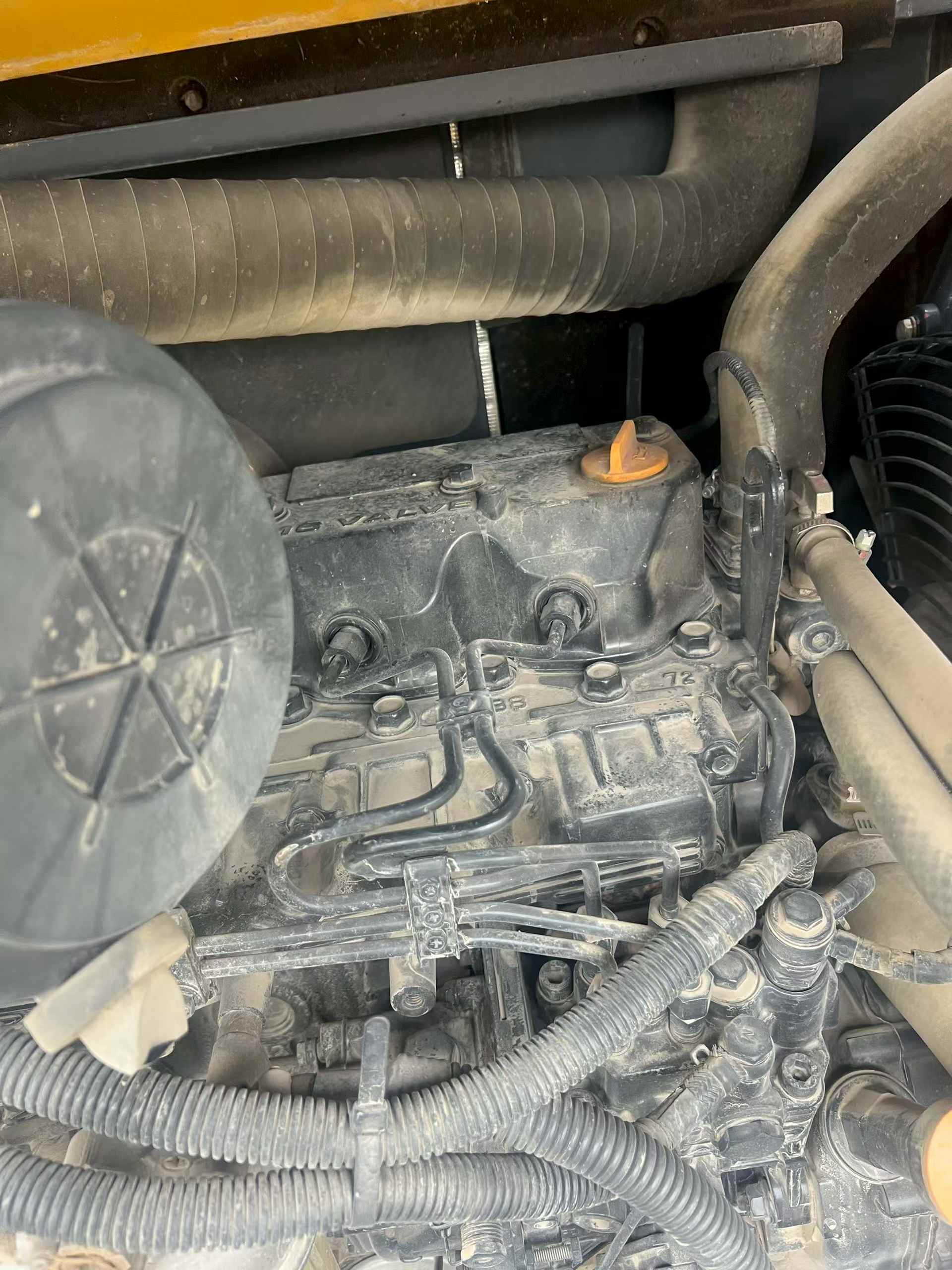

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
