Product Description
Built for precision and reliability, this 2021 XCMG XE60 compact excavator delivers exceptional performance in tight working spaces. With its 6-ton operating weight and Yanmar 4TNV94L engine producing 39.8kW of power, operators benefit from responsive hydraulic controls and smooth operation across varied terrain.

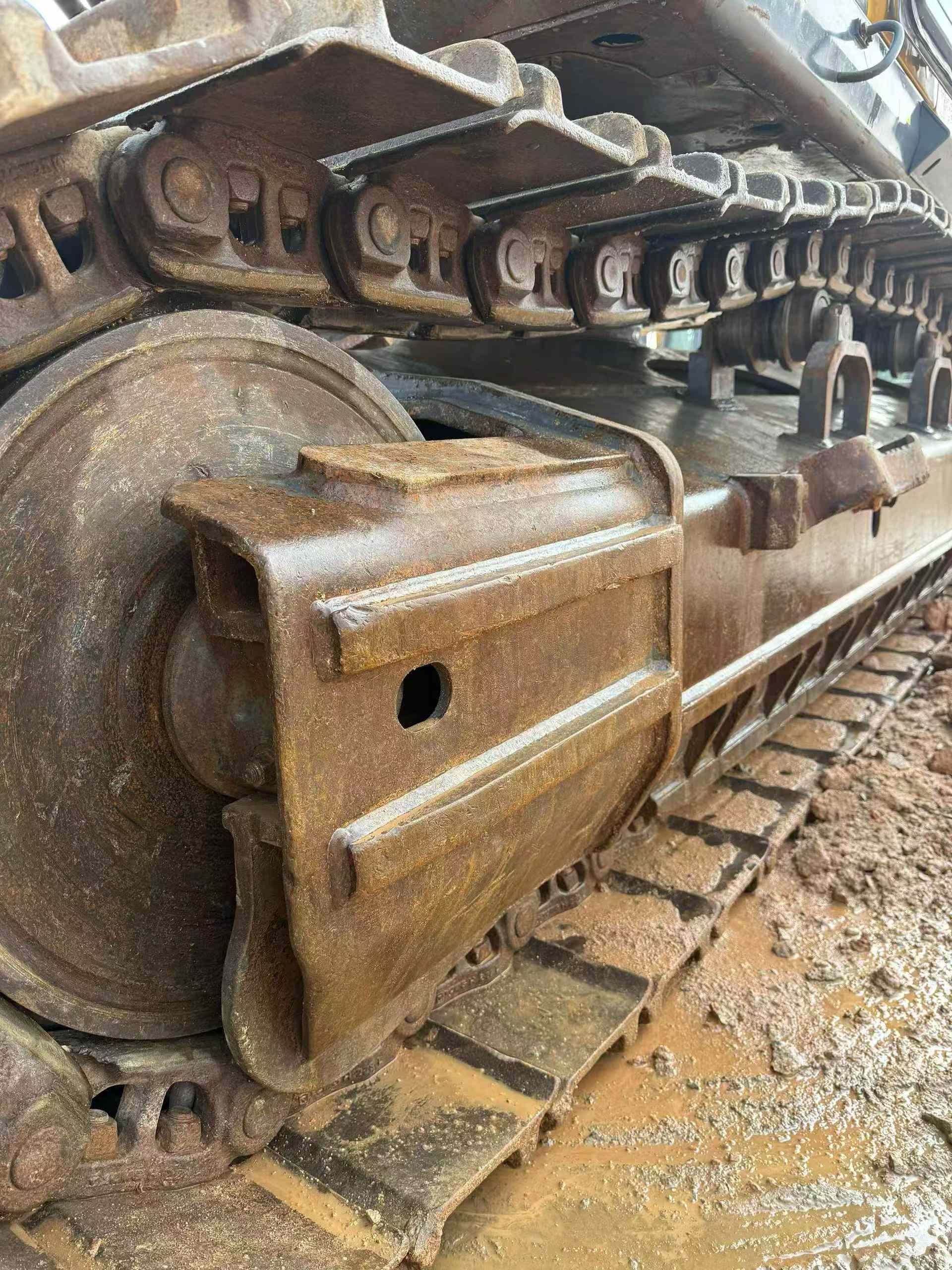

Enhanced operator comfort comes standard with excellent cabin visibility and intuitive control layout. The machine's compact 1880mm transport width allows access to confined job sites while maintaining stability through its robust undercarriage design. Ground clearance of 369mm ensures reliable navigation over obstacles.
- Rexroth main pump system for consistent hydraulic performance
- 42.5kN bucket digging force with 0.09-0.23m³ capacity range
- 6130mm maximum digging radius for extended reach capability
- 35° climbing ability handles challenging grade conditions
- Water-cooled engine with 110L fuel capacity for extended operation
Currently located in Xinyu, Jiangxi Province, this well-maintained unit represents proven XCMG engineering quality. Ideal for construction, landscaping, and utility work requiring maneuverability without compromising digging performan
| Specifications | Value |
|---|---|
| No. | 990006 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

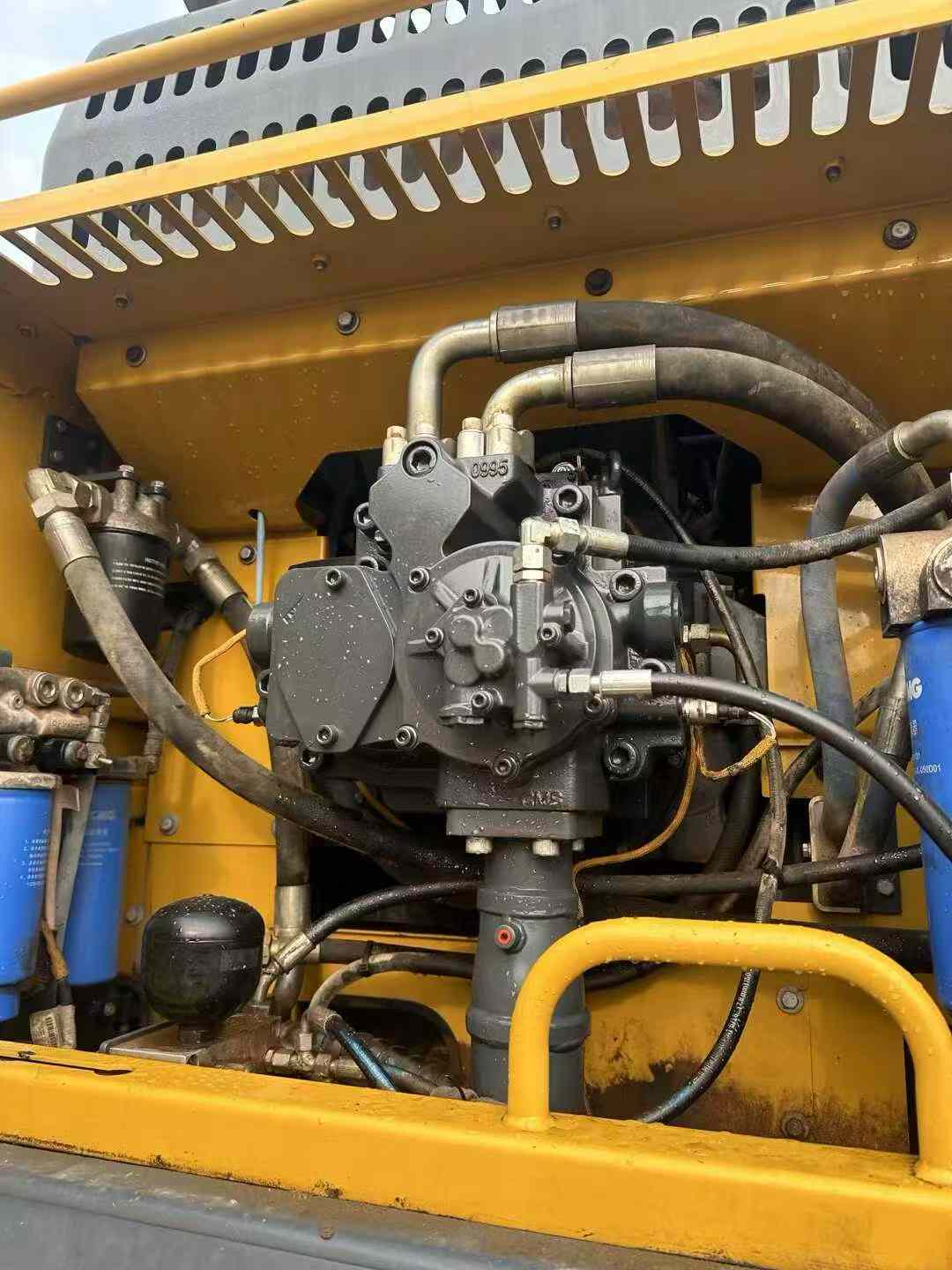

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
