Product Description

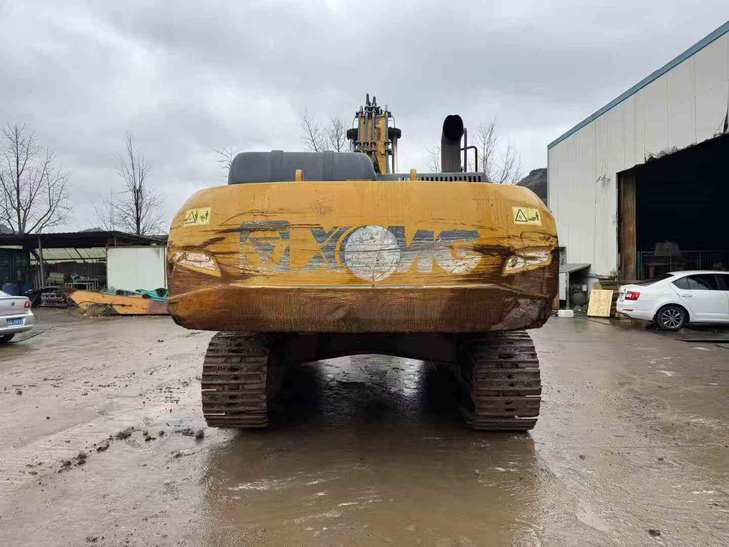

Built for reliability and engineered in Xuzhou, this 2020 XCMG XE80 represents proven Chinese manufacturing excellence in the 8-ton excavator class. Operating at 7,425kg working weight with a robust Cummins B3.3 engine delivering 60kW at 2200rpm, this machine combines dependable performance with accessible maintenance requirements.
XCMG's established market presence ensures comprehensive parts availability and strong resale value retention, making this unit a sound investment for contractors prioritizing long-term operational costs. Located in Guangdong Huizhou, this excavator features:
- Maximum digging reach of 6,375mm with 4,140mm depth capability
- Versatile bucket capacity range from 0.14-0.34m³
- Toshiba variable pump hydraulic system with 198L/min flow capacity
- Water-cooled turbocharged engine with 127L fuel capacity
- Compact transport dimensions: 6,155mm length × 2,220mm width
With 53.6kN bucket digging force and 35° climbing ability, this XE80 delivers consistent productivity across diverse job sites while maintaining XCMG's reputation for durability and service network support throughout Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 987822 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
