Product Description

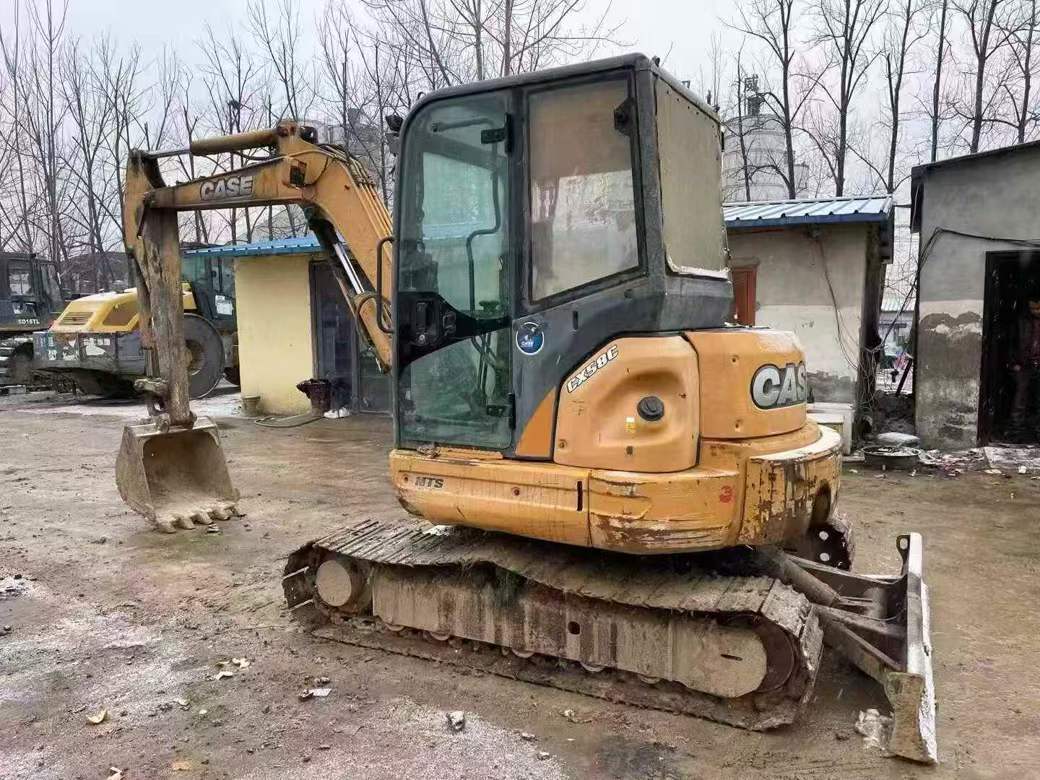

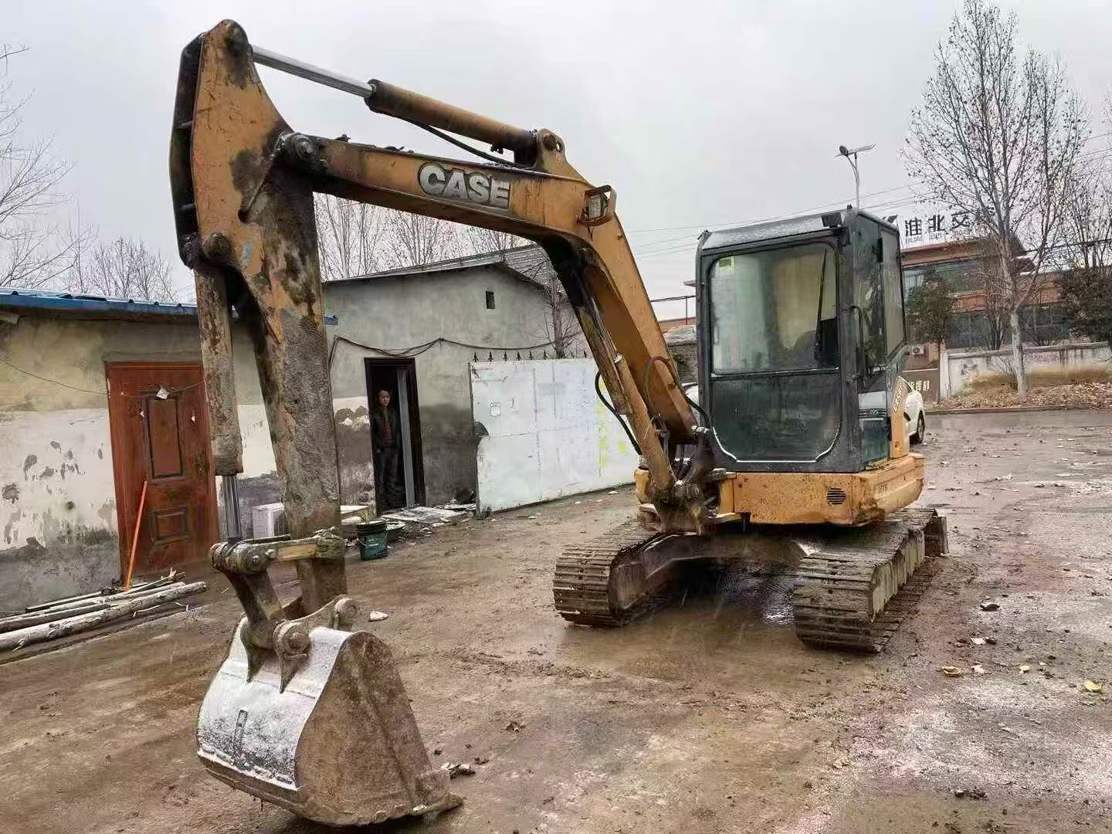

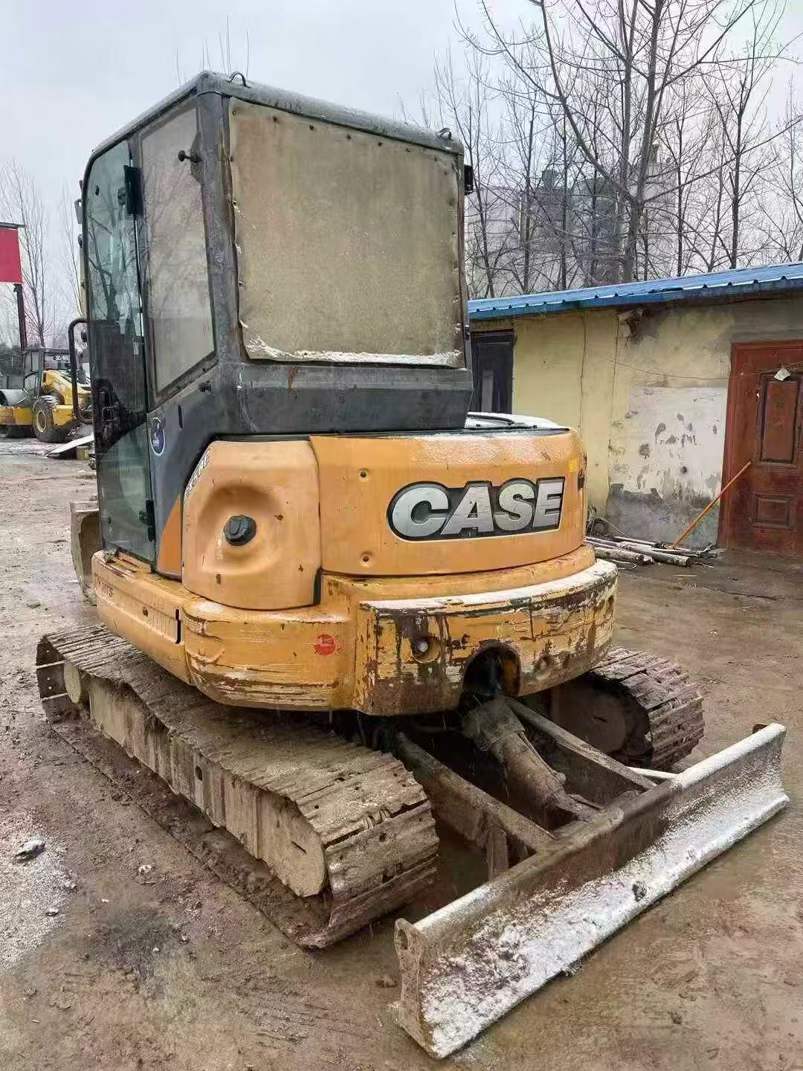

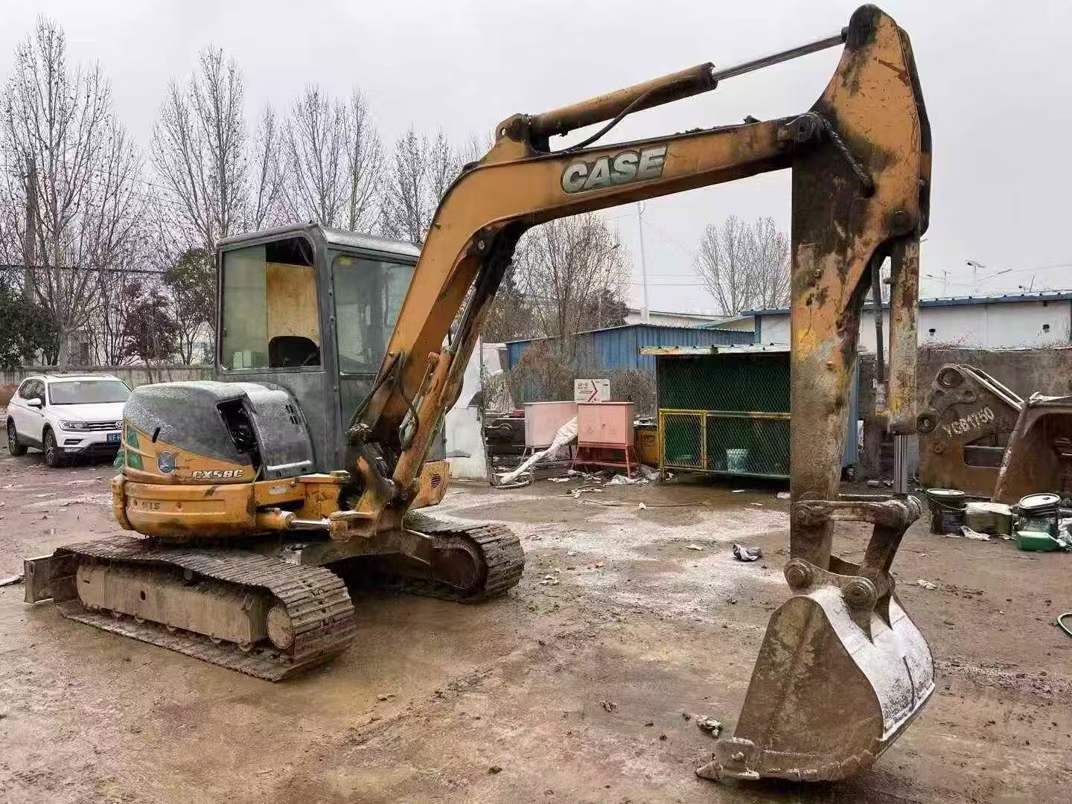

Compact yet powerful, this 2014 Case CX58C mini excavator delivers exceptional performance in tight spaces with its 5.5-ton operating weight and versatile 0.08-0.28 m³ bucket capacity. Powered by a reliable YANMAR 4TNV88 Tier IV engine producing 30.7 kW, this machine combines fuel efficiency with robust digging capabilities.
Key performance specifications include:
- Maximum digging depth of 3,910mm with 6,220mm reach
- Strong digging forces: 50kN bucket, 25.5kN arm
- Compact transport dimensions: 5,420 x 1,960 x 2,550mm
- Dual-speed travel: 2.7/4.6 km/h for versatile mobility
- 58% climbing ability for challenging terrain
Located in 浙江杭州, this excavator is available now for immediate deployment. Skip the factory lead times and get your project moving with fast delivery to your site. Perfect for urban construction, landscaping, and utility work where space is premium but performance cannot be compromised.
| Specifications | Value |
|---|---|
| No. | 991661 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5585 |
| Bucket capacity (m³) | 0.08-0.28 |
| Boom length (mm) | 2980 |
| Rod length (mm) | 1660 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

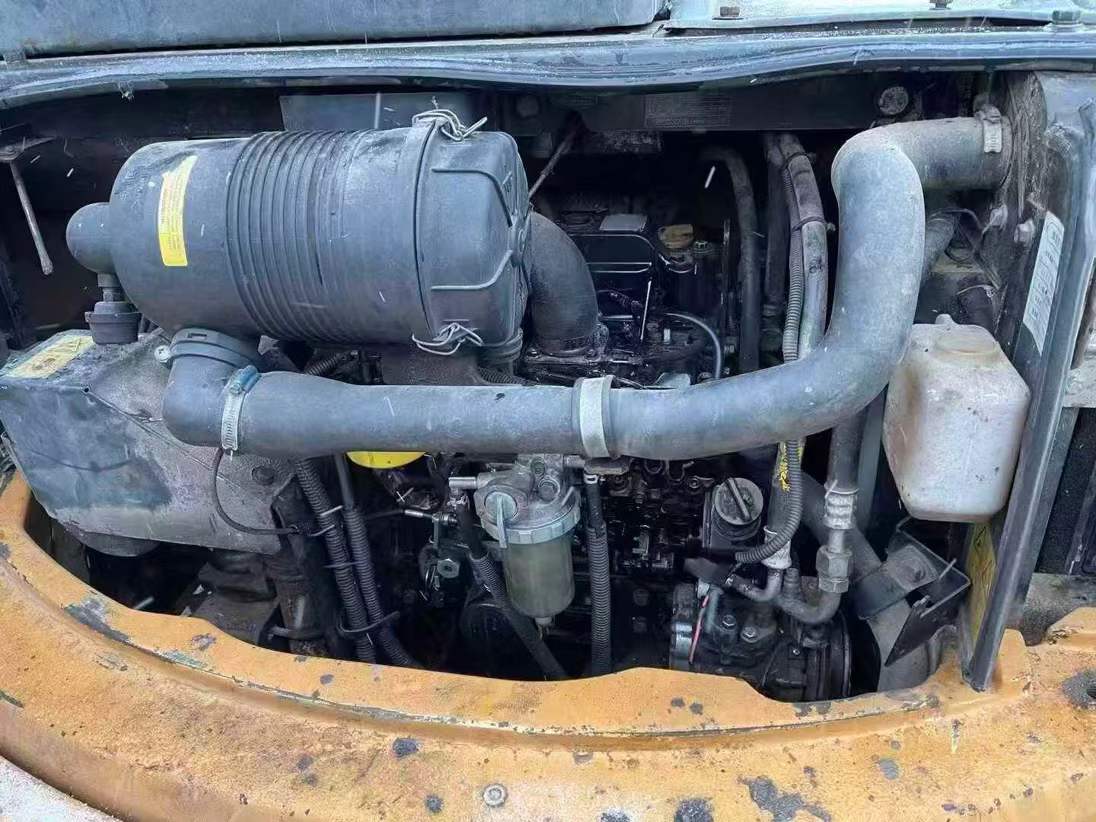

| Engine type | YANMAR 4TNV88-BXPYBD(Tier IV) |
| Rated power (kw/rpm) | 30.7/2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 88 x 90 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.2 |
| Working form | Direct injection diesel engine |
| Ground specific pressure (Kpa) | 29 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 50 |
| Rod digging force (kN) | 25.5 |
| Travel speed (km/h) | 2.7/4.6 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Axial piston motor x 2 |
| Maximum flow of main pump (l/min) | 57.1 * 2 + 33.8 + 12.2 |
| Traveling Hydraulic Circuit (Mpa) | 23 |
| Rotary Hydraulic Circuit (Mpa) | 20.1 |
| Hydraulic crushing pipeline is standard | is |

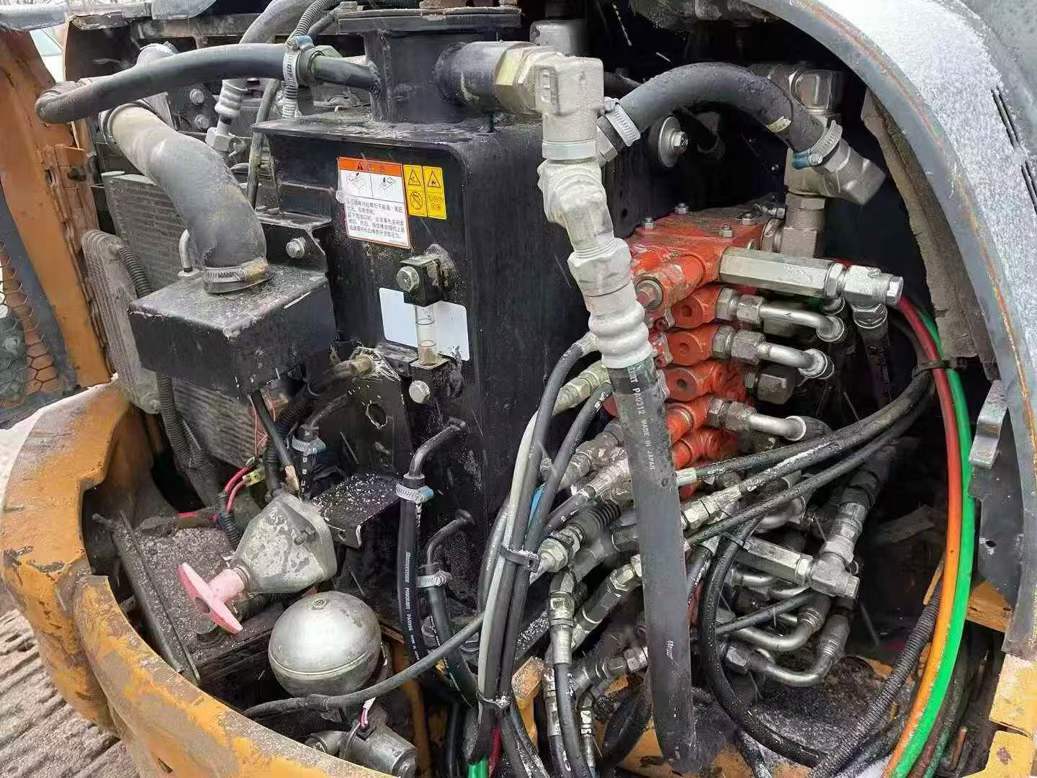

| Main pump type | Variable axial piston pump ×2+ gear pump ×2 |
| Working Hydraulic Circuit (Mpa) | 23 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-75 x 543 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90 x 735 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-100 x 680 |
| Fuel Tank (L) | 75 |
| Hydraulic Tank (L) | 34 |
| Engine Oil changes (L) | 7 |
| Coolant (L) | 6 |
| Hydraulic System (L) | 61 |
| Total transport length (mm) | 5420 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 625 |
| Minimum turning radius of front working device (mm) | 2430 |
| Back end turning radius (mm) | 1180 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6220 |
| Maximum digging depth (mm) | 3910 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4200 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 495/345 |
| Dodging plate width × height (mm) | 1960 x 345 |
| Maximum excavation radius of stop surface (mm) | 6070 |
| Boom turning Angle (left/right °) | 70/60 |
| Maximum effective digging depth (mm) | 3220 |
