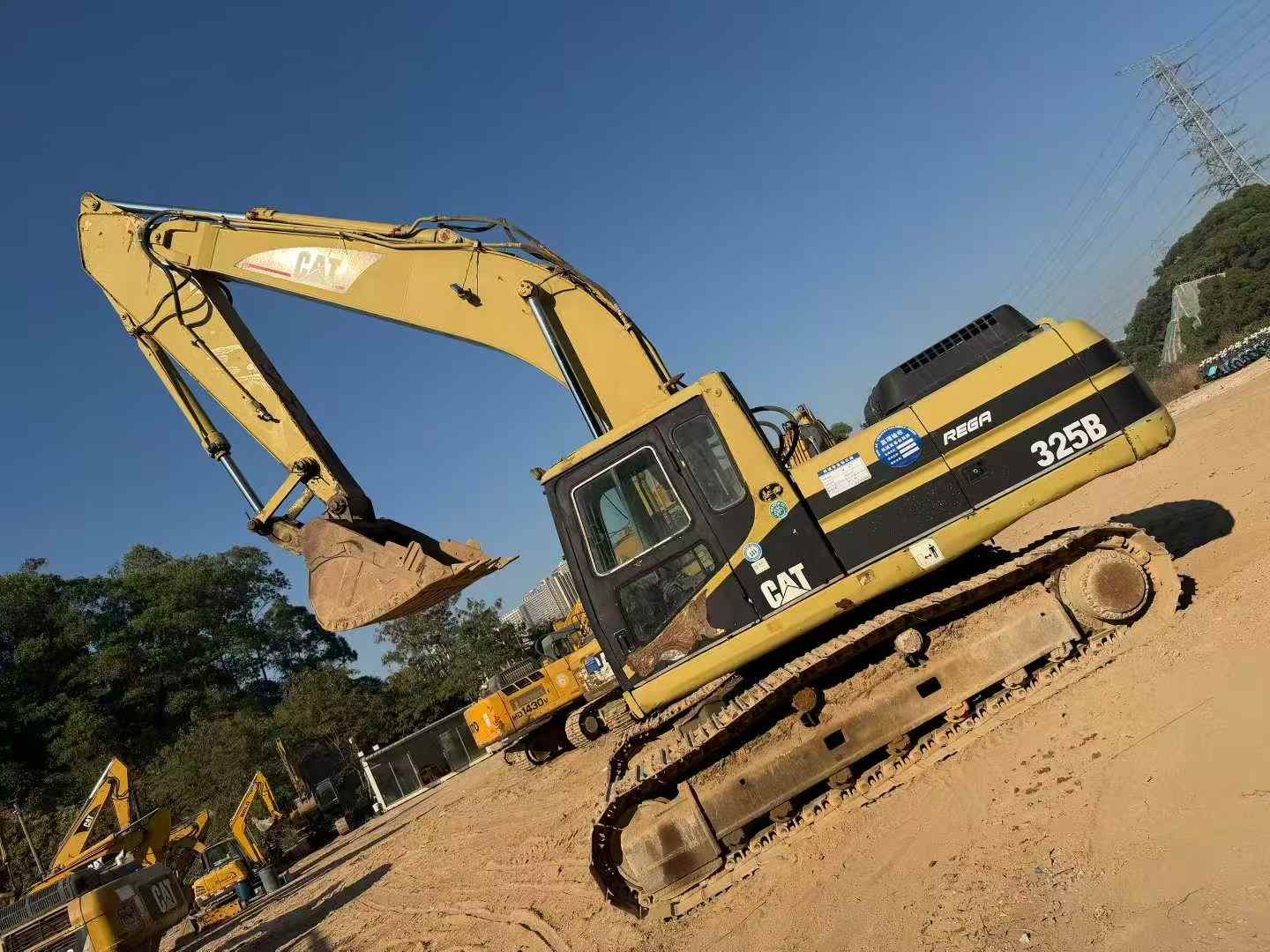

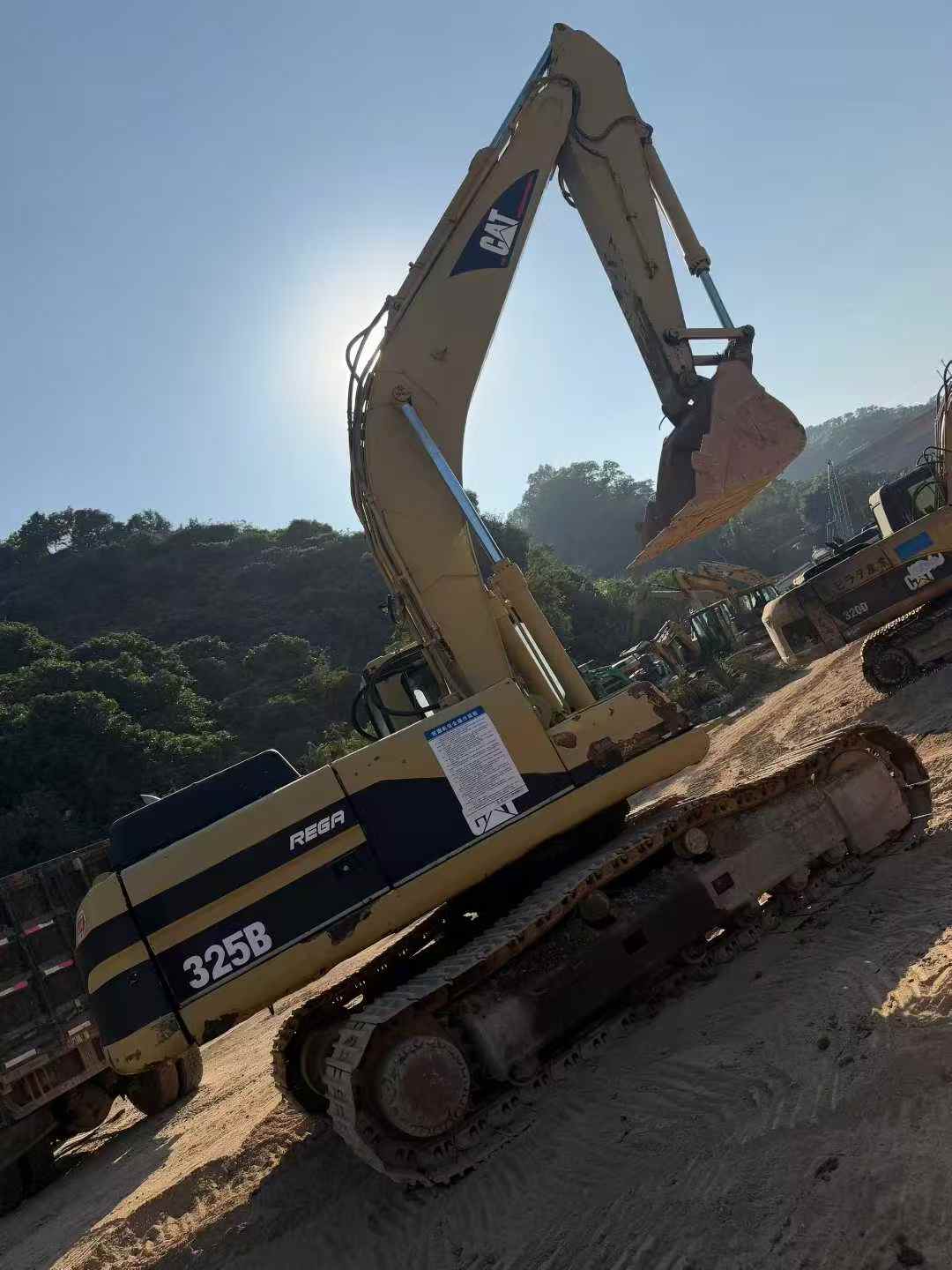

2016 Caterpillar 325B
Product Description
Built for demanding construction and excavation projects, this 2016 Caterpillar 325B delivers 25-ton performance with proven reliability. Powered by a robust Caterpillar 3116TA engine generating 125.3kW, this machine handles heavy digging, precise grading, and demolition work with consistent power output.
Key operational specifications include:
- Maximum digging depth: 7,090mm for deep foundation work
- 1.1m³ bucket capacity optimized for efficient material handling
- 10,520mm maximum excavation radius covers extensive work areas
- Rexroth hydraulic system with 416 L/min flow rate ensures responsive operation

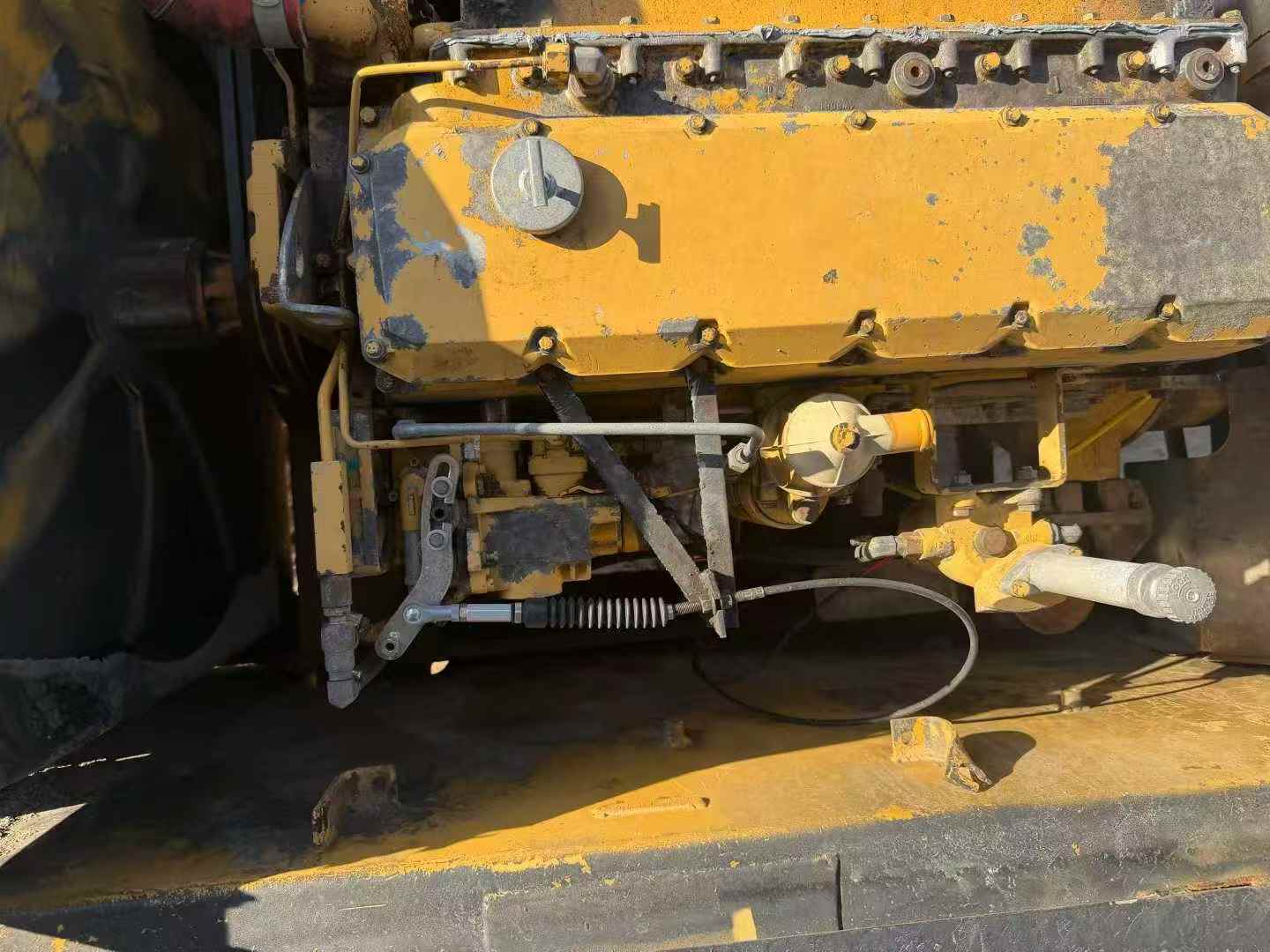

- Water-cooled 6-cylinder engine with turbocharging and after-cooling technology
Currently located in Huizhou, Guangdong, this excavator features 600mm track plates for superior ground contact and stability across varied terrain. With 420L fuel capacity and comprehensive hydraulic systems, it's equipped for extended operational periods on active job sites. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 989000 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25900 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | USA/Belgium/China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3116TA |
| Rated power (kw/rpm) | 125.3/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.6 |
| Working form | Turbocharging; after-cooling |
| Maximum tractive force (kN) | 215 |
| Travel speed (km/h) | 5.0 (High Speed) |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 416 |
| Main pump type | Rexroth |
| Fuel Tank (L) | 420 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 31.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3270 (to top of big arm) |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3050 |
| Track gauge (mm) | 2390 |

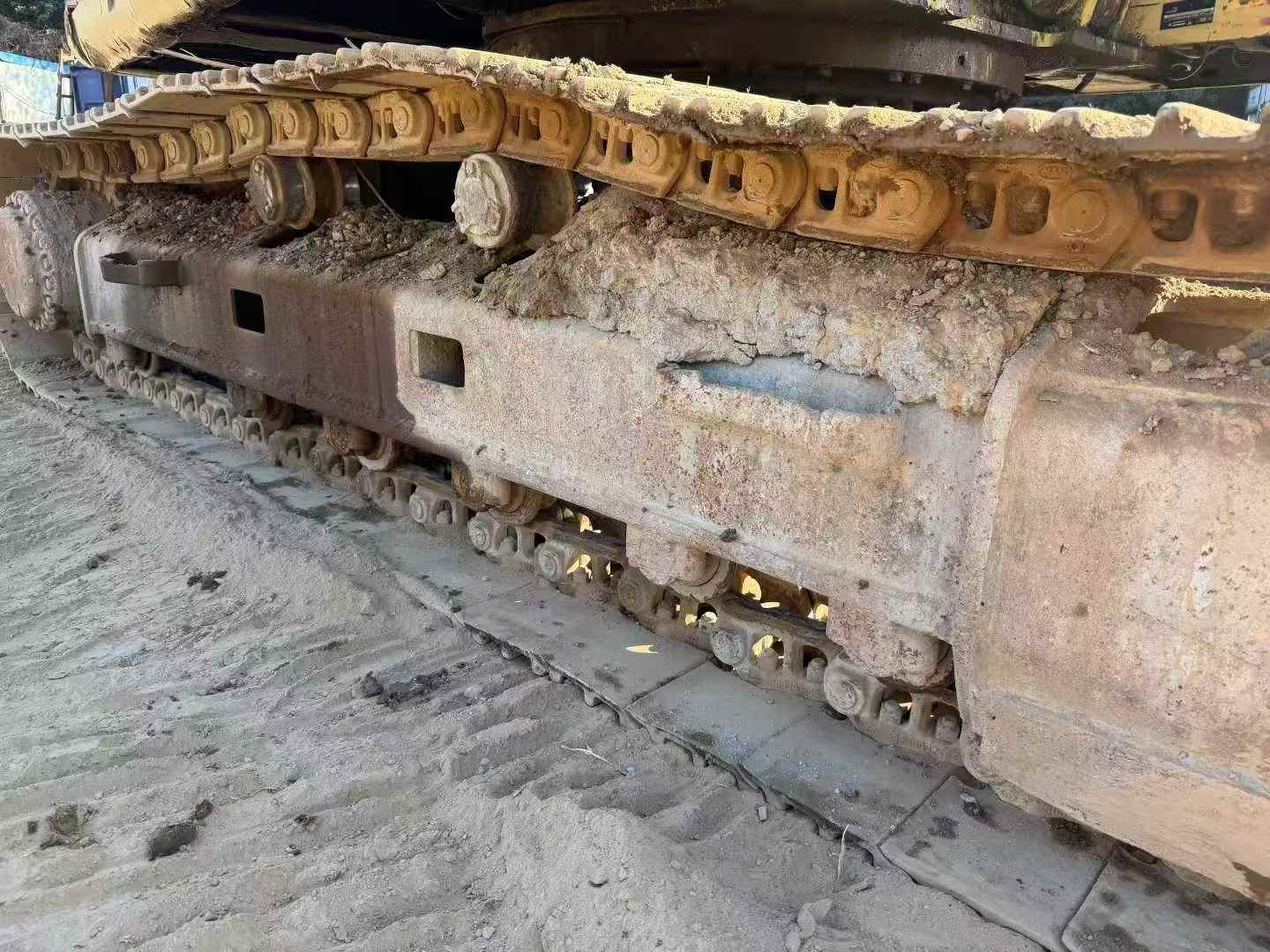

| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7090 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6380 |
| Maximum excavation radius of stop surface (mm) | 10520 |
Overview
No.989000
Brand Name：
CaterpillarModel Number：
325BYear：
2016
Location：
Guangdong China
