Product Description

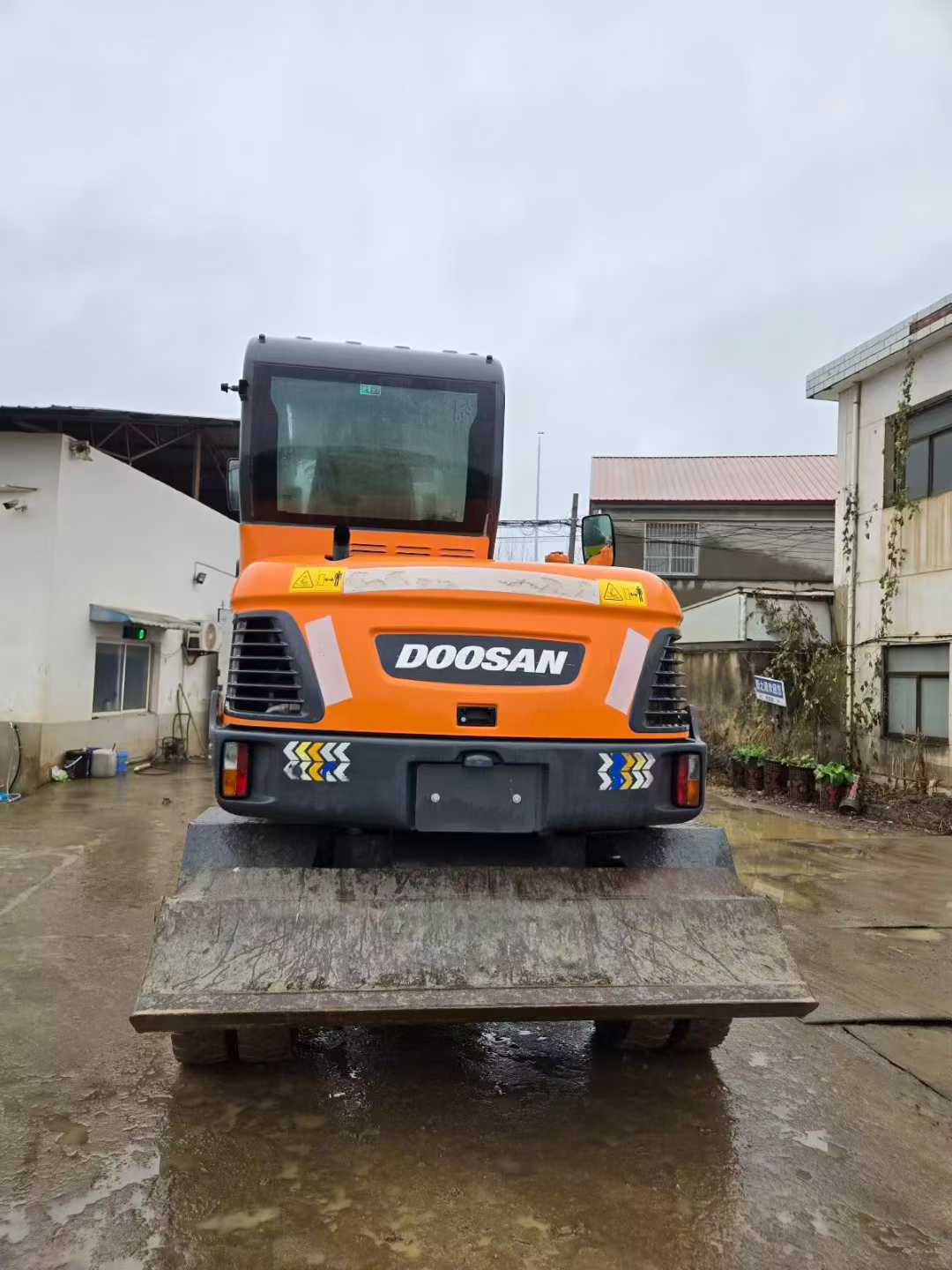

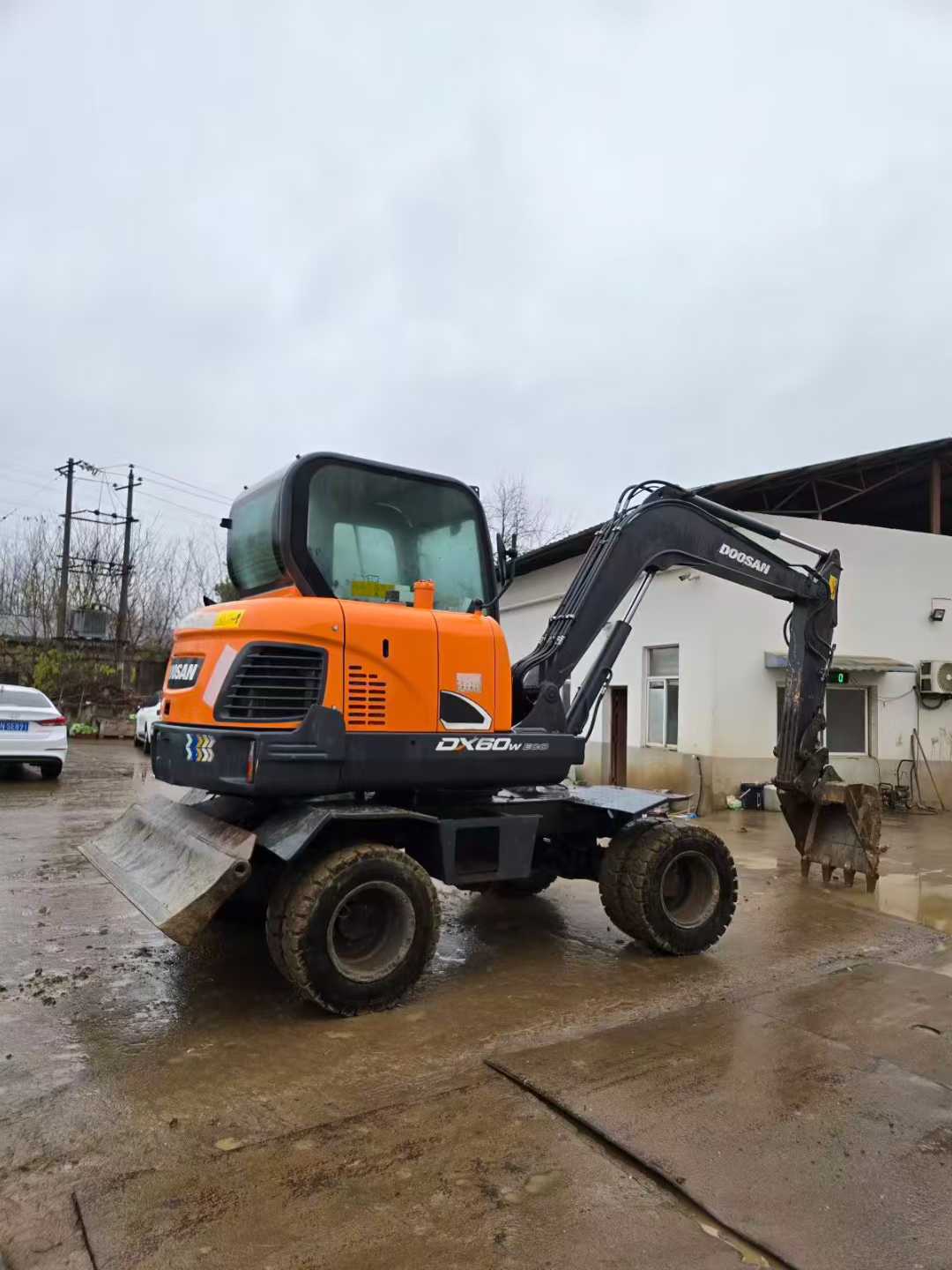

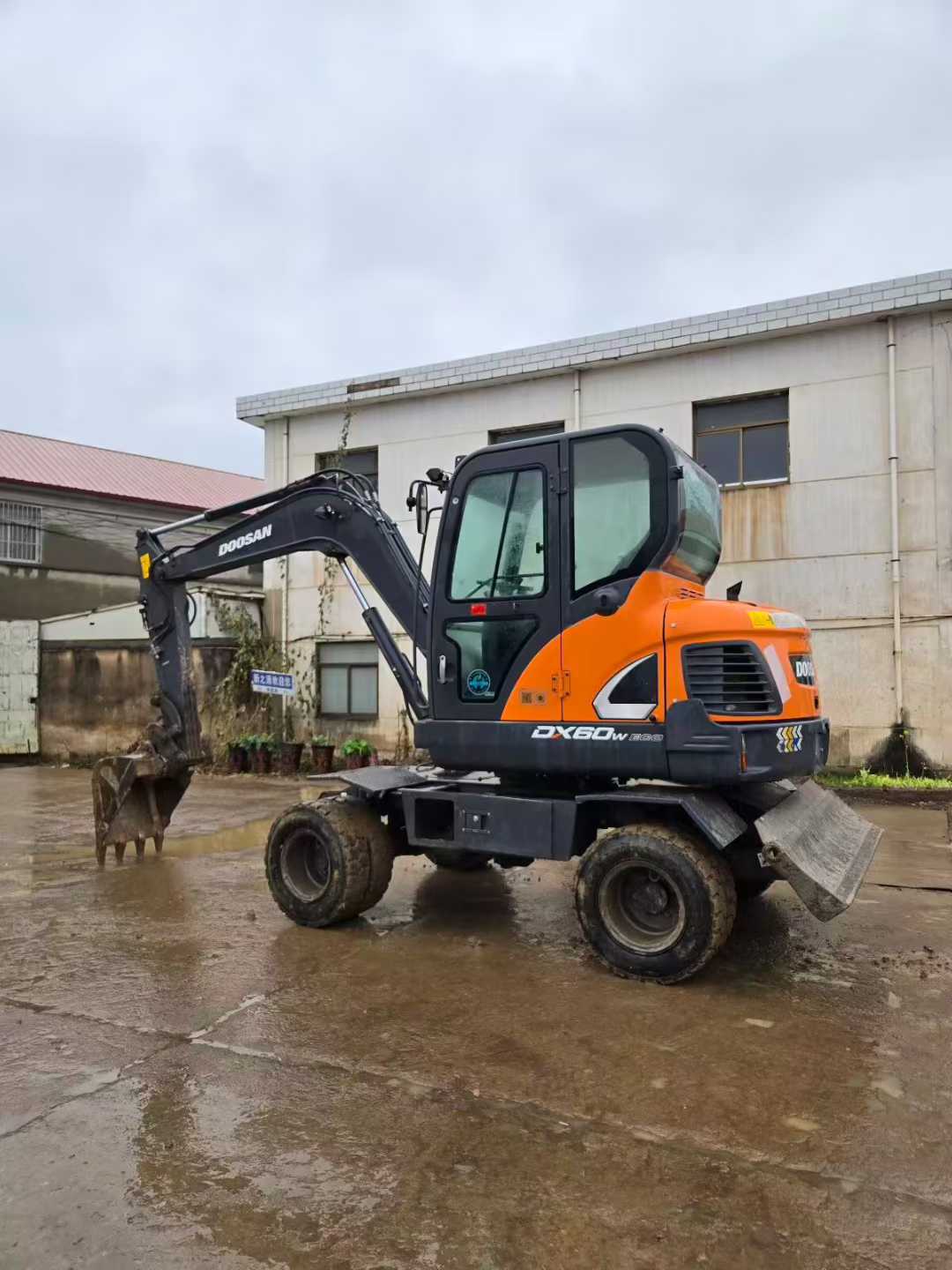

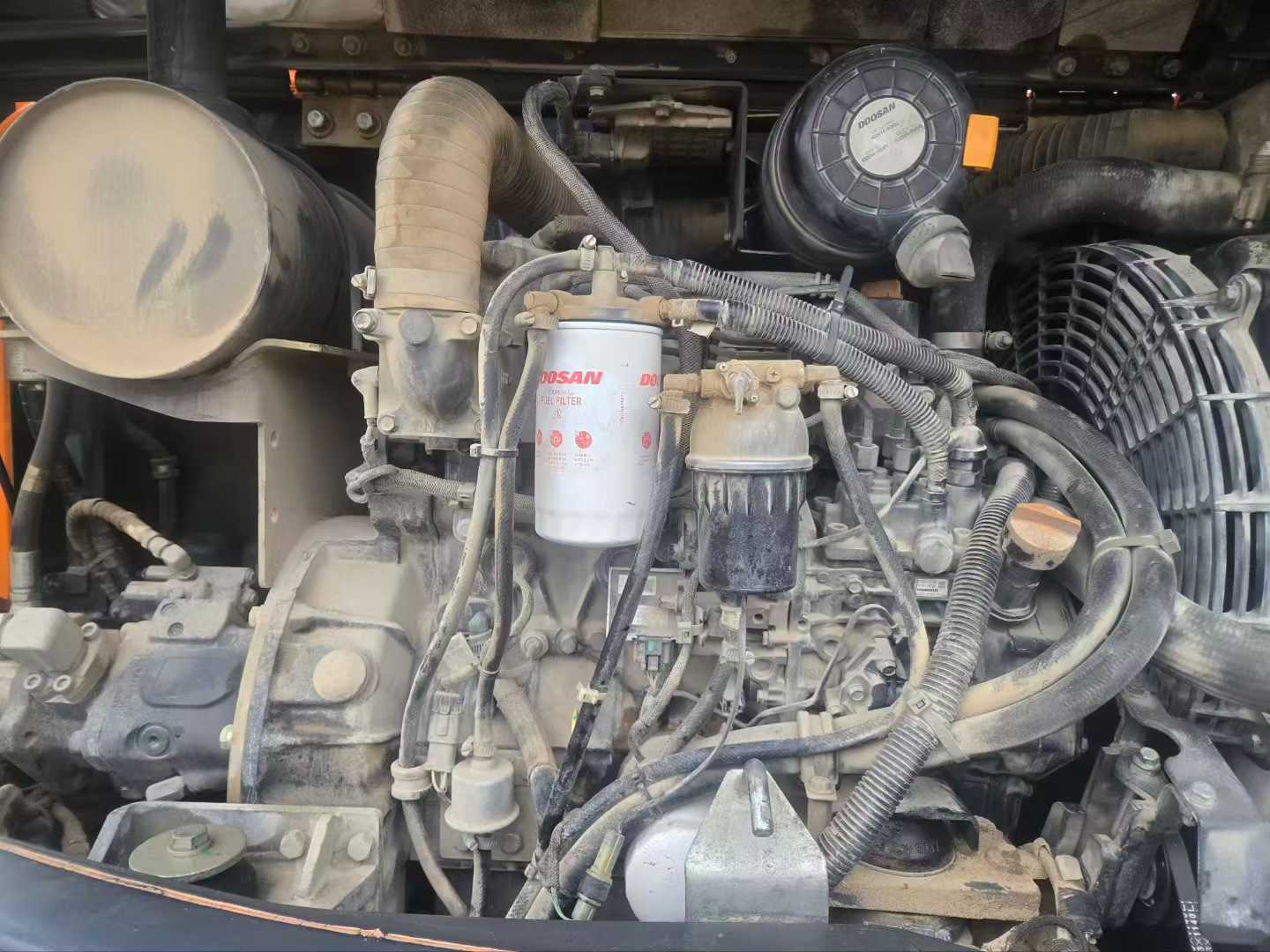

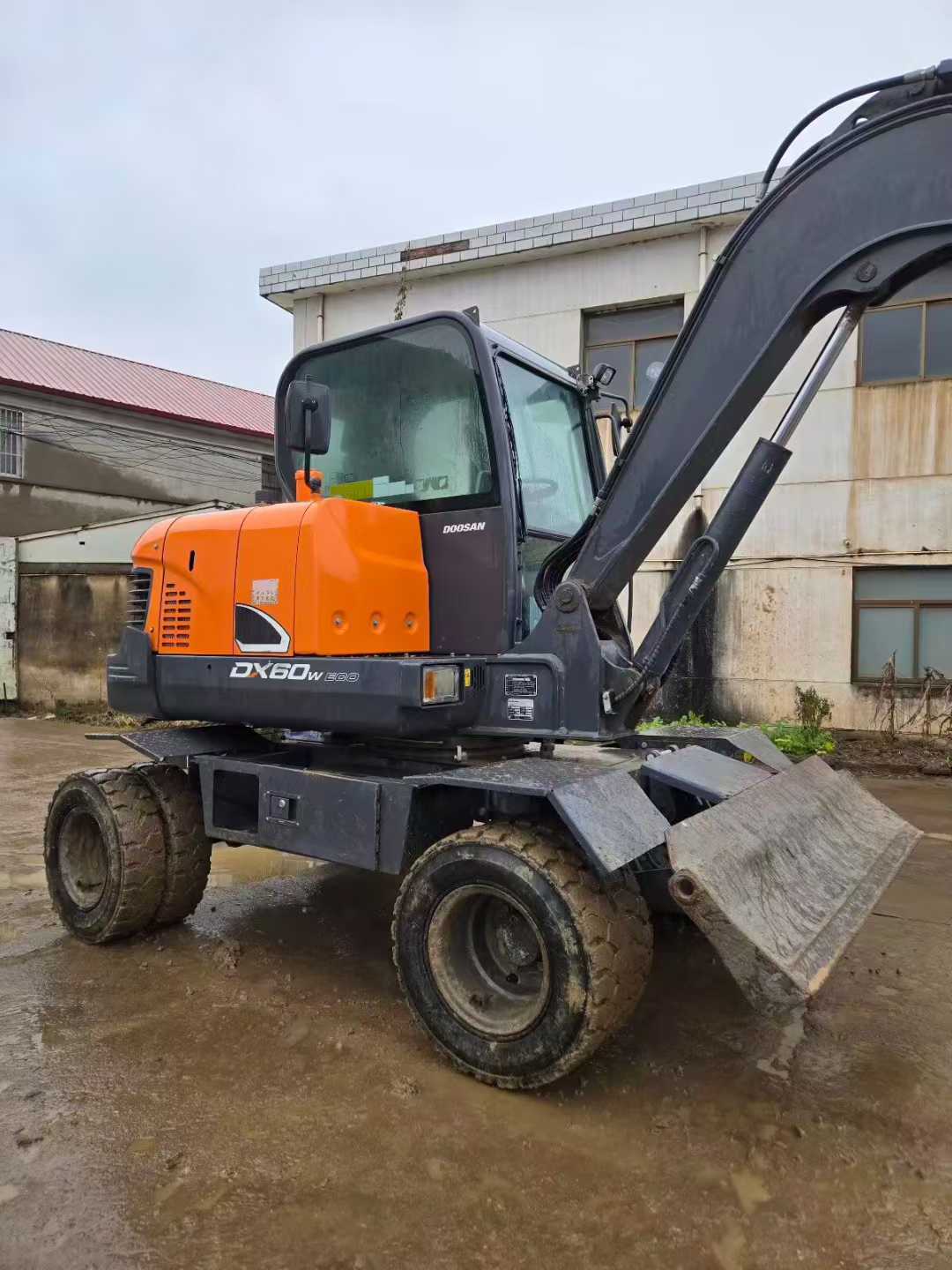

Engineered with precision hydraulics delivering 21.6 MPa working pressure, this 2022 Doosan DX60 excavator combines robust performance with operational efficiency. The Yanmar 4TNV94L engine generates 39.7 kW at 2200 rpm, providing consistent power for demanding construction and excavation tasks.

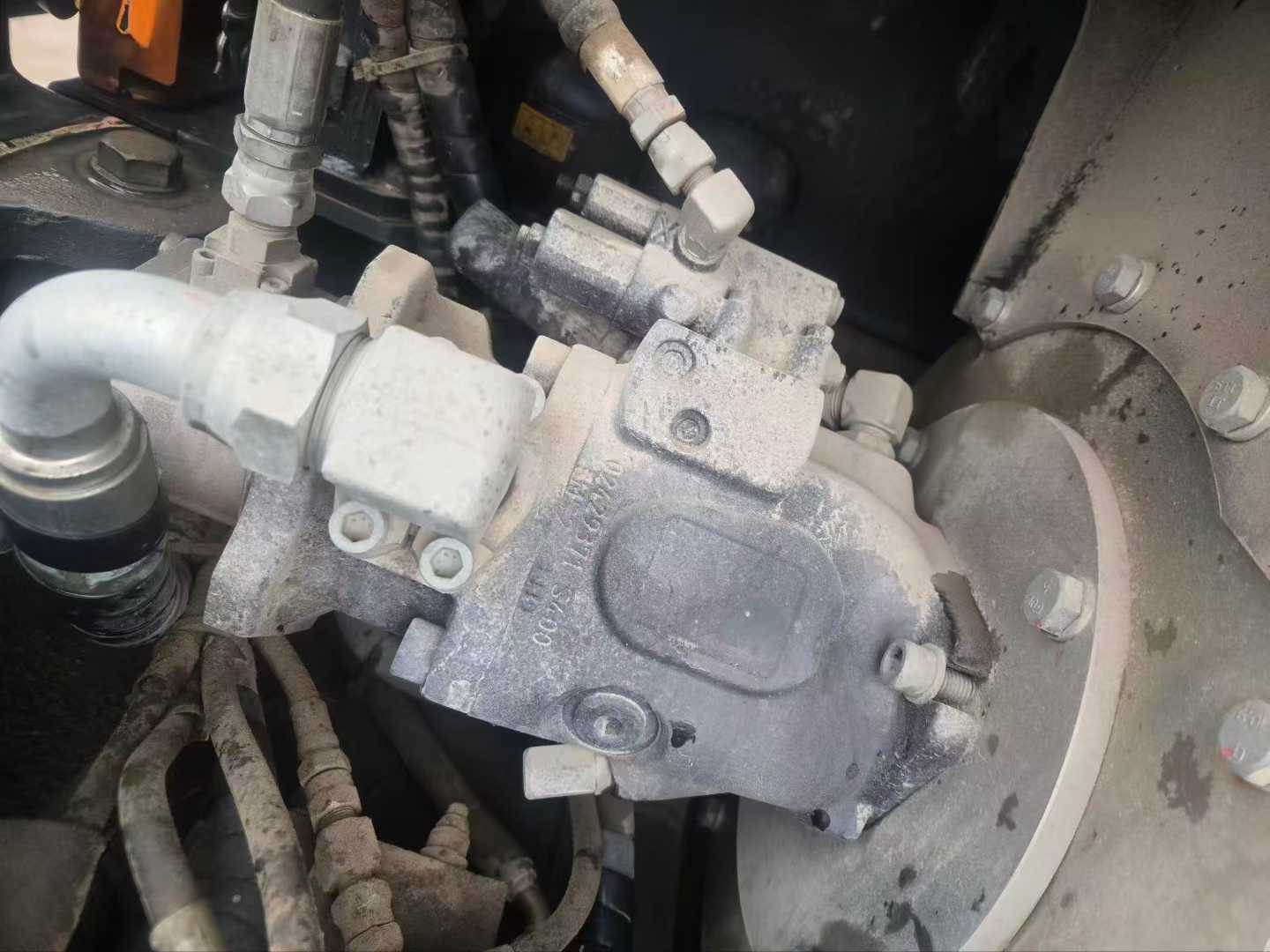

Built on Doosan's proven 6-ton platform, this machine features a 0.21 m³ bucket capacity with impressive digging forces of 44 kN bucket and 28 kN rod. The dual-pump hydraulic system (60.5 x 2 + 36 l/min) ensures smooth operation across all functions, while the compact 2000mm transport width maintains excellent maneuverability on confined job sites.
- Maximum digging reach: 6150mm with 3805mm depth capability
- Superior climbing ability: 78% grade performance
- Efficient fuel consumption with 115L tank capacity
- Proven Yanmar engine technology for reliability
Located in Anhui, China, this well-maintained unit represents exceptional value in the compact excavator segment. Doosan's engineering excellence and this model's technical specifications make it ideal for contractors requiring dependable performance in urban construction and utility work.
| Specifications | Value |
|---|---|
| No. | 971466 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
