Product Description
With a working weight of 7900 kg and an 8-ton capacity, this 2020 Doosan DX80 excavator offers robust performance for your construction needs. Originating from Yantai, China, and currently located in Zhejiang, this machine is a smart investment for businesses looking to maximize efficiency without the premium price tag of a new model.

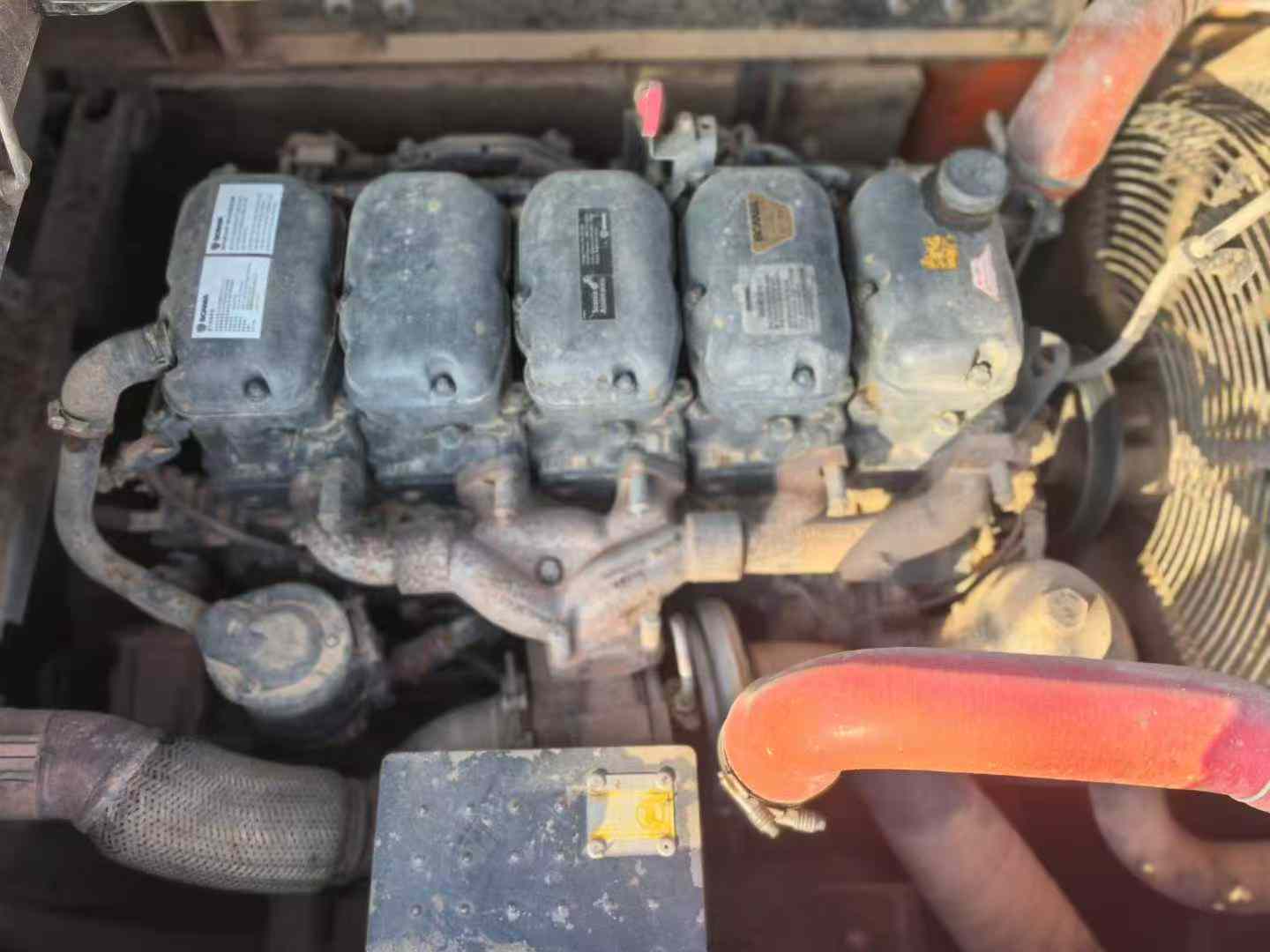

- Powered by a Yanmar 4TNV98 VDB24 engine, delivering 41.4 kW at 2100 rpm, ensuring reliable and efficient operation.
- Equipped with a backhoe bucket with a capacity of 0.30 to 0.32 m³, ideal for various digging tasks.
- Features a maximum digging depth of 4165 mm and a maximum digging radius of 6350 mm, enhancing its versatility on diverse job sites.
- Travel speed of up to 4.9 km/h and a climbing ability of 30%, making it suitable for challenging terrains.
- Fuel tank capacity of 145 L, reducing frequent refueling and increasing operational uptime.
Invest in high performance and reliability with this used Doosan DX80, designed to handle tough jobs while saving you significant costs compared to new machinery.
| Specifications | Value |
|---|---|
| No. | 963476 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
