Product Description
Built for endurance and proven in the field, this 2016 Hitachi EX12-2 mini excavator demonstrates exceptional longevity with nearly a decade of reliable operation. Weighing 1,350kg with a compact 1-ton capacity, this machine delivers precise performance in tight spaces while maintaining the robust construction Hitachi is known for.
Key specifications that showcase its proven durability:

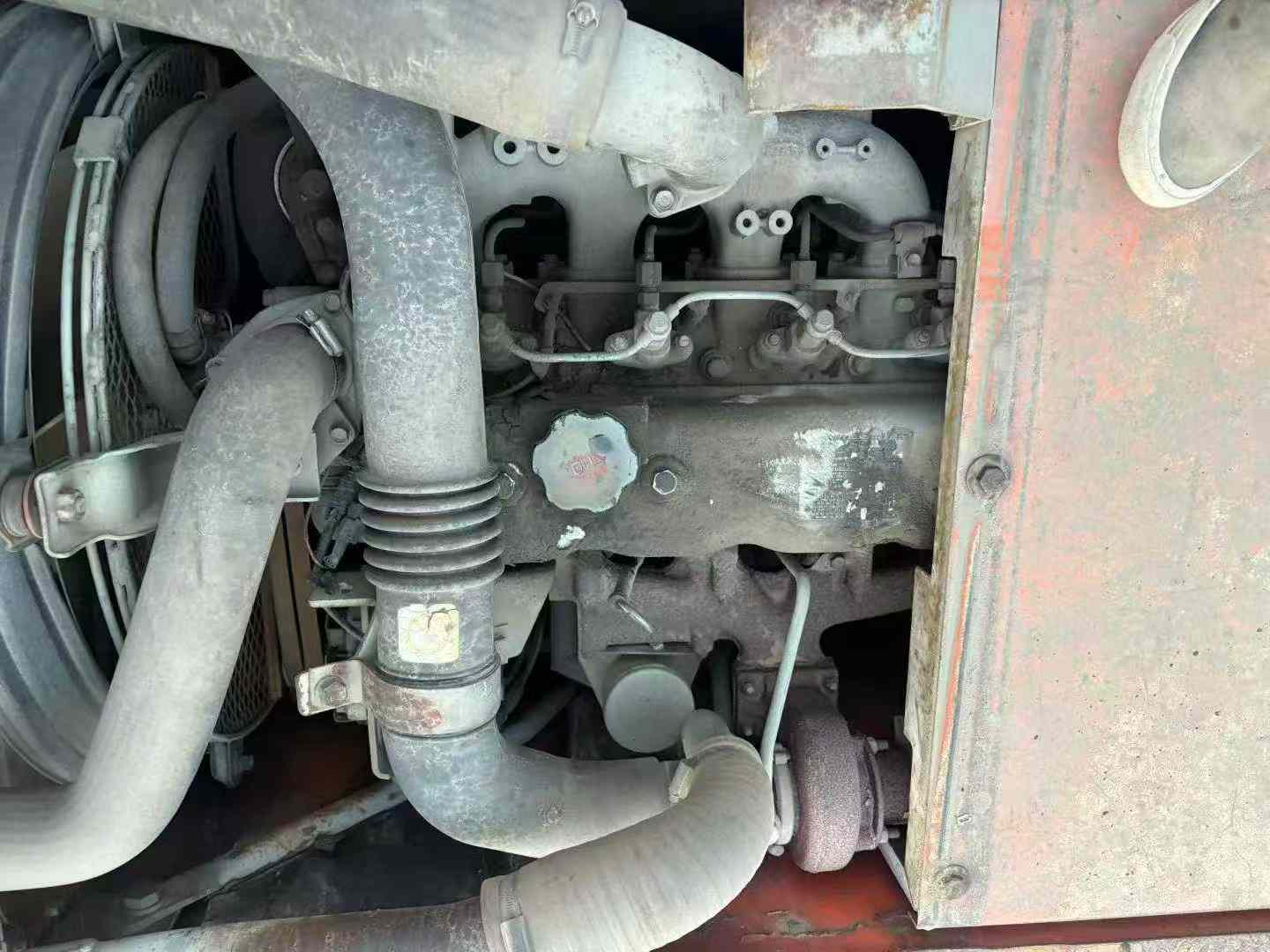

- Kubota D1105-KA engine producing 12.2kW at 2000rpm for consistent power delivery
- Maximum digging depth of 1,900mm with 3,430mm excavation radius
- Compact transport dimensions (3,520 × 960 × 2,280mm) for versatile job site access
- 30-liter hydraulic system capacity ensuring smooth, responsive operation
- Low ground pressure of 26kPa minimizes surface damage
Currently located in Hangzhou, Zhejiang, this workhorse has withstood years of demanding conditions, proving its manufacturing quality and design integrity. With proper maintenance intervals clearly documented and straightforward serviceability, this excavator represents a sound investment for contractors seeking dependable performance without compromise.
| Specifications | Value |
|---|---|
| No. | 991448 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1350 |
| Bucket capacity (m³) | 0.04/0.02 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota Kubota D1105-KA |
| Rated power (kw/rpm) | 12.2/2000 |
| Displacement (L) | 1.1 |
| Ground specific pressure (Kpa) | 26 |
| Travel speed (km/h) | 2.2 |
| Fuel Tank (L) | 20 |
| Engine Oil changes (L) | 4.5 |
| Coolant (L) | 3.5 |
| Hydraulic System (L) | 30 |
| Total transport length (mm) | 3520 |
| Total transport width (mm) | 960 |
| Total transport height (mm) | 2280 |
| Full cab height (mm) | 2280 |
| Counterweight ground clearance (mm) | 445 |
| Minimum ground clearance (mm) | 235 |
| Back end turning radius (mm) | 1060 |
| Track gauge (mm) | 1025 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1025 |
| Maximum digging depth (mm) | 1900 |
| Maximum excavation height (mm) | 3120 |
| Maximum unloading height (mm) | 2190 |
| Maximum vertical digging depth (mm) | 1360 |
| Maximum excavation radius of stop surface (mm) | 3430 |
