Product Description
Ready for immediate deployment from 福建莆田, this 2016 Hitachi ZX60-5G compact excavator delivers proven performance without factory wait times. Built with Yanmar 4TNV98-AVHBW engine producing 42.4kW at 2100 rpm, this 6-ton machine combines reliable hydraulics with efficient fuel consumption from its 120L tank.
Key specifications include:
- Maximum digging reach: 6,250mm with 3,850mm depth capability
- 0.24m³ bucket capacity optimized for precision work
- Compact transport dimensions: 6,060 × 2,060 × 2,085mm
- Variable travel speeds: 0-4.5km/h for versatile site mobility
- 70% climbing ability handles challenging terrain
Skip extended lead times and accelerate your project timeline. This Hefei-manufactured unit features water-cooled direct injection technology and dual variable axial piston motors for consistent hydraulic performance. Available now for fast deployment to your construction site, ensuring operational continuity when schedules matter most.
| Specifications | Value |
|---|---|
| No. | 991568 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |

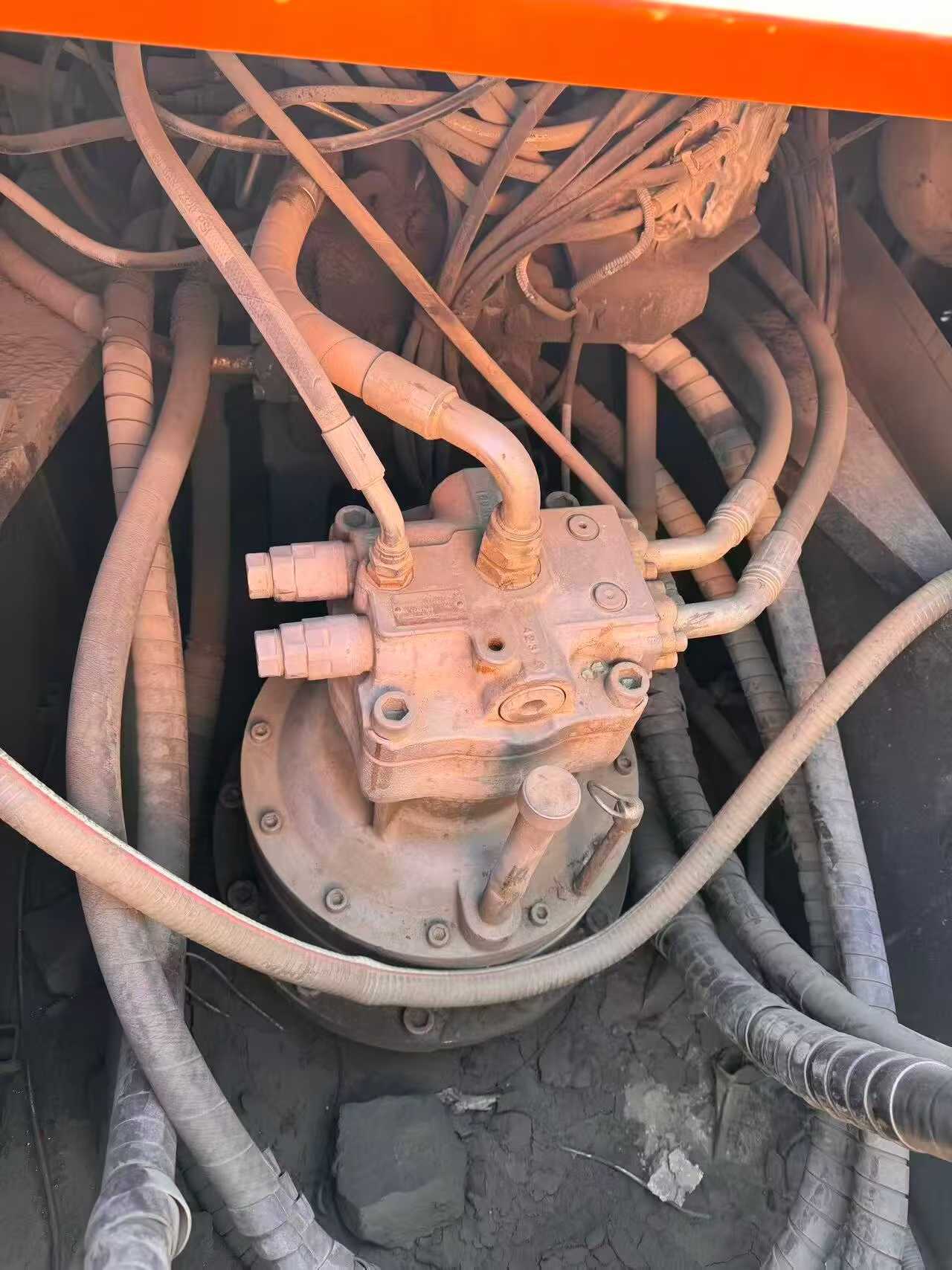

| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
