Product Description
Strengthen your fleet operations with this reliable 2021 Hyundai HX75 compact excavator, currently available in Shanxi Jincheng. Built for consistent performance across diverse job sites, this 7-ton machine delivers the dependable backup power your contracting business demands.

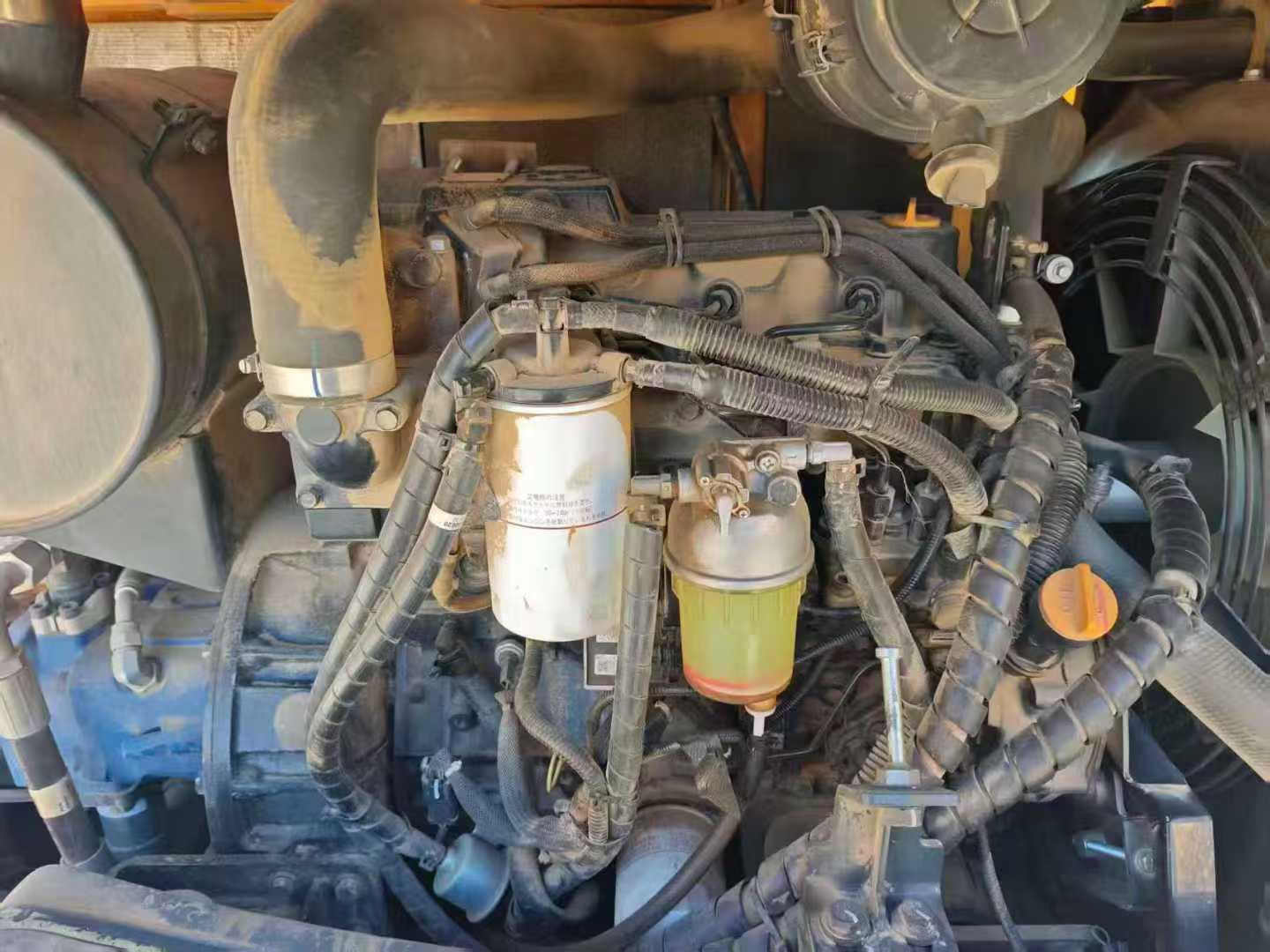

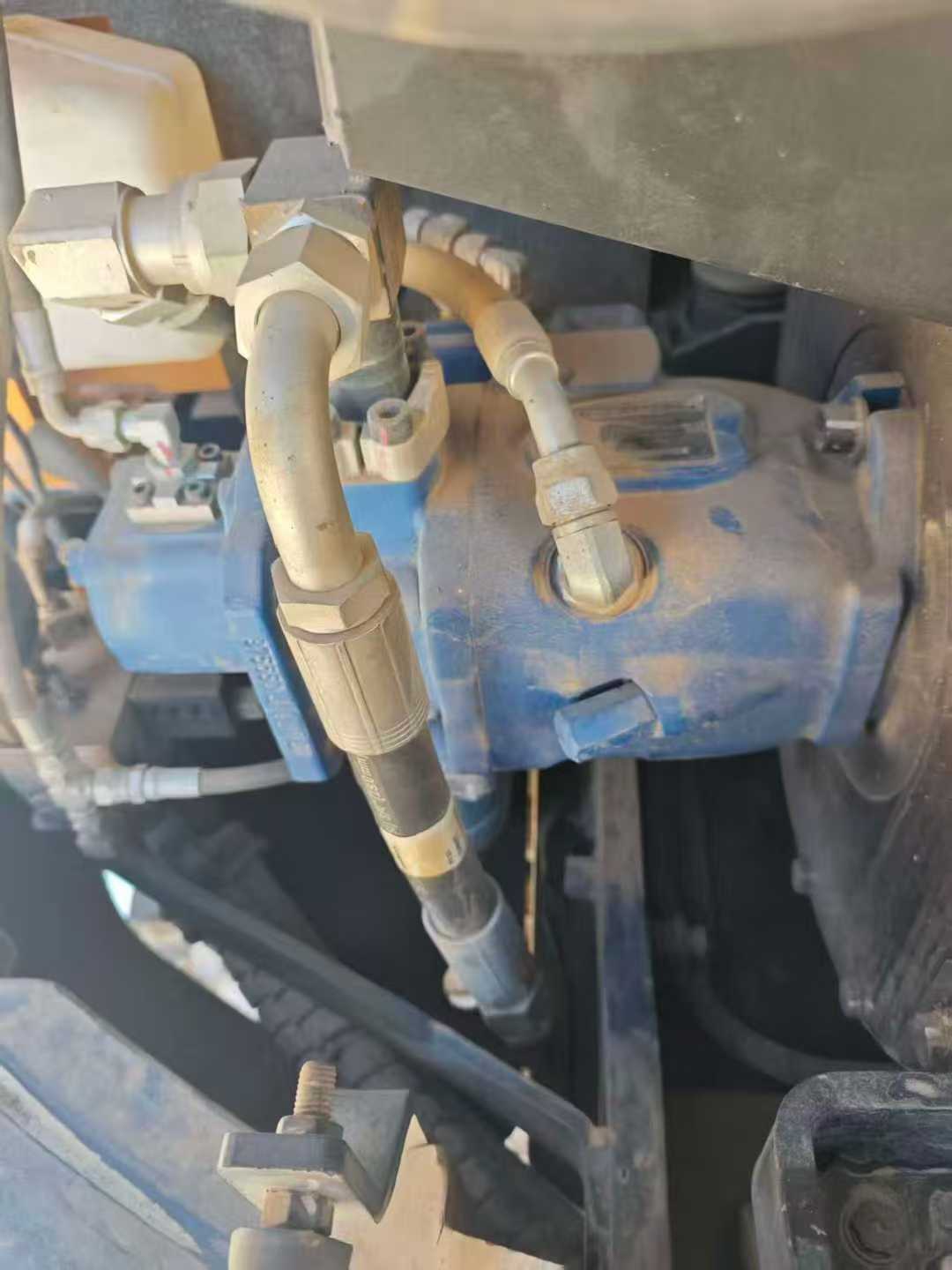

Powered by a robust Yanmar 4TNV98-Z engine producing 44.4kW at 2100 RPM, this unit maintains steady productivity throughout extended work cycles. The variable piston pump hydraulic system provides precise control for detailed excavation work, while the 0.32m³ bucket capacity handles material loading efficiently.
- Maximum digging depth: 4,015mm for versatile trenching applications
- Compact transport dimensions (6,080 × 2,260 × 2,550mm) enable easy site mobility
- 70% climbing ability tackles challenging terrain conditions
- 140L fuel tank capacity minimizes refueling downtime
- 12.5 RPM rotation speed ensures smooth operation cycles
Perfect for contractors seeking reliable fleet expansion, this HX75 integrates seamlessly into existing operations while maintaining Hyundai's reputation for durability and performance consistency.
| Specifications | Value |
|---|---|
| No. | 983772 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
