Product Description

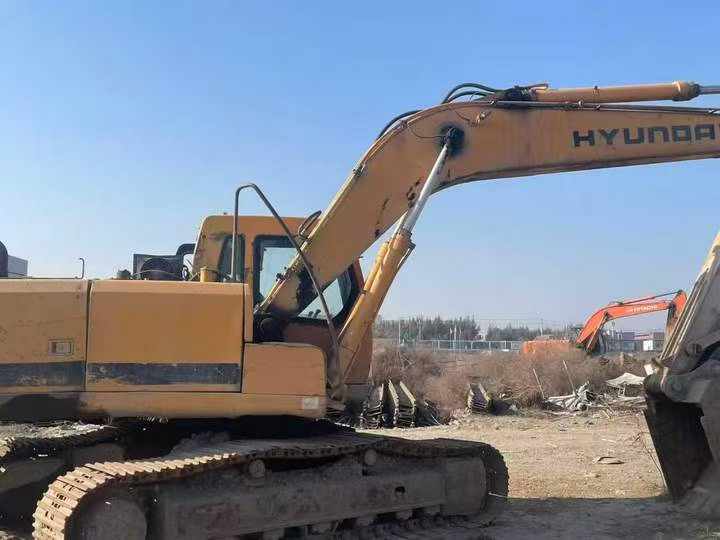

Built for demanding construction environments, this 2016 Hyundai R215-7C excavator delivers proven performance with 21-ton operating capacity and robust Cummins B5.9-C engine producing 112kW of reliable power. Located in Zhejiang Lishui, this machine features a 0.92m³ bucket capacity and impressive 9.93m maximum digging radius, making it ideal for medium to large-scale earthmoving projects.
Hyundai's reputation for engineering excellence translates directly into lower ownership costs and superior resale value. With widespread parts availability through established dealer networks and proven hydraulic systems rated at 300 MPa working pressure, maintenance remains straightforward and cost-effective. Advanced features include dual variable axial piston pumps delivering 2×220 L/min flow rates and precision hydraulic controls for optimal fuel efficiency.
- Maximum digging depth: 6.8m with 132.4kN bucket digging force
- Fuel-efficient 5.9L turbocharged diesel engine with water cooling
- Durable undercarriage with 600mm track plates for stability
- Comprehensive hydraulic system with 270L total capacity
Invest confidently in Hyundai's proven track record—this R215-7C represents except
| Specifications | Value |
|---|---|
| No. | 989040 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2990 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

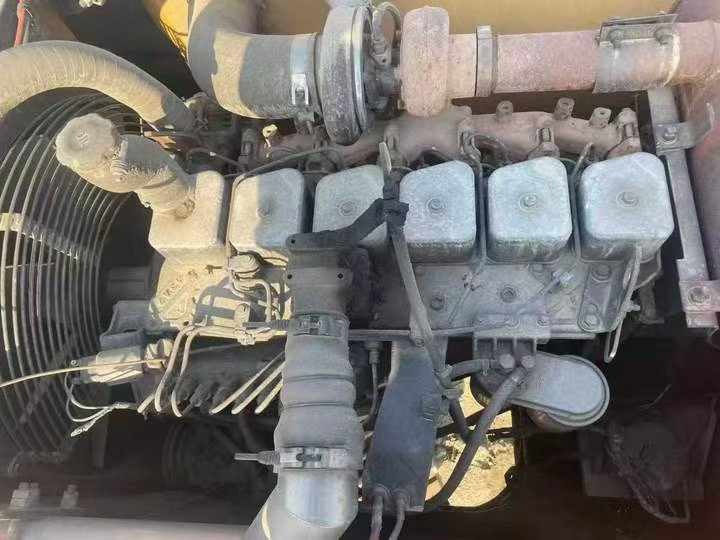

| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m) | 62.6/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.9 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 132.4 |
| Rod digging force (kN) | 95.1 |
| Maximum tractive force (kN) | 19500 |
| Travel speed (km/h) | 3.5-5.2 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 220 |
| Traveling Hydraulic Circuit (Mpa) | 300 |
| Rotary Hydraulic Circuit (Mpa) | 240 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 300 |
| Pilot Oil Circuit (MPa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 80 * 1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 95 * 1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 125 * 85 * 1320 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3360 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6800 |
| Maximum excavation height (mm) | 9730 |
| Maximum unloading height (mm) | 6910 |
| Maximum vertical digging depth (mm) | 6060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9760 |
| Maximum effective digging depth (mm) | 6610 |
