Product Description

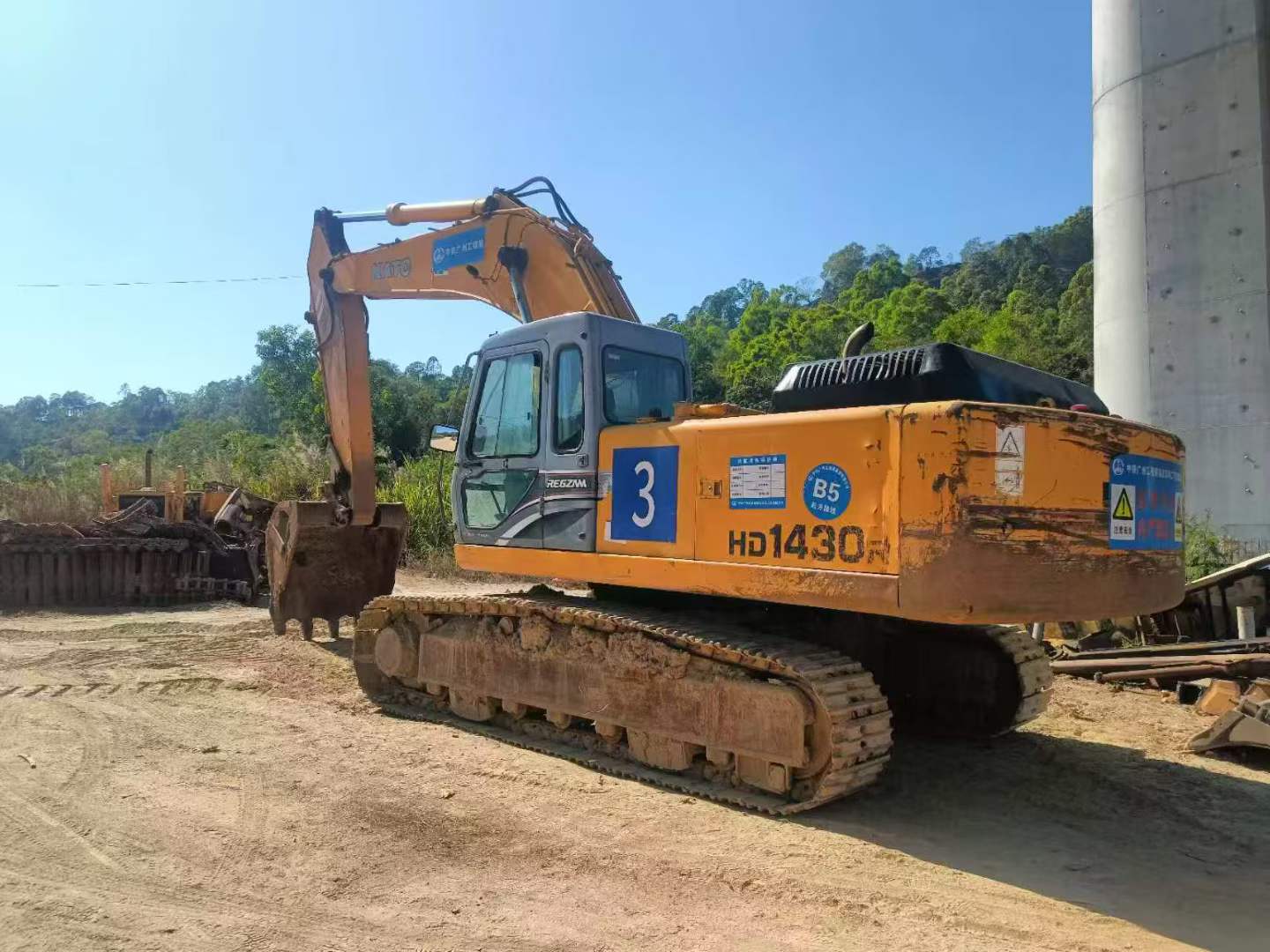

Built for demanding construction environments, this 2016 Kato HD1430R excavator delivers exceptional operator control and jobsite performance. With its 30-ton working weight and Mitsubishi 6D16-TLC1A engine producing 183kW of power, operators benefit from responsive hydraulics and stable operation across varied terrain conditions.
Key operational advantages include:
- Superior cabin visibility with 3020mm full cab height for enhanced safety monitoring
- Precise handling through dual variable capacity piston pumps (301 L/min each)
- Excellent stability with 62 Kpa ground pressure distribution and 2590mm track gauge
- Impressive reach capabilities: 11160mm maximum digging radius, 7380mm digging depth
- Reliable Japanese engineering with water-cooled 6-cylinder engine design
Currently located in Jieyang, Guangdong, this machine features a 1.4-1.6m³ bucket capacity and maintains strong digging forces of 225kN in standard mode. The spacious operator environment and responsive controls make extended shifts more productive while ensuring consistent performance standards expected from Kato's proven HD series.
| Specifications | Value |
|---|---|
| No. | 991479 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 225 (Standard mode) /236 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /167 (Power mode) |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 301 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11160 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 5920 |
