Product Description

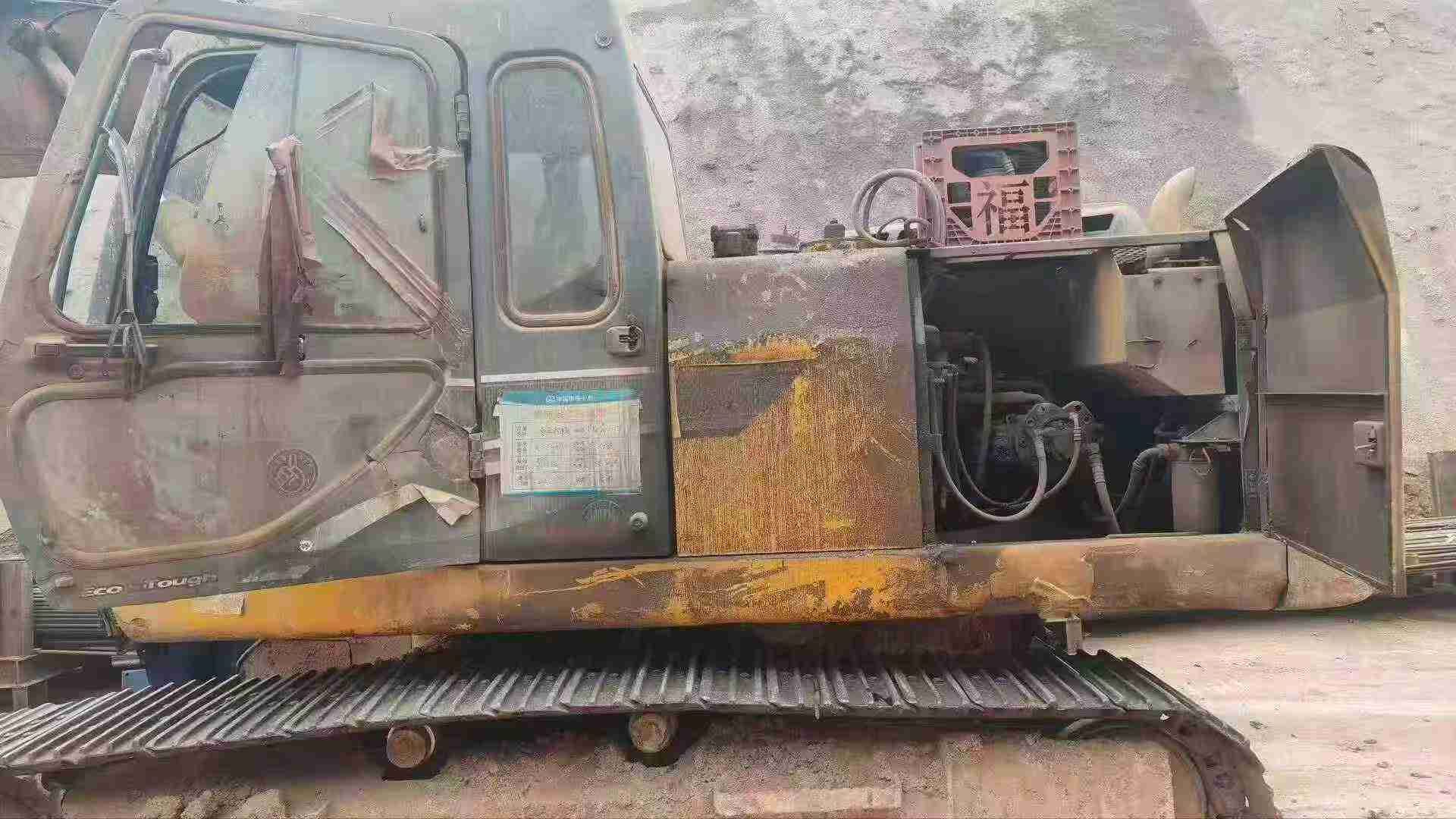

Built for endurance, this 2016 Kato HD820V excavator demonstrates exceptional Japanese engineering with nearly a decade of proven performance. Operating at 20 tons with a robust Mitsubishi 4M50-TLE3A engine delivering 112.5kW of power, this machine combines reliability with impressive capabilities.
Key performance specifications include:
- Maximum digging depth of 6,700mm with bucket capacity ranging 0.45-1.1m³
- Powerful digging forces: 150kN bucket force and 109kN rod force in standard mode
- Efficient hydraulic system with dual variable axial piston pumps (235L/min each)
- Versatile travel speeds of 3.6/5.5 km/h for optimal site mobility
Currently located in Luzhou, Sichuan, this workhorse maintains its reputation for durability through water-cooled operation and precision hydraulic controls. With 420L fuel capacity and comprehensive service accessibility, it represents solid value for contractors requiring dependable excavation performance. Eight years of operation validate Kato's commitment to building machines that withstand demanding job site conditions.
| Specifications | Value |
|---|---|
| No. | 988142 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.45-1.1 |
| Boom length (mm) | 5630 |
| Rod length (mm) | 2930 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50-TLE3A |
| Rated power (kw/rpm) | 112.5/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 120 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 (Standard mode) /159 (Extra mode) |
| Rod digging force (kN) | 109 (Standard mode) /115 (Extra mode) |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 235 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1090 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1630 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 1315 |
| Fuel Tank (L) | 420 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2820 |
| Total transport height (mm) | 2960 |
| Full cab height (mm) | 2910 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 465 |
| Minimum turning radius of front working device (mm) | 3460 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2220 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2820 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5870 |
