Product Description

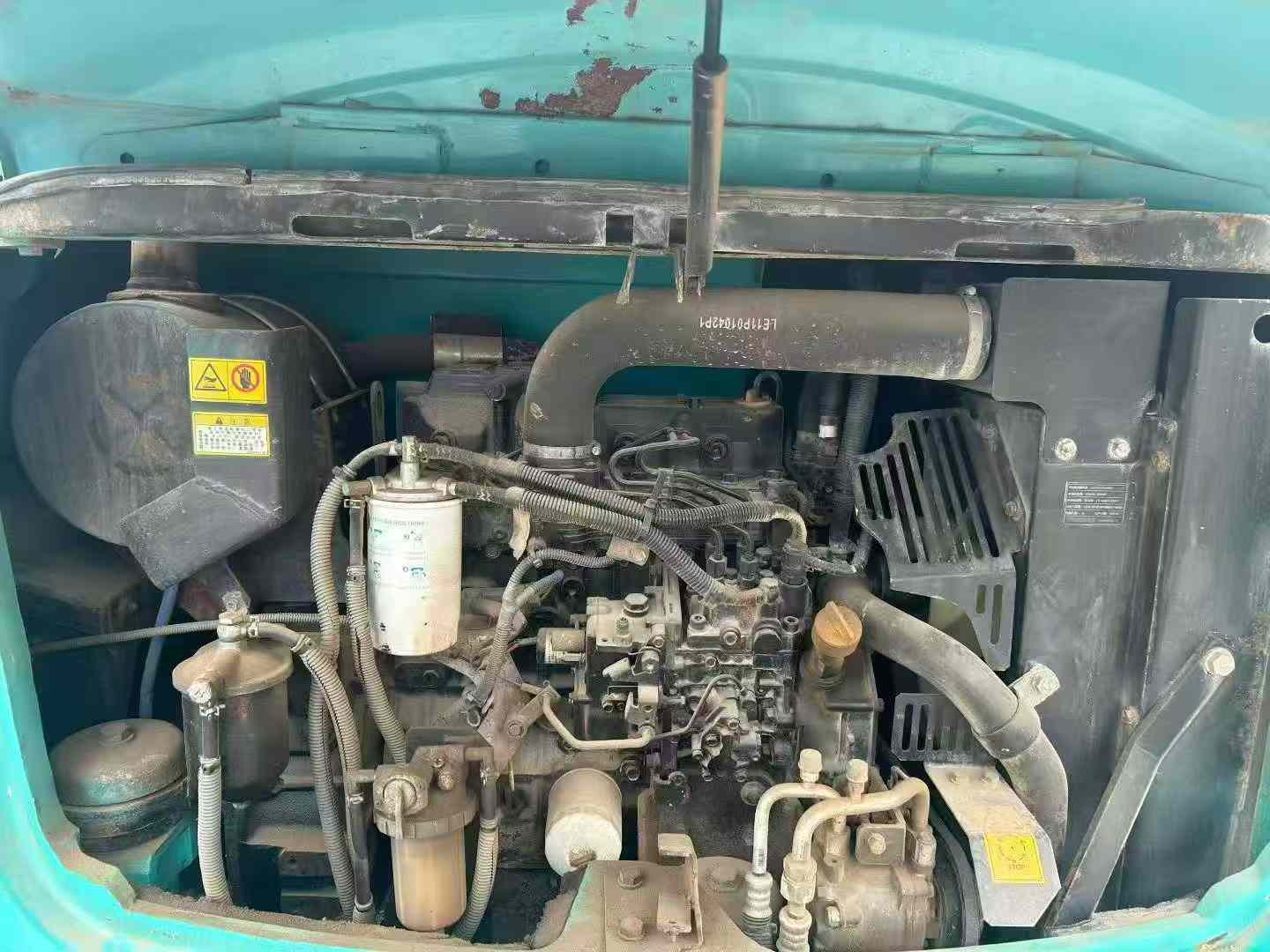

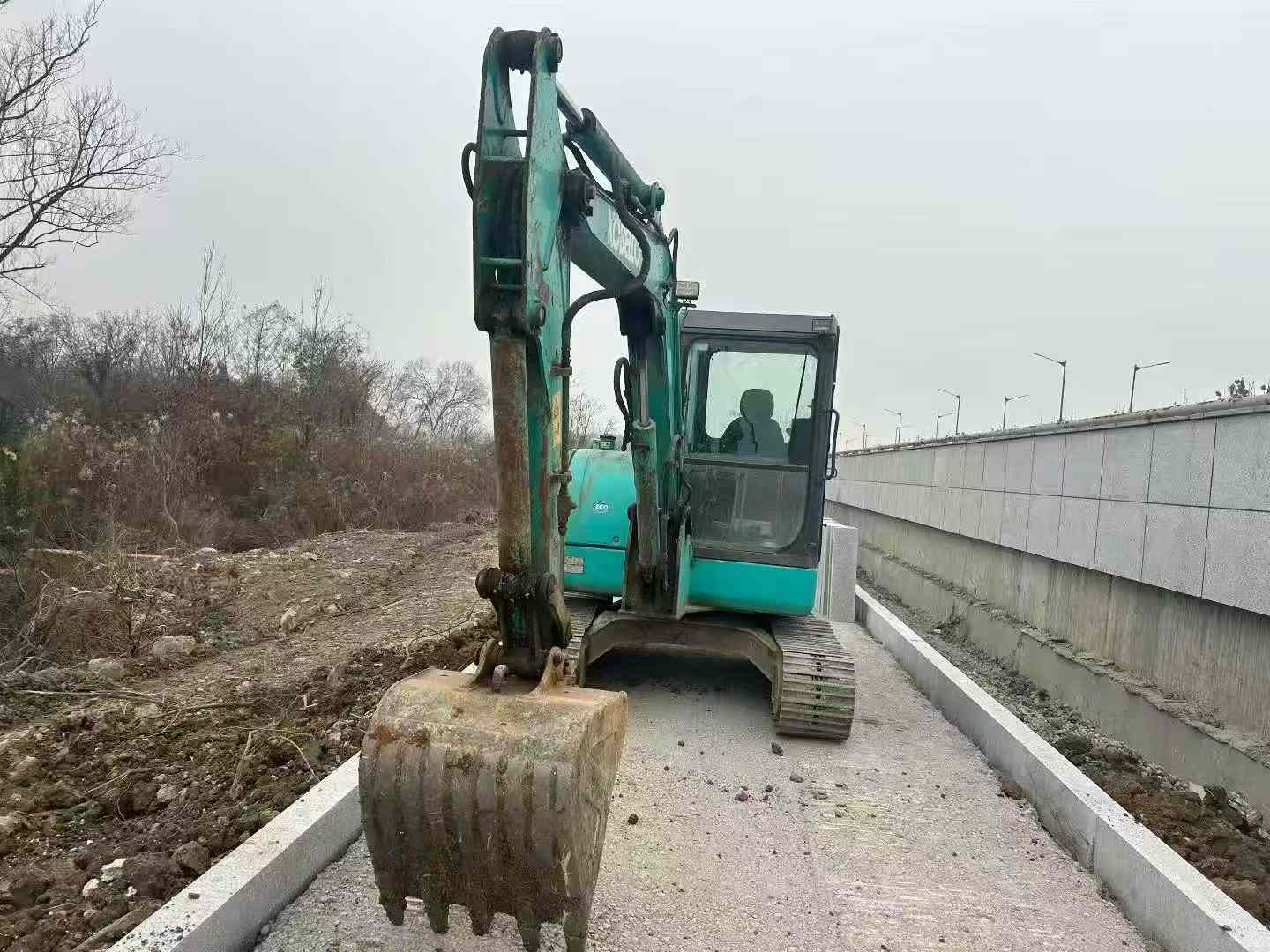

Built for precision work on compact job sites, this 2019 Kobelco SK60-8 excavator delivers reliable performance with its proven Yanmar 4TNV94L engine producing 35.5kW of power. Operating at 5.61 tons, this machine combines maneuverability with substantial digging capability—40.1kN bucket force and 25.2kN arm force tackle demanding excavation tasks efficiently.
Key operational specifications include:
- Maximum digging depth: 3,890mm for deep foundation work
- 6,200mm reach radius covers extensive work areas
- 0.22m³ bucket capacity optimized for precise material handling
- 58% climbing ability handles steep terrain confidently
- Dual variable piston pumps ensure responsive hydraulic control
Currently located in Fujian Zhangzhou, this excavator features water-cooled operation for extended duty cycles and 400mm track plates that distribute ground pressure to just 32.7kPa—ideal for sensitive surfaces. With transport dimensions of 5,850mm length, it moves easily between sites while maintaining full operational capability for trenching, grading, and demolition applications.
| Specifications | Value |
|---|---|
| No. | 983136 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5610 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 21.7/1440 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 32.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58% (30 degrees) |
| Bucket digging force (kN) | 40.1 |
| Rod digging force (kN) | 25.2 |
| Travel speed (km/h) | 4.2/2.5 |
| Main overflow set pressure (Mpa) | 23 |
| Maximum flow of main pump (l/min) | 2*57.1 |
| Main pump type | Variable piston pump *2+ gear pump *2 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5730 |
| Maximum unloading height (mm) | 4200 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1960*345 |
