Product Description

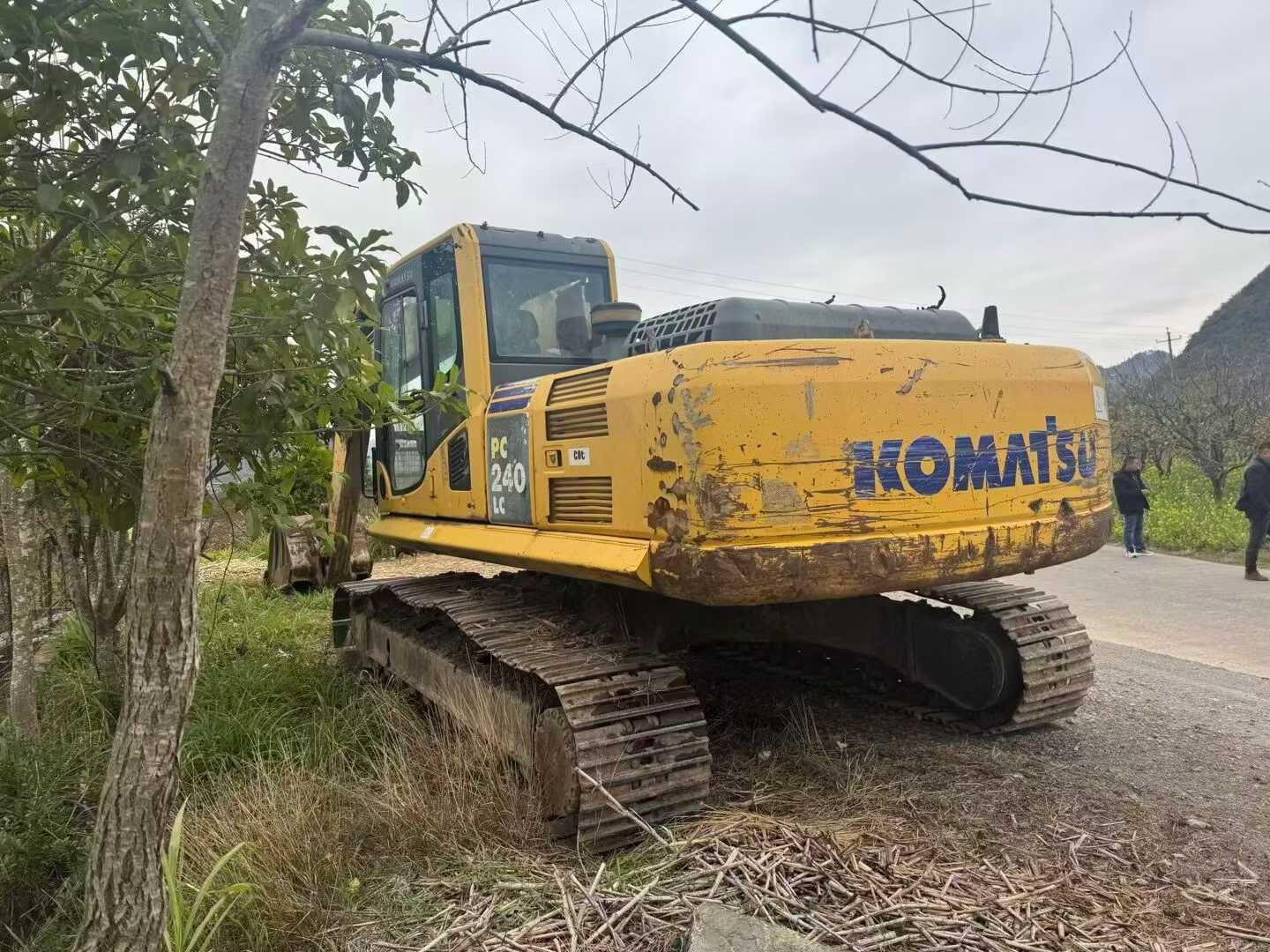

Built for endurance and engineered to deliver, this 2015 Komatsu PC240LC-8 excavator stands as a proven workhorse in the heavy machinery sector. Operating from Guilin, Guangxi, this 24-ton machine demonstrates Komatsu's commitment to reliability with its robust SAA6D107E-1 engine delivering 125kW of consistent power.
Featuring a substantial 1.2m³ bucket capacity and impressive digging capabilities—10,180mm maximum reach and 6,920mm depth—this excavator tackles demanding projects with precision. Advanced hydraulic systems provide 172kN bucket digging force while maintaining fuel efficiency through its 400L tank capacity.
- Proven Komatsu SAA6D107E-1 engine with turbocharged performance
- Exceptional 70% climbing ability for challenging terrain
- Comprehensive hydraulic system with 439L/min main pump flow
- Durable track system with 700mm plate width for stability
- EPA Tier3/EUIIIA compliant for environmental standards
With nearly a decade of operational history, this PC240LC-8 represents time-tested engineering excellence. Its continued performance validates Komatsu's reputation for manufacturing excavators that withstand rigorous industrial demands while maintaining ope
| Specifications | Value |
|---|---|
| No. | 992648 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25130 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

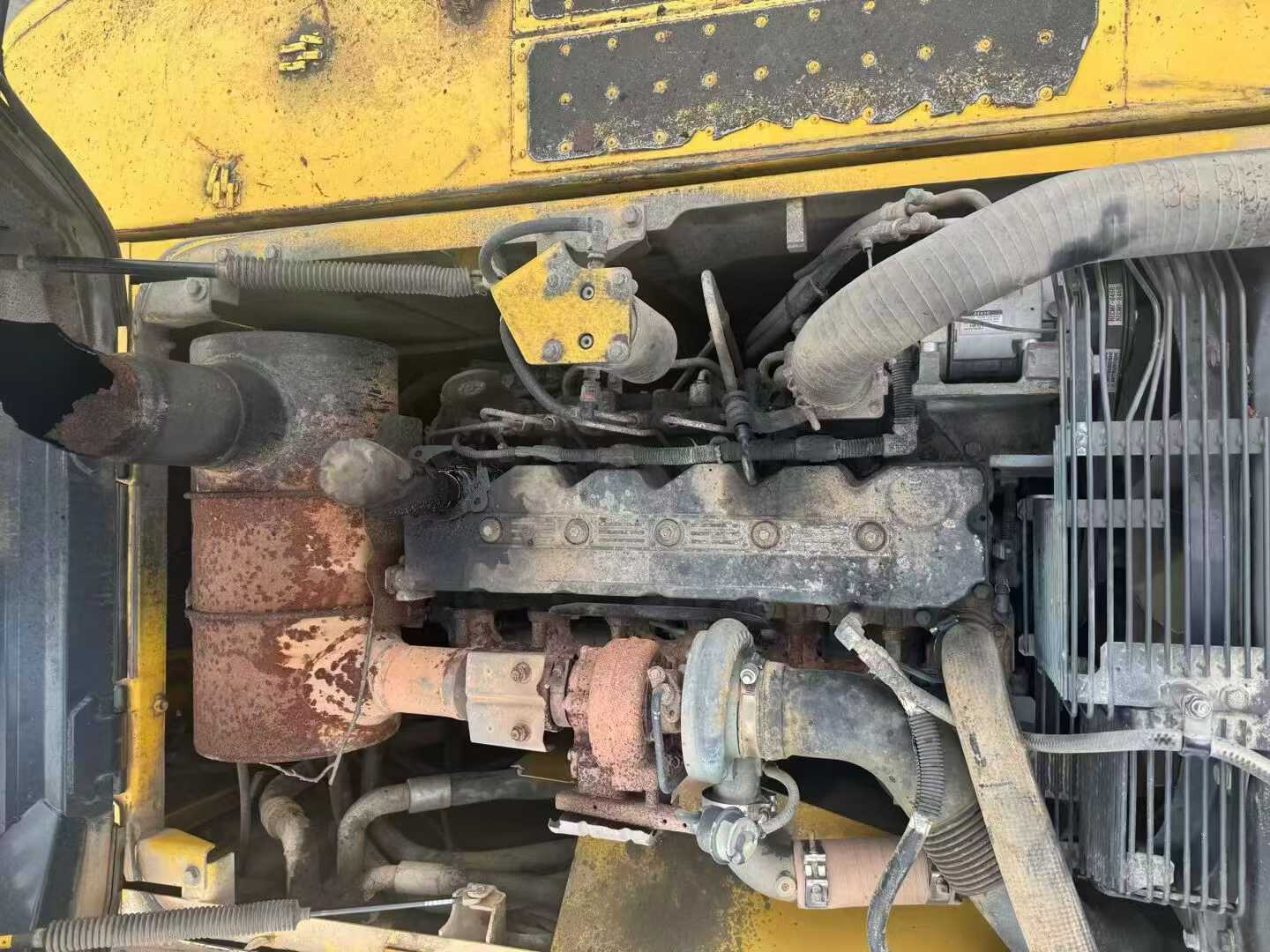

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 125/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection, turbocharged, post-cooling; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 3845 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Maximum effective digging depth (mm) | 6700 |
