Product Description

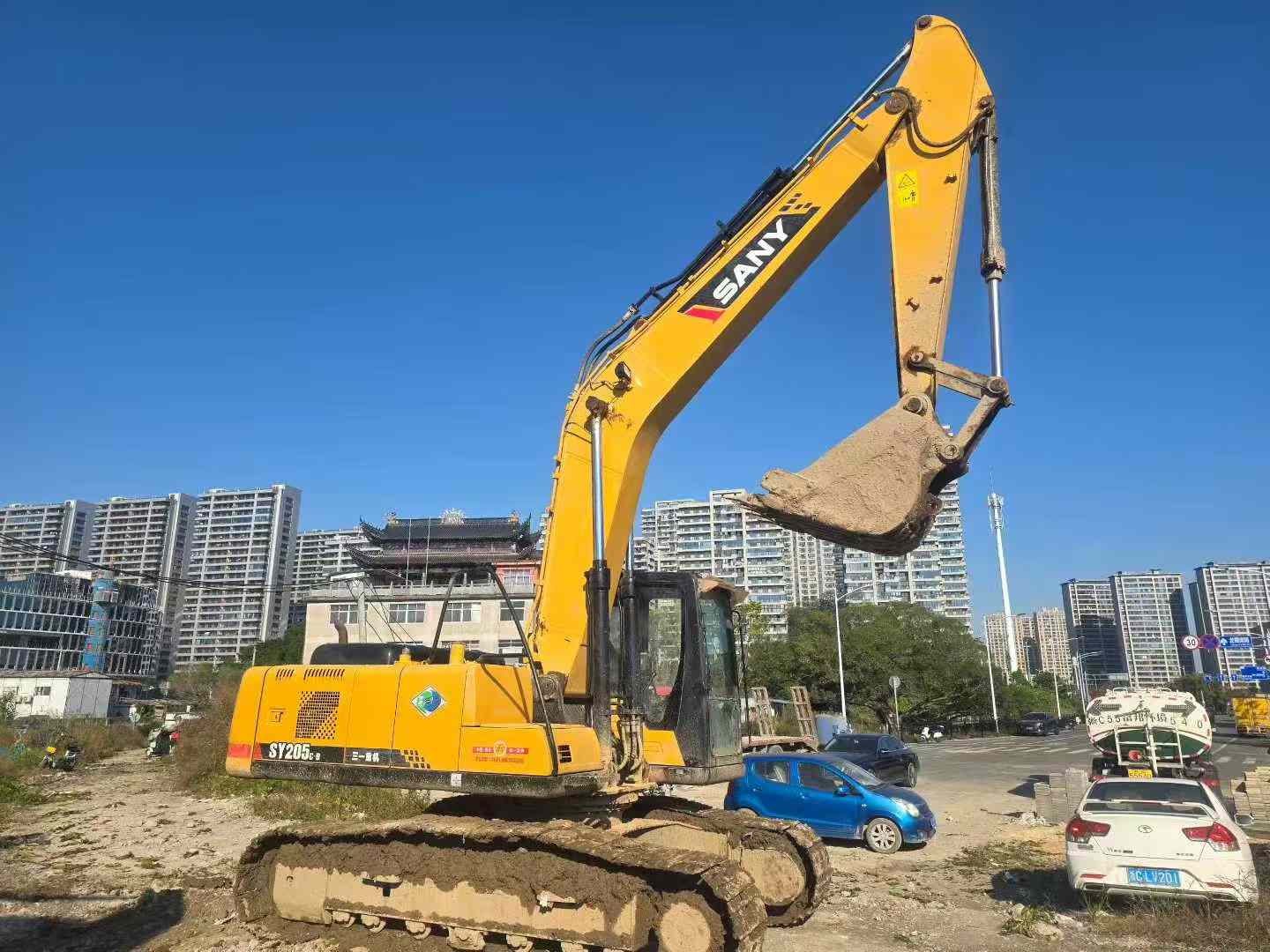

Built for demanding construction environments, this 2015 Sany SY215C-9 excavator delivers proven performance with 21-ton operating capacity and robust 114kW power output. Sany's established manufacturing excellence ensures reliable parts availability and strong resale value retention in the used equipment market.
Key operational specifications include:
- Maximum digging reach of 9.95m with 6.6m depth capability
- Powerful hydraulic system generating 138kN bucket digging force
- Efficient 0.93m³ bucket capacity for optimal productivity

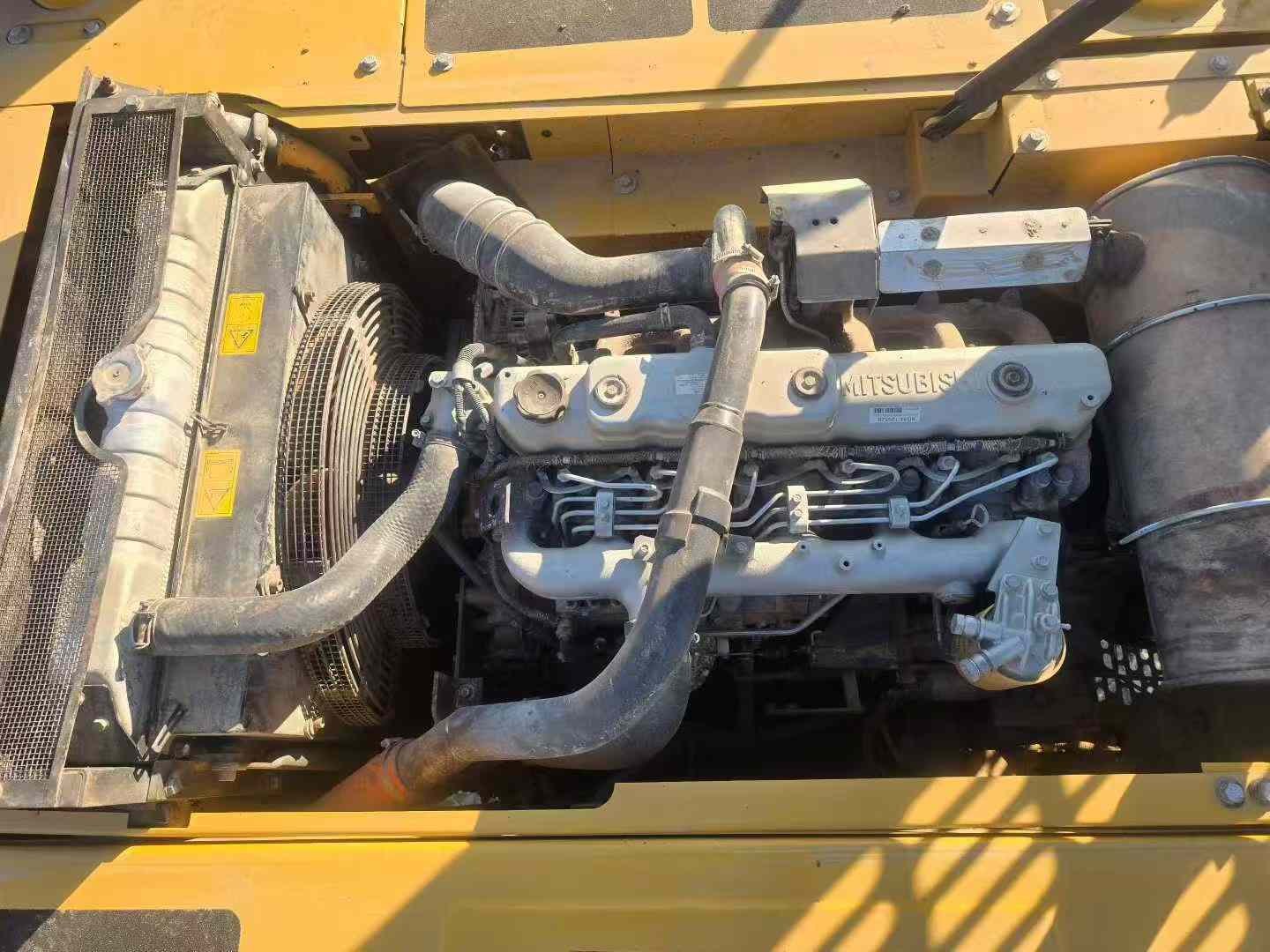

- Water-cooled engine with 2050 RPM rated performance
- Compact transport dimensions: 9.68m length × 2.98m width
Located in Zhejiang, China, this machine represents Sany's commitment to industrial-grade construction equipment. With comprehensive dealer networks across global markets, parts procurement and service support remain accessible long-term. The SY215C-9's balanced design combines operational efficiency with the brand's reputation for durability, making it a strategic investment for contractors seeking dependable used machinery with predictable maintenance costs.
| Specifications | Value |
|---|---|
| No. | 961588 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
