Product Description
Built for demanding excavation work, this 2016 Sany SY235C-8S delivers reliable performance with its 128.5kW engine and 23-ton operating weight. Operators benefit from excellent visibility and responsive hydraulic controls, while the spacious cabin reduces fatigue during extended shifts.
- Power & Performance: 128.5kW rated power at 2100 RPM with 175kN bucket digging force

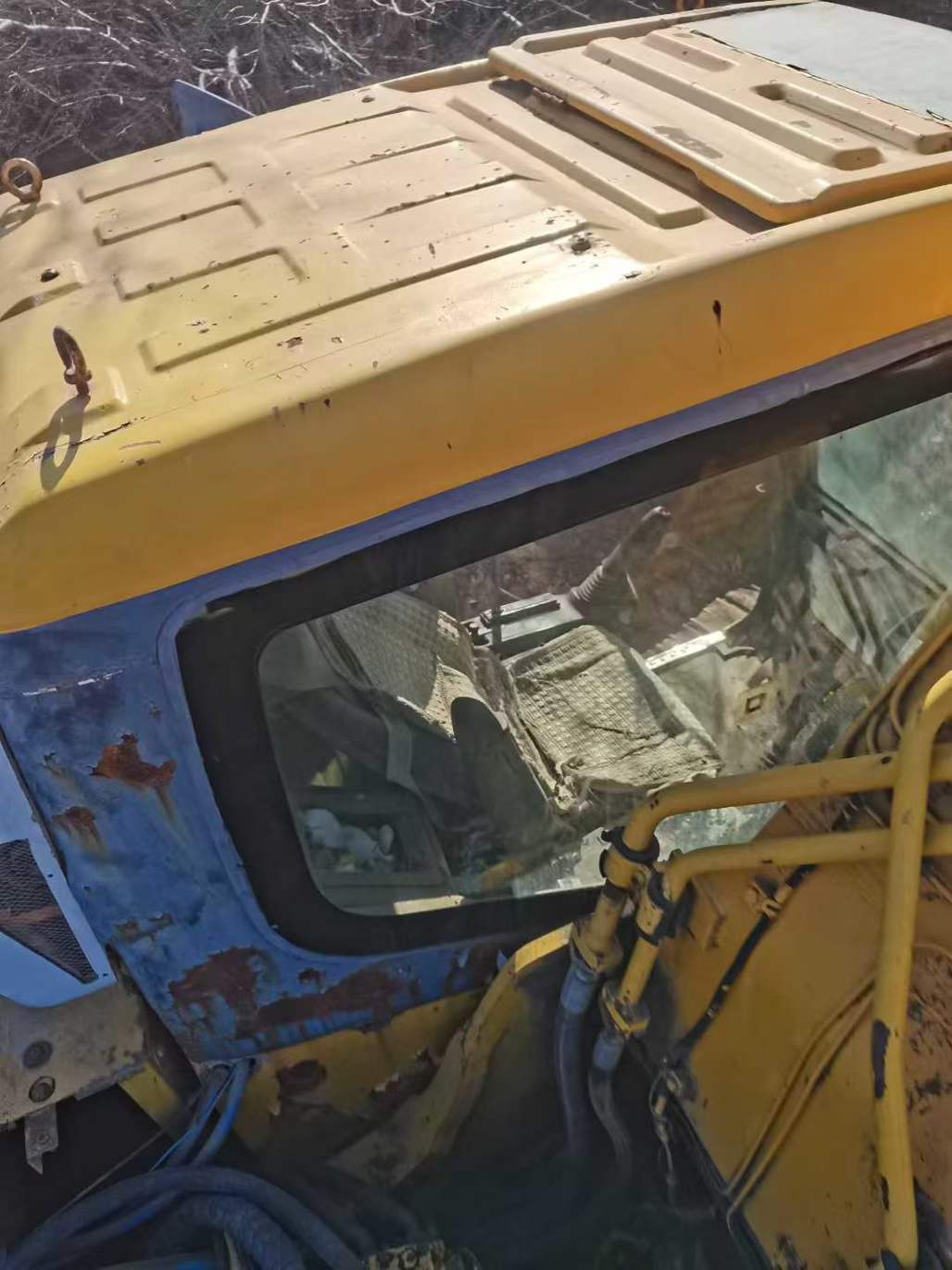

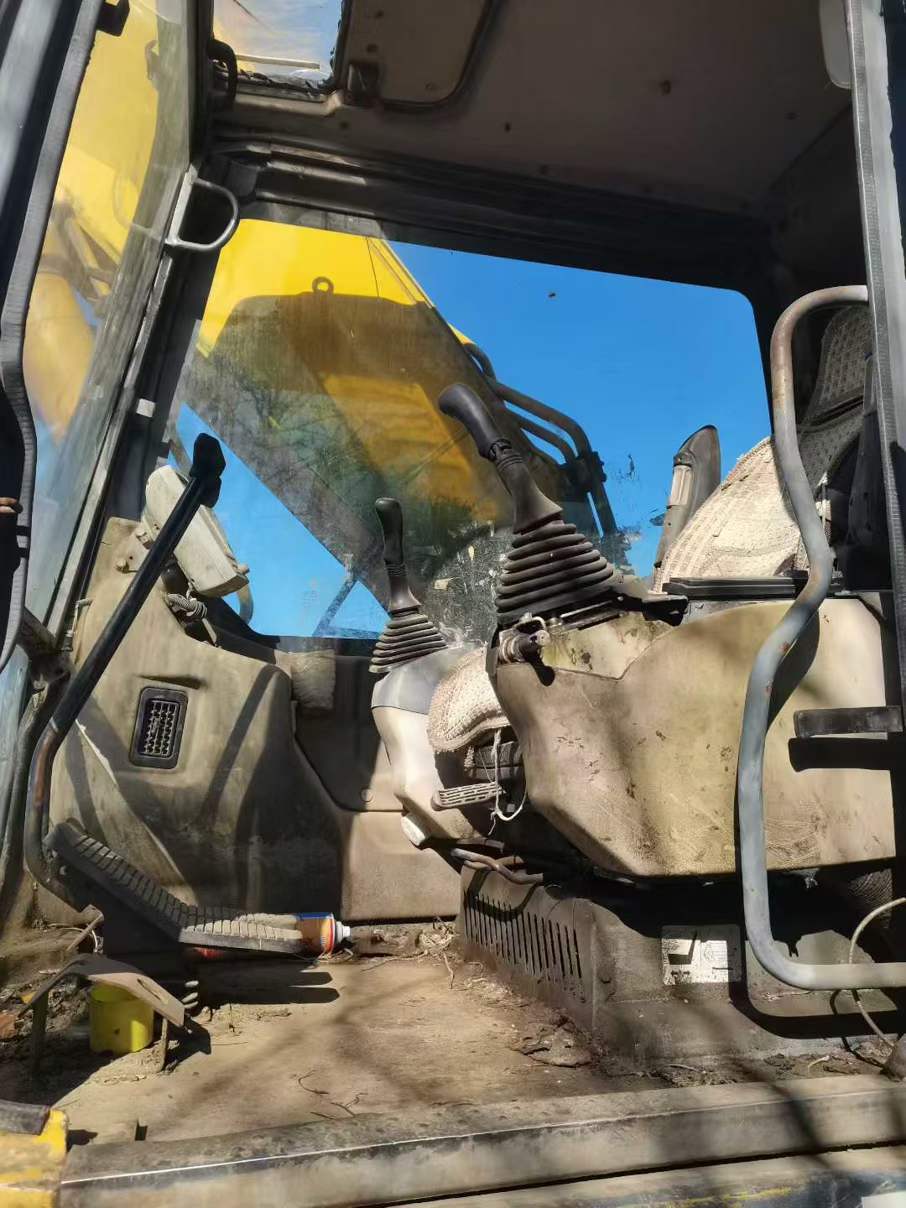

- Operator Comfort: Full-height cabin (2990mm) with enhanced visibility and ergonomic controls
- Versatile Reach: 10.15m maximum digging radius and 6.78m maximum depth capability
- Stable Operation: 47.6 KPa ground pressure with 70% climbing ability on slopes
- Efficient Mobility: 5.5 km/h travel speed with 3.8m minimum turning radius
Currently located in Jinan, Shandong, this machine combines proven Sany engineering with practical specifications for construction, demolition, and earthmoving applications. Ready for immediate deployment with comprehensive technical documentation available.
| Specifications | Value |
|---|---|
| No. | 988410 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1.2 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 128.5/2100 |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 9910 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10150 |
| Maximum digging depth (mm) | 6785 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 5845 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
