Product Description

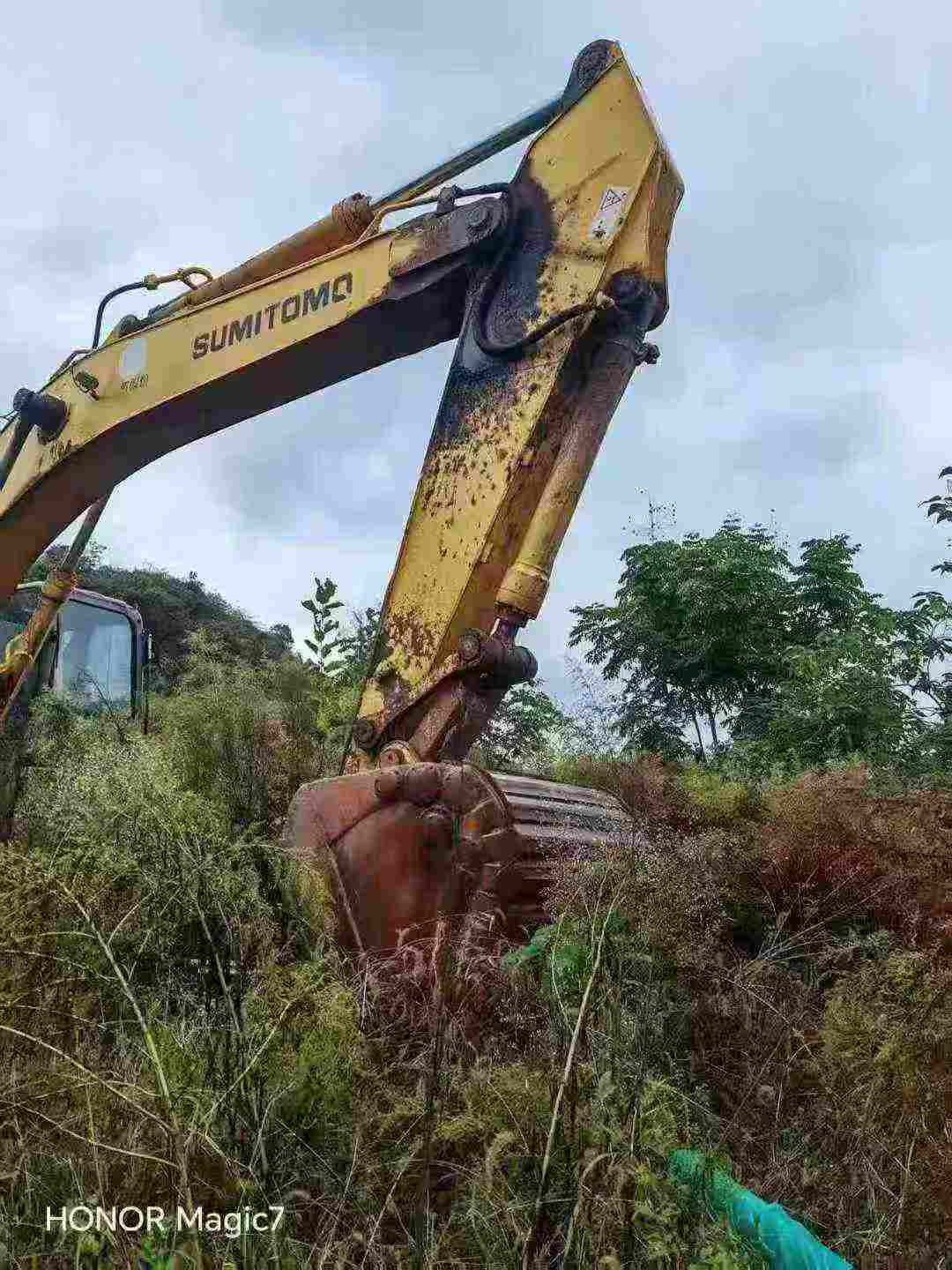

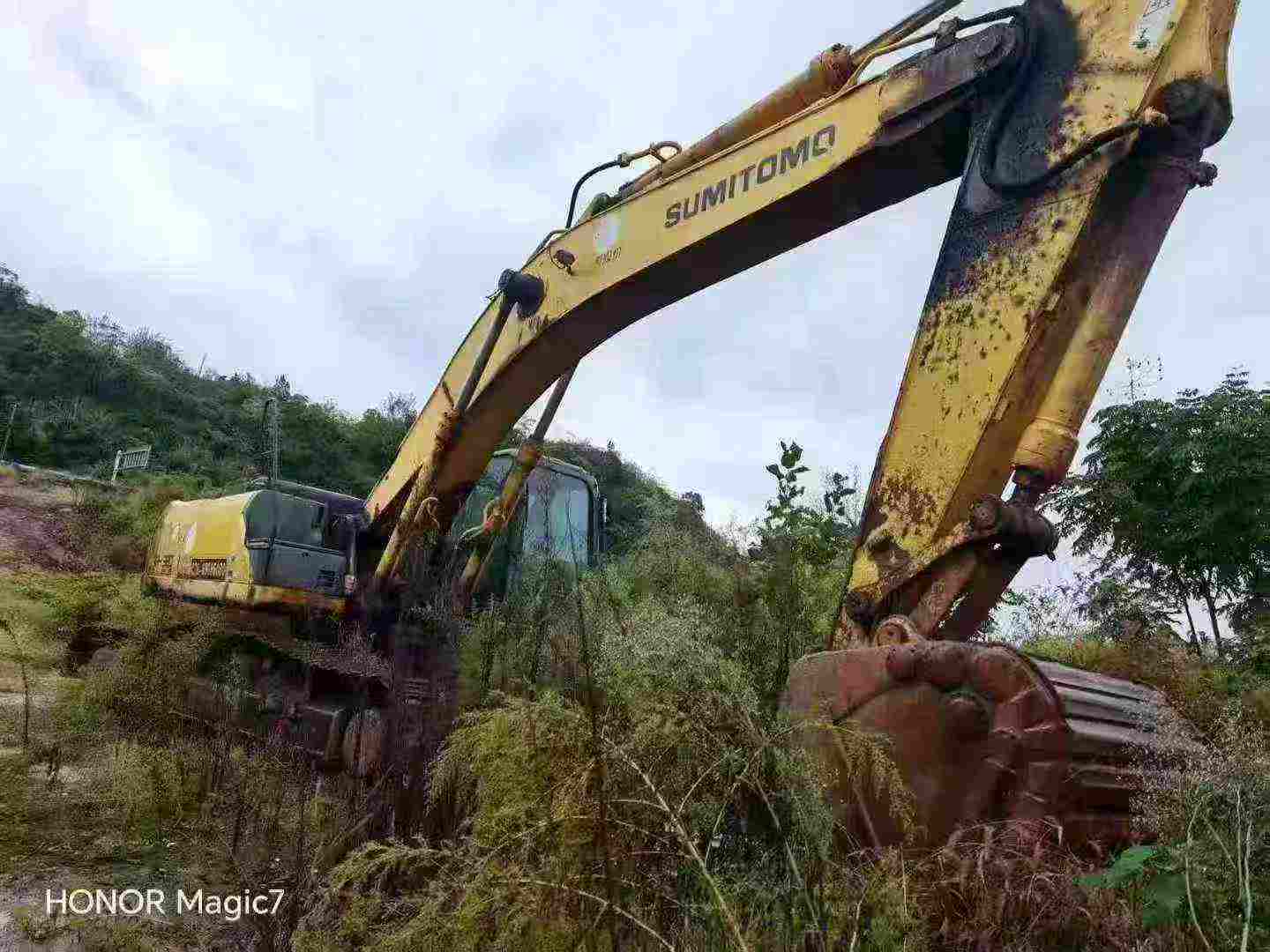

Built for demanding excavation work, this 2016 Sumitomo SH380-5 delivers 38-ton performance with proven reliability. Powered by an Isuzu AH-6HK1X engine producing 202kW at 2000 RPM, this machine handles heavy digging, grading, and demolition tasks with consistent power output.
Key operational specifications include:
- Maximum digging depth: 7,340mm for deep foundation work

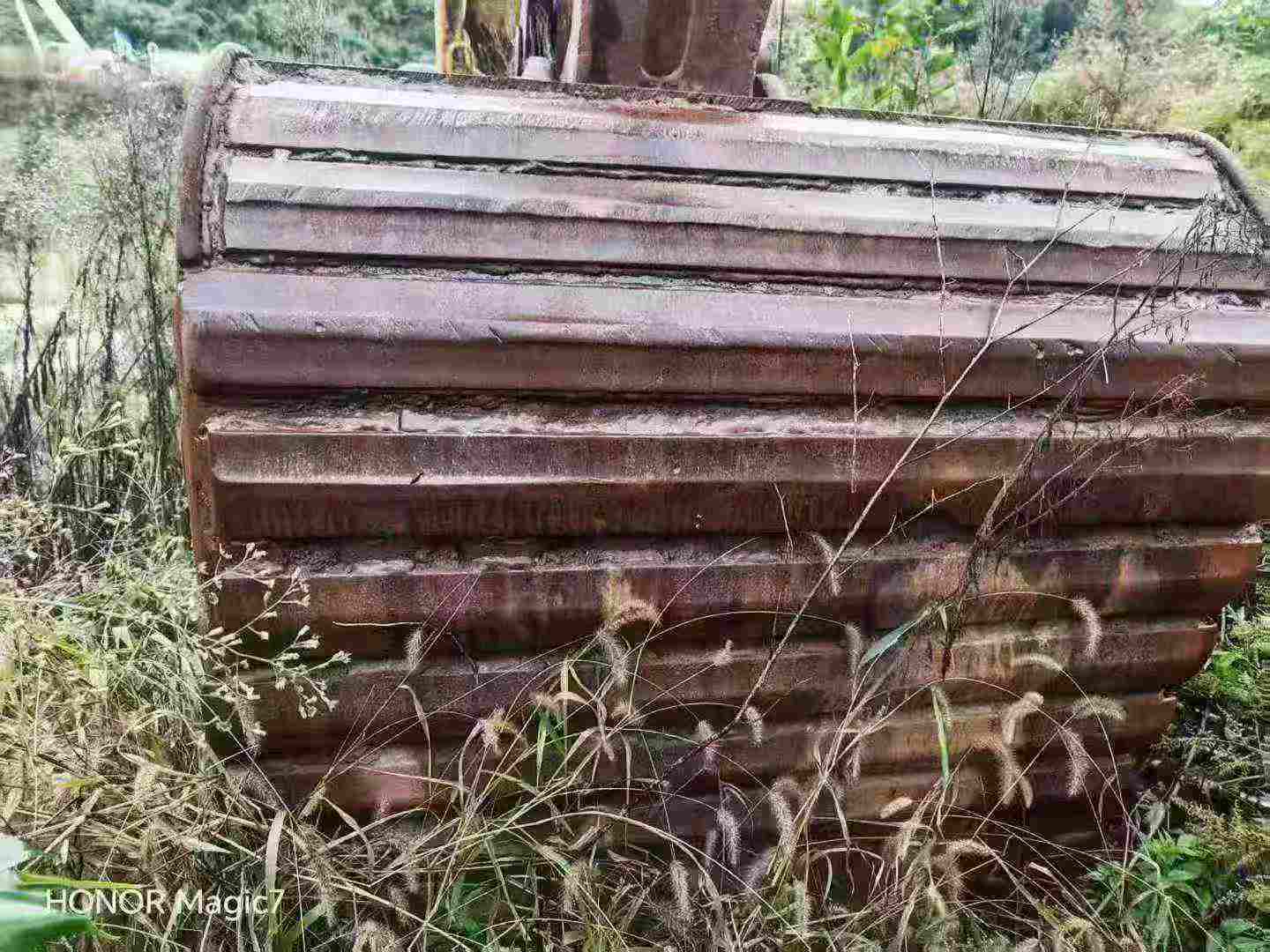

- Bucket digging force: 229kN with 1.8m³ capacity
- Maximum reach: 11,170mm radius for extended work zones
- 70% climbing ability on steep terrain
- 580L fuel tank for extended operation cycles
Currently located in Zhejiang Shaoxing, this excavator features variable capacity piston pumps and 34.3/37.3 MPa hydraulic circuits for precise control. With 600mm track plates and 68 KPa ground pressure, it maintains stability across varied site conditions. Ready for immediate deployment on construction, demolition, or earthmoving projects.
| Specifications | Value |
|---|---|
| No. | 983818 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
