Product Description

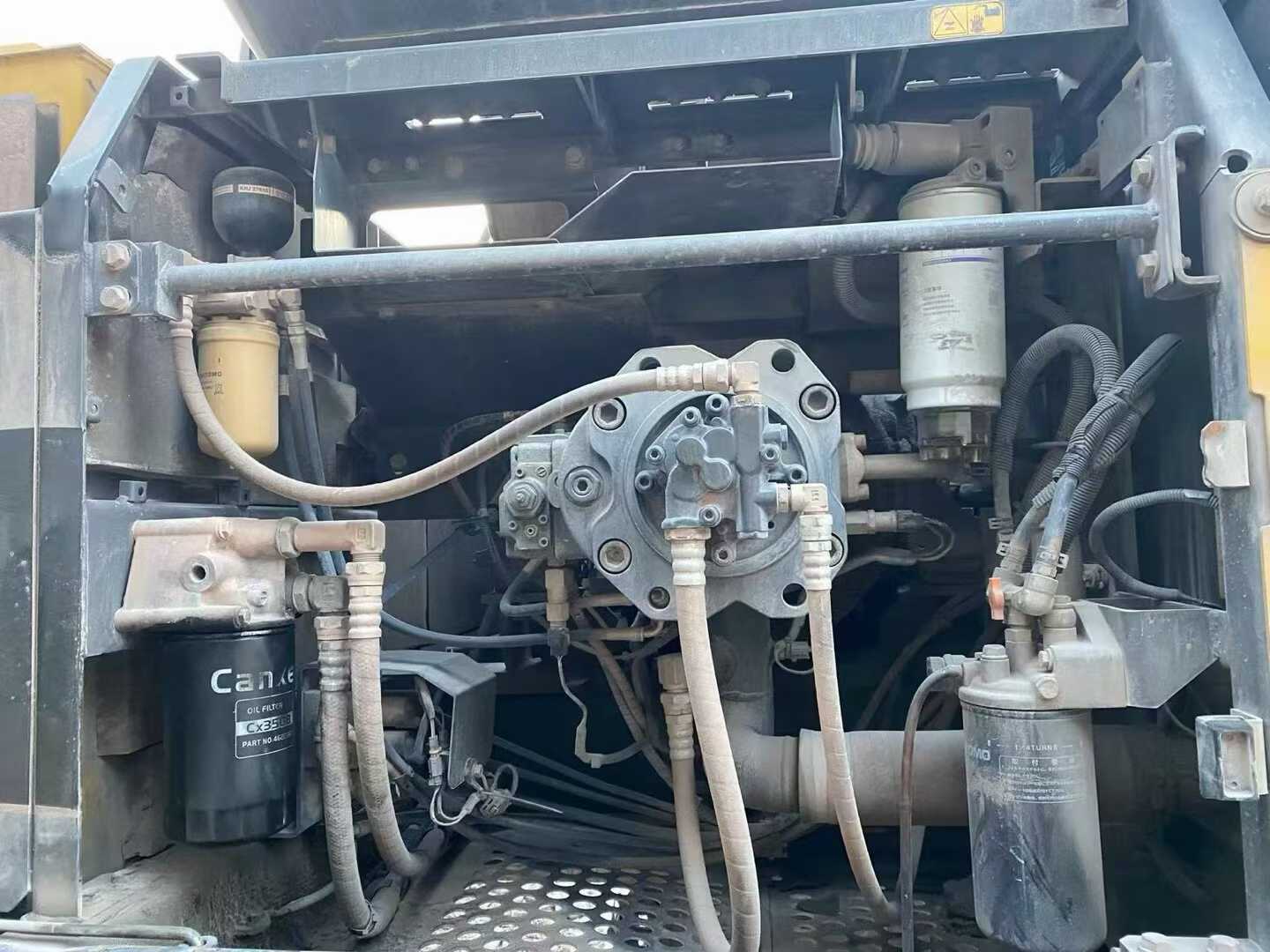

Engineered with precision, this 2017 Sumitomo SH380-5 excavator delivers exceptional performance through its robust Isuzu AH-6HK1X engine, generating 202kW at 2000rpm with 7.79L displacement. Advanced hydraulic systems operate at 34.3/37.3 Mpa working pressure, powered by variable capacity piston pumps that ensure optimal efficiency and control precision.
Built for demanding applications, the SH380-5 combines 38-ton operating capacity with impressive reach specifications: 11,170mm maximum digging radius and 7,340mm maximum depth. The machine's engineering excellence extends to its mobility features, including 70% climbing ability and dual travel speeds of 5.5/3.5 km/h for versatile jobsite navigation.
- Powerful bucket digging force: 229kN with 1.8m³ capacity
- Efficient fuel management: 580L tank capacity
- Compact transport dimensions: 11,050mm length, 3,200mm width
- Low ground pressure: 68kPa for reduced surface impact
Located in Sichuan Province, this joint venture manufactured excavator represents proven Sumitomo reliability with comprehensive hydraulic integration across 350L total system capacity.
| Specifications | Value |
|---|---|
| No. | 983618 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
