Product Description

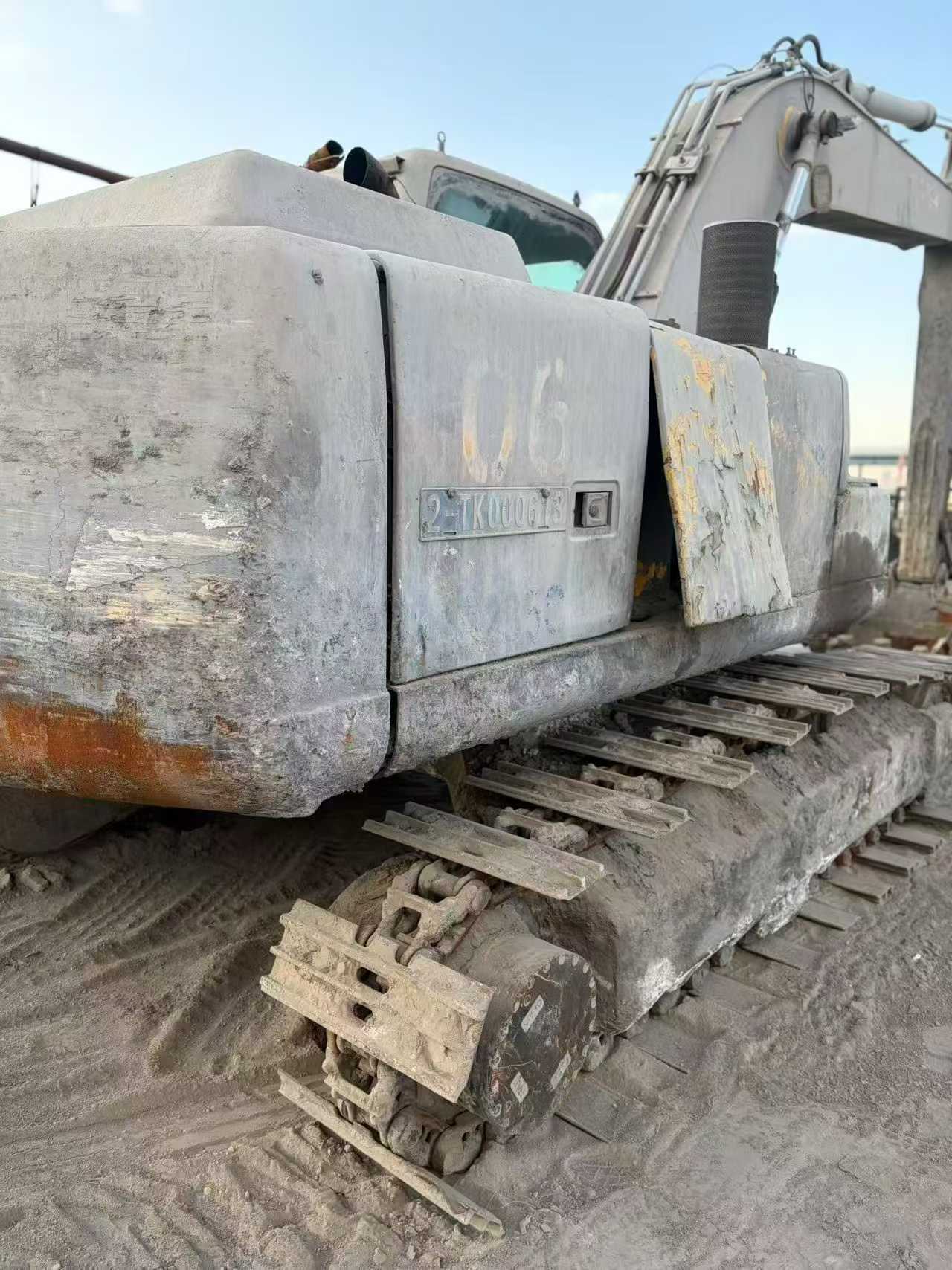

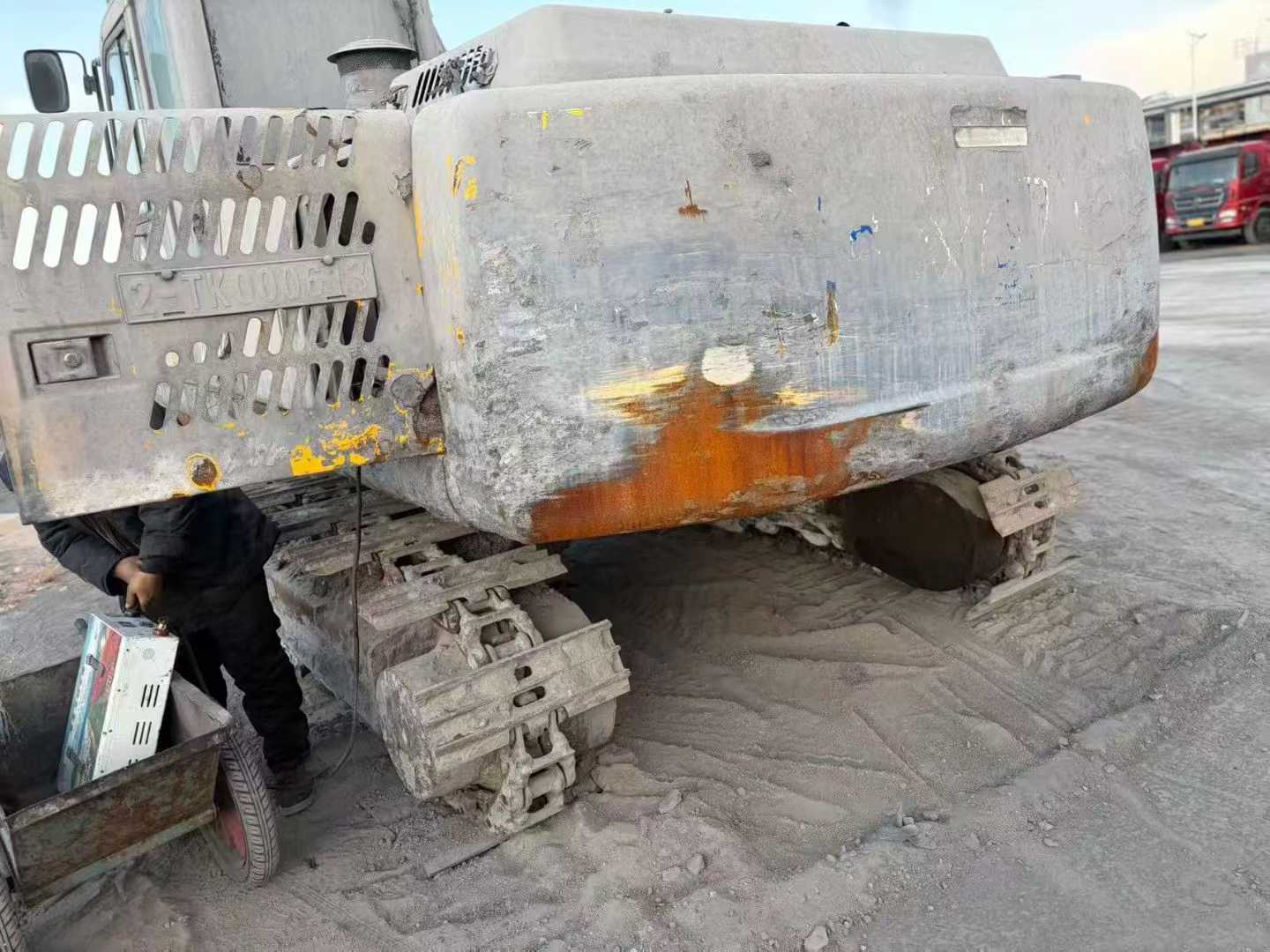

With a working weight of 23,500 kg and a bucket capacity ranging from 0.9 to 1.1 m³, this 2013 XCMG XE235C excavator is an ideal fleet addition for contractors. Located in Inner Mongolia, it boasts a robust 6.494L, 6-cylinder engine, delivering a maximum torque of 637 N.m at 1800 rpm. Equipped with a backhoe bucket, it provides a digging force of 176 kN, making it suitable for demanding tasks. The machine's travel speed of 6.0/4.0 km/h and maximum tractive force of 194.8 kN ensure efficient mobility on various terrains. Its hydraulic system, powered by a dual 246 l/min main pump, offers reliable performance. For those looking to enhance their operational capacity, this excavator integrates seamlessly into any busy construction fleet.
- Engine Type: CC-6BG1TRP
- Boom Length: 6000 mm
- Rod Length: 2960 mm
- Maximum Digging Depth: 6960 mm
- Fuel Tank Capacity: 400 L
- Total Transport Dimensions: 10160 mm (length) x 2990 mm (width) x 3100 mm (height)
| Specifications | Value |
|---|---|
| No. | 990508 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | 0.9 ~ 1.1 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CC-6BG1TRP |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Ground specific pressure (Kpa) | 48.9 |
| Rotation speed (rpm) | 12.1 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 194.8 |
| Travel speed (km/h) | 6.0/4.0 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 10160 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 485 |
| Back end turning radius (mm) | 2985 |
| Total track length (mm) | 4255 |
| Track gauge (mm) | 2390 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 9595 |
| Maximum unloading height (mm) | 6725 |
| Maximum vertical digging depth (mm) | 6090 |
