Product Description
Discover the reliability and efficiency of the 2018 Case CX350B, a robust excavator designed for demanding construction and excavation tasks. Located in Zhejiang, China, this used machine is ready to tackle your next project with its powerful performance and durability. The CX350B is known for its strong digging force and excellent stability, making it an ideal choice for various heavy-duty applications. This model has been a staple in the industry for its operator comfort, ease of maintenance, and fuel efficiency, ensuring that you can focus on productivity without compromising on cost or quality.
- Year: 2018
- Brand: Case
- Model: CX350B
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1132745 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35863 |
| Bucket capacity (m³) | 0.96-2.24 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

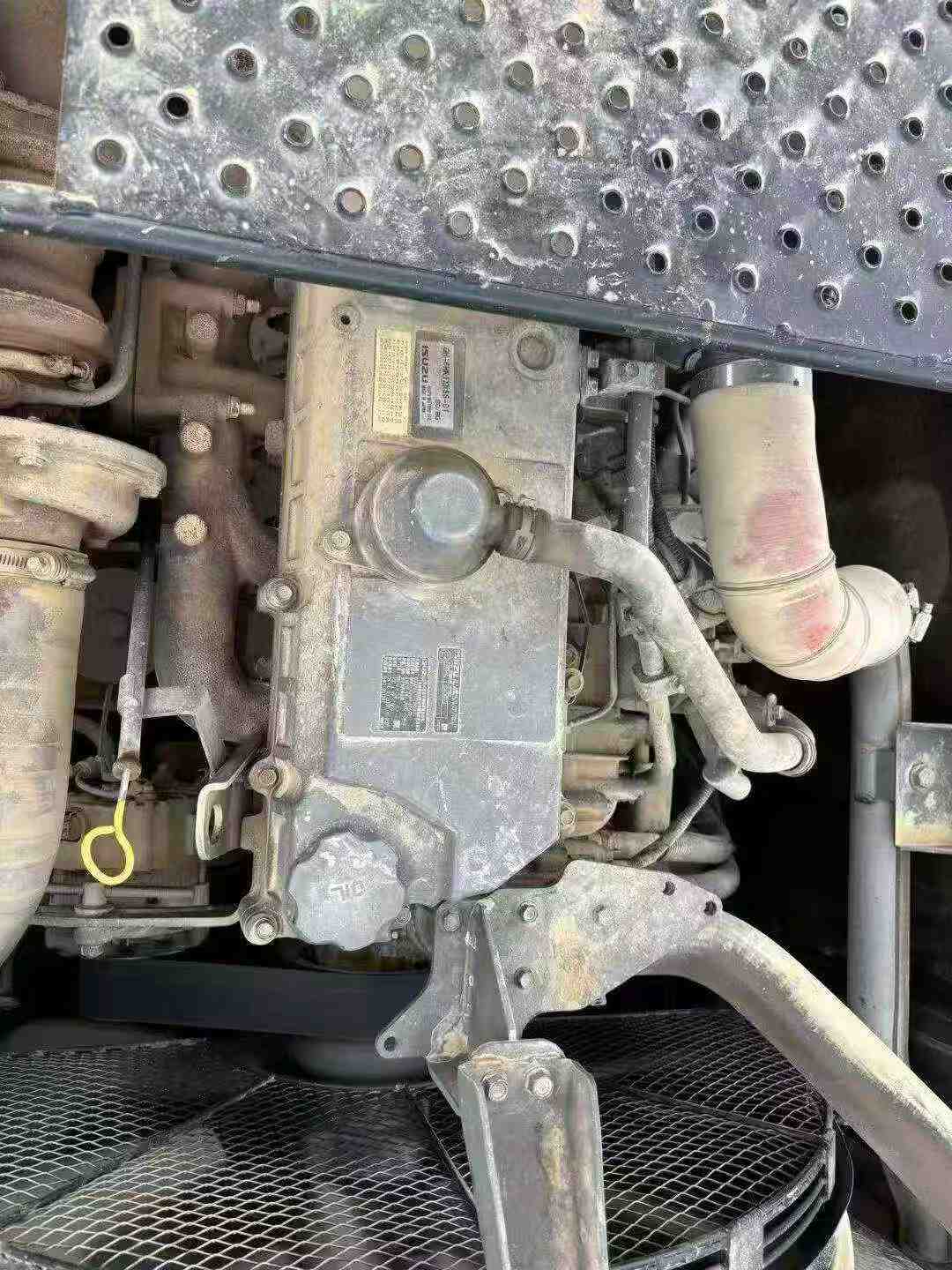

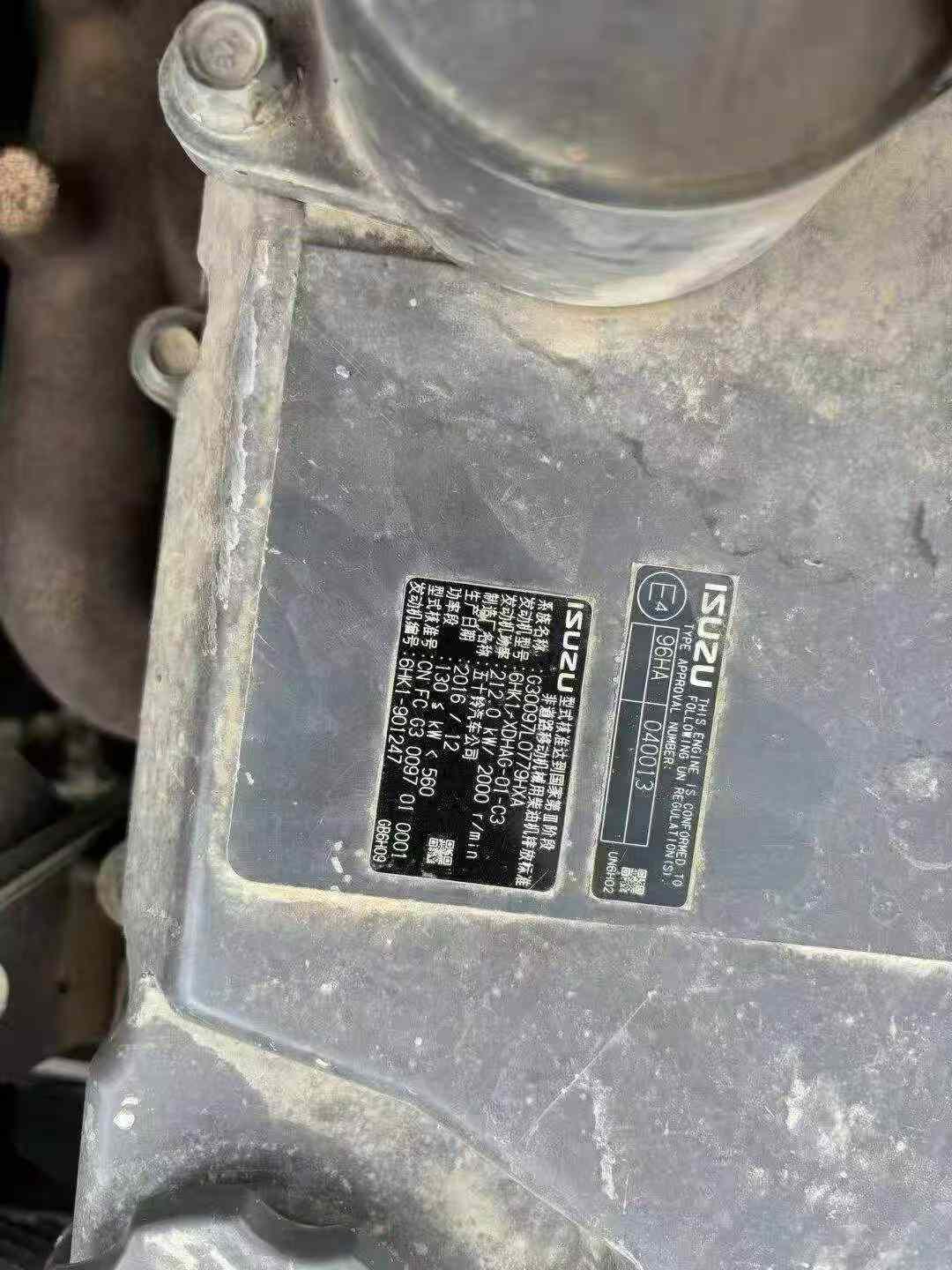

| Engine type | Isuzu AH-6HKIXYSS |
| Rated power (kw/rpm) | 202/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 228.8(Standard mode)/248.4(Extra mode) |
| Rod digging force (kN) | 163.9(Standard Mode)/178.0(Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 290 * 2 + 30.5 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 3260 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3400 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
| Maximum excavation radius of stop surface (mm) | 10980 |
| Maximum effective digging depth (mm) | 7190 |
