Product Description

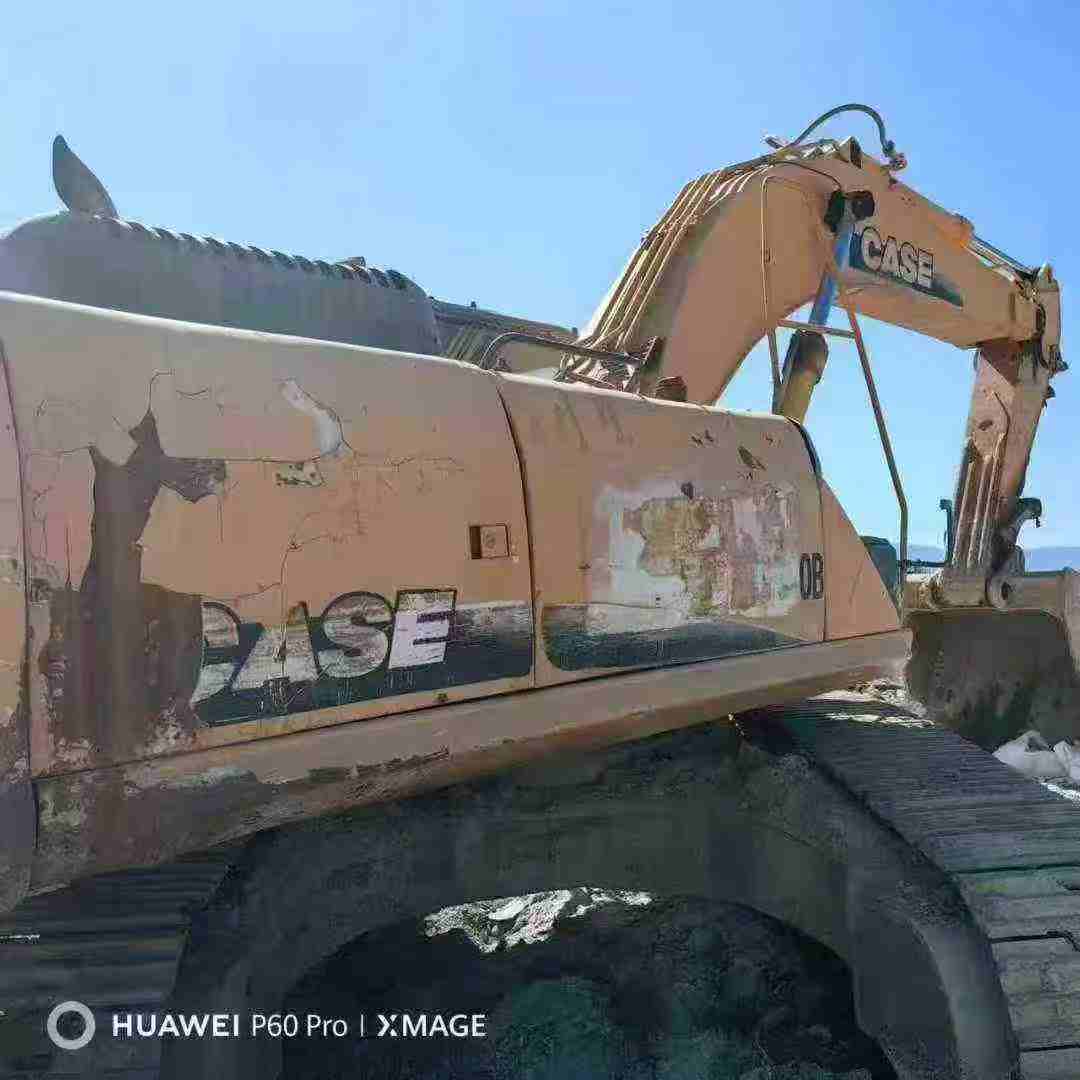

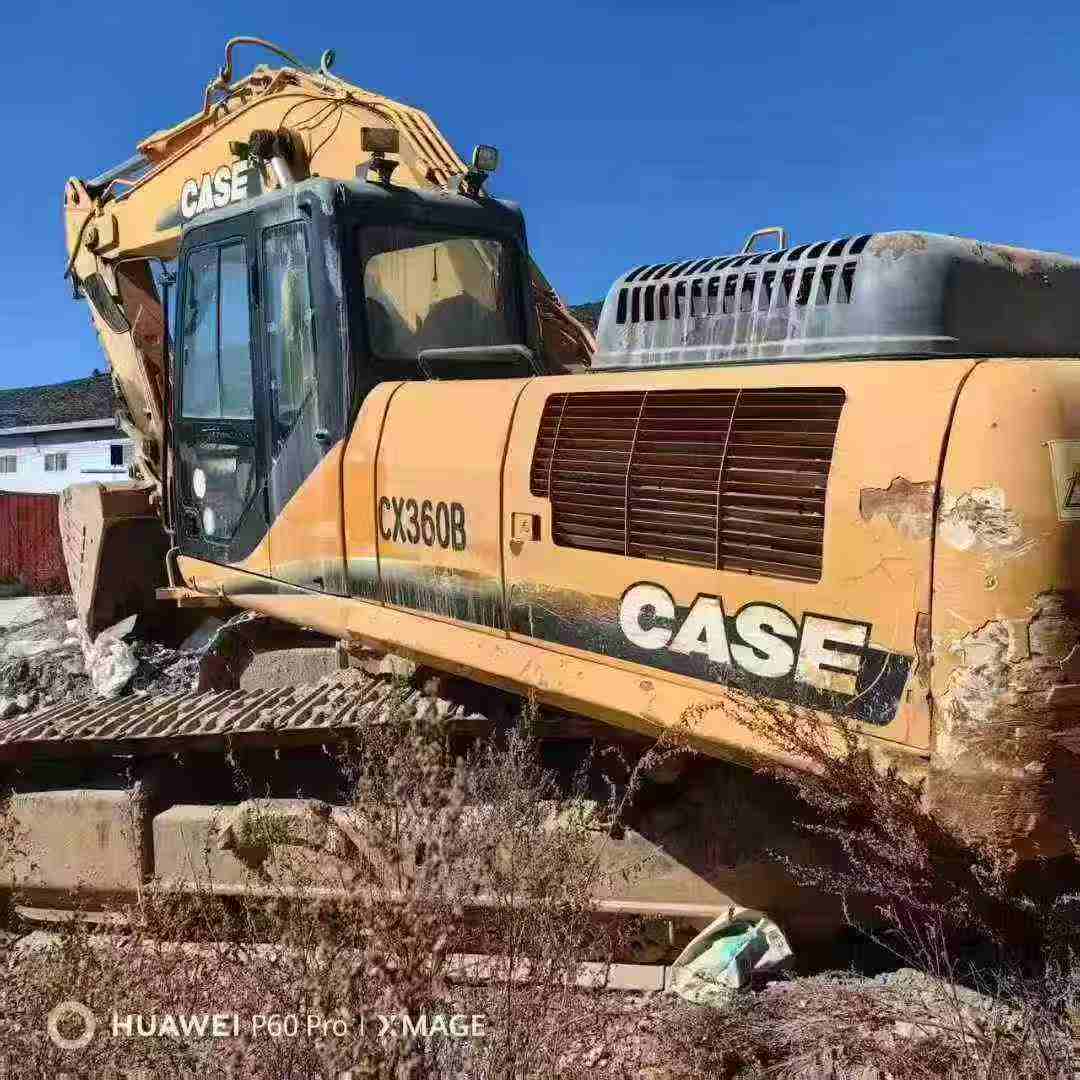

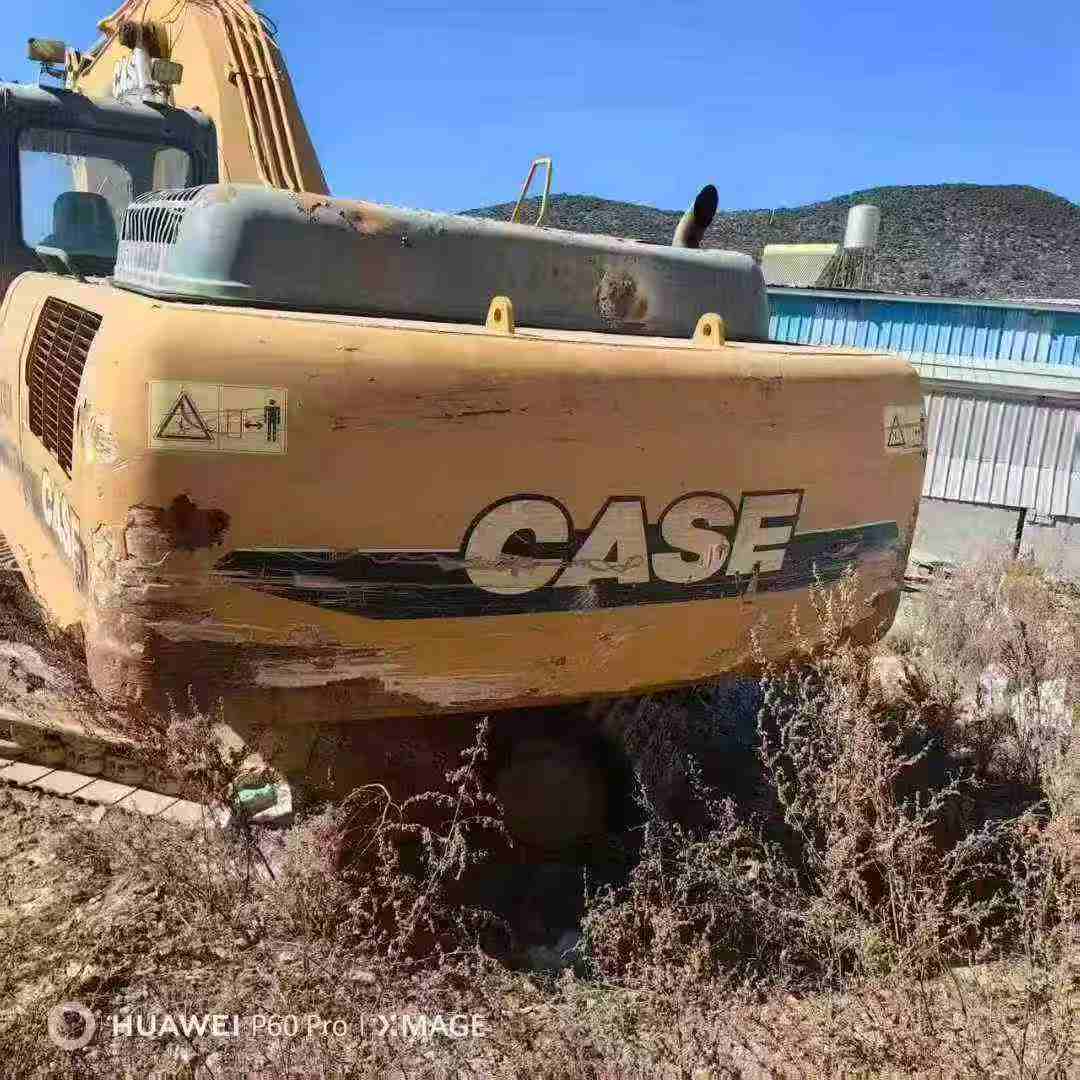

Backed by decades of engineering excellence, this 2014 Case CX360B excavator represents a proven investment in the used heavy equipment market. Operating at 36 tons with a robust Isuzu 6-cylinder engine delivering 207.3kW, this machine combines reliable power with the parts availability and dealer support that Case operators depend on. The 1.4-2.1 m³ bucket capacity and 10,670mm maximum digging radius provide substantial productivity for demanding excavation projects.
Case equipment maintains strong resale value due to widespread dealer networks and readily accessible components—critical factors when operating in regions like Zhejiang Shaoxing. This joint venture model features a water-cooled, turbocharged engine with intercooling technology, ensuring consistent performance across extended work cycles. With 252kN bucket digging force in extra mode and dual 300 l/min variable piston pumps, operators gain the hydraulic power needed for challenging applications while maintaining fuel efficiency from the 580L tank.
Key specifications include:
- Working weight: 36,100 kg with 67 Kpa ground pressure
- Maximum digging depth: 6,730mm
- Boom/rod configuration: 6,450mm/2,630mm
- Transport dimens
| Specifications | Value |
|---|---|
| No. | 1034498 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4-2.1 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2630 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

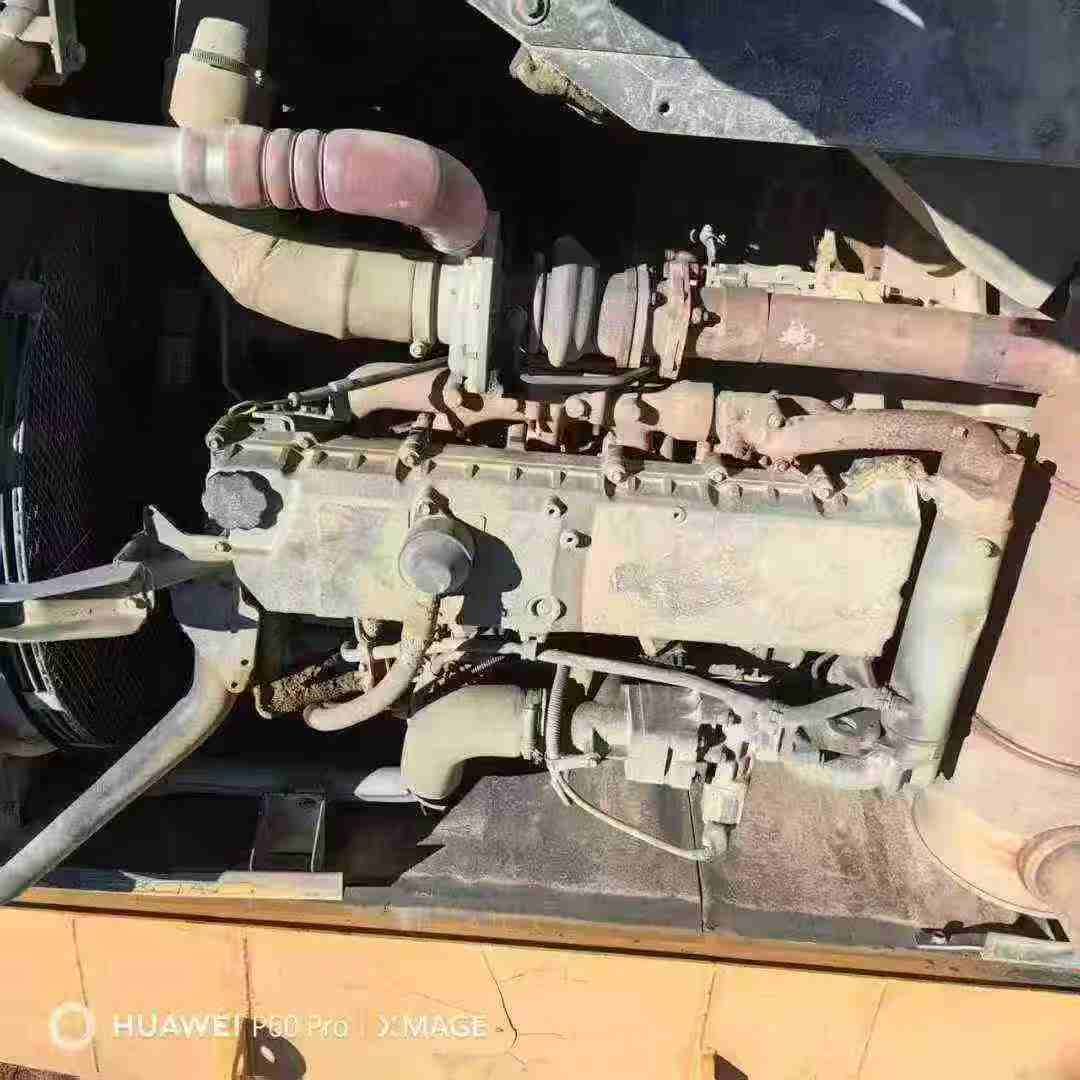

| Engine type | Isuzu AH-6HK1XYSS(Tie3) |
| Rated power (kw/rpm) | 207.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling |
| Ground specific pressure (Kpa) | 67 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 232 (Standard mode) /252 (Extra mode) |
| Rod digging force (kN) | 199 (Standard mode) /215 (Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 300 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

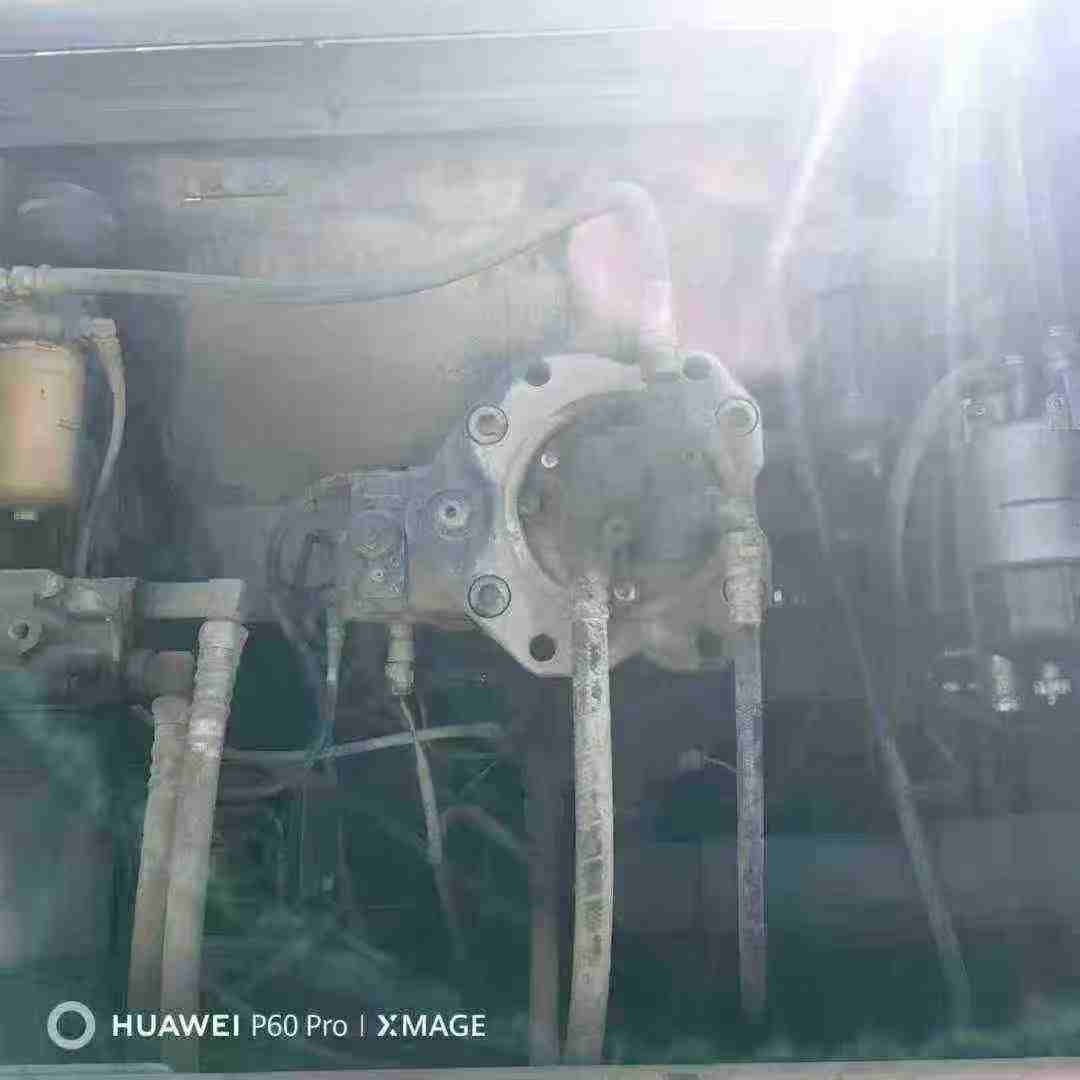

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10470 |
| Maximum effective digging depth (mm) | 6550 |
