Product Description

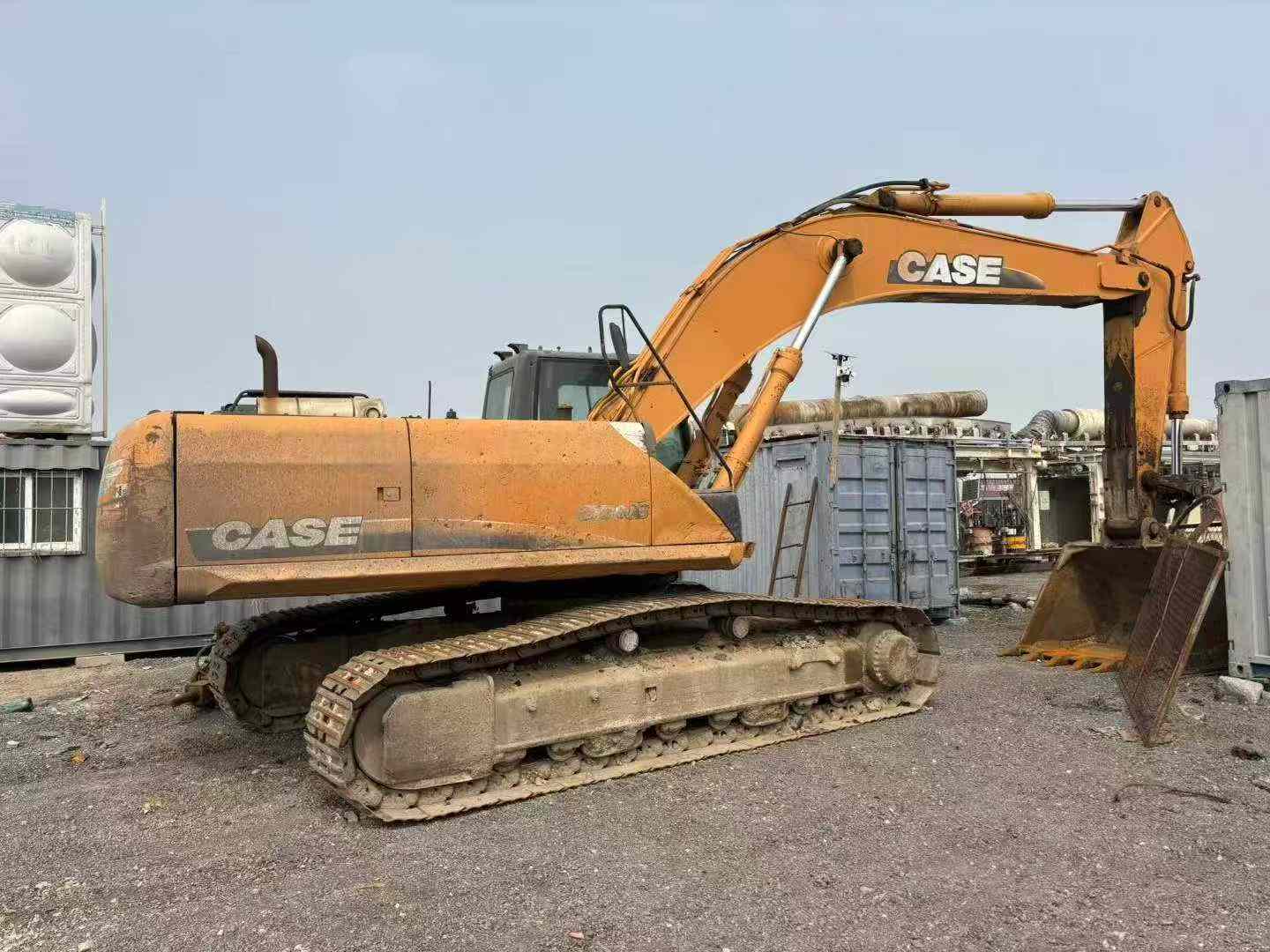

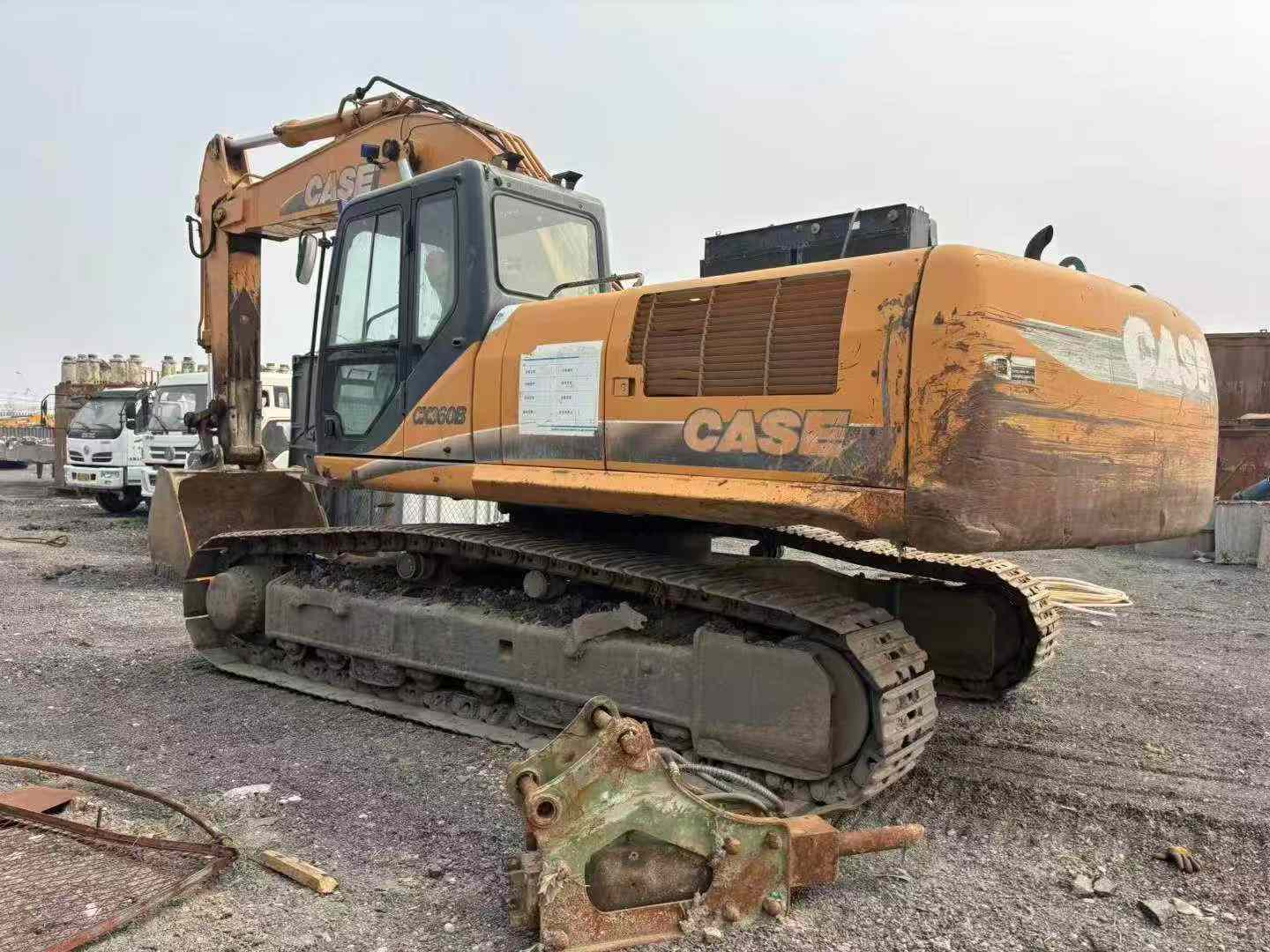

Expand your operational capacity with this 2016 Case CX360B excavator, a proven 36-ton workhorse engineered for contractors managing multiple jobsites simultaneously. Powered by an Isuzu 6-cylinder turbocharged engine delivering 207.3 kW, this machine integrates seamlessly into demanding fleet schedules without compromising performance standards.
Built in Shanghai as a joint-venture model, this excavator features robust hydraulic architecture—dual variable axial piston pumps supplying 600 L/min combined flow—ensuring consistent cycle times across grading, trenching, and material handling applications. The 6,450 mm boom and 2,630 mm arm provide 10,670 mm maximum reach with bucket digging forces up to 252 kN in Extra mode, matching the output of primary fleet units.
Key Fleet Integration Benefits:
- 36,100 kg operating weight balances stability with transportability (11,130 mm transport length)
- Isuzu Tier 3 engine shares service protocols with common fleet powerplants

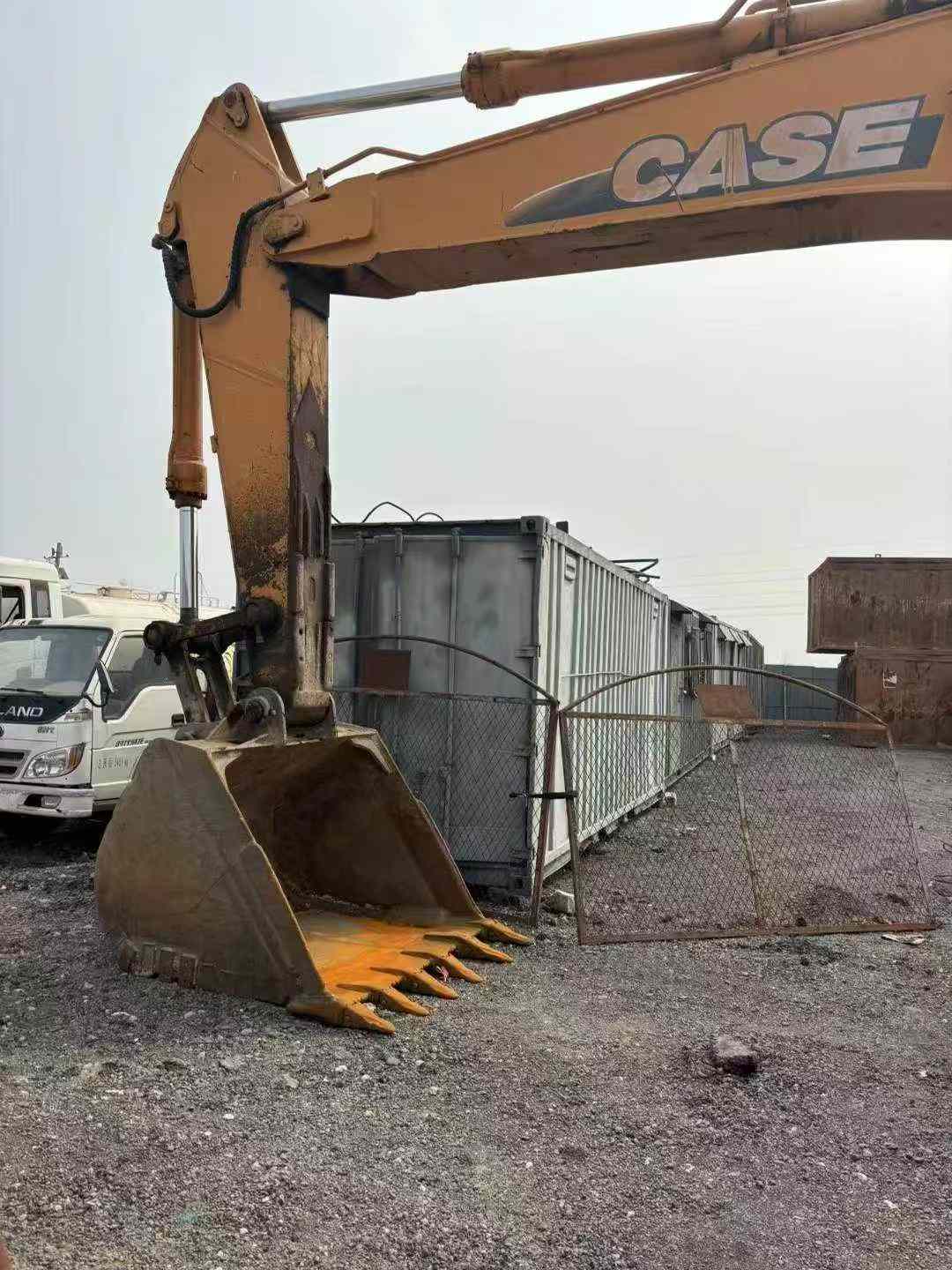

- 1.4–2.1 m³ bucket capacity adapts to varied project requirements
- 580 L fuel tank supports extended shifts without refueling interruptions
- Currently located in Zhangzhou, Fujian—ready for imme
| Specifications | Value |
|---|---|
| No. | 1033999 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4-2.1 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2630 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

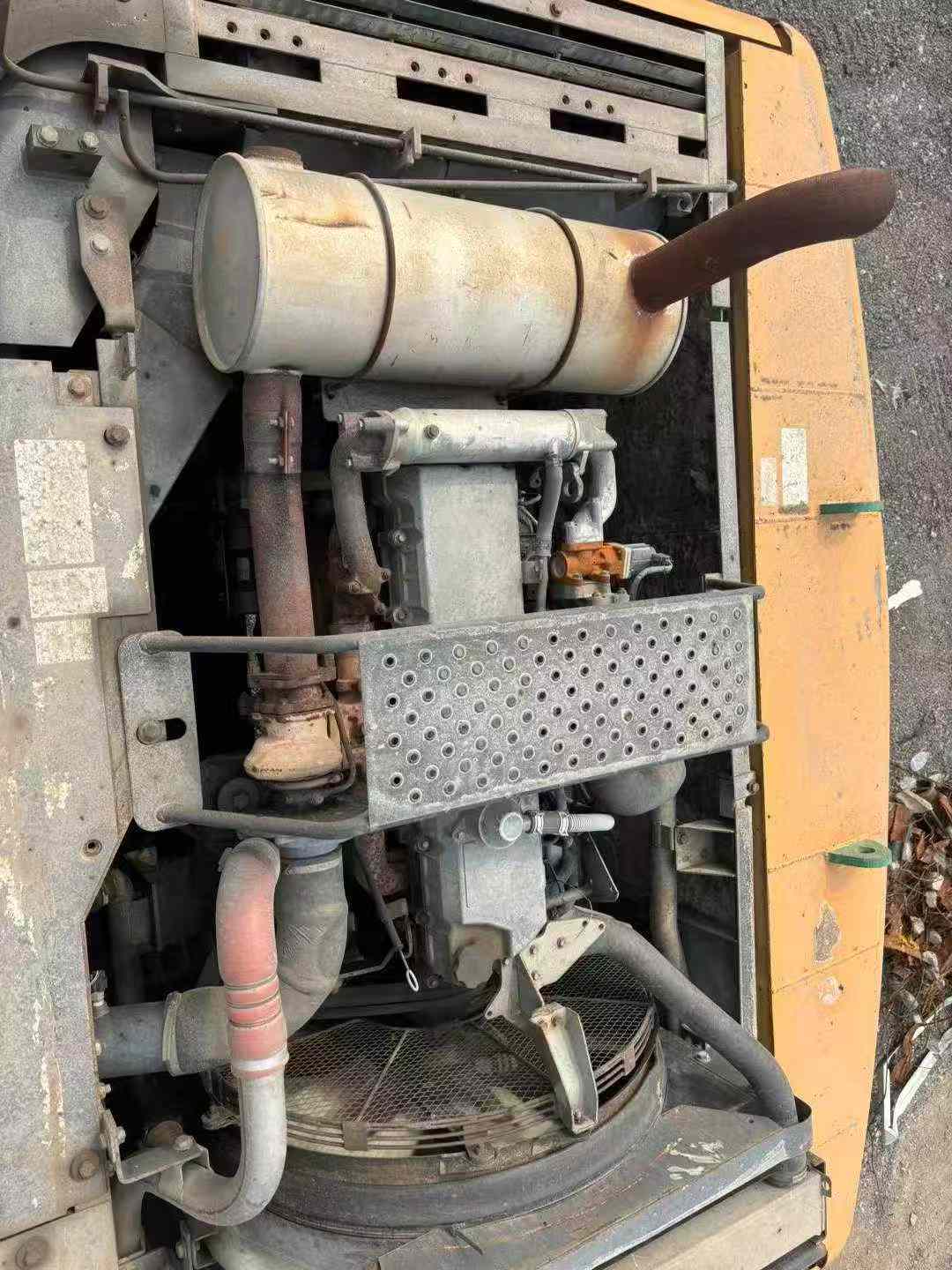

| Engine type | Isuzu AH-6HK1XYSS(Tie3) |
| Rated power (kw/rpm) | 207.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling |
| Ground specific pressure (Kpa) | 67 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 232 (Standard mode) /252 (Extra mode) |
| Rod digging force (kN) | 199 (Standard mode) /215 (Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 300 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

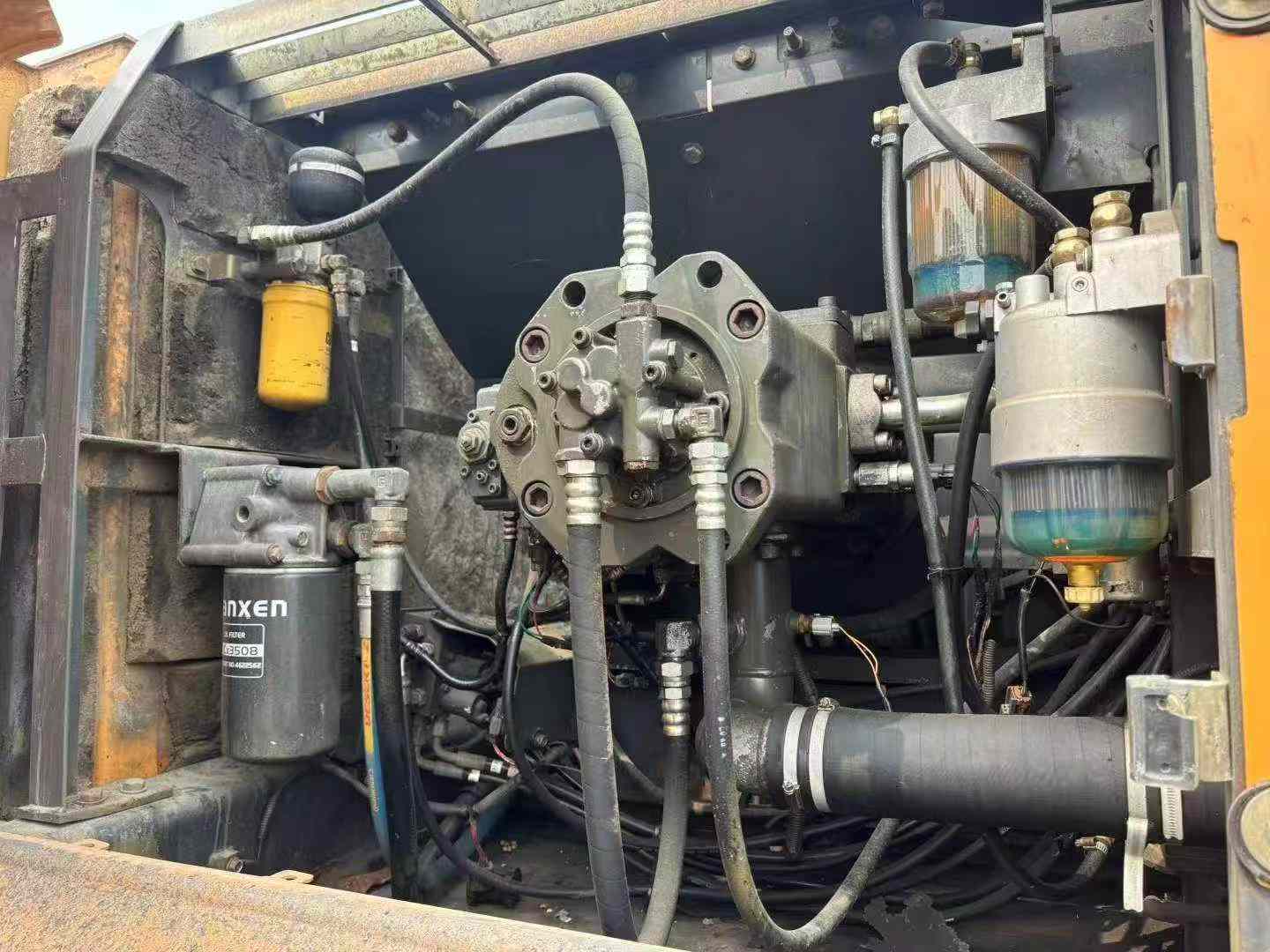

| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |

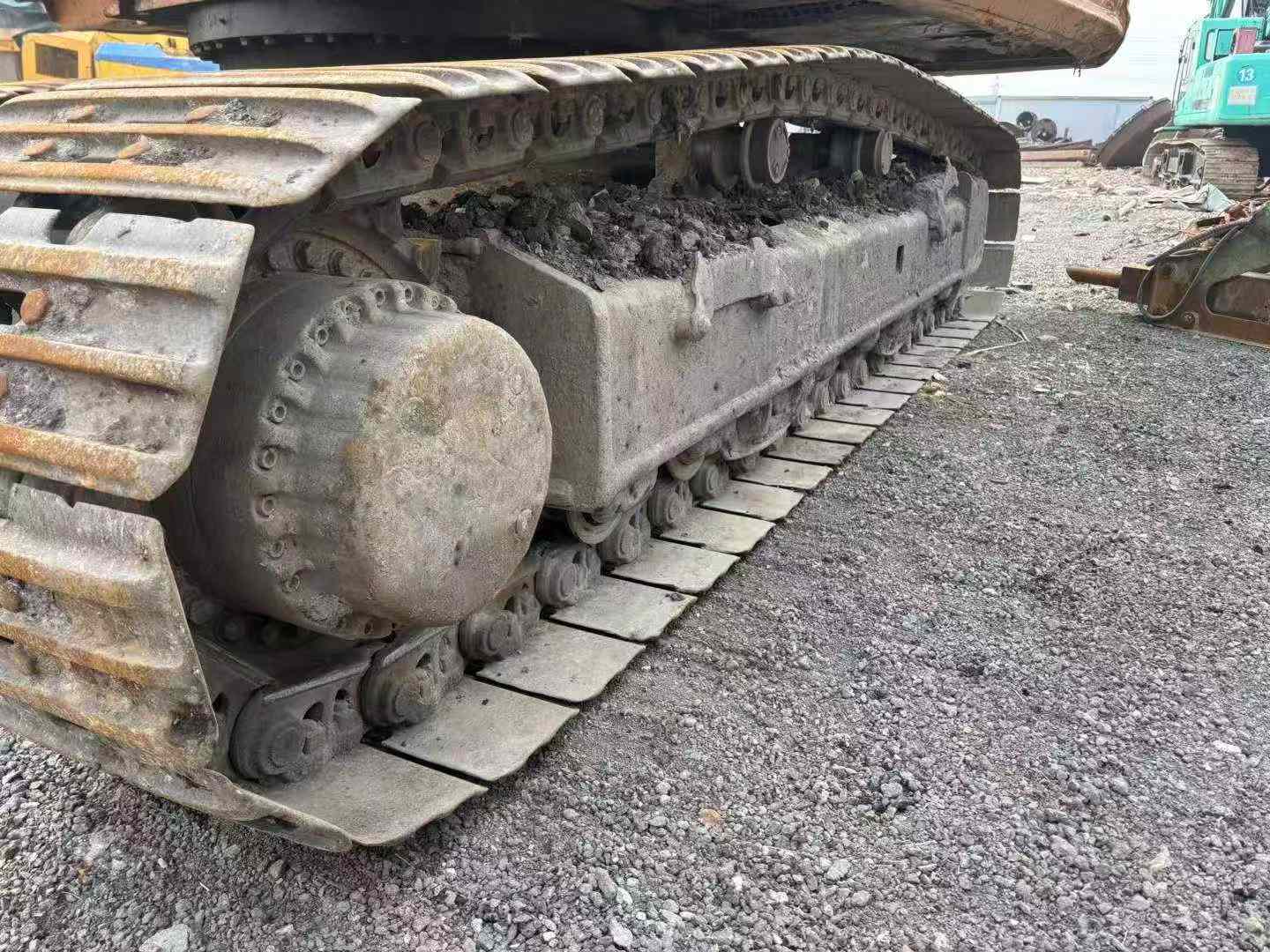

| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10470 |
| Maximum effective digging depth (mm) | 6550 |
