Product Description

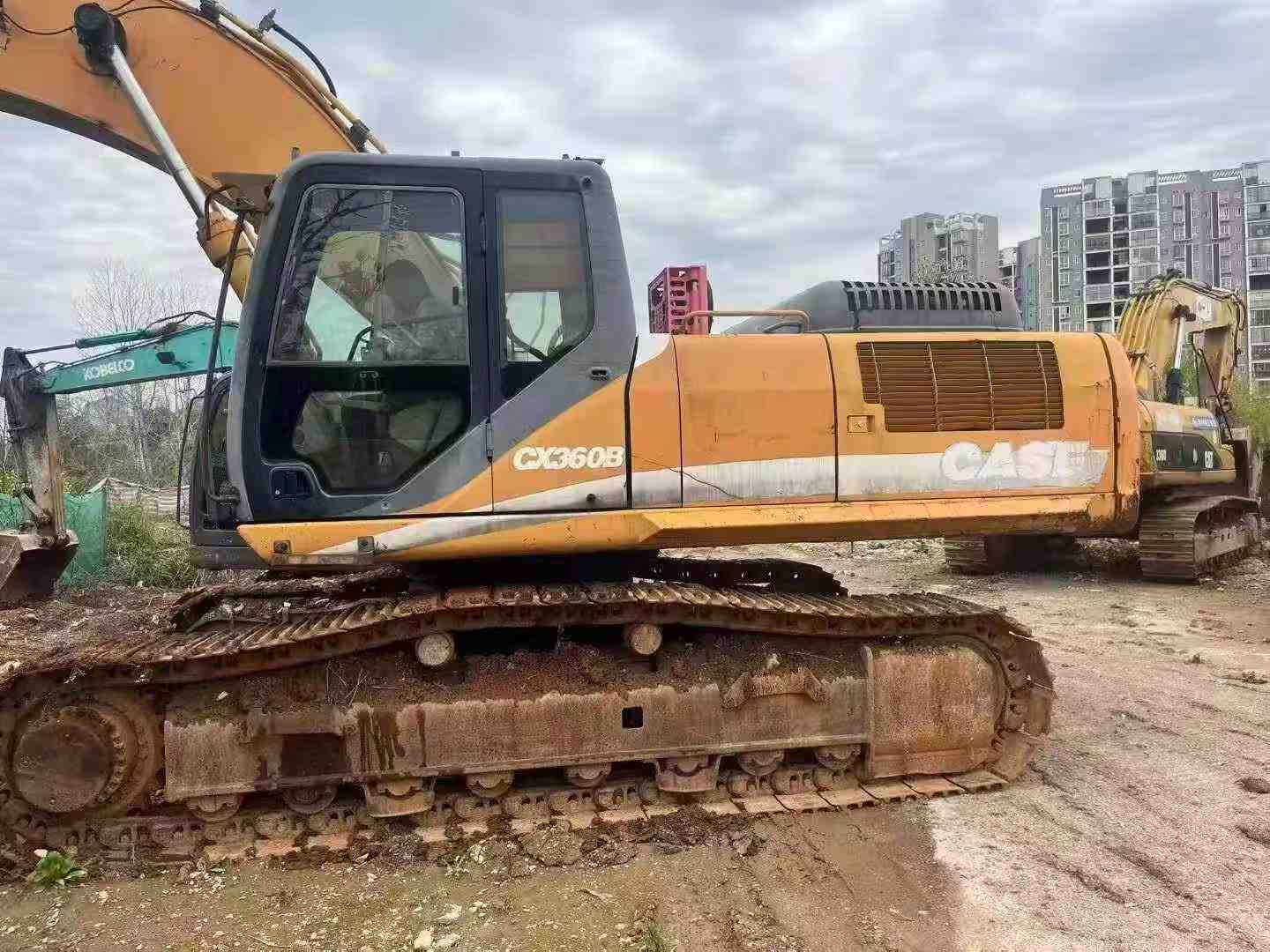

Built in 2016, this Case CX360B excavator delivers 36-ton performance with proven reliability that keeps operating costs predictable. Powered by an Isuzu AH-6HK1XYSS Tier 3 engine producing 207.3 kW at 2000 rpm, this machine combines robust power with the fuel efficiency and parts availability that make Case a smart investment in the used equipment market. Currently located in Luzhou, Sichuan, this crawler excavator features a 1.4-2.1 m³ bucket capacity and maximum digging reach of 10,670 mm, handling demanding excavation tasks with confidence.
- Operating Weight: 36,100 kg with exceptional 67 kPa ground pressure

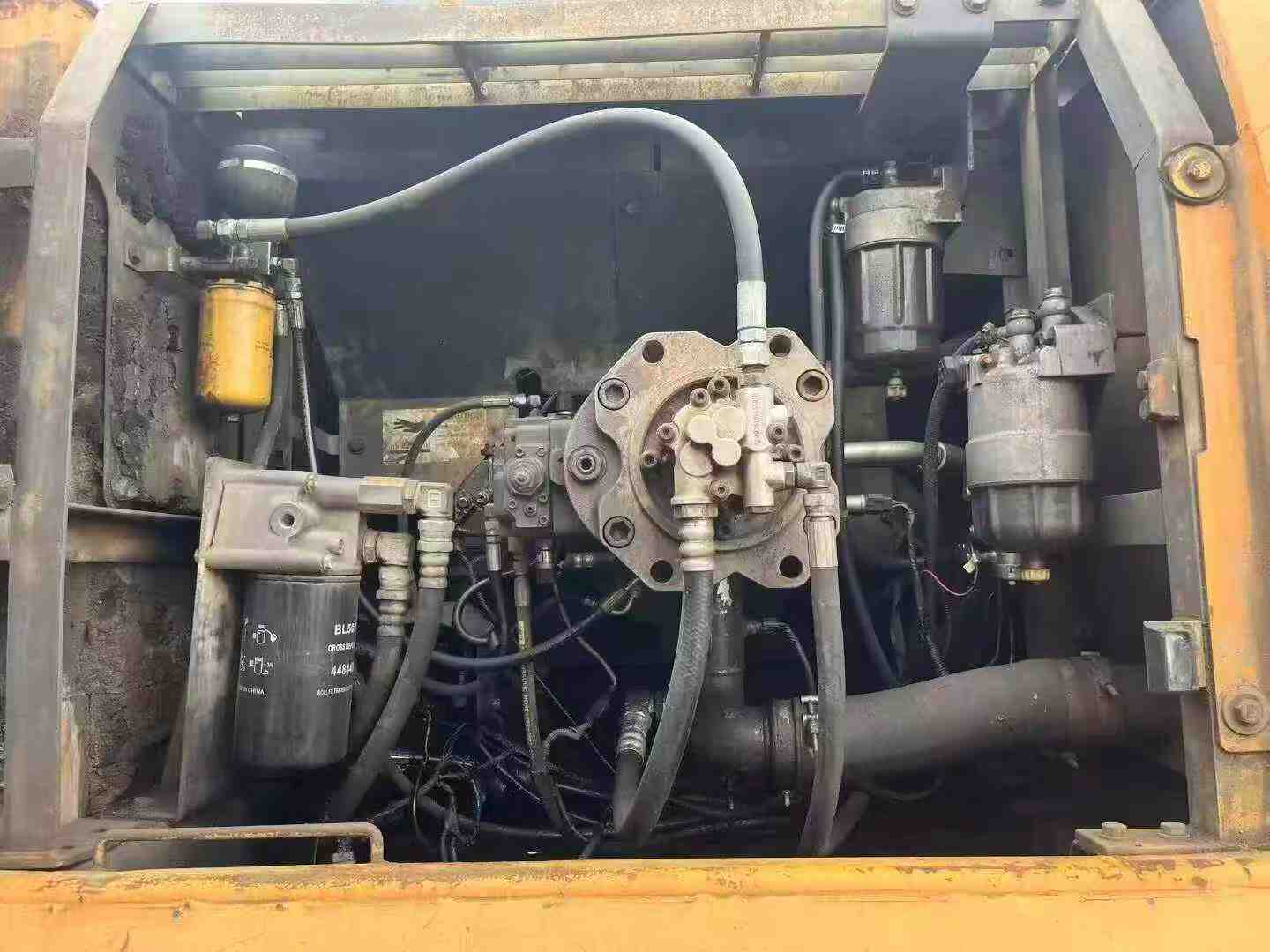

- Hydraulic Performance: Dual 300 l/min variable piston pumps, 252 kN bucket digging force (Extra mode)
- Working Range: 6,730 mm maximum dig depth, 10,320 mm maximum dig height

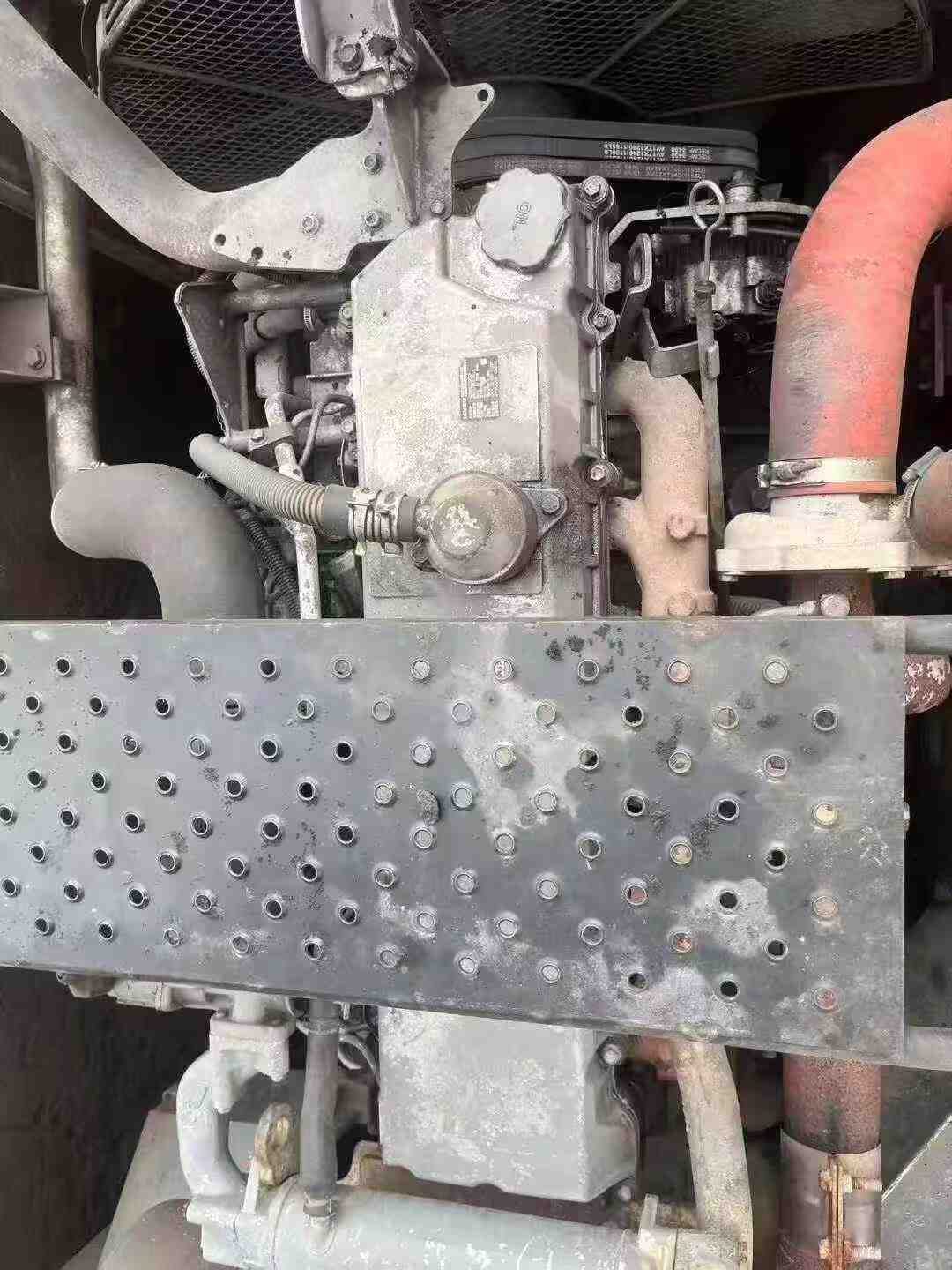

- Engine: 7.79L turbocharged, intercooled, water-cooled diesel with electronic control

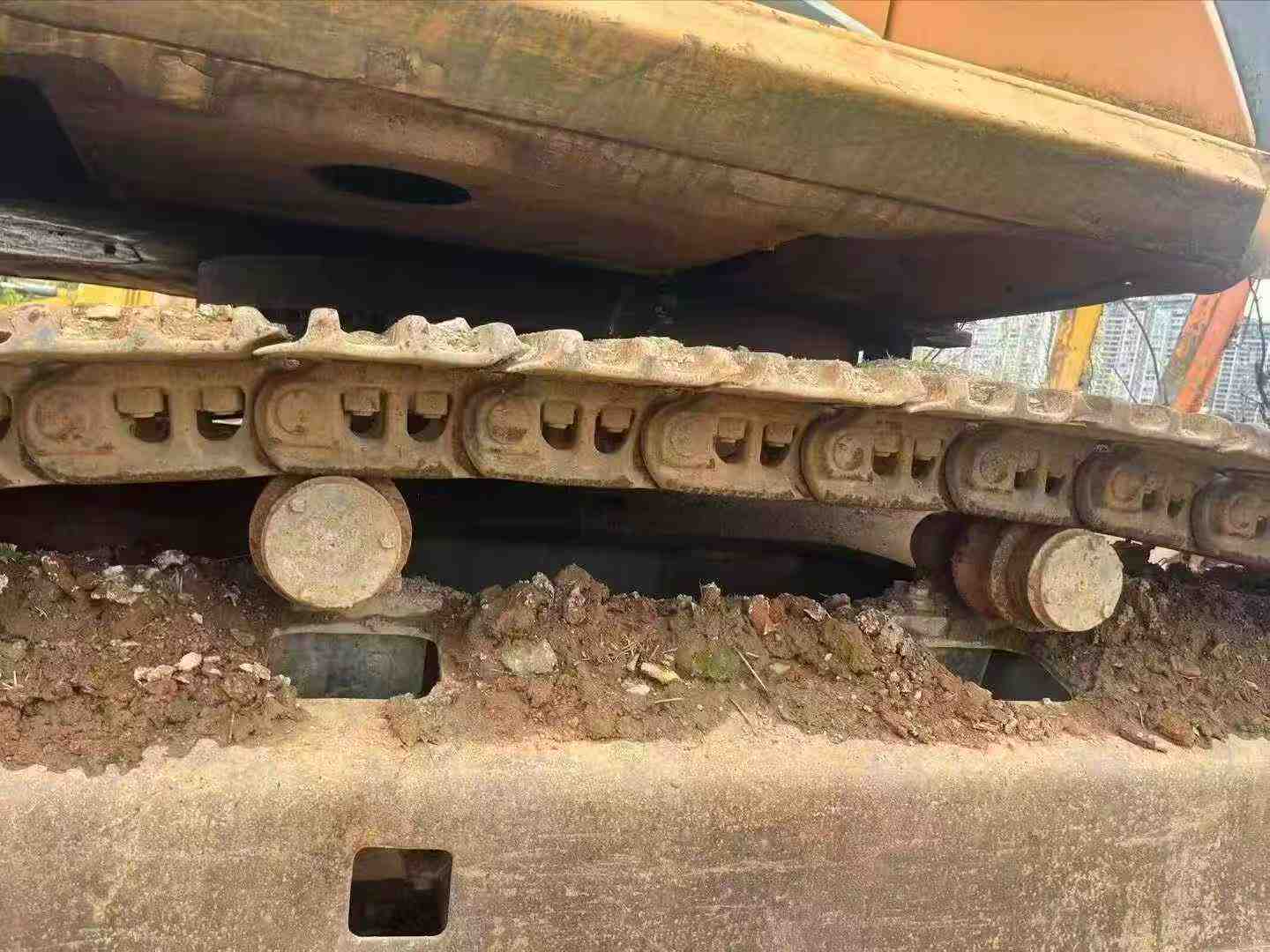

- Undercarriage: 4,040 mm track ground contact, 600 mm shoe width for stability
- Parts Support: Case's global dealer network ensures components remain accessible years after production
Case equipment maintains strong resale value due to widespread brand recognition and straightforward maint
| Specifications | Value |
|---|---|
| No. | 1049960 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4-2.1 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2630 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1XYSS(Tie3) |
| Rated power (kw/rpm) | 207.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling |
| Ground specific pressure (Kpa) | 67 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 232 (Standard mode) /252 (Extra mode) |
| Rod digging force (kN) | 199 (Standard mode) /215 (Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 300 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10470 |
| Maximum effective digging depth (mm) | 6550 |
