Product Description

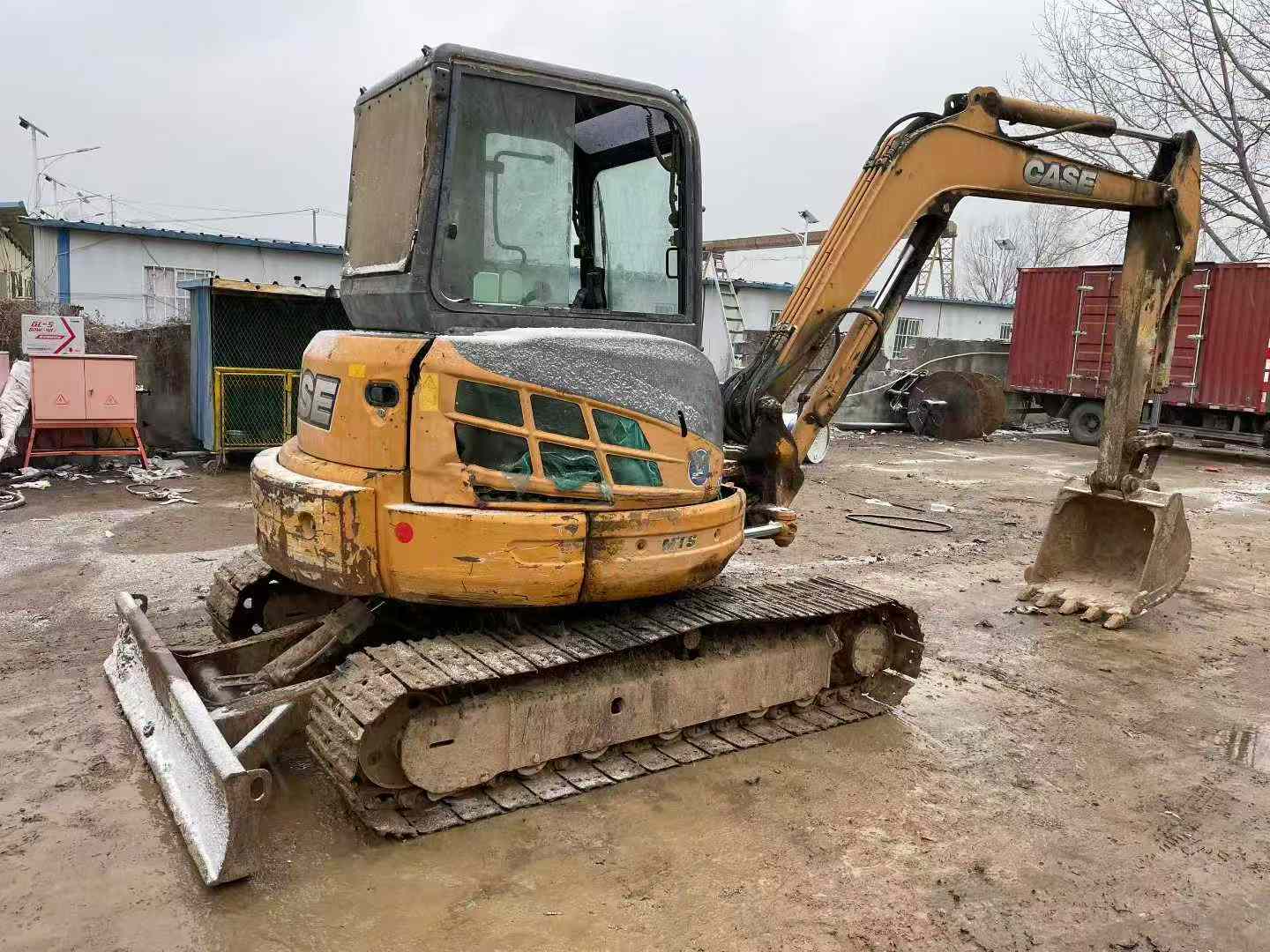

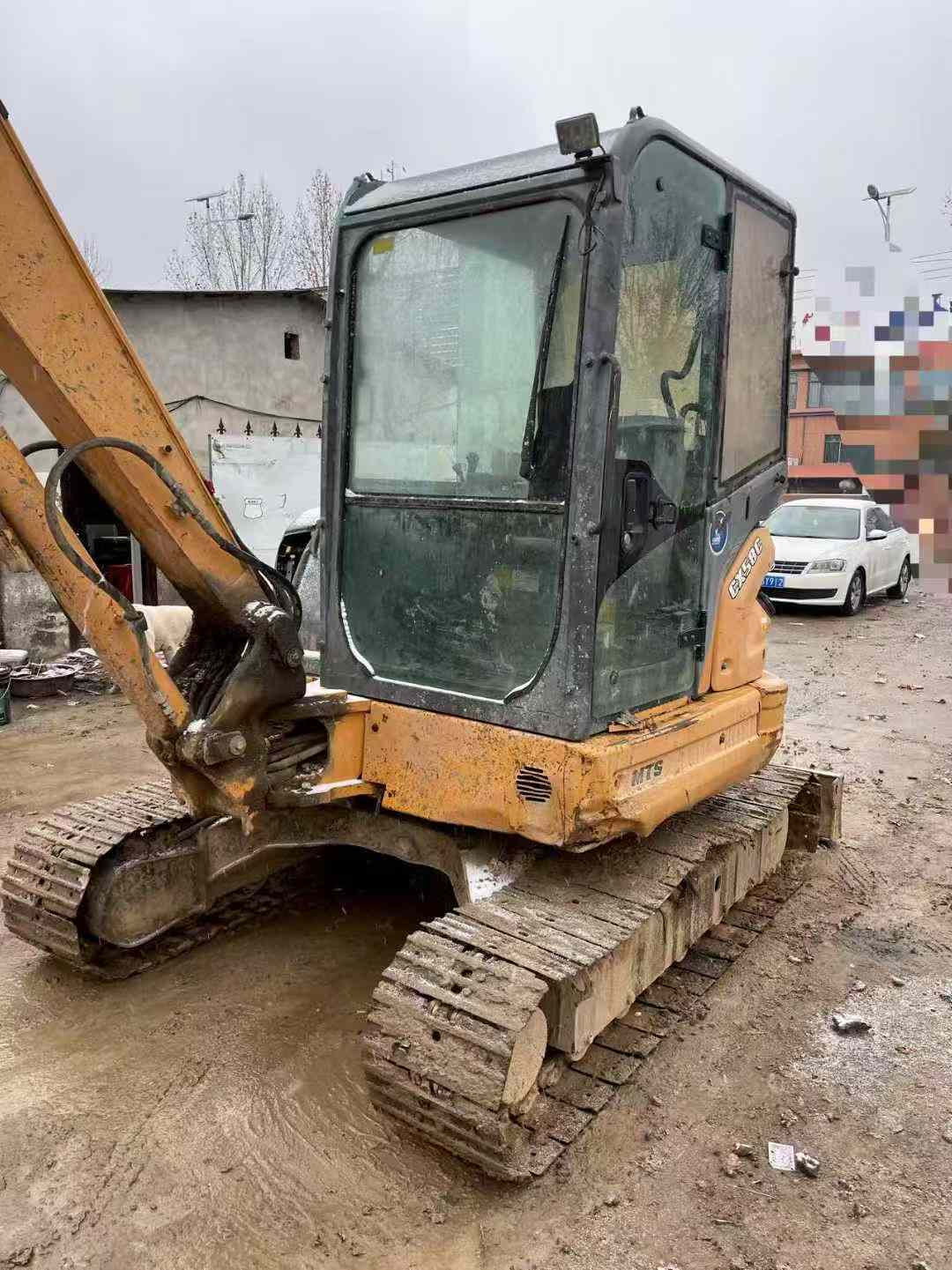

Maximize your excavation capabilities with this 2014 Case CX58C compact excavator, delivering exceptional value in the used equipment market. Operating at 5.5 tons with a powerful YANMAR 4TNV88 Tier IV engine producing 30.7kW, this machine combines reliability with fuel efficiency for demanding jobsites.
Key performance specifications include:
- Maximum digging depth of 3,910mm with 6,220mm reach radius
- Bucket digging force of 50kN for challenging soil conditions
- Compact transport dimensions (5,420 x 1,960 x 2,550mm) for easy site mobility
- Variable bucket capacity (0.08-0.28m³) adapting to diverse applications
- 58% climbing ability handling steep terrain effectively
Located in Qingdao, Shandong, this well-maintained excavator offers proven performance at a fraction of new equipment costs. With dual-speed travel capability and comprehensive hydraulic systems, it delivers the productivity your operation demands while protecting your capital investment. Smart buyers recognize the superior cost-benefit ratio of quality used machinery.
| Specifications | Value |
|---|---|
| No. | 991548 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5585 |
| Bucket capacity (m³) | 0.08-0.28 |
| Boom length (mm) | 2980 |
| Rod length (mm) | 1660 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

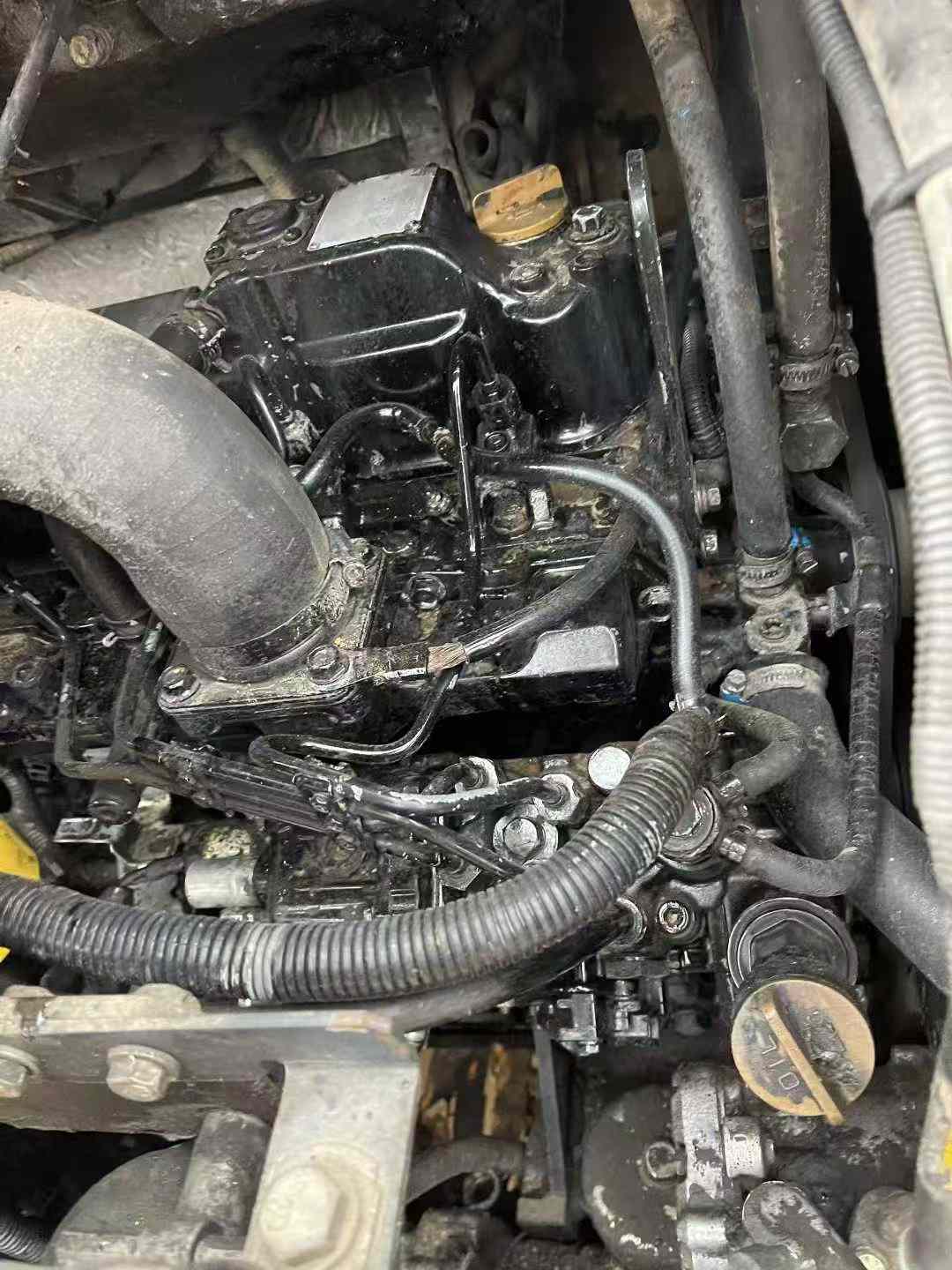

| Engine type | YANMAR 4TNV88-BXPYBD(Tier IV) |
| Rated power (kw/rpm) | 30.7/2400 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 88 x 90 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.2 |
| Working form | Direct injection diesel engine |
| Ground specific pressure (Kpa) | 29 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 50 |
| Rod digging force (kN) | 25.5 |
| Travel speed (km/h) | 2.7/4.6 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Axial piston motor x 2 |
| Maximum flow of main pump (l/min) | 57.1 * 2 + 33.8 + 12.2 |
| Traveling Hydraulic Circuit (Mpa) | 23 |
| Rotary Hydraulic Circuit (Mpa) | 20.1 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable axial piston pump ×2+ gear pump ×2 |
| Working Hydraulic Circuit (Mpa) | 23 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-75 x 543 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-90 x 735 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-100 x 680 |
| Fuel Tank (L) | 75 |
| Hydraulic Tank (L) | 34 |
| Engine Oil changes (L) | 7 |
| Coolant (L) | 6 |
| Hydraulic System (L) | 61 |
| Total transport length (mm) | 5420 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Counterweight ground clearance (mm) | 625 |
| Minimum turning radius of front working device (mm) | 2430 |
| Back end turning radius (mm) | 1180 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6220 |
| Maximum digging depth (mm) | 3910 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4200 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 495/345 |
| Dodging plate width × height (mm) | 1960 x 345 |
| Maximum excavation radius of stop surface (mm) | 6070 |
| Boom turning Angle (left/right °) | 70/60 |
| Maximum effective digging depth (mm) | 3220 |
