Product Description

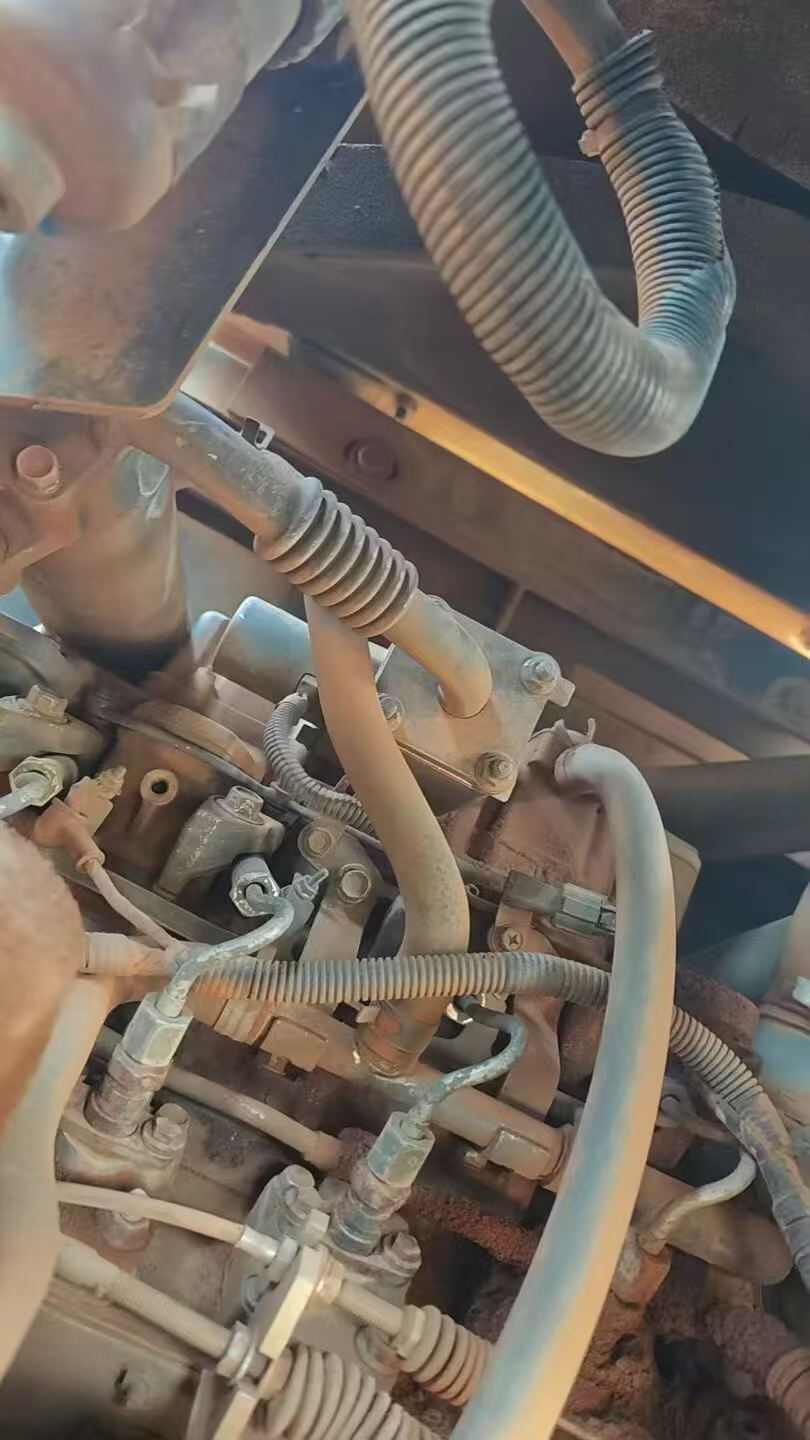

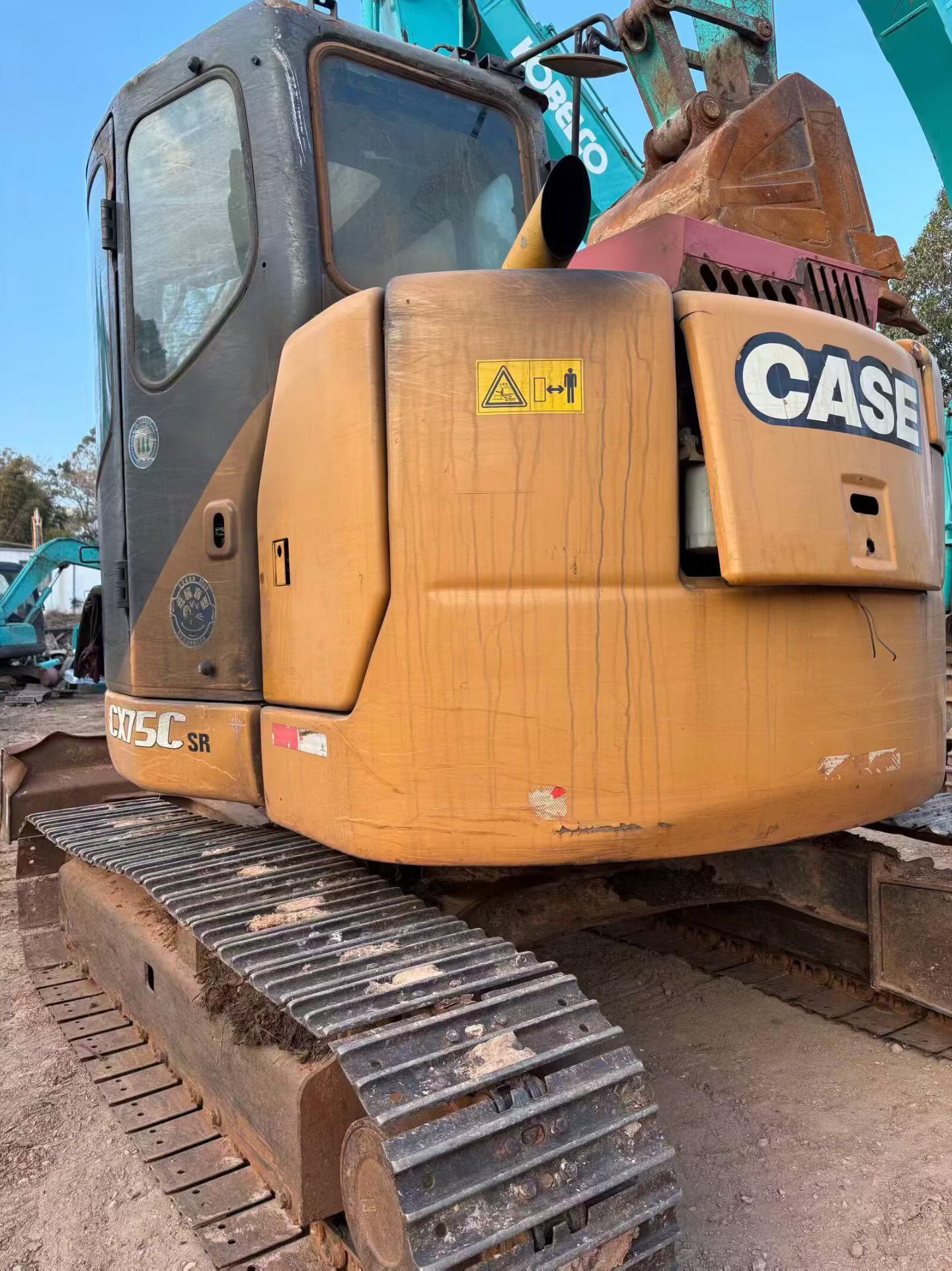

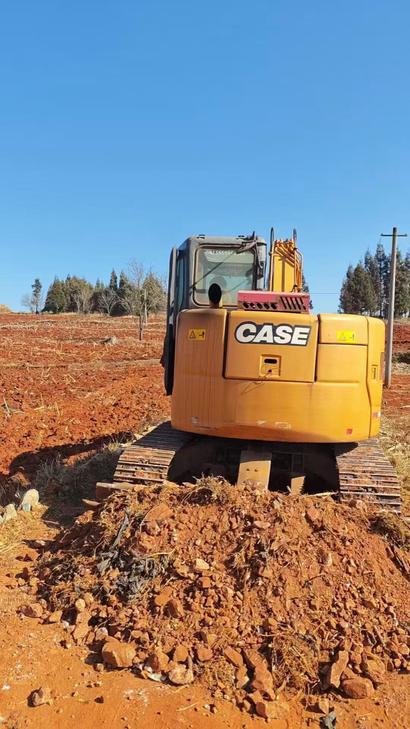

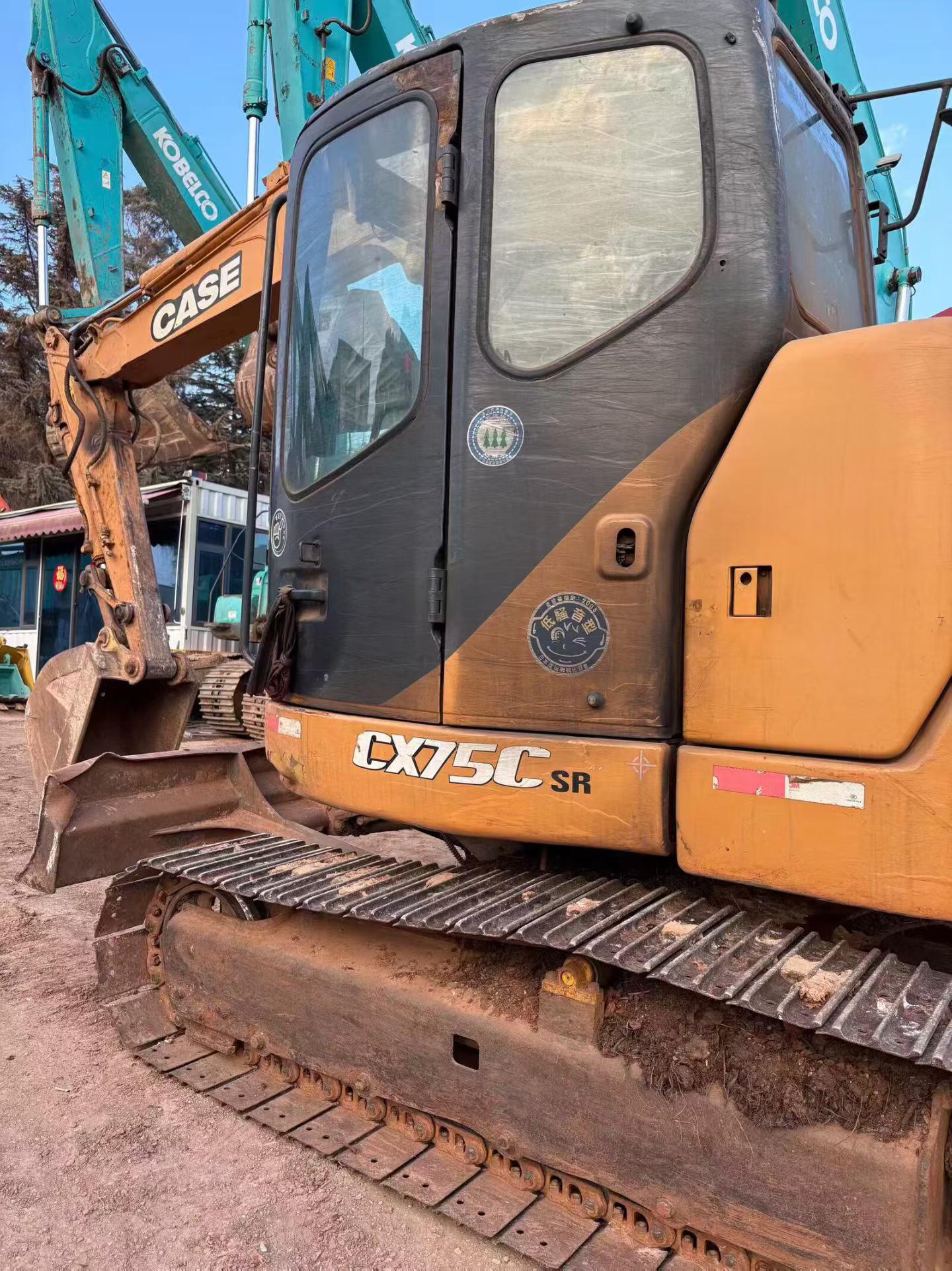

Built for productivity on compact jobsites, this 2010 Case CX75 mini excavator delivers 8-ton performance with the precision and reliability contractors demand. Powered by an ISUZU AU-4LE2X turbocharged diesel engine producing 40kW at 2000 rpm, this machine handles digging, grading, and trenching operations with consistent power delivery through water-cooled efficiency.
Equipped with a 0.28-0.40 m³ bucket and dual variable axial piston pumps flowing 136 L/min combined, the CX75 generates 60 kN bucket digging force and reaches 6.52m maximum digging radius. The 3870mm boom and 1710mm arm provide 4.14m digging depth and 5.25m unloading height—ideal for foundation work, utility installation, and material handling in tight spaces.
Currently located in Hunan, this joint-venture manufactured excavator features:
- Compact transport dimensions: 5915mm length × 2320mm width × 2700mm height
- 9.5 rpm swing speed with quantitative axial piston motor
- 450mm track plates delivering 35 kPa ground pressure for stable operation
- Dual-speed travel: 3.3/5.1 km/h for efficient site mobility
- 100L fuel capacity for extended runtime between refills
Site-ready condition. Ready to depl
| Specifications | Value |
|---|---|
| No. | 1029527 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7950 |
| Bucket capacity (m³) | 0.28-0.40 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU-4LE2X (Tie3) |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 60 |
| Rod digging force (kN) | 41 |
| Travel speed (km/h) | 3.3/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Control Hydraulic Circuit (Mpa) | 4.2 |
| Main pump type | Variable axial piston pump ×2, adjustable |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 5915 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7330 |
| Maximum unloading height (mm) | 5250 |
| Maximum vertical digging depth (mm) | 3640 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
