Product Description
Built for reliability and engineered to last, this 2016 Case CX75 compact excavator delivers proven performance with the backing of a globally trusted brand. Operating at 8 tons with a robust ISUZU AU-4LE2X engine producing 40kW of power, this machine combines efficient fuel consumption with dependable hydraulic systems featuring dual variable axial piston pumps.
Case's extensive dealer network ensures parts availability and service support remain accessible throughout the machine's operational life. Key specifications include:
- Maximum digging depth of 4,140mm with 60kN bucket digging force
- Compact transport dimensions (5,915mm length) for versatile job site mobility
- Water-cooled 4-cylinder turbocharged diesel engine for consistent performance
- Dual-speed travel capability (3.3/5.1 km/h) optimizing productivity
Currently located in Zhejiang Shaoxing, this CX75 represents solid investment value backed by Case's reputation for maintaining strong resale values in the used equipment market. Professional maintenance records and genuine Case components support long-term operational reliability.
| Specifications | Value |
|---|---|
| No. | 992522 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7950 |
| Bucket capacity (m³) | 0.28-0.40 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

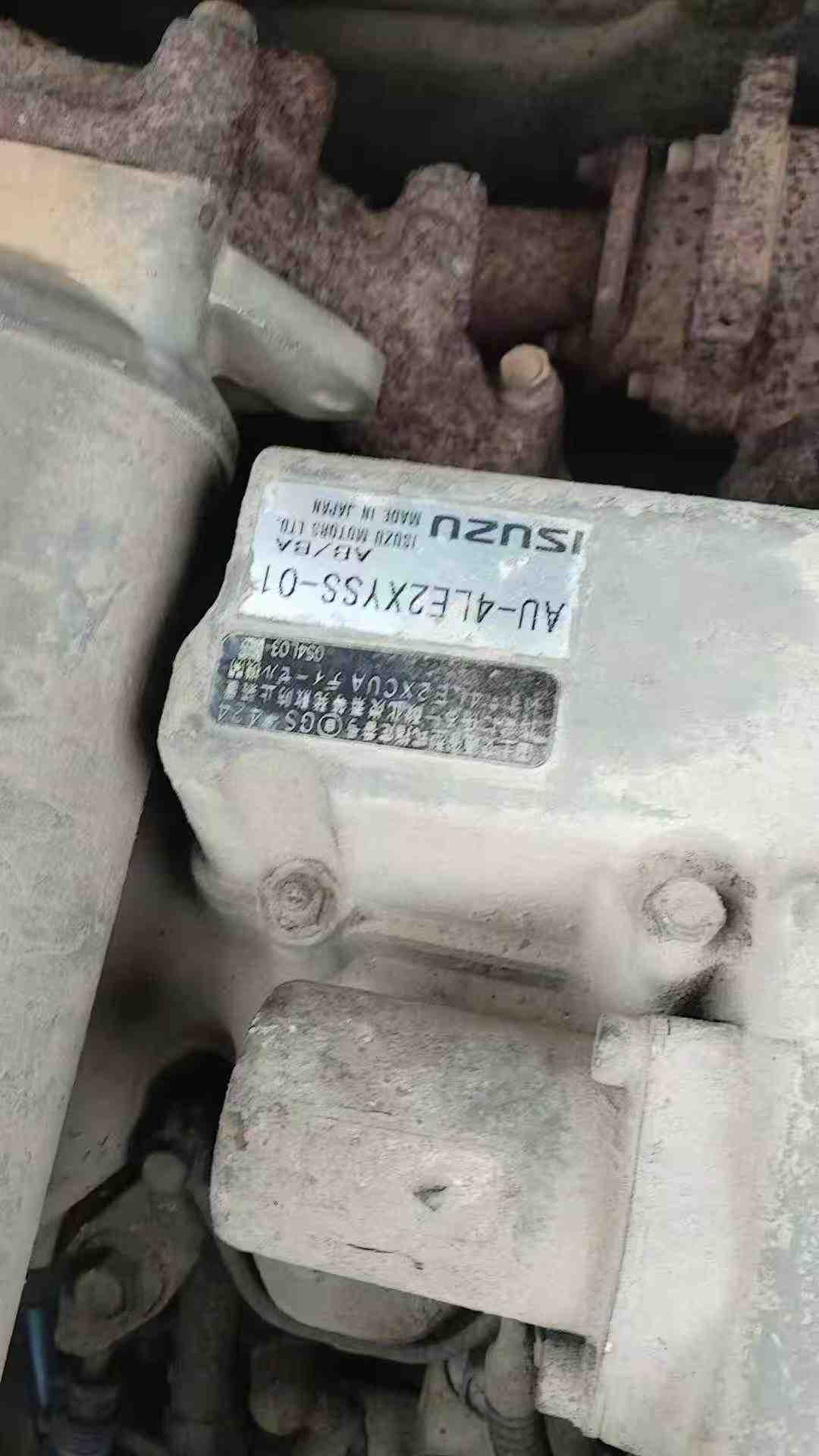

| Engine type | ISUZU AU-4LE2X (Tie3) |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 60 |
| Rod digging force (kN) | 41 |
| Travel speed (km/h) | 3.3/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Control Hydraulic Circuit (Mpa) | 4.2 |
| Main pump type | Variable axial piston pump ×2, adjustable |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 5915 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7330 |
| Maximum unloading height (mm) | 5250 |
| Maximum vertical digging depth (mm) | 3640 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
