Product Description

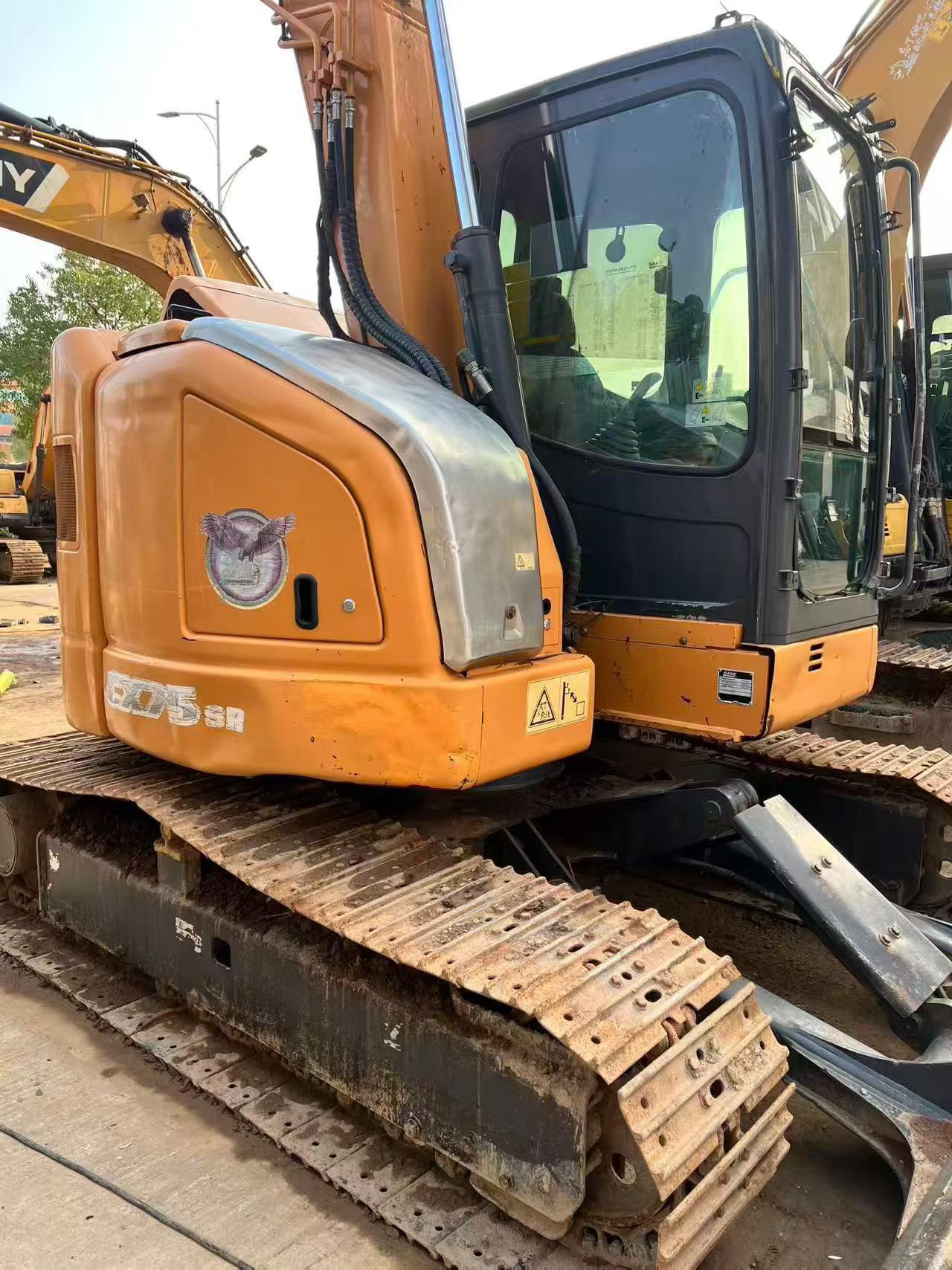

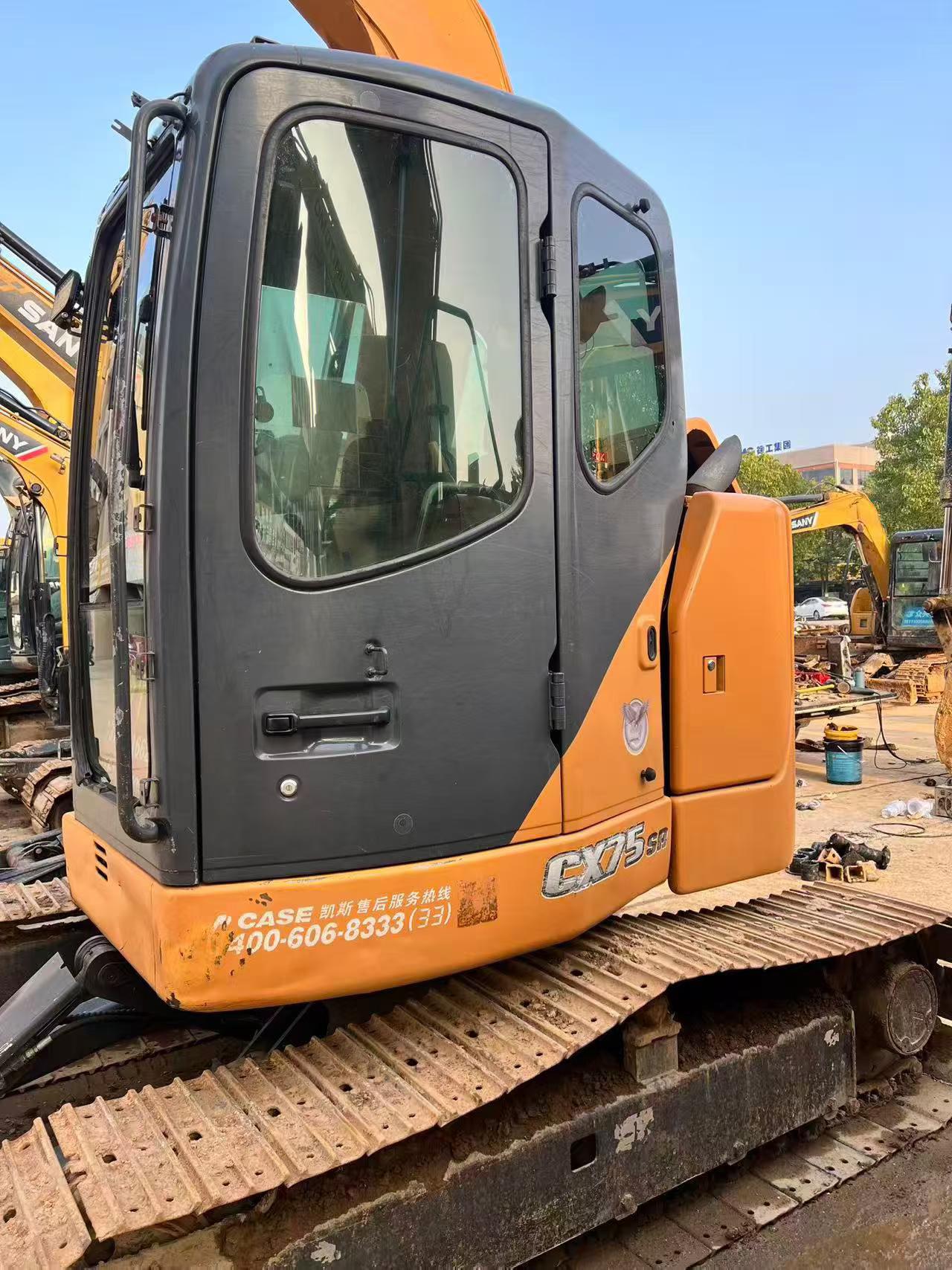

With a working weight of 7950 kg and an 8-ton capacity, this 2019 Case CX75 excavator is an ideal addition to any busy contractor's fleet. Located in 湖南, it features a robust ISUZU AU-4LE2X engine, delivering 40 kW at 2000 rpm, ensuring reliable performance on demanding job sites. Equipped with a backhoe bucket, the CX75 offers a digging force of 60 kN, making it suitable for a variety of excavation tasks. Its compact design, with a total transport width of 2320 mm, allows for easy maneuverability in tight spaces. The variable axial piston pump and motor system provide efficient and precise control, enhancing productivity. This excavator is designed to integrate seamlessly into existing fleets, offering a dependable backup or primary unit for contractors looking to expand their capabilities.
- Working weight: 7950 kg
- Bucket capacity: 0.28-0.40 m³
- Boom length: 3870 mm
- Travel speed: 3.3/5.1 km/h
- Maximum digging depth: 4140 mm
| Specifications | Value |
|---|---|
| No. | 1028244 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7950 |
| Bucket capacity (m³) | 0.28-0.40 |
| Boom length (mm) | 3870 |
| Rod length (mm) | 1710 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

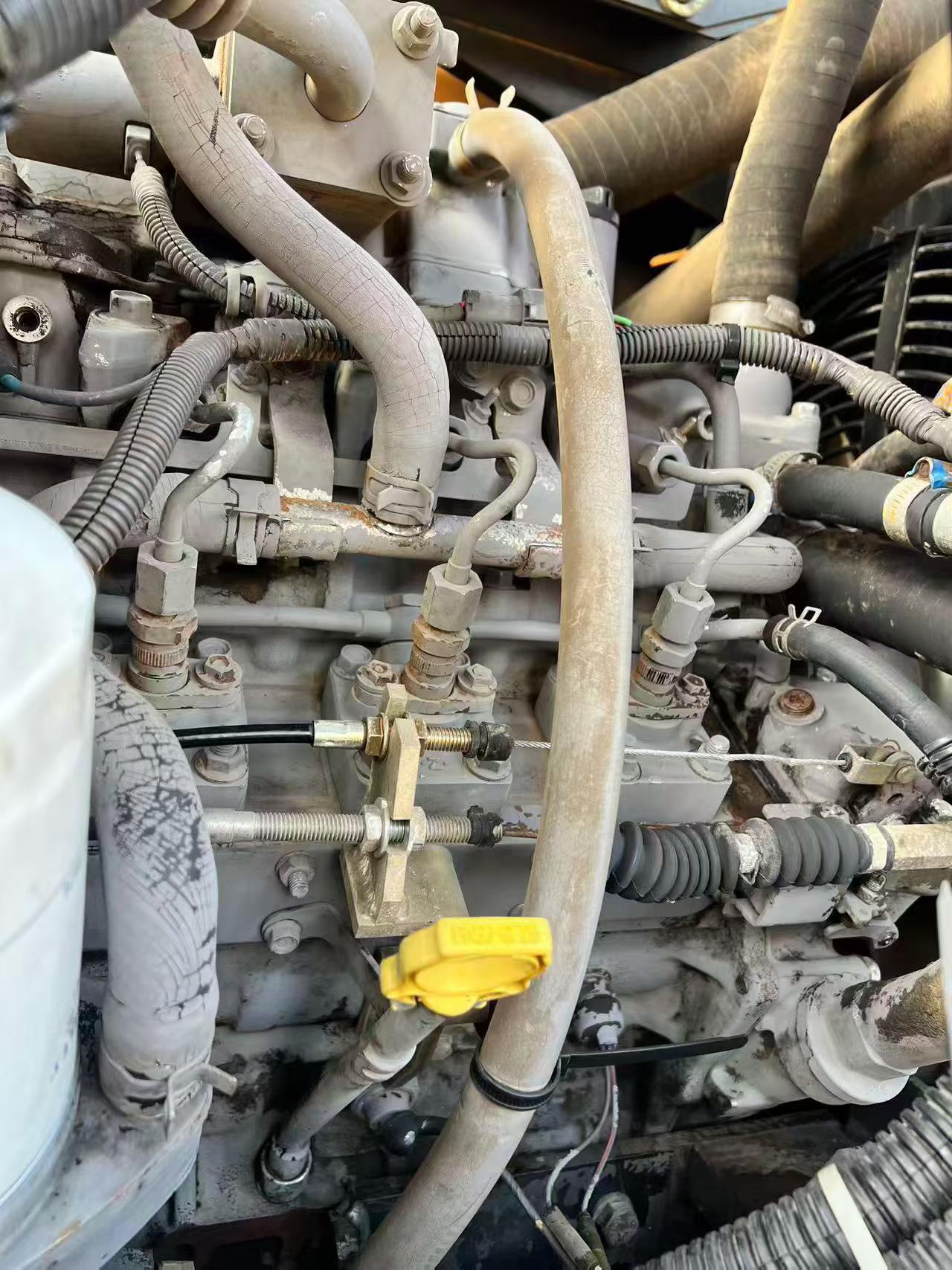

| Engine type | ISUZU AU-4LE2X (Tie3) |
| Rated power (kw/rpm) | 40/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Four-stroke, direct injection, turbocharged and air-cooled diesel engine |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 60 |
| Rod digging force (kN) | 41 |
| Travel speed (km/h) | 3.3/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Control Hydraulic Circuit (Mpa) | 4.2 |

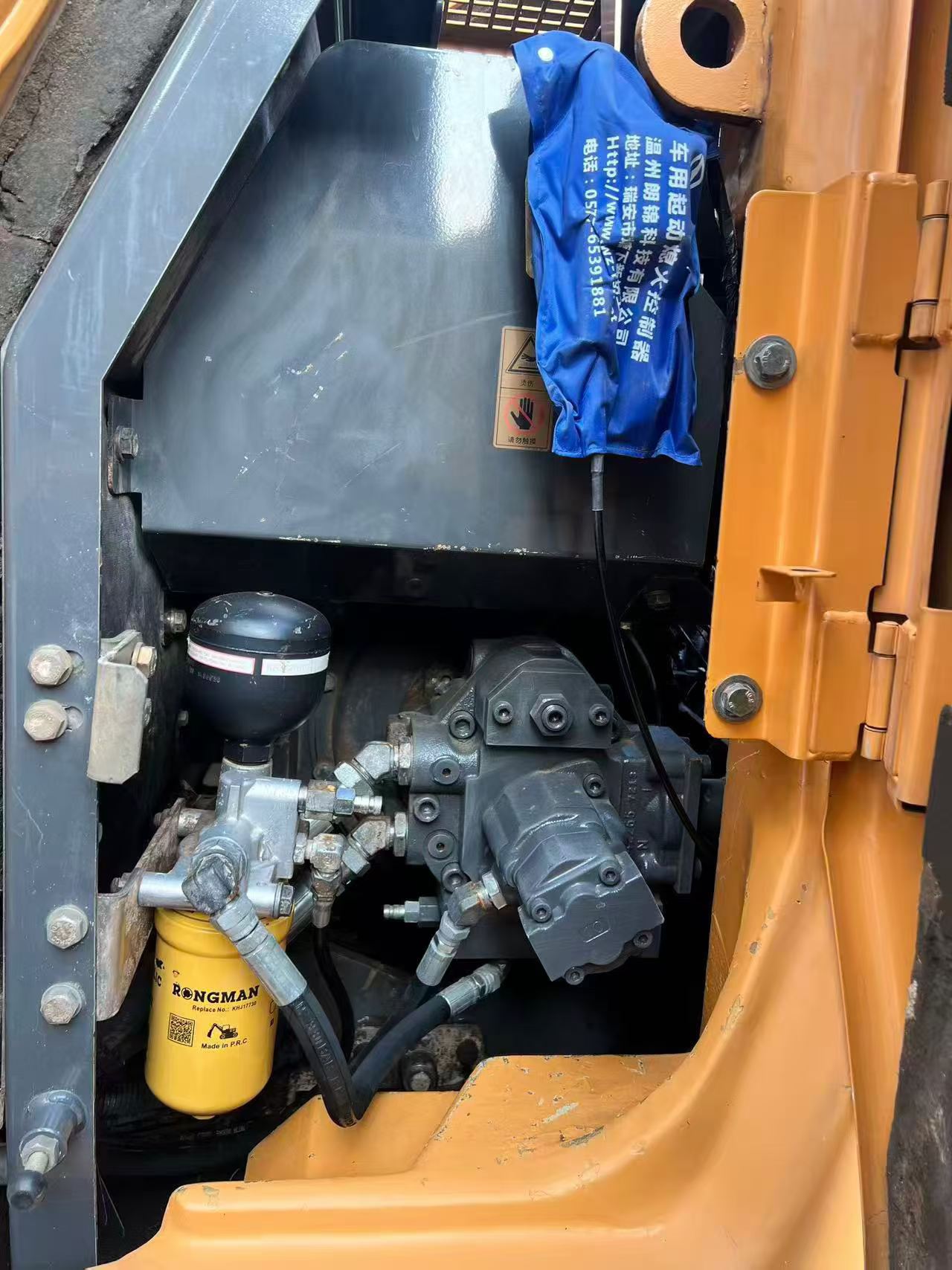

| Main pump type | Variable axial piston pump ×2, adjustable |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 5915 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 745 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1785 |
| Back end turning radius (mm) | 1235 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6520 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7330 |
| Maximum unloading height (mm) | 5250 |
| Maximum vertical digging depth (mm) | 3640 |
| Maximum excavation radius of stop surface (mm) | 6390 |
| Maximum effective digging depth (mm) | 3805 |
