Product Description
Equipped with an Isuzu AU-4LE2X engine, this 2016 Case CX80 delivers a rated power of 40 kW at 2000 rpm, ensuring robust performance. With a working weight of 8430 kg and a tonnage of 8 tons, it features a bucket capacity ranging from 0.18 to 0.34 m³. The hydraulic system is powered by two variable axial piston pumps and a gear pump, providing a maximum flow of 68 * 2 + 21.4 l/min, enhancing efficiency and control.
- Engine: Isuzu AU-4LE2X, 40 kW at 2000 rpm
- Hydraulics: Variable axial piston pumps ×2 + gear pump, 68 * 2 + 21.4 l/min
- Bucket: Backhoe, 0.18-0.34 m³ capacity
- Boom length: 3500 mm, rod length: 1710 mm
- Travel speed: 3.4/5.1 km/h
Located in 四川泸州, this excavator offers a maximum digging depth of 4180 mm and a maximum excavation height of 6390 mm, making it ideal for demanding construction and excavation tasks. Its robust design and advanced engineering ensure reliability and high performance, suitable for various heavy-duty applications.
| Specifications | Value |
|---|---|
| No. | 1033928 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 8430 |
| Bucket capacity (m³) | 0.18-0.34 |
| Boom length (mm) | 3500 |
| Rod length (mm) | 1710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

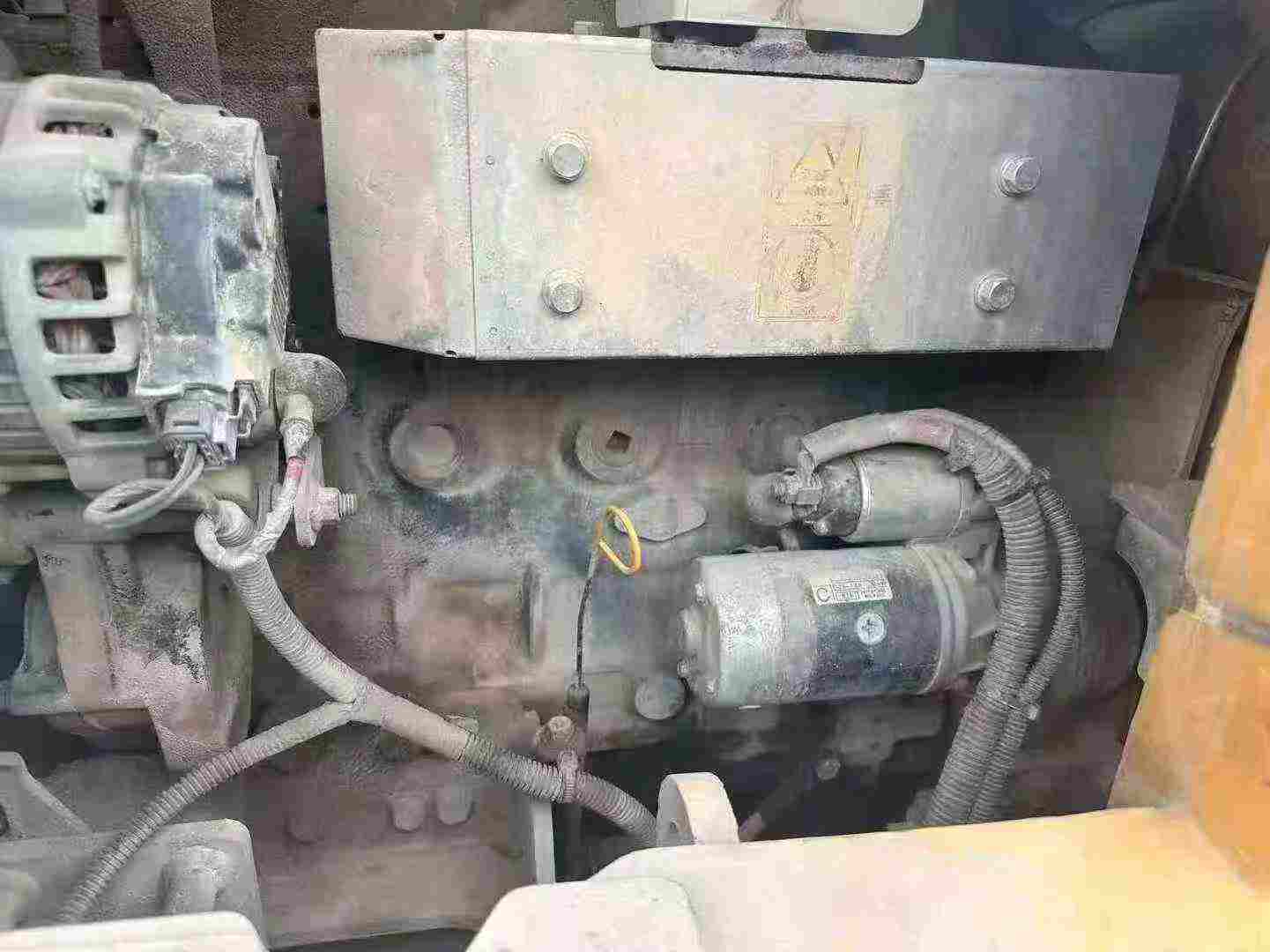

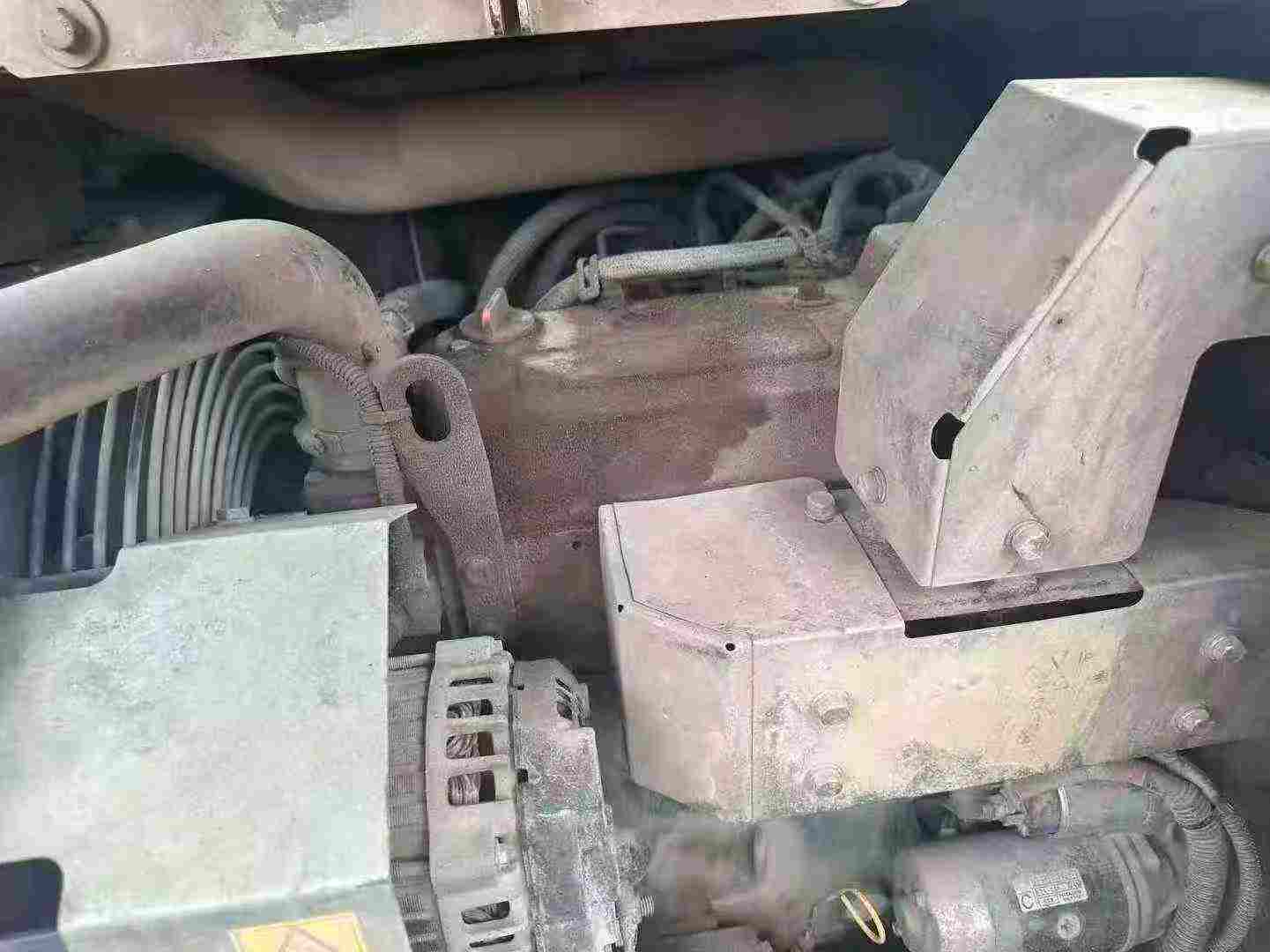

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 56.9 |
| Rod digging force (kN) | 38.3 |
| Travel speed (km/h) | 3.4/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 * 2 + 21.4 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Pilot Oil Circuit (MPa) | 4.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 6660 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 2750 |
| Back end turning radius (mm) | 1660 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 7030 |
| Maximum digging depth (mm) | 4180 |
| Maximum excavation height (mm) | 6390 |
| Maximum unloading height (mm) | 4390 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 420/210 |
| Dodging plate width × height (mm) | 2320 x 450 |
| Maximum excavation radius of stop surface (mm) | 6890 |
| Boom turning Angle (left/right °) | 80/50 |
| Maximum effective digging depth (mm) | 3780 |
