Product Description
With a working weight of 20,120 kg and a rated power of 129 kW, this 20-ton Case WX240 excavator, located in 浙江杭州, is an ideal fleet addition for busy contractors. Equipped with a traditional power engine, the Case 659TA-M2, it offers reliable performance and efficiency.
- Bucket capacities of 1.1, 0.48, and 1.4 m³ ensure versatility for various excavation tasks.
- Maximum digging depth of 6000 mm and maximum unloading height of 7200 mm enhance operational range.
- Total transport dimensions (9675 mm x 2540 mm x 3219 mm) make it suitable for easy transportation to different job sites.
- Fuel tank capacity of 325 L and hydraulic system volume of 160 L support extended operation times.
Integrate this robust and dependable unit into your fleet to ensure consistent productivity and reliability on all your projects.
| Specifications | Value |
|---|---|
| No. | 1000608 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20120 |
| Bucket capacity (m³) | 1.1/0.48/1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

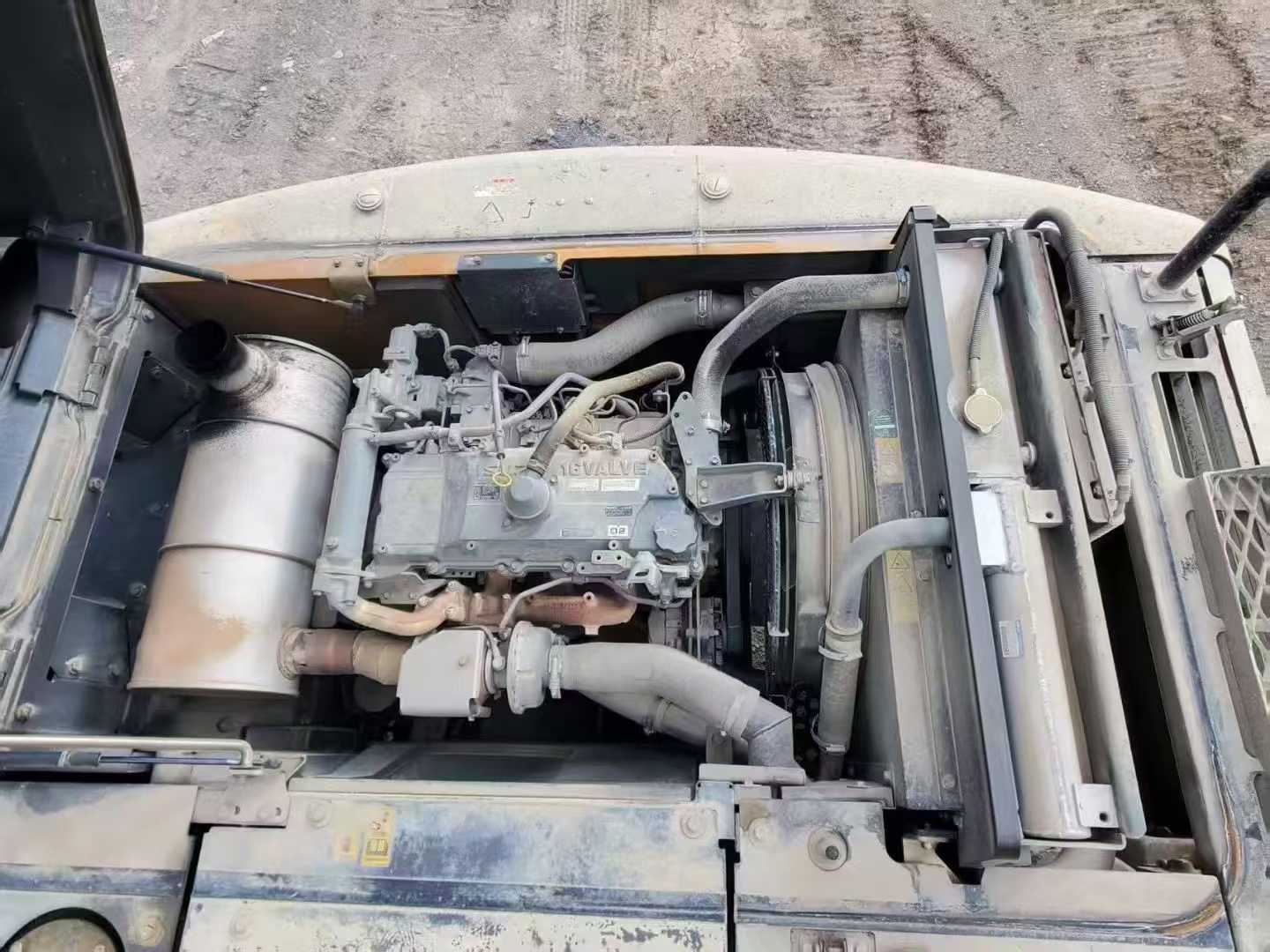

| Engine type | Case case 659TA-M2 |
| Rated power (kw/rpm) | 129/2000 |
| Total displacement (L) | 5.9 |
| Forward speed (Km/h) | 25 |
| Rotation speed (rpm) | 9.5 |
| Main overflow set pressure (Mpa) | 24 |
| Fuel Tank (L) | 325 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 160 |
| Total transport length (mm) | 9675 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 3219 |
| Full cab height (mm) | 3170 |
| Counterweight ground clearance (mm) | 1320 |
| Wheelbase (mm) | 2750 |
| Total tire outside width (mm) | 2540 |
| Minimum ground clearance (mm) | 390 |
| Back end turning radius (mm) | 2750 |
| Maximum excavation radius (mm) | 9600 |
| Maximum digging depth (mm) | 6000 |
| Maximum excavation height (mm) | 9900 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 4200 |
